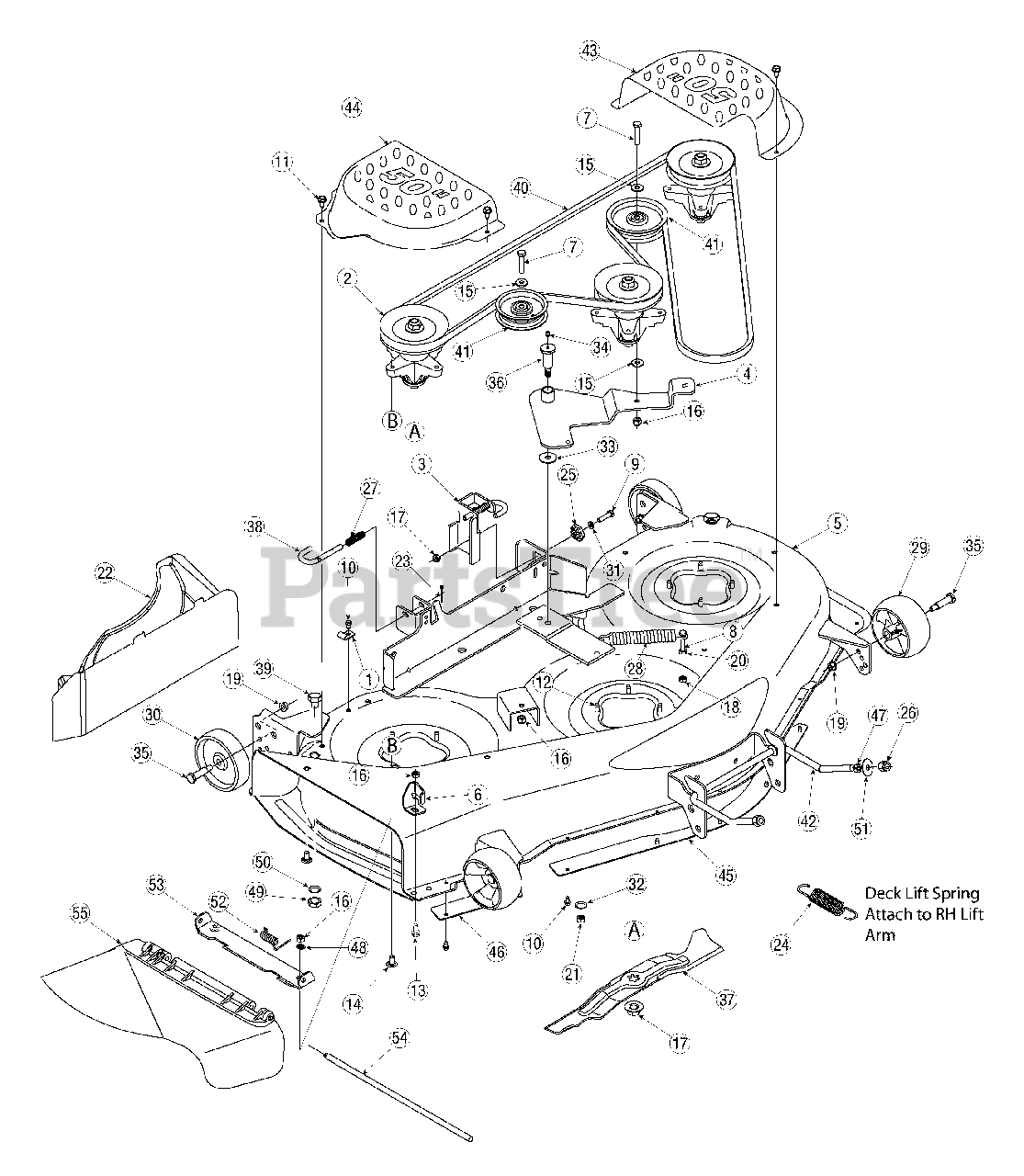

Yard-Man 13AP615P755 - Yard-Man Lawn Tractor (2005) (Walmart) Deck Parts Lookup with Diagrams

1

MTD 96606

Hook, Retainer

$6.99

$

In Stock, Qty 14

2

MTD 918-04126B

Spindle Assembly

(Superseded to 918-04125C) 

$133.99

$

In Stock, Qty 20+

3

MTD 683-0254B

Hanger Bracket Assembly

Variations

MTD 683-0254B-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$46.99

$

In Stock, Qty 9

MTD 683-0254B-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$46.99

$

In Stock, Qty 9

MTD 683-0254B-4021

Deck Bracket Assembly, LH - CUB YELLOW 2 (4021)

$46.99

$

In Stock, Qty 9

MTD 683-0254B-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

MTD 683-0254B-4033

Deck Bracket Assembly, LH - FLINT MICA (4033)

$46.99

$

Usually ships in 3-6 days

MTD 683-0254B-4044

Deck Bracket Assembly, LH - CRAFTSMAN RED (4044)

$46.99

$

In Stock, only 1 left!

MTD 683-0254B-0606

Deck Bracket Assembly, LH - MAJESTIC ORANGE (0606)

$46.99

$

Usually ships in 3-6 days

MTD 683-0254B-0638

Deck Bracket Assembly, LH - MTD/TROY-BILT RED (0638)

$46.99

$

Usually ships in 3-6 days

MTD 683-0254B-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$46.99

$

In Stock, only 1 left!

MTD 683-0254B-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$46.99

$

Usually ships in 3-6 days

MTD 683-0254B-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$46.99

$

Usually ships in 3-6 days

MTD 683-0254B-4008

BRACKET ASM-DECK LH - WINE RED (4008)

$43.99

$

Usually ships in 3-6 days

MTD 683-0254B-0709

BRACKET ASM-DECK LH - MASTERCRAFT GREEN (0709)

$46.99

$

Usually ships in 3-6 days

MTD 683-0254B-4028

BRACKET ASM-DECK LH - SEARS YELLOW (4028)

$46.99

$

Usually ships in 3-6 days

$43.99

$

Usually ships in 3-6 days

4

MTD 683-04098

Idler Bracket

Variations

MTD 683-04098-0637

Idler Assembly, 50" Deck - POWDER BLACK (0637)

$41.99

$

In Stock, only 4 left!

MTD 683-04098-4008

Idler Assembly, 50" Deck - WINE RED (4008)

$41.99

$

In Stock, only 4 left!

$33.99

$

Usually ships in 3-6 days

5

MTD 983-04075

Weldment, 50-inch Deck

(Superseded to 983-04075B) 

Variations

MTD 983-04075-0638

SHELL-50" DECK - MTD/TROY-BILT RED (0638)

$1098.99

$

Usually ships in 3-6 days

MTD 983-04075-0716

Mower Deck Shell, 50" - CUB YELLOW-99 (0716)

$1098.99

$

Usually ships in 3-6 days

MTD 983-04075-4008

SHELL-50" DECK - WINE RED (4008)

$1098.99

$

Usually ships in 3-6 days

MTD 983-04075-0665

SHELL-50" DECK - YARDMAN GREEN (0665)

$1098.99

$

Usually ships in 3-6 days

MTD 983-04075-0691

SHELL-DECK 50" - BLACK JACK (0691)

$1098.99

$

Usually ships in 3-6 days

$889.99

$

Usually ships in 3-6 days

6

MTD 703-3279

Chute Stop

Variations

MTD 703-3279-0606

Chute Deflector Stop - MAJESTIC ORANGE (0606)

$37.99

$

In Stock, only 3 left!

MTD 703-3279-0650

Chute Deflector Stop - RED METALLIC (0650)

$37.99

$

In Stock, only 3 left!

MTD 703-3279-4033

Chute Deflector Stop - FLINT MICA (4033)

$37.99

$

In Stock, only 3 left!

MTD 703-3279-0637

Chute Deflector Stop - POWDER BLACK (0637)

$37.99

$

In Stock, only 3 left!

MTD 703-3279-0638

Chute Deflector Stop - MTD/TROY-BILT RED (0638)

$37.99

$

In Stock, only 3 left!

MTD 703-3279-4021

Chute Deflector Stop - CUB YELLOW 2 (4021)

$37.99

$

In Stock, only 3 left!

MTD 703-3279-0498

Chute Deflector Stop - OLD CUB YELLOW (0498)

$37.99

$

In Stock, only 3 left!

MTD 703-3279-0665

Chute Deflector Stop - YARDMAN GREEN (0665)

$37.99

$

In Stock, only 3 left!

MTD 703-3279-0691

Chute Deflector Stop - BLACK JACK (0691)

$37.99

$

In Stock, only 3 left!

MTD 703-3279-4008

Chute Deflector Stop - WINE RED (4008)

$37.99

$

In Stock, only 3 left!

MTD 703-3279-4028

Chute Deflector Stop - SEARS YELLOW (4028)

$37.99

$

In Stock, only 3 left!

MTD 703-3279-4044

Chute Deflector Stop - CRAFTSMAN RED (4044)

$37.99

$

In Stock, only 3 left!

$37.99

$

In Stock, only 3 left!

7

MTD 710-0347

Screw, 3/8-16, 1.75

$4.99

$

In Stock, Qty 20+

8

MTD 710-3103

Screw, 5/16-18 x 2.00

$4.49

$

In Stock, Qty 19

9

MTD 710-0528

Screw, 5/16-18, 1.25, Gr5

$4.49

$

In Stock, Qty 20+

10

MTD 710-0599

Screw, 1/4-20 x 0.5

$3.99

$

In Stock, Qty 20+

11

MTD 710-0607

Screw, 5/16-18 x.500

$6.49

$

In Stock, Qty 20+

12

MTD 710-1260A

Screw, 5/16-18 x.75

$3.49

$

In Stock, Qty 20+

13

MTD 710-3168

Screw, Carriage, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

14

MTD 710-3178

Screw, Carriage, 3/8-16 x.75

$3.99

$

In Stock, Qty 20+

15

MTD 936-0300

Washer, Flat,.406 x.875 x.059

(Superseded to 736-0300) 

$3.99

$

In Stock, Qty 20+

16

MTD 712-04065

Nut, Nylon Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

17

MTD 912-0429

Nut, Hex, Lock, 5/16-18

(Superseded to 712-0429) 

$3.99

$

In Stock, Qty 20+

18

MTD 712-04063

Nut, Nylon Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

19

MTD 912-0431

Nut, Flange Lock, 3/8-16

$4.99

$

In Stock, Qty 20+

20

MTD 912-3010

Nut, Hex, 5/16-18, Gr5

(Superseded to 712-3010) 

$4.49

$

In Stock, Qty 20+

21

MTD 912-3019

Nut, 7/16-14

(Superseded to 712-3019) 

$6.49

$

In Stock, only 4 left!

22

MTD 731-04651

Mulch Plug

$78.99

$

In Stock, Qty 6

23

MTD 914-0470

Pin, Cotter, 1/8 x 1.25

(Superseded to 714-0470) 

$3.99

$

In Stock, Qty 20+

24

MTD 732-0934

Extension Spring, 1.15 Dia. x 5.99 Lg.

$10.99

$

In Stock, only 2 left!

25

MTD 917-04074

Deck Adjustment Gear

$12.99

$

In Stock, Qty 20+

26

MTD 712-3083

Lock Nut, Hex, 1/2-13, Nylon

$4.49

$

In Stock, Qty 20+

27

MTD 932-0306A

Spring, Compression,.531 x 1.75

$7.99

$

In Stock, Qty 20+

28

MTD 732-0459C

Spring, Extension,.94 x 6.74

$17.99

$

In Stock, Qty 20+

29

MTD 753-04856A

Deck Wheel, 5.0

$19.99

$

In Stock, Qty 20+

30

MTD 734-0973

Deck Wheel, 5.0

$12.99

$

In Stock, Qty 20+

31

MTD 936-0119

Washer, Lock, 5/16, Regular Duty

$4.49

$

In Stock, Qty 20+

32

MTD 736-0407

Washer, Bell,.45 x 1.0 x.062

$3.99

$

In Stock, Qty 7

33

MTD 936-0406

Washer, Flat,.442 x 1.38 x.060

$6.49

$

In Stock, Qty 11

34

MTD 937-3000

Fitting, Lube, 3/16

$4.49

$

In Stock, Qty 20+

35

MTD 938-0373

Shoulder Screw

$8.49

$

In Stock, Qty 20+

36

MTD 638-04012A

Screw, Shoulder,.68 x 1.59

$20.99

$

In Stock, Qty 20+

37

MTD 942-04053C

Blade

$28.99

$

In Stock, Qty 20+

38

MTD 747-1116

Rod, Handle, Deck Release.375 Dia

$11.99

$

In Stock, Qty 20+

39

MTD 738-04146

Screw Plug, M16 x 1.5

$8.99

$

Usually ships in 3-6 days

40

MTD 954-04048

Belt, V-Type, Aramid

$66.99

$

In Stock, Qty 12

41

MTD 756-04129B

Pulley, Idler, 3.5"

(Superseded to 753-08171) 

$33.99

$

In Stock, Qty 20+

42

MTD 747-1324

Rod, Deck Adjustment

$53.99

$

In Stock, only 1 left!

43

MTD 783-04399

LH Belt Cover

Variations

MTD 783-04399-0637

Belt Cover, LH Black - POWDER BLACK (0637)

$88.99

$

In Stock, only 3 left!

MTD 783-04399-0606

Belt Cover, LH Orange - MAJESTIC ORANGE (0606)

$88.99

$

In Stock, only 3 left!

MTD 783-04399-0650

Belt Cover, LH - RED METALLIC (0650)

$88.99

$

In Stock, only 3 left!

MTD 783-04399-0691

Belt Cover, LH Black - BLACK JACK (0691)

$88.99

$

In Stock, only 3 left!

MTD 783-04399-0716

Belt Cover, LH - CUB YELLOW-99 (0716)

$88.99

$

Usually ships in 3-6 days

MTD 783-04399-4008

COVER-BELT LH - WINE RED (4008)

$71.99

$

In Stock, only 1 left!

MTD 783-04399-4021

Belt Cover, LH Yellow - CUB YELLOW 2 (4021)

$88.99

$

Usually ships in 3-6 days

MTD 783-04399-4033

Belt Cover, LH Flint - FLINT MICA (4033)

$88.99

$

In Stock, only 3 left!

MTD 783-04399-4044

COVER-BELT LH - CRAFTSMAN RED (4044)

$88.99

$

In Stock, only 3 left!

MTD 783-04399-0638

COVER-BELT LH - MTD/TROY-BILT RED (0638)

$88.99

$

In Stock, only 3 left!

MTD 783-04399-0665

COVER-BELT LH - YARDMAN GREEN (0665)

$

Not available 

$88.99

$

In Stock, only 3 left!

44

MTD 783-04400

RH Belt Cover

Variations

MTD 783-04400-4021

Belt Cover, RH Yellow - CUB YELLOW 2 (4021)

$88.99

$

In Stock, Qty 7

MTD 783-04400-0606

Belt Cover, RH Orange - MAJESTIC ORANGE (0606)

$88.99

$

Usually ships in 3-6 days

MTD 783-04400-0637

Belt Cover, RH Black - POWDER BLACK (0637)

$88.99

$

In Stock, Qty 7

MTD 783-04400-0638

COVER-BELT RH - MTD/TROY-BILT RED (0638)

$88.99

$

Usually ships in 3-6 days

MTD 783-04400-0650

COVER-BELT RH - RED METALLIC (0650)

$82.99

$

Usually ships in 3-6 days

MTD 783-04400-4033

COVER-BELT RH - FLINT MICA (4033)

$88.99

$

Usually ships in 3-6 days

MTD 783-04400-0665

COVER-BELT RH - YARDMAN GREEN (0665)

$88.99

$

Usually ships in 3-6 days

MTD 783-04400-4008

COVER-BELT RH - WINE RED (4008)

$88.99

$

Usually ships in 3-6 days

MTD 783-04400-0691

Belt Cover, RH Black - BLACK JACK (0691)

$

Not available 

MTD 783-04400-0716

No Longer Available - CUB YELLOW-99 (0716)

$

Not available 

MTD 783-04400-4044

COVER-BELT RH - CRAFTSMAN RED (4044)

$

Not available 

$88.99

$

Usually ships in 3-6 days

45

MTD 783-04414A

Deck Skirt, Center

Variations

MTD 783-04414A-4021

Center Skirt for 50" Deck, Yellow - CUB YELLOW 2 (4021)

$32.99

$

In Stock, Qty 5

MTD 783-04414A-0637

Center Deck Skirt, 50" - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

MTD 783-04414A-0606

Center Skirt for 50" Deck, Orange - MAJESTIC ORANGE (0606)

$32.99

$

In Stock, only 2 left!

MTD 783-04414A-0716

Center Deck Skirt, 50" - CUB YELLOW-99 (0716)

$30.99

$

Usually ships in 3-6 days

MTD 783-04414A-0665

SKIRT-CENTER 50" - YARDMAN GREEN (0665)

$32.99

$

Usually ships in 3-6 days

MTD 783-04414A-0691

SKIRT-CENTER 50" - BLACK JACK (0691)

$30.99

$

Usually ships in 3-6 days

MTD 783-04414A-4008

SKIRT-CENTER 50" - WINE RED (4008)

$30.99

$

Usually ships in 3-6 days

MTD 783-04414A-4033

Center Skirt for 50" Deck, Flint - FLINT MICA (4033)

$32.99

$

Usually ships in 3-6 days

MTD 783-04414A-4044

SKIRT-CENTER 50" - CRAFTSMAN RED (4044)

$32.99

$

Usually ships in 3-6 days

MTD 783-04414A-4028

SKIRT-CENTER 50" - SEARS YELLOW (4028)

$32.99

$

Usually ships in 3-6 days

$30.99

$

Usually ships in 3-6 days

46

MTD 783-04415

Deck Skirt, RH

Variations

MTD 783-04415-4021

Right Skirt for 50" Deck - CUB YELLOW 2 (4021)

$28.99

$

In Stock, Qty 5

MTD 783-04415-0606

Right Skirt for 50" Deck - MAJESTIC ORANGE (0606)

$28.99

$

In Stock, Qty 5

MTD 783-04415-0637

Right Skirt for 50" Deck - POWDER BLACK (0637)

$28.99

$

In Stock, Qty 6

MTD 783-04415-0665

SKIRT-RH 50" - YARDMAN GREEN (0665)

$28.99

$

In Stock, Qty 6

MTD 783-04415-0691

SKIRT-RH 50" - BLACK JACK (0691)

$28.99

$

In Stock, Qty 6

MTD 783-04415-0716

Right Skirt for 50" Deck - CUB YELLOW-99 (0716)

$28.99

$

In Stock, Qty 6

MTD 783-04415-4008

SKIRT-RH 50" - WINE RED (4008)

$28.99

$

In Stock, only 1 left!

MTD 783-04415-4028

Right Skirt for 50" Deck - SEARS YELLOW (4028)

$28.99

$

Usually ships in 3-6 days

MTD 783-04415-4033

Right Skirt for 50" Deck - FLINT MICA (4033)

$28.99

$

In Stock, Qty 6

MTD 783-04415-4044

SKIRT-RH 50" - CRAFTSMAN RED (4044)

$26.99

$

Usually ships in 3-6 days

$26.99

$

Usually ships in 3-6 days

47

MTD 912-0206

Hex Nut, 1/2-13

(Superseded to 712-0206) 

$3.99

$

In Stock, Qty 20+

48

MTD 712-0229

Push Nut, 3/8

$3.49

$

In Stock, Qty 20+

49

MTD 912-0641

Hex Nut, M16-1.5

(Superseded to 712-0641) 

$5.99

$

In Stock, Qty 20+

50

MTD 736-0225

Lock Washer, 5/8

$3.99

$

In Stock, Qty 11

51

MTD 736-3084

Flat Washer,.51 x 1.12 x.06

$4.49

$

In Stock, Qty 20+

52

MTD 732-3070A

Torsion Spring,.44ID x 2.10

$10.99

$

In Stock, Qty 5

53

MTD 783-04470

Chute Bracket

$30.99

$

In Stock, only 1 left!

54

MTD 711-1762

Hinge Pin

$17.99

$

In Stock, only 1 left!

55

MTD 931-3131A

Chute Deflector

$100.99

$

In Stock, Qty 11

MTD 631-04070A

Chute Assembly

(Superseded to 631-04070C) 

Note: Not shown

$116.99

$

In Stock, Qty 20+

13AP615P755 - Yard-Man Lawn Tractor (2005) (Walmart) Deck Parts Diagram

Deck Parts Diagram
