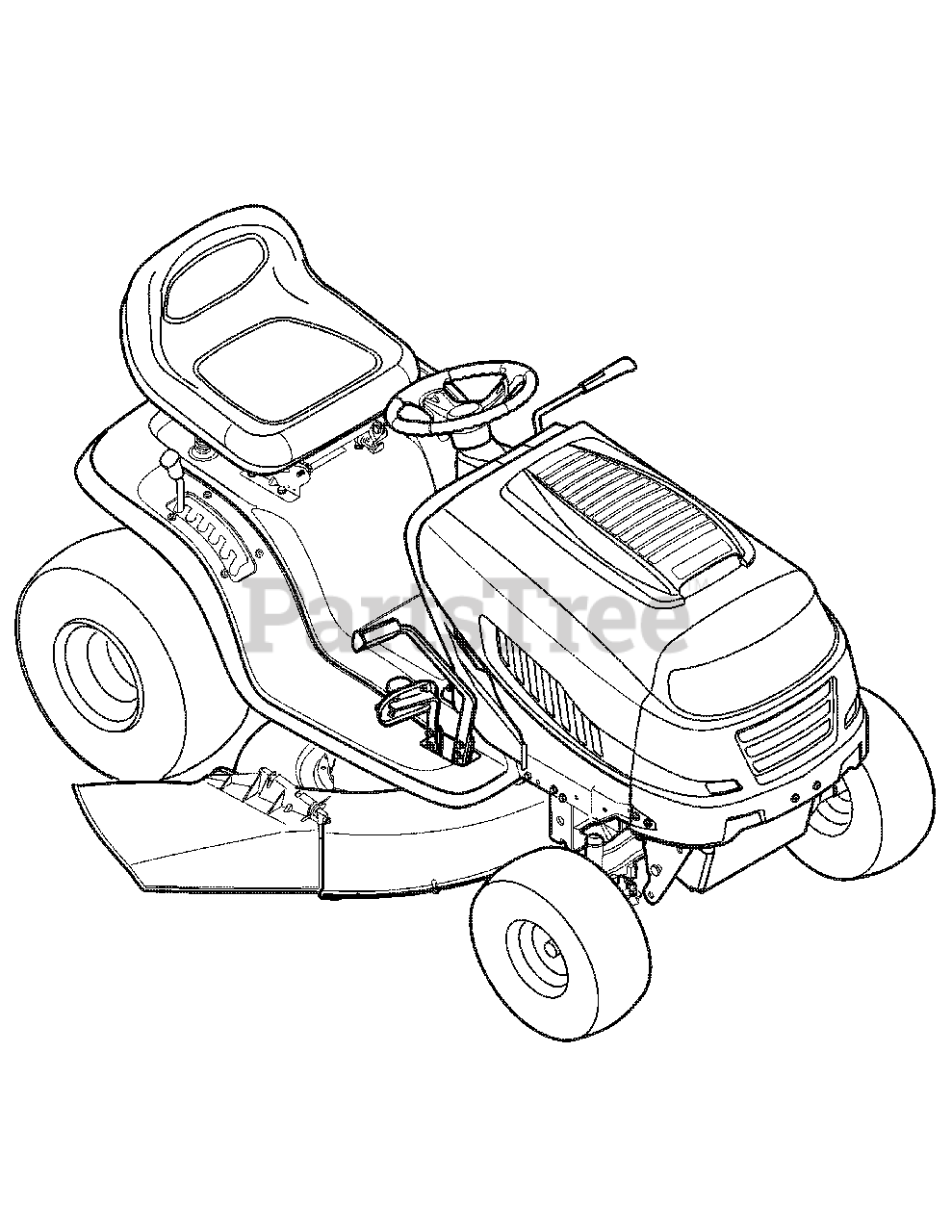

13AP61KP011 - Troy-Bilt Horse Lawn Tractor (2008) .Quick Reference Horse Parts Diagram

Horse Lawn Tractor

.Quick Reference Horse Parts Diagram

  • Title

Troy-Bilt KH-12-050-01-S

Oil Filter

$13.99

$

In Stock, Qty 20+

0

Troy-Bilt OCC-32-083-03

Air Filter
(Superseded to 3288303S1C)

$27.99

$

In Stock, Qty 20+

0

N/A

Pre Cleaner

$

$

Not available

Troy-Bilt 759-3336

Spark Plug
(Superseded to RC12YC)

$3.99

$

Usually ships in 3-6 days

0

Troy-Bilt KH-25-050-22-S1

Fuel Filter

$9.99

$

Usually ships in 2-5 days

0

Troy-Bilt 742-04053C

Blades
(Superseded to 942-04053C)

$30.99

$

In Stock, Qty 20+

0

Troy-Bilt 712-0417A

Blade Nut

$7.49

$

In Stock, Qty 20+

0

N/A

Upper Drive Belt

$

$

Not available

Troy-Bilt 754-04165

Lower Drive Belt
(Superseded to 954-04165)

$56.99

$

In Stock, Qty 12

0

Troy-Bilt 754-04164

Deck Spindle Belt
(Superseded to 954-04164)

$85.99

$

In Stock, only 4 left!

0

Troy-Bilt 618-04125A

Deck Spindle
(Superseded to 918-04125C)

$141.99

$

In Stock, Qty 20+

0

Troy-Bilt 925-1745

Ignition Keys
(Superseded to 925-1745A)

$18.99

$

In Stock, Qty 20+

0

Troy-Bilt 725-04439

Solenoid
(Superseded to 725-04439B)

$42.99

$

In Stock, Qty 20+

0

Troy-Bilt 951-3111

Fuel Cap
(Superseded to 751-0603B)

$24.99

$

In Stock, Qty 7

0

Troy-Bilt 734-04155

Deck Wheels

Note: Front

$21.99

$

In Stock, Qty 20+

0

Troy-Bilt 734-0973

Deck Wheels
(Superseded to 734-06265)

Note: Rear

$13.99

$

Usually ships in 3-6 days

0

Troy-Bilt 923-0448A

Ball Joints

$25.99

$

In Stock, Qty 20+

0

Troy-Bilt 741-0516B

Wheel Bushings

$6.49

$

In Stock, Qty 20+

0

Troy-Bilt 741-0990B

Wheel Bushings

Note: In Board

$10.99

$

In Stock, Qty 20+

0

Troy-Bilt 925-04039

Deck Switch

$25.99

$

In Stock, Qty 20+

0

Troy-Bilt 925-04039

Brake Switch

$25.99

$

In Stock, Qty 20+

0

Troy-Bilt 721-04041

Water Nozzle Adapter
(Superseded to 921-04041)

$24.99

$

In Stock, Qty 20+

0

Troy-Bilt 631-04070A

Discharge Chute
(Superseded to 631-04070C)

$130.99

$

In Stock, Qty 7

0

Troy-Bilt 731-04651

Mulch Plug

$83.99

$

In Stock, only 2 left!

0

Troy-Bilt OEM-190-192

Triple Bagger Grass Collector
(Superseded to 19A40002OEM)

Note: Attachment

$

$

Not available

Troy-Bilt OEM-190-032

42-inch Two-stage Snow Thrower

Note: Attachment

$

$

Not available

Troy-Bilt 19A-218-000

Rear Weight Kit w/ 1 Suitcase Weight

Note: Attachment

$

$

Currently unavailable

Troy-Bilt OEM-19A-128

Suitcase Weight
(Superseded to 490-900-M059)

Note: Attachment

$92.99

$

Usually ships in 3-6 days

0

Troy-Bilt OEM-190-607

Deluxe Tractor Sunshade

Note: Attachment

$

$

Not available

Troy-Bilt OEM-190-679

Bumper

Note: Attachment

$98.99

$

Usually ships in 3-6 days

0

Troy-Bilt OEM-190-658

Tire Chains, 20 x 8 Tires
(Superseded to 490-241-0023)

Note: Attachment

$93.99

$

In Stock, only 2 left!

0

MTD OEM-190-751

Snow Cab

Note: Attachment

$

$

Not available

Troy-Bilt OEM-190-833

46-inch Front Dozer Blade
(Superseded to 19A30017OEM)

Note: Attachment

$511.99

$

Usually ships in 3-6 days

0

Troy-Bilt 490-900-0025

Deck Wash Kit
(Superseded to 490-900-M061)

Note: Attachment

$22.99

$

In Stock, Qty 12

0
