13AP61KP011 - Troy-Bilt Horse Lawn Tractor (2009) Steering Assembly Parts Diagram

Horse Lawn Tractor

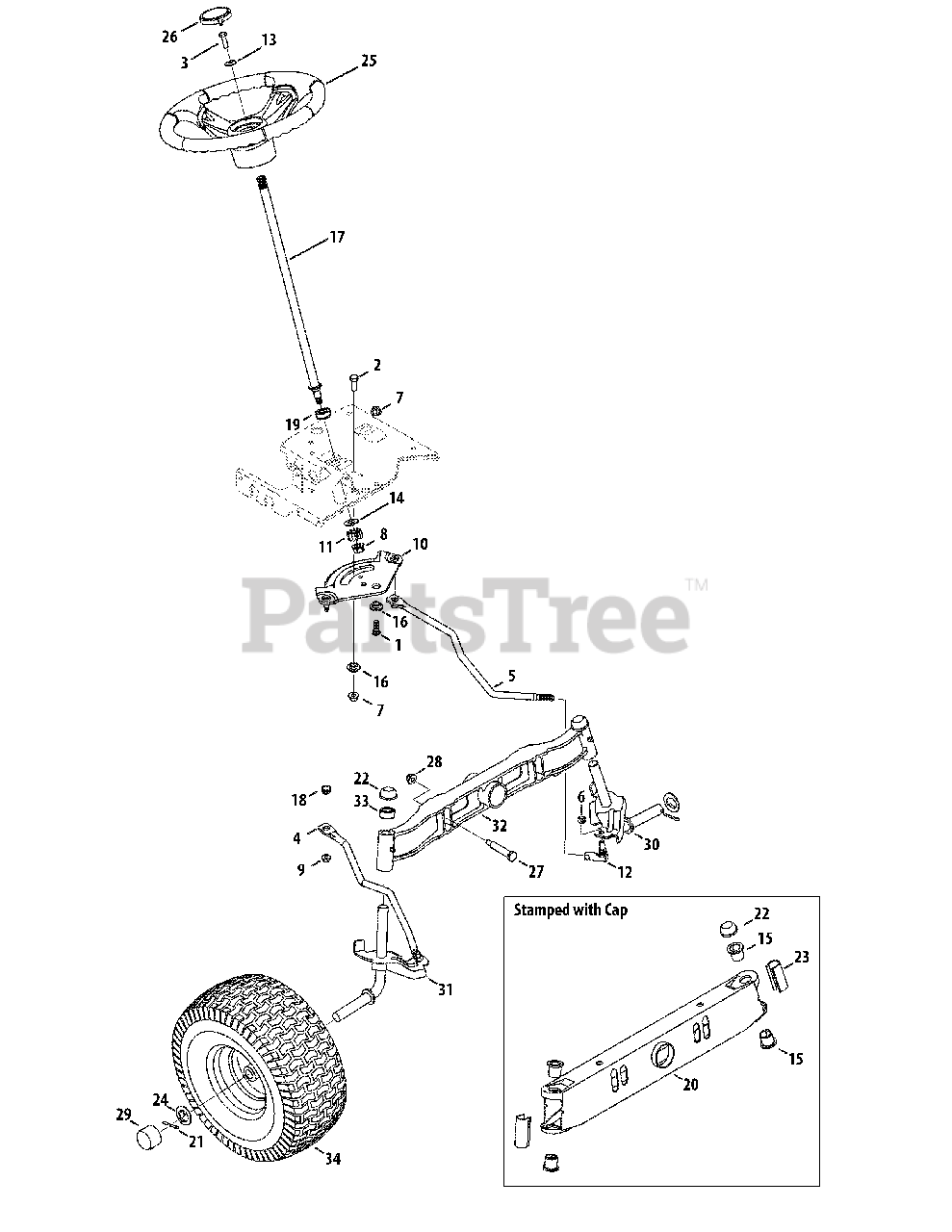

Steering Assembly Parts Diagram

  • Title

1

Troy-Bilt 710-04095

Hex Screw, 3/8-16, 1.00, Gr5

$4.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0514

Hex Screw, 3/8-16, 1.00, Gr5

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0643

Hex Screw, 5/16-18, 1.00, Gr5

$6.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 711-1408

Link, Drag, RH

$

$

Not available

5

Troy-Bilt 711-1409A

Link, Drag, LH

$

$

Not available

6

Troy-Bilt 912-0214

Nut, Hex Lock, 3/8-24
(Superseded to 712-0214)

$5.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-04065

Nut, Flange Lock, 3/8-16, Grf

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-0459

Nut, Flange Lock, 7/16-20

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 917-1550E

Gear, Steering, 11/90 Ratio
(Superseded to 717-1550F)

$65.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 717-1554

Gear, Pinion, Steering

$10.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 923-0448A

Ball Joint, 7/16-20, Lock

$22.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 936-3004

Washer, Flat, .406 x .875 x .105
(Superseded to 736-3004)

$

$

Not available

14

Troy-Bilt 736-3084

Washer, Flat, .51 x 1.12 x .06

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 741-0660A

Flange Bearing

$2.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 738-04154

Spacer, Shoulder, .38 x 1.00 x .31

$5.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 738-04263

Shaft, Steering, .625 OD x 24.25

$63.99

$

In Stock, Qty 8

0

18

Troy-Bilt 941-0475

Plastic Bushing .380 ID

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 741-04237A

Hex Flange Bearing
(Superseded to 741-04237B)

$6.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 683-0128B-0637

Pivot Bar Axle Assembly

Note: (Stamped Steel Axle)

$90.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 714-0162

Cotter Pin, 5/32 x 1.25

Note: (Cast Axle)

$4.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 726-0341

Push Cap, 3/4

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 931-1291A

Pivot Bar End Cap

$15.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 736-04228A

Flat Washer, .781 x 1.59
(Superseded to 736-04228B)

$4.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 631-04008A

Steering Wheel
(Superseded to 631-04008B)

$88.99

$

In Stock, Qty 12

0

26

Troy-Bilt 731-04681

Steering Wheel Cap, TB Logo

$13.99

$

In Stock, Qty 9

0

27

Troy-Bilt 738-04128

Shoulder Bolt, .5 x 2.38, 3/8-16

$7.49

$

In Stock, only 2 left!

0

28

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 731-05674

Hub Cap, Standard

$4.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 938-04006A-0637

LH Axle Assembly, .750 (42" Deck)

$50.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 638-04003AP

LH Axle Assembly, .750 (50" Deck)

$76.99

$

In Stock, Qty 10

0

31

Troy-Bilt 938-04005A-0637

RH Axle Assembly, .750 (42" Deck)

$50.99

$

In Stock, only 2 left!

0

31

Troy-Bilt 938-04004A

RH Axle Assembly, .750 (50" Deck)

$66.99

$

In Stock, Qty 10

0

32

Troy-Bilt 719-04177A

Pivot Bar Axle Assembly
(Superseded to 919-04177E)

Note: (Cast Iron Axle)

$231.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 737-3000

Lube Fitting, 3/16
(Superseded to 937-3000)

Note: (not shown)

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 748-04068

Spacer, Shoulder, .71 x .125 x .56

$3.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 634-04086-0911

Wheel Assembly Complete, 15x6
(Superseded to 634-05067-0911)

$172.99

$

In Stock, only 4 left!

0

34

Troy-Bilt 734-1731-0901

Tire Only 15 x 6 x 6

Note: (not shown)

$46.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 934-04081-0662

Rim Only
(Superseded to 634-05066-0662)

Note: (not shown) (Includes bearings and valve stem)

$98.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 741-0990B

Bearing, Flange, .76 ID w/ Lube Fitting

Note: (not shown)

$9.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 741-0516B

Bearing, Flange, .76 x 1.0 x 1.2

Note: (not shown)

$5.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 934-0255

Valve, tubeless Air

Note: (not shown)

$3.99

$

In Stock, Qty 20+

0
