13AP91RT848 (LX 468) - Toro Lawn Tractor (2011) 46 Inch Deck Assembly Parts Diagram

Lawn Tractor

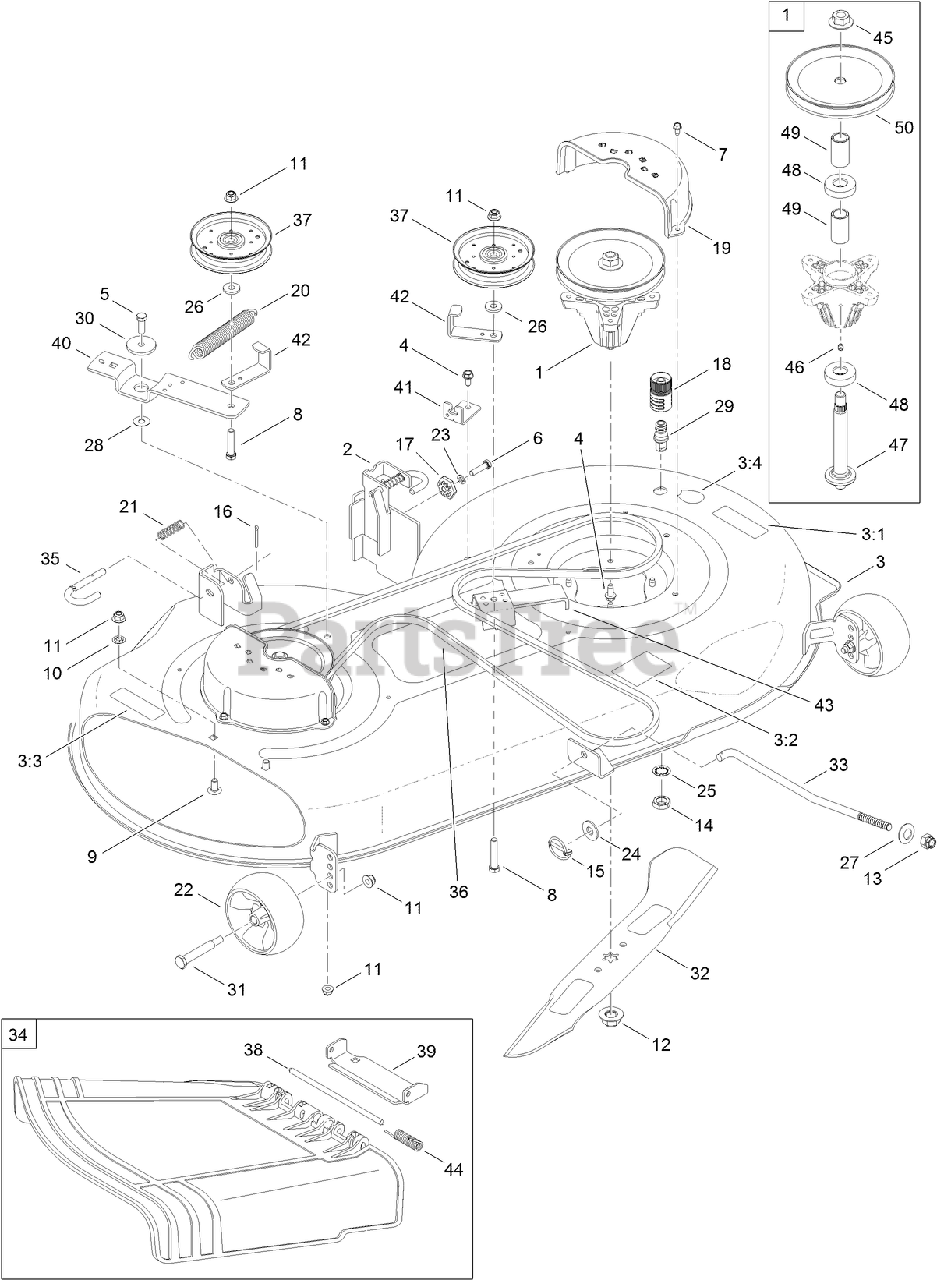

46 Inch Deck Assembly Parts Diagram

  • Title

1

Toro 119-9060

See Supercession: 125-0079
(Superseded to 125-0079)

$

$

Not available

2

Toro 112-0413

LH HANGER BRACKET ASM

$86.99

$

In Stock, only 3 left!

0

3

Toro 119-9131

46 INCH DECK AND DECAL ASM

$

$

Not available

3:1

Toro 112-6284

DECAL-DECK

$

$

Not available

3:2

Toro 119-8476

DECAL-BELT ROUTING

$

$

Not available

3:3

Toro 112-6285

DECAL-CHUTE

$

$

Not available

3:4

Toro 119-8474

DECAL-DECK WASH SYSTEM

$

$

Not available

4

Toro 112-6070

SCREW-TAP

$7.49

$

In Stock, only 3 left!

0

5

Toro 112-0492

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

6

Toro 112-0373

SCREW-HH

$7.99

$

In Stock, only 2 left!

0

7

Toro 112-0524

SCREW-HWHTF

$7.99

$

Usually ships in 3-6 days

0

8

Toro 112-0421

SCREW-HH

$

$

Not available

9

Toro 112-0452

BOLT-CARR

$7.99

$

Usually ships in 3-6 days

0

10

Toro 112-0440

NUT-PUSH

$6.49

$

Usually ships in 3-6 days

0

11

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

Usually ships in 3-6 days

0

12

Toro 112-0330

NUT-LOCK, FLANGE

$12.99

$

In Stock, only 4 left!

0

13

Toro 119-8449

NUT

$

$

Not available

14

Toro 112-0351

NUT-HEX

$11.99

$

Usually ships in 3-6 days

0

15

Toro 119-9062

PIN-LYNCH

$20.99

$

Usually ships in 3-6 days

0

16

Toro 112-0412

PIN-COTTER

$7.99

$

Usually ships in 3-6 days

0

17

Toro 112-0327

GEAR-ADJUSTMENT, DECK

$27.99

$

In Stock, only 3 left!

0

18

Toro 112-0916

ADAPTER-NOZZLE, WATER

$49.99

$

Usually ships in 3-6 days

0

19

Toro 119-9063

COVER-BELT, UNIVERSAL

$

$

Not available

20

Toro 112-6043

SPRING-EXTENSION

$33.99

$

Usually ships in 3-6 days

0

21

Toro 119-8451

SPRING-COMPRESSION

$14.99

$

Usually ships in 3-6 days

0

22

Toro 112-0677

WHEEL-DECK, FRONT

$29.99

$

In Stock, only 2 left!

0

23

Toro 112-0366

WASHER-LOCK

$

$

Not available

24

Toro 119-8454

WASHER-FLAT

$9.49

$

Usually ships in 3-6 days

0

25

Toro 112-0643

WASHER-LOCK

$6.99

$

Usually ships in 3-6 days

0

26

Toro 112-0541

WASHER-FLAT

$7.99

$

Usually ships in 3-6 days

0

27

Toro 119-8455

WASHER-BELLVILLE

$

$

Not available

28

Toro 119-9065

WASHER-FLAT

$10.99

$

Usually ships in 3-6 days

0

29

Toro 112-6274

NOZZLE-WATER, DECK

$

$

Not available

30

Toro 112-0584

SPACER-SHOULDER

$46.99

$

In Stock, only 1 left!

0

31

Toro 112-0325

BOLT-SHOULDER

$20.99

$

Usually ships in 3-6 days

0

32

Toro 119-9066

BLADE-2-IN-1

$64.99

$

In Stock, only 1 left!

0

33

Toro 119-8457

ROD-LIFT, DECK

$54.99

$

Usually ships in 3-6 days

0

34

Toro 119-9067

CHUTE ASM

$

$

Not available

35

Toro 112-0436

PIN-HANDLE, DECK RELEASE

$24.99

$

In Stock, only 2 left!

0

36

Toro 119-9068

BELT-V

$173.99

$

Usually ships in 3-6 days

0

37

Toro 112-0314

PULLEY-IDLER

$67.99

$

In Stock, Qty 11

0

38

Toro 119-8461

PIN-HINGE

$

$

Not available

39

Toro 119-9069

BRACKET-CHUTE

$

$

Not available

40

Toro 119-8464

BRACKET-PIVOT, IDLER

$74.99

$

Usually ships in 3-6 days

0

41

Toro 119-8465

BRACKET-CABLE, DECK ENGAGE

$10.99

$

In Stock, only 1 left!

0

42

Toro 119-8466

BRACKET-GUARD, BELT

$

$

Not available

43

Toro 119-8469

BRACKET-SUPPORT, IDLER

$

$

Not available

44

Toro 119-8463

SPRING-TORSION

$14.99

$

Usually ships in 3-6 days

0

45

Toro 112-0330

NUT-LOCK, FLANGE

$12.99

$

In Stock, only 4 left!

0

46

Toro 112-0926

FITTING-GREASE

$8.49

$

In Stock, Qty 5

0

47

Toro 112-6278

SHAFT-SPINDLE

$85.99

$

Usually ships in 3-6 days

0

48

Toro 112-0377

BEARING-BALL

$36.99

$

In Stock, only 1 left!

0

49

Toro 112-6252

SPACER

$10.99

$

In Stock, only 2 left!

0

50

Toro 119-9070

PULLEY-DECK

$82.99

$

Usually ships in 3-6 days

0
