13AP925P004 - MTD Gold Lawn Tractor (2012) Drive & Rear Wheels Parts Diagram

Gold Lawn Tractor

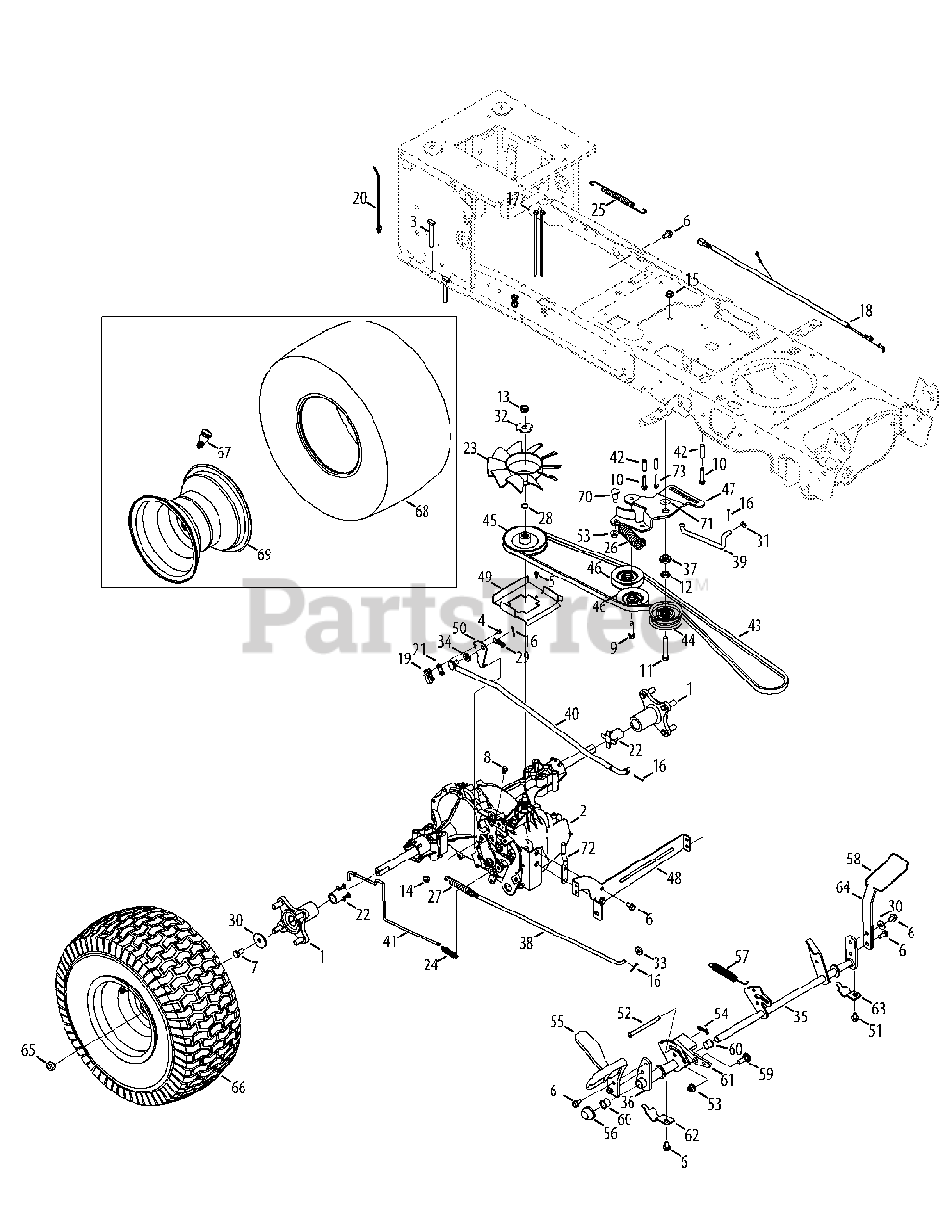

Drive & Rear Wheels Parts Diagram

  • Title

1

MTD 918-04228

Wheel Hub Assembly
(Superseded to 918-04228A)

$46.99

$

In Stock, Qty 9

0

2

MTD 918-04270B

Hydro Transmission

$

$

Not available

3

MTD 710-0176

Hex Head Screw, 5/16-18x2.75

$4.49

$

In Stock, only 2 left!

0

4

MTD 710-0227

Screw, Indented Washer, #8-18x0.500

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-0351

Screw, #10-16:0.500

$4.49

$

In Stock, only 4 left!

0

6

MTD 710-04484

Taptite Screw, 5/16-18x.750

$3.49

$

In Stock, Qty 20+

0

7

MTD 710-0627

Hex Head Screw, 5/16-24x.750

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-0653

Taptite Screw, 1/4-20x0.375

$4.49

$

In Stock, Qty 16

0

9

MTD 710-1007

Taptite Sems Screw, 3/8-16x1.500

$5.99

$

In Stock, Qty 7

0

10

MTD 710-1325

Taptite Screw, 1/4-20x1.625

$4.49

$

In Stock, Qty 5

0

11

MTD 710-3011

Hex Head Screw, 3/8-16x2.25

$6.49

$

In Stock, Qty 20+

0

12

MTD 912-0240

Jam Nut, 7/16-20

$3.99

$

In Stock, Qty 20+

0

13

MTD 912-0346

Jamlock Nut, 1/2-20
(Superseded to 712-0346)

$4.49

$

In Stock, Qty 18

0

14

MTD 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

MTD 912-0431

Flangelock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

16

MTD 914-0111

Cotter Pin, 3/32x1.0
(Superseded to 714-0111)

$4.49

$

In Stock, Qty 20+

0

17

MTD 725-0157

Cable Tie. 3/16 x .05 x 7.4

$3.49

$

In Stock, only 4 left!

0

18

MTD 725-04791A

Jumper Harness

$14.99

$

Usually ships in 3-6 days

0

19

MTD 725-1644

Short Spring Switch

$8.99

$

In Stock, only 2 left!

0

20

MTD 926-0154

Push Mount Cable Tie 7.5 LG

$5.99

$

Usually ships in 3-6 days

0

21

MTD 926-0320

Insulator Nut Plate

$6.49

$

In Stock, Qty 10

0

22

MTD 731-05300A

Sleeve, .765 ID x 1.500 LG

$4.49

$

In Stock, only 2 left!

0

23

MTD 731-06098

Hydro Fan

$18.99

$

In Stock, Qty 20+

0

24

MTD 932-0209

Extension Spring, .48 OD x 2.03

$7.49

$

In Stock, Qty 12

0

25

MTD 732-04606

Extension Spring, .500 DIA x 12.6 LG

$11.99

$

In Stock, only 1 left!

0

26

MTD 732-04792

Extension Spring, 1.00 DIA x 4.75

$8.49

$

In Stock, Qty 11

0

27

MTD 732-0716D

Extension Spring, .59 OD x 4.00 LG

$12.99

$

In Stock, Qty 20+

0

28

MTD 732-0729

Wire Ring

$4.49

$

In Stock, Qty 6

0

29

MTD 732-3118

Extension Spring, .375 OD x 1.44 LG

$9.49

$

In Stock, Qty 10

0

30

MTD 736-0242

Bell Washer, .340 x .872 x .060

$3.99

$

In Stock, Qty 20+

0

31

MTD 936-0264

Flat Washer, .330 x .630 x .0635

$6.49

$

In Stock, Qty 11

0

32

MTD 736-04263

Lock Washer

$6.49

$

In Stock, Qty 20+

0

33

MTD 936-3008

Flat Washer, .344 x .750 x .120

$6.49

$

In Stock, only 1 left!

0

34

MTD 736-3010

Flat Washer, .407 x .812 x .135

$4.49

$

In Stock, Qty 20+

0

35

MTD 647-04152D

Brake Control Assembly

$

$

Not available

36

MTD 683-04537

Hydro Pedal Bracket Assembly
(Superseded to 683-04537A)

$

$

Not available

37

MTD 738-04420

Shoulder Spacer, 1.375 x .380 x .183

$6.49

$

In Stock, Qty 11

0

38

MTD 747-04139

Brake Rod

$22.99

$

In Stock, only 1 left!

0

39

MTD 747-04957A

Footpedal Bypass Transmission Rod

$13.99

$

Usually ships in 3-6 days

0

40

MTD 747-04979

Hydro Control Rod

$108.99

$

In Stock, only 1 left!

0

41

MTD 747-04991

Hydro Bypass Rod

$9.49

$

Usually ships in 3-6 days

0

42

MTD 750-04456

Spacer, 260 x .372 x 1.420 LG

$6.99

$

In Stock, Qty 20+

0

43

MTD 954-04207

V-Belt, 4L x 78.9 POLY

$38.99

$

In Stock, Qty 20+

0

44

MTD 756-04224

Flat Idler Pulley, 2.75 OD

$24.99

$

In Stock, Qty 20+

0

45

MTD 756-04308

Input Pulley, 4.13 DIA

$29.99

$

In Stock, only 3 left!

0

46

MTD 756-04325

V Idler Pulley, x 3.06

$22.99

$

In Stock, Qty 20+

0

47

MTD 783-06027A

Center Idler Bracket
(Superseded to 783-06027B)

$

$

Not available

48

MTD 783-06133-0637

Hydro Mounting Bracket

$31.99

$

Usually ships in 3-6 days

0

49

MTD 783-06260-0637

Belt Disengage Support Bracket

$26.99

$

Usually ships in 3-6 days

0

50

MTD 783-1019B

Switch Actuator Bracket

$10.99

$

In Stock, only 1 left!

0

51

MTD 710-0604A

Taptite Screw, 5/16-18:0.625

$3.99

$

In Stock, Qty 20+

0

52

MTD 711-05068

Clevis Pin, 5/16 x 3.985
(Superseded to 711-05068A)

$7.49

$

In Stock, only 1 left!

0

53

MTD 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

54

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

55

MTD 719-0584B-0637

Control Pedal

$55.99

$

In Stock, only 2 left!

0

56

MTD 726-0214

Push Cap

$9.99

$

In Stock, Qty 20+

0

57

MTD 732-04587

Extension Spring, .63 DIA x 4.95 LG

$6.99

$

In Stock, Qty 20+

0

58

MTD 735-04136

Brake Pedal Pad

$14.99

$

Usually ships in 3-6 days

0

59

MTD 938-0380

Shoulder Bolt, .500 x .270:3/8-16
(Superseded to 738-0380)

$7.49

$

In Stock, Qty 18

0

60

MTD 741-0495

Flange Bearing, .630 ID x .695 OD x .60

$4.49

$

In Stock, Qty 12

0

61

MTD 748-04203

Cruise Latch

$13.99

$

Usually ships in 3-6 days

0

62

MTD 783-05914

Pedal Support Bracket

$6.99

$

Usually ships in 3-6 days

0

63

MTD 783-05940

Pedal Support Bracket, 5/8

$6.99

$

Usually ships in 3-6 days

0

64

MTD 783-06103A-0637

Brake Pedal Bracket

$16.99

$

Usually ships in 3-6 days

0

65

MTD 712-3050

Lug Nut

$9.49

$

In Stock, Qty 20+

0

66

MTD 634-04210-0911

Wheel Assembly

$270.99

$

In Stock, only 2 left!

0

67

MTD 934-0255

Tubeless Air Valve

$3.99

$

In Stock, Qty 20+

0

68

MTD 734-04174

Tire

$105.99

$

Usually ships in 3-6 days

0

69

MTD 634-04238-0662

Rim Assembly
(Superseded to 634Z04238-0662)

$184.99

$

Usually ships in 3-6 days

0

70

MTD 738-0430

Screw, Shldr, .50 x .685 3/8-16

$10.99

$

In Stock, Qty 5

0

71

MTD 936-0344

Washer, Flat, .385 x 1.0 x .030
(Superseded to 736-0344)

$4.49

$

In Stock, Qty 20+

0

72

MTD 747-05444

Belt Keeper Rod
(Superseded to 747-05444A)

$9.99

$

In Stock, only 1 left!

0

73

MTD 710-1026

Screw, Self Tapping, 1/4-20 x 1.75

$6.49

$

In Stock, Qty 20+

0
