13AT605H718 - MTD Pro Lawn Tractor (2006) Seat and Fender Parts Diagram

Pro Lawn Tractor

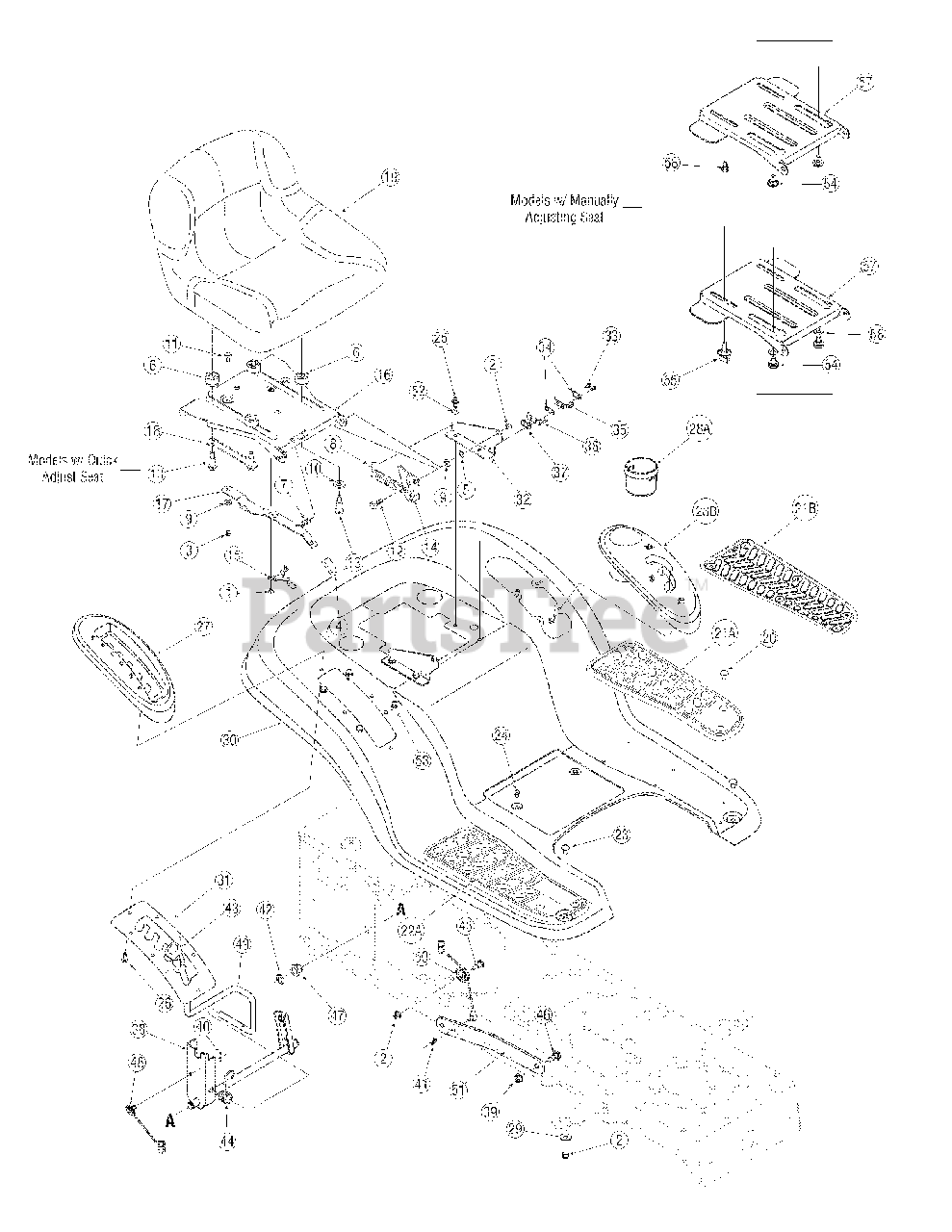

Seat and Fender Parts Diagram

  • Title

1

MTD 710-1268

Screw, #10-16 x.375 (if equipped)

$3.99

$

In Stock, only 2 left!

0

2

MTD 712-04063

Nut, Flange Lock, 5/16-18, GrF

$3.99

$

In Stock, Qty 20+

0

3

MTD 712-04064

Nut, Flange Lock, 1/4-20 (if equipped)

$3.99

$

In Stock, Qty 20+

0

4

MTD 720-0309A

Seat Adjuster Grip (if equipped)

$8.99

$

Usually ships in 3-6 days

0

5

MTD 726-0201

Nut, Speed,.3125 ID (if equipped)

$6.49

$

In Stock, Qty 20+

0

6

MTD 731-04074

Spacer (if equipped)

$6.99

$

In Stock, Qty 20+

0

7

MTD 732-0499

Compression Spring,.41 x 1.5 (if equipped)

$8.99

$

In Stock, only 3 left!

0

8

MTD 732-1184

Spring, Extension,.84 Dia. x 4.6

$10.99

$

In Stock, Qty 14

0

9

MTD 936-0275

Wash, Flat,.344 x.688 x.065 (if equipped)
(Superseded to 736-0275)

$

$

Not available

10

MTD 736-3019

Wash, Flat,.531x 1.062 x.134 (if equipped)

$5.49

$

In Stock, Qty 19

0

11

MTD 938-0137A

Screw, Shld, .340 x.285, 1/4-20 (if equipped)
(Superseded to 738-0137A)

$9.49

$

In Stock, Qty 19

0

12

MTD 938-0296

Screw, Shoulder,.437 x.268
(Superseded to 738-0296)

$3.99

$

In Stock, Qty 13

0

13

MTD 738-0966A

Screw, Should,.50 x.925, 3/8-16 (if equipped)

$4.49

$

In Stock, Qty 20+

0

14

MTD 783-0209D

Seat Bracket, Lift

$15.99

$

Usually ships in 3-6 days

0

15

MTD 783-0611

Seat Stop (if equipped)

$9.99

$

In Stock, only 4 left!

0

16

MTD 783-0738D

Seat Pivot Bracket (if equipped)

Variations

MTD 783-0738D-0716

Seat Pivot Bracket - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-0738D-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$

$

Not available

MTD 783-0738D-0638

Seat Pivot Bracket - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0738D-0650

BRACKET-PIVOT:SEAT - RED METALLIC (0650)

$

$

Not available

MTD 783-0738D-0665

BRACKET-PIVOT:SEAT - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0738D-0691

Seat Pivot Bracket - BLACK JACK (0691)

$

$

Not available

MTD 783-0738D-4015

BRACKET-PIVOT:SEAT - FIRE RED (4015)

$

$

Not available

MTD 783-0738D-4021

Seat Pivot Bracket - CUB YELLOW 2 (4021)

$

$

Not available

MTD 783-0738D-4008

BRACKET-PIVOT:SEAT - WINE RED (4008)

$

$

Not available

$

$

17

MTD 783-0739A-0637

Seat Adjustment Lever (if equipped)

$25.99

$

Usually ships in 3-6 days

0

18

MTD 783-0753

Seat Adjustment Selector (if equipped)

$14.99

$

In Stock, only 1 left!

0

19

MTD 957-04037

Medium Back Seat

$223.99

$

In Stock, only 4 left!

0

20

MTD 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 20+

0

21a

MTD 735-0657

LH Foot Pad, Rubber

$26.99

$

Usually ships in 3-6 days

0

21b

MTD 735-0673

LH Foot Pad, Rubber

$

$

Not available

22a

MTD 735-0656

RH Foot Pad,Rubber

$25.99

$

Usually ships in 3-6 days

0

22b

MTD 735-0672

RH Foot Pad,Rubber (not shown)

$

$

Not available

23

MTD 710-0451

Bolt, Carriage, 5/16-18,.75, Gr1

$3.99

$

In Stock, Qty 20+

0

24

MTD 710-0599

Screw, 1/4-20, 0.500

$3.99

$

In Stock, Qty 20+

0

25

MTD 710-0604A

Screw, 5/16-18, 0.625

$3.99

$

In Stock, Qty 20+

0

26

MTD 710-0895

Screw, 1/4-15, 0.750(if equipped)

$5.99

$

In Stock, Qty 20+

0

27

MTD 731-1990

Cover, Lift Lever (if equipped)
(Superseded to 731-06795)

$22.99

$

Usually ships in 3-6 days

0

28a

MTD 731-04591A

Cup Holder

$14.99

$

Usually ships in 3-6 days

0

28b

MTD 931-2104C

Cover, w/ Cup Holder

$32.99

$

Usually ships in 3-6 days

0

29

MTD 736-3078

Washer, Flat,.344 x 1.0 x.063

$3.99

$

In Stock, Qty 15

0

30

MTD 783-04314A

Fender (Model X605H)

Variations

MTD 783-04314A-0606

FENDER-SINGLE SPD - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-04314A-0638

No Longer Available FENDER-SINGLE SPD - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04314A-0650

FENDER-SINGLE SPD - RED METALLIC (0650)

$

$

Not available

MTD 783-04314A-0665

FENDER-SINGLE SPD - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-04314A-0691

FENDER-SINGLE SPD - BLACK JACK (0691)

$

$

Not available

MTD 783-04314A-0709

No Longer Available FENDER-SINGLE SPD - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-04314A-0716

FENDER-SINGLE SPD - CUB YELLOW-99 (0716)

$

$

Not available

$

$

30

MTD 783-04333A

Fender

Variations

MTD 783-04333A-0606

FENDER - 4 STYLE - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 783-04333A-0638

FENDER - 4 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04333A-0650

FENDER - 4 STYLE - RED METALLIC (0650)

$

$

Not available

MTD 783-04333A-0665

FENDER - 4 STYLE - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-04333A-0709

FENDER - 4 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-04333A-0716

FENDER - 4 STYLE - CUB YELLOW-99 (0716)

$

$

Not available

MTD 783-04333A-4008

No Longer Available FENDER - 4 - WINE RED (4008)

$

$

Not available

$332.99

$

Usually ships in 3-6 days

0

31

MTD 783-1010A-0637

Adjust. Brkt, Lift (Model X605H)

$34.99

$

Usually ships in 3-6 days

0

31

MTD 783-0677B-0637

Adjust. Brkt., Lift

$20.99

$

In Stock, only 1 left!

0

32

MTD 783-1489A

Mounting Bracket, Seat
(Superseded to 783-1489C)

Variations

MTD 783-1489A-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$21.99

$

Usually ships in 3-6 days

0

MTD 783-1489A-4008

Seat Mounting Bracket - WINE RED (4008)

$20.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

33

MTD 710-0227

Screw, #8-18 x.50

$3.99

$

In Stock, Qty 20+

0

34

MTD 726-0279

Plate, Insulator

$3.49

$

In Stock, Qty 8

0

35

MTD 925-1303

Spring Switch, Outer

$5.99

$

In Stock, Qty 8

0

36

MTD 725-1439

Spring Switch, Inner

$7.99

$

In Stock, Qty 8

0

37

MTD 726-0278

Plate, Insulator Boss

$6.49

$

In Stock, Qty 10

0

38

MTD 753-06260

Shaft Assembly, Lift

$53.99

$

Usually ships in 3-6 days

0

39

MTD 712-04065

Nut, Flange Lock, 3/8-16, GrF

$3.99

$

In Stock, Qty 20+

0

40

MTD 914-0104

Pin, Cotter,.072 Dia. x 1.13
(Superseded to 714-0104)

$3.99

$

In Stock, Qty 20+

0

41

MTD 914-0111

Pin, Cotter, 3/32, 1.0
(Superseded to 714-0111)

$4.49

$

In Stock, Qty 20+

0

42

MTD 716-0106A

Ring, E Type,.625 Dia.

$4.99

$

In Stock, Qty 15

0

43

MTD 720-0311

Grip, Handle, 1/2

$14.99

$

In Stock, Qty 7

0

44

MTD 732-0874

Spring, Torsion

$4.49

$

In Stock, Qty 10

0

45

MTD 738-0138A

Screw, 5/16-18 x.620 Gr2

$6.49

$

In Stock, Qty 20+

0

46

MTD 738-04130

Scr.,Shldr, .625 x.165,(42" Deck)
(Superseded to 738-04130A)

$8.99

$

In Stock, Qty 16

0

46

MTD 938-0380

Screw, Shld,.50 x.27, (46" Deck)
(Superseded to 738-0380)

$7.49

$

In Stock, Qty 18

0

46

MTD 938-0380

Screw, Shld,.50 x.27, (46" Deck)
(Superseded to 738-0380)

$7.49

$

In Stock, Qty 18

0

47

MTD 941-0225

Bearing, Hex Flange

$6.99

$

In Stock, Qty 20+

0

48

MTD 746-0968

Cable, Lift, 16.16

$18.99

$

In Stock, Qty 20+

0

49

MTD 747-04155

Handle, Lift

$

$

Not available

50

MTD 756-1154

Pulley, Roller

$7.49

$

In Stock, Qty 18

0

51

MTD 783-04711

Arm, Lift - LH (42" Deck)

Variations

MTD 783-04711-0637

Deck Lift Arm, LH - POWDER BLACK (0637)

$22.99

$

In Stock, only 2 left!

0

MTD 783-04711-4008

Deck Lift Arm, LH - WINE RED (4008)

$22.99

$

In Stock, only 2 left!

0

$19.99

$

Usually ships in 3-6 days

0

51

MTD 783-04494

Arm, Lift - RH (42" Deck)
(Superseded to 783-04494C)

Variations

MTD 783-04494-0637

Deck Lift Arm, RH - POWDER BLACK (0637)

$20.99

$

In Stock, Qty 5

0

MTD 783-04494-4008

Deck Lift Arm, RH - WINE RED (4008)

$20.99

$

In Stock, Qty 5

0

$18.99

$

Usually ships in 3-6 days

0

51

MTD 783-04963

Arm, Lift- LH & RH (46" Deck)
(Superseded to 783-04963A)

Variations

MTD 783-04963-0637

LIFT LINK - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

MTD 783-04963-4008

LINK-LIFT - WINE RED (4008)

$24.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

52

MTD 736-0607

Lock Washer, 5/16

$3.99

$

In Stock, Qty 20+

0

53

MTD 710-1611B

Scr5/16-18 x.750 (Model X605H)

$6.49

$

In Stock, only 2 left!

0

53

MTD 710-0726

Screw, 5/16-12

$3.99

$

In Stock, Qty 20+

0

54

MTD 738-04012A

Shoulder Screw (if equipped)
(Superseded to 738-04012C)

$5.49

$

In Stock, Qty 14

0

55

MTD 720-04061

Knob, 3/8-16 (if equipped)

$4.99

$

In Stock, Qty 20+

0

56

MTD 936-0300

Flat Washer, .406 x .875 (if equipped)
(Superseded to 736-0300)

$3.99

$

In Stock, Qty 20+

0

57

MTD 783-04081A

Seat Pivot Bracket, Manual (if equipped)

Variations

MTD 783-04081A-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$38.99

$

In Stock, Qty 8

0

MTD 783-04081A-4008

Seat Pivot Bracket - WINE RED (4008)

$38.99

$

In Stock, Qty 8

0

$30.99

$

Usually ships in 3-6 days

0

58

MTD 710-0870

Hex Head Washer Screw, 3/8-16 (if equipped)

$5.99

$

In Stock, only 2 left!

0
