13AT614H401 - Yard-Man Lawn Tractor (2003) Deck Assembly H Parts Diagram

Lawn Tractor

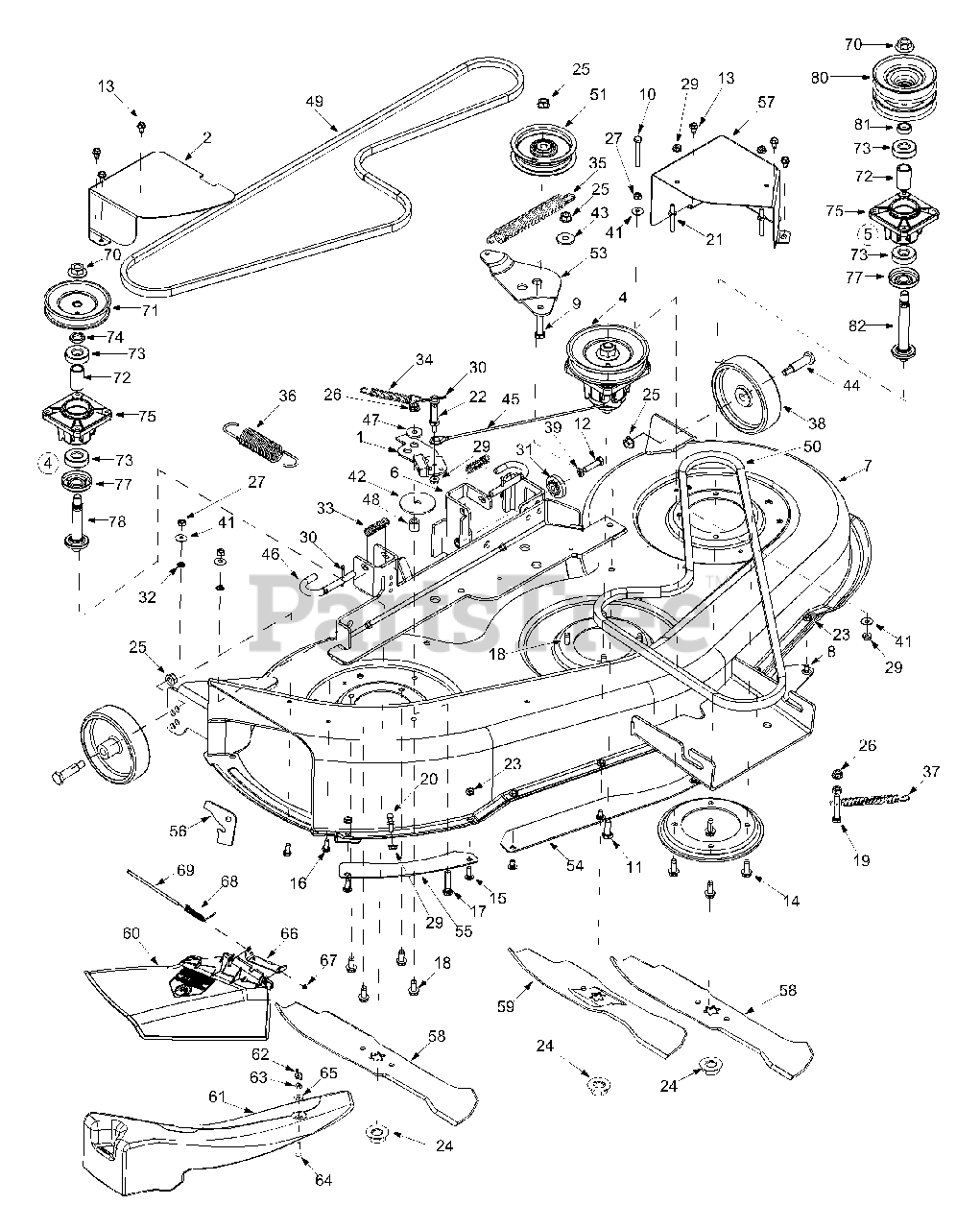

Deck Assembly H Parts Diagram

  • Title

1

MTD 17116

Brake Assembly: Deck
(Superseded to 97116)

$52.99

$

In Stock, only 2 left!

0

2

MTD 17258C

Belt Cover
(Superseded to 17258E)

Variations

MTD 17258C-0483

Deck Belt Cover, 46" Black - CHARCOAL GRAY (0483)

$54.99

$

In Stock, only 4 left!

0

MTD 17258C-0637

Deck Belt Cover, 46" Black - POWDER BLACK (0637)

$54.99

$

In Stock, only 4 left!

0

MTD 17258C-0638

Deck Belt Cover, 46" Black - MTD/TROY-BILT RED (0638)

$54.99

$

In Stock, only 4 left!

0

MTD 17258C-0648

Deck Belt Cover, 46" Black - TECH GRAY (0648)

$54.99

$

In Stock, only 4 left!

0

MTD 17258C-0665

COVER:BELT:DECK 46 - YARDMAN GREEN (0665)

$54.99

$

In Stock, only 4 left!

0

MTD 17258C-0691

COVER:BELT:DECK 46 - BLACK JACK (0691)

$54.99

$

In Stock, only 4 left!

0

$48.99

$

Usually ships in 3-6 days

0

3

MTD 17982

Spindle Plate
(Superseded to 17982-0637)

Variations

MTD 17982-0637

Spindle Plate, Black - POWDER BLACK (0637)

$35.99

$

In Stock, only 2 left!

0

$35.99

$

In Stock, only 2 left!

0

4

MTD 618-0240A

Spindle Assembly
(Superseded to 918-0240C)

$136.99

$

In Stock, Qty 20+

0

5

MTD 618-0594

Spindle Assembly: Double Pulley
(Superseded to 918-0596D)

$189.99

$

In Stock, only 3 left!

0

6

MTD 683-0254

Bracket: Deck Hanger LH
(Superseded to 683-0254B)

Variations

MTD 683-0254-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

In Stock, only 3 left!

0

MTD 683-0254-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

In Stock, only 3 left!

0

MTD 683-0254-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, Qty 5

0

MTD 683-0254-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, Qty 5

0

MTD 683-0254-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

MTD 683-0254-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

7

MTD 683-0265C

Deck Assembly

Variations

MTD 683-0265C-0606

"No Longer Available DECK ASM-46"" LT" - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 683-0265C-0637

"No Longer Available DECK ASM-46"" LT" - POWDER BLACK (0637)

$

$

Not available

MTD 683-0265C-0667

"No Longer Available DECK ASM-46"" LT" - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 683-0265C-0709

"No Longer Available DECK ASM-46"" LT" - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 683-0265C-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 683-0265C-0638

"No Longer Available DECK ASM-46"" LT" - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 683-0265C-0650

DECK ASM-46" LT - RED METALLIC (0650)

$

$

Not available

MTD 683-0265C-0665

"No Longer Available DECK ASM-46"" LT" - YARDMAN GREEN (0665)

$

$

Not available

MTD 683-0265C-0691

"No Longer Available DECK ASM-46"" LT" - BLACK JACK (0691)

$

$

Not available

MTD 683-0265C-0708

"No Longer Available DECK HSG-46"" LT" - MELLON YELLOW (0708)

$

$

Not available

MTD 683-0265C-0716

"No Longer Available DECK HSG-46"" LT" - CUB YELLOW-99 (0716)

$

$

Not available

$

$

8

MTD 710-0167

Carriage Screw 1/4-20 x 0.50"
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

9

MTD 710-0344

Hex Screw 3/8-16 x 1.5"

$5.99

$

Usually ships in 3-6 days

0

10

MTD 710-0501

Hex Screw 1/4-20 x 2.0"

$7.49

$

In Stock, only 1 left!

0

11

MTD 710-0514

Hex Screw 3/8-16 x 1.0"

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0528

Hex Screw 5/16-18 x 1.25"

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0599

TT Screw 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-0650

TT Screw 5/16-18 x 0.875"

$3.99

$

In Stock, Qty 20+

0

15

MTD 710-0703

Carriage Screw 1/4-20 x 0.75"

$4.49

$

In Stock, Qty 20+

0

16

MTD 710-0751

Hex Screw 1/4-20 x 0.620"

$3.99

$

In Stock, Qty 20+

0

17

MTD 710-0805

Hex Screw 5/16-18 x 1.5"
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 11

0

18

MTD 710-1260A

LD Screw 5/16-18 x 0.75"

$3.99

$

In Stock, Qty 20+

0

19

MTD 710-3180

Hex Screw 5/16-18 x 1.75"

$5.49

$

In Stock, Qty 20+

0

20

MTD 711-04069

Grass Catcher Pin
(Superseded to 911-04069)

$8.49

$

In Stock, Qty 20+

0

21

MTD 711-0993

Belt Guard Pin
(Superseded to 911-0993)

$4.49

$

In Stock, Qty 20+

0

22

MTD 711-1554

Pin

$10.99

$

Usually ships in 3-6 days

0

23

MTD 712-0271

Hex Sems Nut 1/4-20

$4.49

$

In Stock, Qty 18

0

24

MTD 712-0417A

Flange Nut

$6.99

$

In Stock, Qty 20+

0

25

MTD 712-0431

Flange Lock Nut
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

26

MTD 712-3004A

Flange Lock Nut

$3.99

$

In Stock, Qty 20+

0

27

MTD 712-3006

Hex Nut 1/4-20

$4.99

$

In Stock, Qty 20+

0

28

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

29

MTD 712-3027

Hex Flange Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

30

MTD 714-0470

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

31

MTD 717-1553B

Gear Adjustment
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 20+

0

32

MTD 726-0233

Push Nut

$4.49

$

In Stock, only 3 left!

0

33

MTD 732-0306

Compression Spring
(Superseded to 932-0306A)

$8.49

$

In Stock, Qty 20+

0

34

MTD 732-0429A

Extension Spring
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

35

MTD 732-0594A

Extension Spring
(Superseded to 932-0594A)

$14.99

$

In Stock, Qty 20+

0

36

MTD 732-0934

Extension Spring

$11.99

$

In Stock, only 2 left!

0

37

MTD 732-1165

Extension Spring
(Superseded to 732-04197)

$6.99

$

In Stock, Qty 20+

0

38

MTD 734-0973

Deck Wheel

$12.99

$

In Stock, Qty 20+

0

39

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

40

MTD 736-0140

Flat Washer

$7.49

$

In Stock, Qty 8

0

41

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 9

0

42

MTD 736-0418A

Flat Washer

$10.99

$

Usually ships in 3-6 days

0

43

MTD 738-0347

Spacer
(Superseded to 938-0347)

$10.99

$

In Stock, Qty 11

0

44

MTD 738-0373

Shoulder Screw
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

45

MTD 746-1107

Cable Bracket

$15.99

$

In Stock, Qty 5

0

46

MTD 747-1116

Deck Release Handle Rod

$12.99

$

In Stock, Qty 20+

0

47

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 10

0

48

MTD 750-1320

Spacer

$

$

Not available

49

MTD 754-0349

V Belt
(Superseded to 954-0349)

$40.99

$

In Stock, Qty 20+

0

50

MTD 754-0486A

V Belt
(Superseded to 954-0486A)

$58.99

$

In Stock, Qty 12

0

51

MTD 756-0627B

Idler Pulley
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

53

MTD 783-0139A

Idler Bracket
(Superseded to 783-0139B-0637)

Variations

MTD 783-0139A-0637

Idler Bracket, Black - POWDER BLACK (0637)

$21.99

$

Usually ships in 3-6 days

0

$21.99

$

Usually ships in 3-6 days

0

54

MTD 783-0141

Deck Skirt: Center

Variations

MTD 783-0141-0637

Center Deck Skirt, Powder Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

MTD 783-0141-4008

Center Skirt for Deck, Red - WINE RED (4008)

$60.99

$

In Stock, only 1 left!

0

$60.99

$

Usually ships in 3-6 days

0

55

MTD 783-0142

Deck Skirt: RH
(Superseded to 783-0142-0637)

Variations

MTD 783-0142-0637

Deck Skirt, RH Powder Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 783-0142-4008

Deck Skirt, RH Powder Black - WINE RED (4008)

$48.99

$

In Stock, only 1 left!

0

$48.99

$

In Stock, only 1 left!

0

56

N/A

Chute Stop

$

$

Not available

57

MTD 783-1348

Belt Cover
(Superseded to 783-1348D)

Variations

MTD 783-1348-0483

Belt Cover, LH 46" Gray - CHARCOAL GRAY (0483)

$50.99

$

In Stock, Qty 7

0

MTD 783-1348-0637

Belt Cover, LH 46" - POWDER BLACK (0637)

$50.99

$

In Stock, Qty 7

0

MTD 783-1348-0665

Belt Cover, LH 46" - YARDMAN GREEN (0665)

$50.99

$

In Stock, Qty 7

0

MTD 783-1348-0691

Belt Cover, LH 46" - BLACK JACK (0691)

$50.99

$

In Stock, Qty 7

0

MTD 783-1348-0638

Belt Cover, LH 46" - MTD/TROY-BILT RED (0638)

$50.99

$

In Stock, Qty 7

0

$46.99

$

Usually ships in 3-6 days

0

58

MTD 742-0611

Blade: 16.28" Star
(Superseded to 942-0611A)

$29.99

$

In Stock, Qty 20+

0

59

MTD 742-0612

Blade: 14.88" Star
(Superseded to 942-0612A)

$29.99

$

In Stock, Qty 20+

0

60

MTD 731-1032B

Chute Deflector: Side Discharge
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 11

0

61

MTD 731-1636

Mulch Plug

$149.99

$

In Stock, only 1 left!

0

62

MTD 712-3087

Wing Nut

$3.99

$

In Stock, Qty 20+

0

63

MTD 712-3006

Hex Nut

$4.99

$

In Stock, Qty 20+

0

64

MTD 710-0578

Machine Screw

$4.49

$

Usually ships in 3-6 days

0

65

MTD 736-0173

Flat Washer

$4.49

$

In Stock, Qty 10

0

66

MTD 703-1693A

Mounting Bracket

$23.99

$

In Stock, only 4 left!

0

67

MTD 726-0106

Speed Nut

$3.99

$

Usually ships in 3-6 days

0

68

MTD 732-0602

Torsion Spring
(Superseded to 732-0602A)

$12.99

$

In Stock, Qty 5

0

69

MTD 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.99

$

In Stock, only 2 left!

0

70

MTD 712-0417A

Flange Nut

$6.99

$

In Stock, Qty 20+

0

71

MTD 756-1187

Deck Pulley

$38.99

$

In Stock, only 1 left!

0

72

MTD 750-0952

Spacer

$7.49

$

In Stock, Qty 9

0

73

MTD 741-0919

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

74

MTD 748-0434

Spacer

$4.49

$

In Stock, Qty 5

0

75

MTD 619-0011

Spindle Housing
(Superseded to 753-07015)

$57.99

$

In Stock, only 1 left!

0

77

MTD 17983

Shoulder Bearing
(Superseded to 504-01396)

$

$

Not available

78

MTD 738-0927

Spindle Shaft

$36.99

$

Usually ships in 3-6 days

0

79

MTD 712-0417A

Flange Lock Nut

$6.99

$

In Stock, Qty 20+

0

80

MTD 756-0603

Pulley

$119.99

$

Usually ships in 3-6 days

0

81

MTD 750-1304

Spacer

$5.99

$

Usually ships in 3-6 days

0

82

MTD 738-1010

Spindle Shaft
(Superseded to 738-1010A)

$46.99

$

In Stock, Qty 8

0
