13AT61RH048 (LX 466) - Toro Lawn Tractor (SN: 1L137H10100 & Above) (2008) Carburetor Overhaul Kit Briggs and Stratton 407777-0550-B1 Parts Diagram

Lawn Tractor

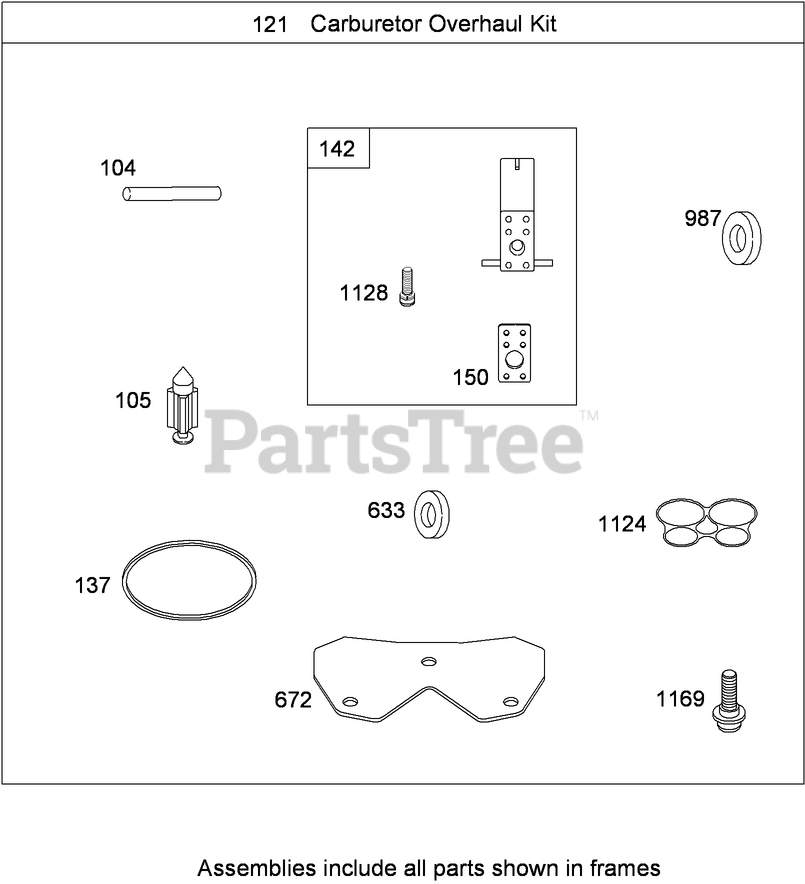

Carburetor Overhaul Kit Briggs and Stratton 407777-0550-B1 Parts Diagram

  • Title

104

Toro 694918

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$10.99

$

Usually ships in 0 days

0

104

Toro 694918

Pin-Hinge, Float

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 0 days

0

105

Toro 698537

Valve-Needle, Float

Note: Obtain parts from www.briggsandstratton.com

$24.99

$

Usually ships in 0 days

0

105

Toro 698537

Valve-Needle, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$24.99

$

Usually ships in 0 days

0

121

Toro 699734

Carburetor Overhaul Kit

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

137

Toro 690994

Gasket-Bowl, Float

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

Usually ships in 0 days

0

137

Toro 690994

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$9.99

$

Usually ships in 0 days

0

142

Toro 699726

Nozzle-Carburetor

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

142

Toro 699726

Nozzle-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

150

Toro 690995

Gasket-Nozzle

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

150

Toro 690995

Gasket-Nozzle

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

633

Toro 690998

Seal-Shaft, Choke/Throttle

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

633

Toro 690998

Seal-Shaft, Choke/Throttle

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

672

Toro 690234

Gasket-Cover Plate, Carburetor

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

Usually ships in 0 days

0

672

Toro 690234

Gasket-Cover Plate, Carburetor

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$17.99

$

Usually ships in 0 days

0

987

Toro 691000

Seal-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

987

Toro 691000

Seal-Shaft, Throttle

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1124

Toro 690988

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 0 days

0

1124

Toro 690988

Seal-O Ring

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$10.99

$

Usually ships in 0 days

0

1128

Toro 690990

Screw

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$5.99

$

Usually ships in 0 days

0

1128

Toro 690990

Screw

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

Usually ships in 0 days

0

1169

Toro 690990

Screw

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

Usually ships in 0 days

0

1169

Toro 690990

Screw

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$5.99

$

Usually ships in 0 days

0
