13AT61RH544 (LX 466) - Toro Lawn Tractor (2008) CARBURETOR AND FUEL PUMP ASSEMBLY BRIGGS AND STRATTON 407777-0550-B1 Parts Diagram

Lawn Tractor

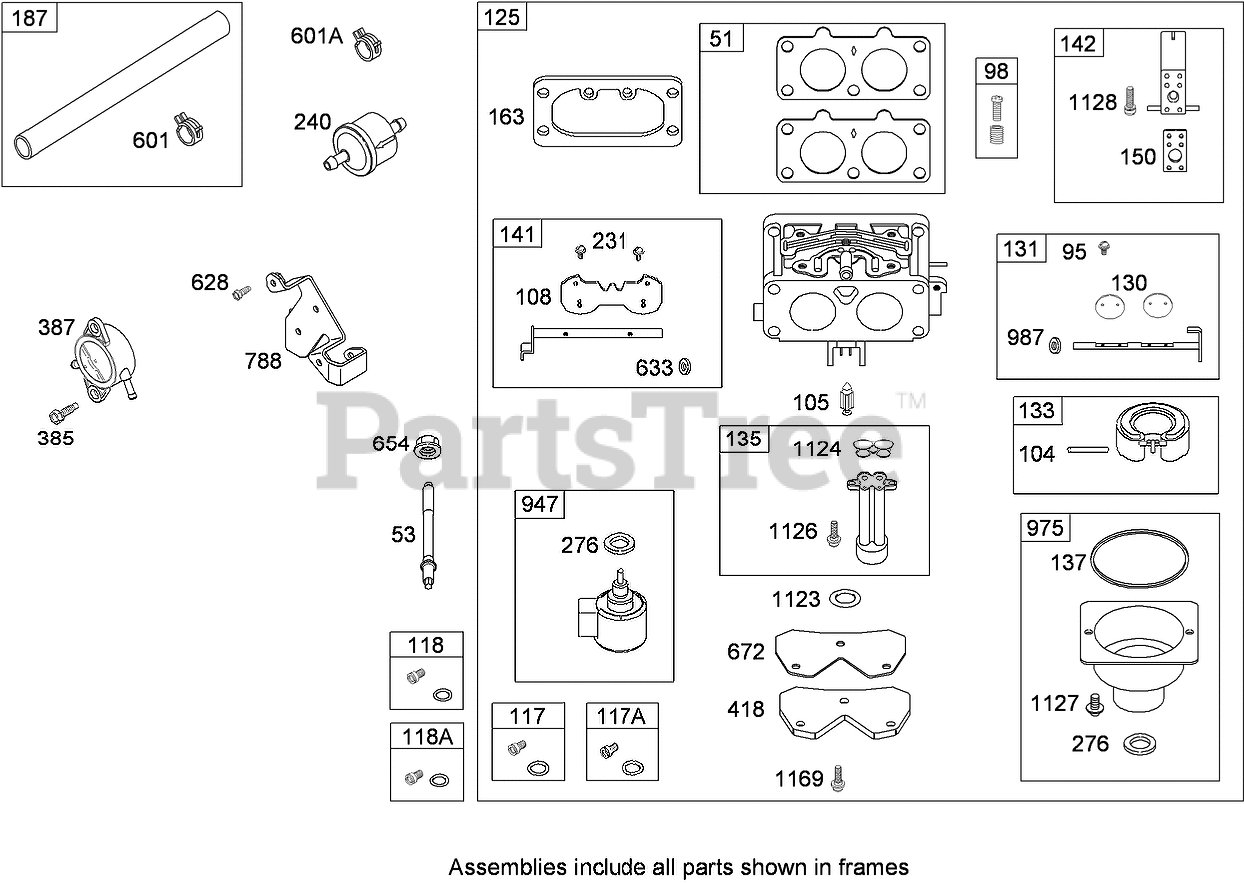

CARBURETOR AND FUEL PUMP ASSEMBLY BRIGGS AND STRATTON 407777-0550-B1 Parts Diagram

  • Title

51

Briggs & Stratton 791677

Gasket-Intake
(Superseded to 795123)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 5

0

51

Briggs & Stratton 791677

Gasket-Intake
(Superseded to 795123)

Note: Included in Engine Gasket Set (Ref. No. 358)

$4.99

$

In Stock, Qty 5

0

53

Briggs & Stratton 690951

Stud (Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, only 4 left!

0

95

Briggs & Stratton 690718

Screw (Throttle Valve)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 1 left!

0

98

Briggs & Stratton 699721

Idle Speed Kit

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 694918

Pin-Hinge, Float

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, only 1 left!

0

104

Briggs & Stratton 694918

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$7.49

$

In Stock, only 1 left!

0

105

Briggs & Stratton 698537

Valve-Needle, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$15.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 698537

Valve-Needle, Float

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

In Stock, only 1 left!

0

108

Briggs & Stratton 699723

Valve-Choke

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 791501

Jet-Main (Standard) (Left)

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

In Stock, only 1 left!

0

117A

Briggs & Stratton 791502

Jet-Main (Standard) (Right)

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

In Stock, only 2 left!

0

118

Briggs & Stratton 695415

Jet-Main (High Altitude) (Left)

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

In Stock, only 1 left!

0

118A

Briggs & Stratton 843099

Jet-Main (High Altitude) (Right)

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

In Stock, only 4 left!

0

125

Briggs & Stratton 791230

Carburetor

Note: Obtain parts from www.briggsandstratton.com

$205.99

$

In Stock, only 1 left!

0

130

Briggs & Stratton 690993

Valve-Throttle

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 499805

Throttle Shaft Kit

Note: Obtain parts from www.briggsandstratton.com

$53.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 699724

Float-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$31.99

$

In Stock, only 1 left!

0

135

Briggs & Stratton 699729

Tube-Transfer, Fuel

Note: Obtain parts from www.briggsandstratton.com

$36.99

$

In Stock, only 1 left!

0

137

Briggs & Stratton 690994

Gasket-Bowl, Float

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 690994

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$6.99

$

In Stock, Qty 20+

0

141

Briggs & Stratton 699722

Throttle Shaft Kit
(Superseded to 796228)

Note: Obtain parts from www.briggsandstratton.com

$43.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 699726

Nozzle-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$35.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 699726

Nozzle-Carburetor

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$35.99

$

Usually ships in 2-12 days

0

150

Briggs & Stratton 690995

Gasket-Nozzle
(Superseded to 841649)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$5.99

$

In Stock, only 3 left!

0

150

Briggs & Stratton 690995

Gasket-Nozzle
(Superseded to 841649)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 3 left!

0

163

Briggs & Stratton 691001

Gasket-Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 10

0

163

Briggs & Stratton 691001

Gasket-Cleaner, Air

Note: Included in Valve Gasket Set (Ref. No. 1095)

$3.49

$

In Stock, Qty 10

0

163

Briggs & Stratton 691001

Gasket-Cleaner, Air

Note: Included in Engine Gasket Set (Ref. No. 358)

$3.49

$

In Stock, Qty 10

0

187

Briggs & Stratton 791766

Line-Fuel (Cut to required length)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

231

Briggs & Stratton 690718

Screw (Choke Valve)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 1 left!

0

240

Briggs & Stratton 691035

Filter-Fuel
(Superseded to 84001895)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

276

Briggs & Stratton 695410

Washer-Sealing

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 4 left!

0

385

Briggs & Stratton 697551

Screw (Fuel Pump)
(Superseded to 691108)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

387

Briggs & Stratton 808656

Pump-Fuel
(Superseded to 597338)

Note: Obtain parts from www.briggsandstratton.com

$27.99

$

Usually ships in 2-12 days

0

418

Briggs & Stratton 690999

Plate-Cover, Carburetor
(Superseded to 795912)

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 791850

Clamp-Hose (Green)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

601A

Briggs & Stratton 691038

Clamp-Hose (Black)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 7

0

628

Briggs & Stratton 691108

Screw (Fuel Pump Bracket)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

633

Briggs & Stratton 690998

Seal-Shaft, Choke/Throttle

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, only 1 left!

0

633

Briggs & Stratton 690998

Seal-Shaft, Choke/Throttle

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$7.99

$

In Stock, only 1 left!

0

654

Briggs & Stratton 690958

Nut (Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 7

0

672

Briggs & Stratton 690234

Gasket-Cover Plate, Carburetor

Note: Obtain parts from www.briggsandstratton.com

$12.99

$

In Stock, only 4 left!

0

672

Briggs & Stratton 690234

Gasket-Cover Plate, Carburetor

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$12.99

$

In Stock, only 4 left!

0

788

Briggs & Stratton 793145

Bracket-Pump, Fuel

Note: Obtain parts from www.briggsandstratton.com

$20.99

$

Usually ships in 2-12 days

0

947

Briggs & Stratton 841546

Solenoid-Fuel

Note: Obtain parts from www.briggsandstratton.com

$166.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 793592

Bowl-Float
(Superseded to 798778)

Note: Obtain parts from www.briggsandstratton.com

$179.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 691000

Seal-Shaft, Throttle

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 691000

Seal-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$6.99

$

Usually ships in 2-12 days

0

1123

Briggs & Stratton 699725

Seal-O Ring (Fuel Transfer Tube)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, only 1 left!

0

1124

Briggs & Stratton 690988

Seal-O Ring (Fuel Transfer Tube)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, only 2 left!

0

1124

Briggs & Stratton 690988

Seal-O Ring (Fuel Transfer Tube)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$7.99

$

In Stock, only 2 left!

0

1126

Briggs & Stratton 690991

Screw (Fuel Transfer Tube)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

1127

Briggs & Stratton 695407

Screw (Float Bowl)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 4 left!

0

1128

Briggs & Stratton 690990

Screw (Carburetor Nozzle)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

1128

Briggs & Stratton 690990

Screw (Carburetor Nozzle)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$3.99

$

Usually ships in 2-12 days

0

1169

Briggs & Stratton 690990

Screw (Carburetor Cover Plate)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$3.99

$

Usually ships in 2-12 days

0

1169

Briggs & Stratton 690990

Screw (Carburetor Cover Plate)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0
