13AT78BT066 (46 B) - Troy-Bilt Bronco 46" Lawn Tractor (2018) Heat Shield Parts Diagram

Bronco 46" Lawn Tractor

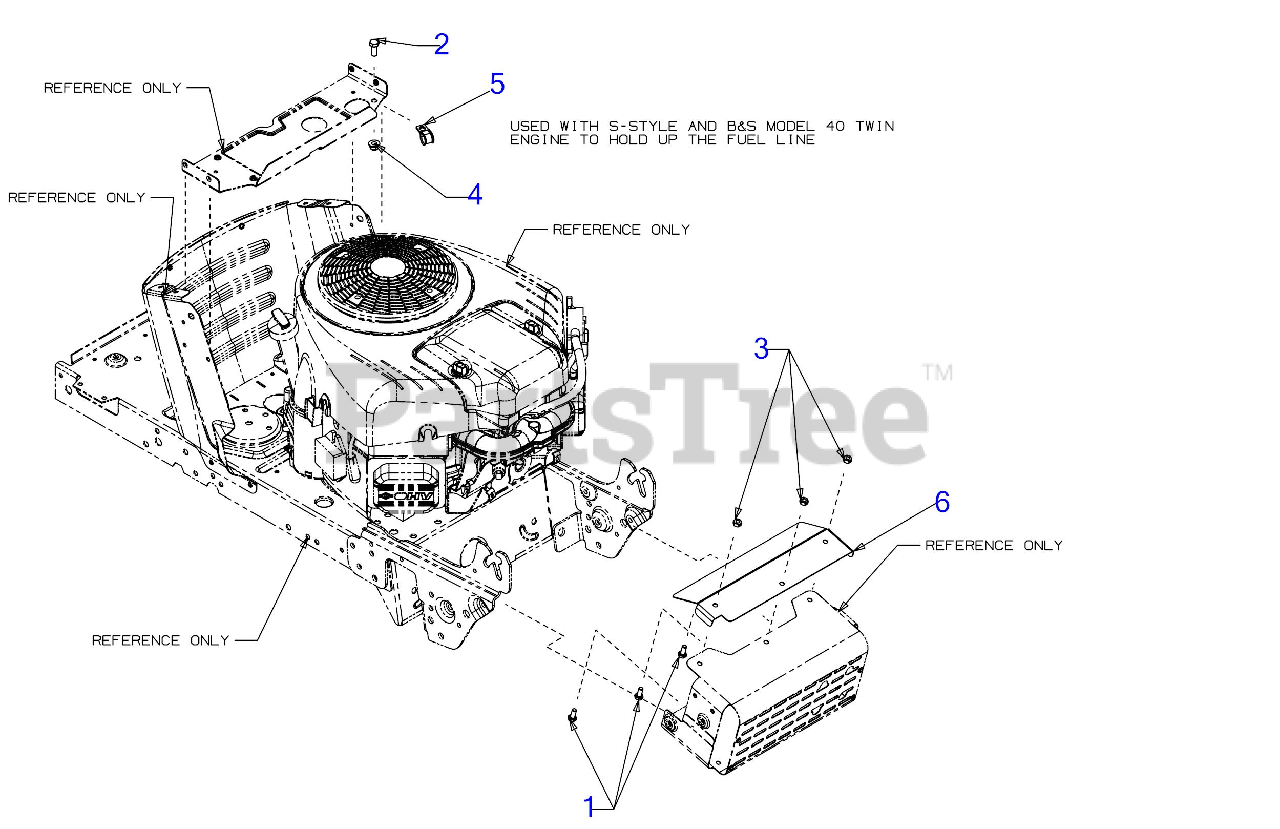

Heat Shield Parts Diagram

  • Title

1

Troy-Bilt 710-0751

SCREW 1/4-20 x .620 GR5

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-3008

SCREW 5/16-18 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 912-0291

HEX NUT
(Superseded to 712-0291)

$

$

Not available

4

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 726-0272

CLAMP

$6.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 783-09038

MUFFLER SHIELD EXTENSION
(Superseded to 783-09038A)

$30.99

$

Usually ships in 3-6 days

0
