13AX60KH066 - Troy-Bilt Super Bronco Lawn Tractor (2008) Hood & Dash Assembly Parts Diagram

Super Bronco Lawn Tractor

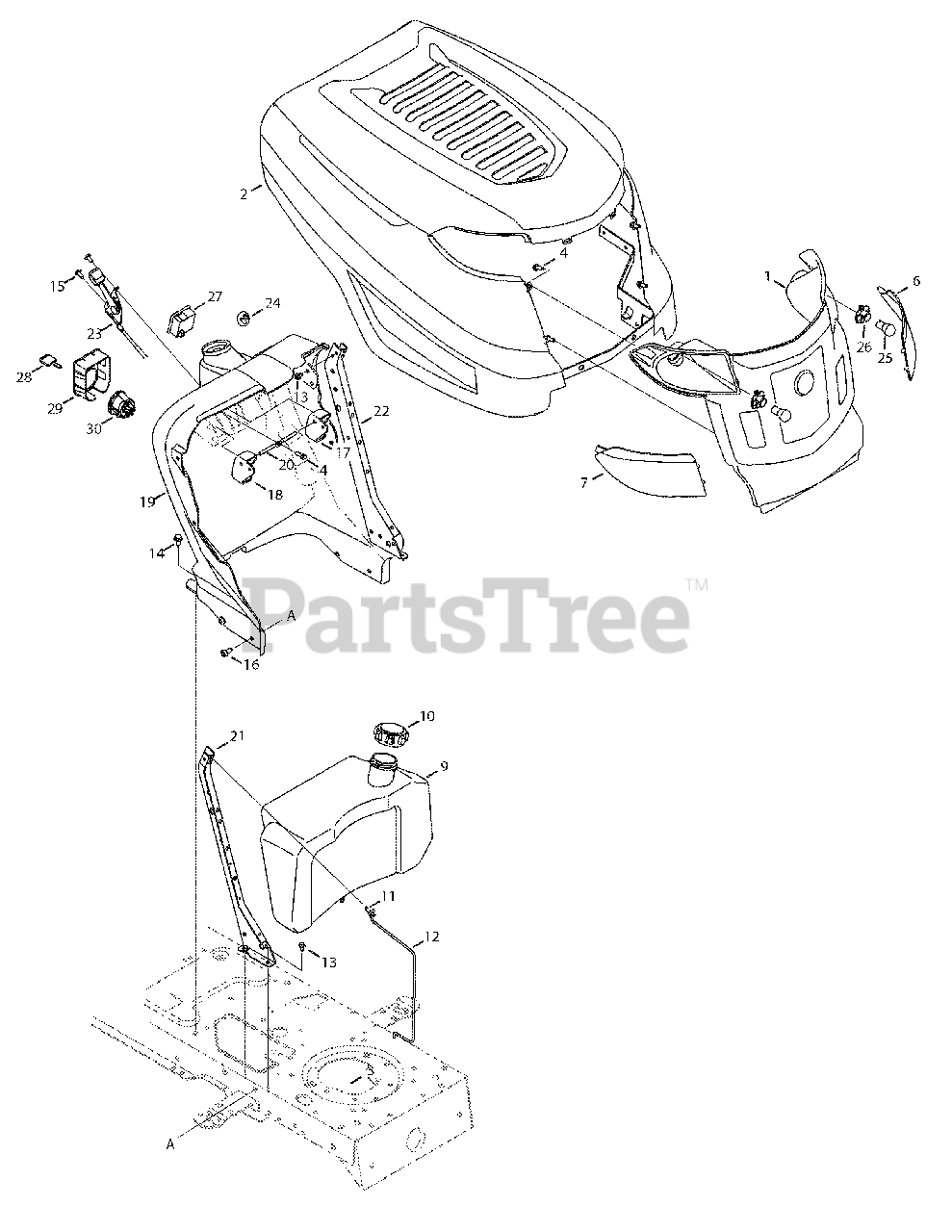

Hood & Dash Assembly Parts Diagram

  • Title

1

Troy-Bilt 631-04272

Grill Assembly

$74.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 683-04441

Hood, K-Style
(Superseded to 683-04441A)

Variations

683-04441-0638

Troy-Bilt 683-04441-0638

HOOD ASM-K STYLE - MTD/TROY-BILT RED (0638)

$378.99

$

Usually ships in 3-6 days

0

683-04441-0662

Troy-Bilt 683-04441-0662

HOOD ASSY-K STYLE - OYSTER GRAY (0662)

$351.99

$

Usually ships in 3-6 days

0

683-04441-4033

Troy-Bilt 683-04441-4033

HOOD ASM-K STYLE - FLINT MICA (4033)

$351.99

$

Usually ships in 3-6 days

0

683-04441-4038

Troy-Bilt 683-04441-4038

HOOD ASSY-K STYLE - DAY ORANGE (4038)

$351.99

$

Usually ships in 3-6 days

0

$306.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-04484

Screw, 5/16-18, 0.625

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0895

Self-tapping Screw, 1/4-15 x.75

$6.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 731-06095

Headlight Lens

Note: (LH)

$13.99

$

In Stock, Qty 5

0

7

Troy-Bilt 731-06096

Headlight Lens

Note: (RH)

$12.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 738-04091

Shoulder Screw,.43 x.29
(Superseded to 738-04091A)

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 751-10609

Fuel Tank, 2.5 gal.

$

$

Not available

10

Troy-Bilt 751-0603

Fuel Tank Cap
(Superseded to 751-0603B)

$24.99

$

In Stock, only 3 left!

0

11

Troy-Bilt 710-0642

Screw, 1/4-20, 0.750

$4.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 747-04161

Gas Tank Support Rod

$

$

Not available

13

Troy-Bilt 710-0599

Screw, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 710-0607

Screw, 5/16-18 x 0.500

$6.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 710-1017

Screw, 1/4-14 x.625

$8.99

$

In Stock, Qty 12

0

16

Troy-Bilt 710-1611B

Screw, 5/16-18 x.75

$7.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 731-04728

Parking Brake Button

$

$

Not available

18

Troy-Bilt 731-04729

Cruise Control Button

$

$

Not available

19

Troy-Bilt 731-06166

Dash Panel w/ Manual PTO

$

$

Not available

20

Troy-Bilt 747-1196

Brake/Cruise Pivot Rod

$16.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 783-04285E

RH Dash Support Plate
(Superseded to 783-04285F-0637)

Variations

783-04285E-0637

Troy-Bilt 783-04285E-0637

Dash Plate Support - POWDER BLACK (0637)

$

$

Not available

$

$

22

Troy-Bilt 783-04323F

LH Dash Support Plate
(Superseded to 783-04323F-0637)

Variations

783-04323F-0637

Troy-Bilt 783-04323F-0637

SUPPORT-DASH PLATE - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 746-04364

Throttle/Choke Control Cable

$51.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 731-1999

Choke Plug

$10.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 725-0963

Headlamp, 12V
(Superseded to 925-0963)

$7.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 725-1649

Lamp Socket
(Superseded to 925-1649A)

$12.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 725-04156

Systems Ind. Monitor w/ Amtr.
(Superseded to 925-04156)

$31.99

$

In Stock, only 4 left!

0

28

Troy-Bilt 725-1745

Ignition Key w/ plastic cover
(Superseded to 925-1745A)

$18.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 725-1744

Ignition Key w/o plastic cover
(Superseded to 925-1745A)

$18.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 731-05241A

Switch Housing

$23.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 725-04659

Module, Ignition Switch
(Superseded to 925-04659)

Note: (3 position)

$46.99

$

In Stock, Qty 15

0

Troy-Bilt 629-04083B

Headlight Wire Harness
(Superseded to 929-04083B)

Note: Not shown

$41.99

$

Usually ships in 3-6 days

0

Troy-Bilt 725-04645

Wire Harness
(Superseded to 925-04645C)

Note: (3 Position) Not shown

$146.99

$

Usually ships in 3-6 days

0

Troy-Bilt 777X43039

Headlight Lens Reflector RH

Note: Not shown

$32.99

$

Usually ships in 3-6 days

0

Troy-Bilt 777X43038

Headlight Lens Reflector LH

Note: Not shown

$32.99

$

Usually ships in 3-6 days

0
