13AX60RG744 (LX 420) - Toro Lawn Tractor (SN: 1L215B10000 & Above) (2006) HEAD, VALVE AND BREATHER ASSEMBLY Parts Diagram

Lawn Tractor

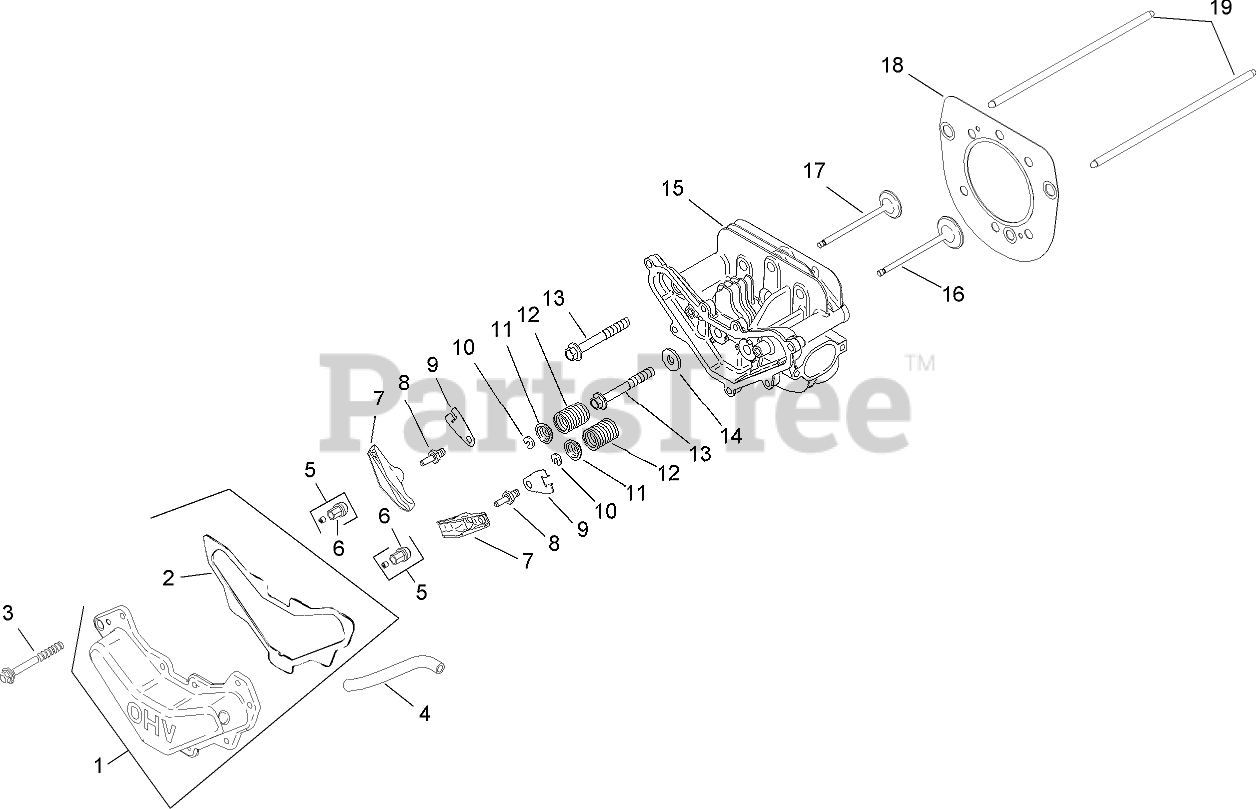

HEAD, VALVE AND BREATHER ASSEMBLY Parts Diagram

  • Title

1

Kohler 20 096 07-S

Valve Cover Kit (Includes 2)
(Superseded to 20 096 14-S)

Note: Obtain parts from www.kohlerplus.com

$61.99

$

In Stock, Qty 20+

0

2

2004104-S

Gasket-Cover, Valve

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

3

Kohler M-645020-S

SCREW-HHFTF (M6X1.0X20)
(Superseded to 25 086 396-S)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 20+

0

4

Kohler 20 326 01-S

Hose-Breather
(Superseded to 20 094 11-S)

Note: Obtain parts from www.kohlerplus.com

$14.99

$

In Stock, Qty 14

0

5

Kohler 20 086 04-S

Screw-Set

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 20+

0

6

2059901-S

Pivot-Arm, Rocker

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

7

Kohler 20 186 01-S

Arm-Rocker

Note: Obtain parts from www.kohlerplus.com

$8.99

$

Usually ships in 2-5 days

0

8

Kohler 20 086 03-S

Stud-Rocker
(Superseded to 20 072 08-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 19

0

9

Kohler 20 146 03-S

Plate-Guide, Push Rod

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 17

0

10

Kohler 20 062 01-S

Lock-Retainer

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 1 left!

0

11

Kohler 20 173 01-S

Cap-Spring, Valve

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 2 left!

0

12

Kohler 20 089 03-S

Spring-Valve

Note: Obtain parts from www.kohlerplus.com

$6.99

$

In Stock, only 2 left!

0

13

Kohler 20 086 02-S

Screw-Flange, Hex (M10x1.5x37)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 8

0

14

Kohler 12 468 05-S

Washer-Flat (1/2)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 2 left!

0

15

Kohler 20 318 01-S

Head-Cylinder
(Superseded to 20 318 14-S)

Note: Obtain parts from www.kohlerplus.com

$263.99

$

In Stock, only 4 left!

0

16

Kohler 20 016 01-S

Valve-Exhaust

Note: Obtain parts from www.kohlerplus.com

$46.99

$

In Stock, only 2 left!

0

17

Kohler 20 017 01-S

Valve-Intake

Note: Obtain parts from www.kohlerplus.com

$38.99

$

In Stock, only 1 left!

0

18

2084102-S

Cylinder Head Gasket Kit (Includes 13-14, and Part Nos. 12 041 01-S, 12 041 02-S and 20 041 07-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

19

Kohler 20 411 04-S

Rod-Push
(Superseded to 20 411 05-S)

Note: Obtain parts from www.kohlerplus.com

$11.99

$

In Stock, Qty 18

0
