13AX60RH544 (LX 460) - Toro Lawn Tractor (SN: 1A056B50000 & Above) (2006) DECK ASSEMBLY Parts Diagram

Lawn Tractor

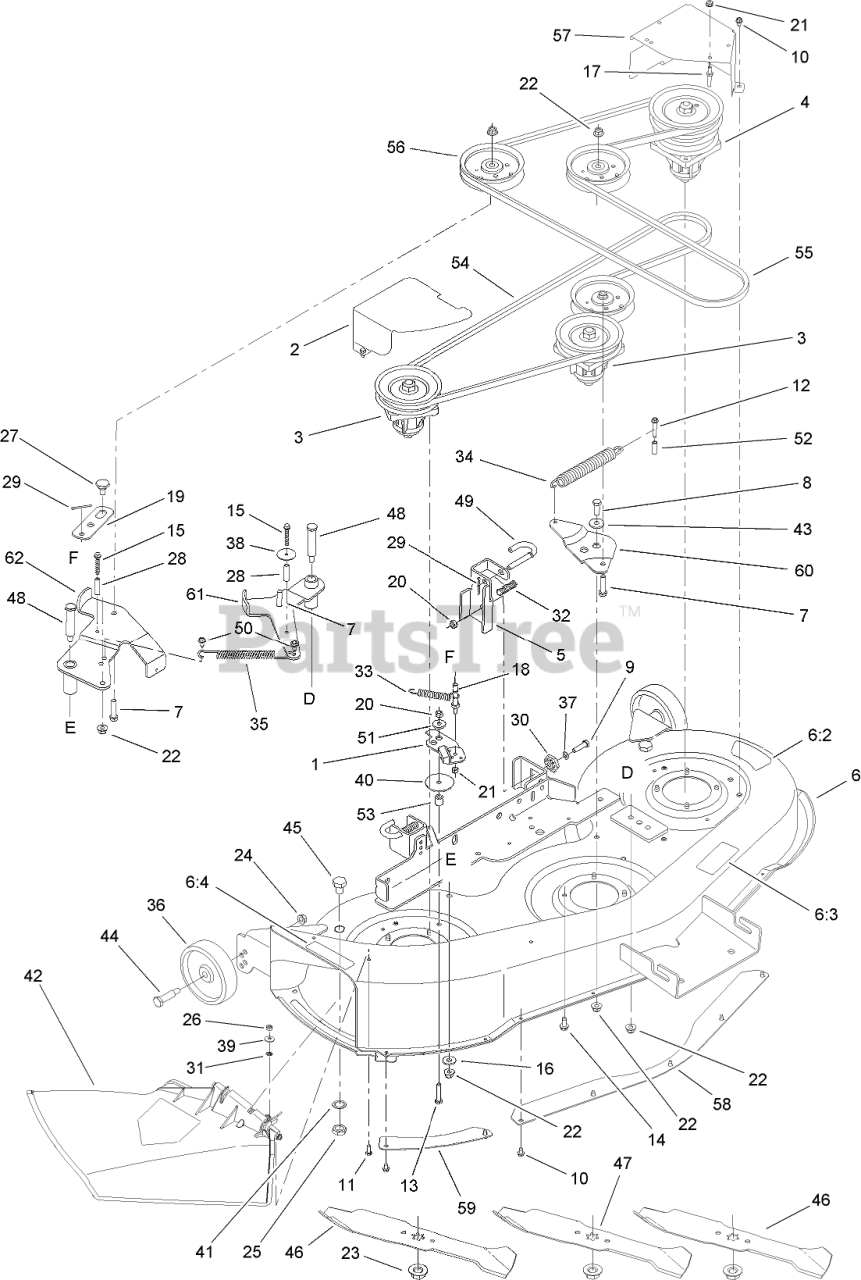

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 112-0326

DECK BRAKE BRACKET ASM

$86.99

$

Usually ships in 3-6 days

0

2

Toro 112-0401

COVER-BELT, RH

$81.99

$

Usually ships in 3-6 days

0

3

Toro 112-0311

SPINDLE ASM

$166.99

$

In Stock, Qty 5

0

4

Toro 112-0383

DOUBLE PULLEY SPINDLE ASM

$308.99

$

In Stock, only 2 left!

0

5

Toro 112-0413

LH HANGER BRACKET ASM

$74.99

$

In Stock, only 3 left!

0

6

Toro 112-5856

DECK AND DECAL ASM

$

$

Not available

6:2

Toro 112-1267

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

6:3

Toro 112-1269

DECAL-ROUTING, BELT

$

$

Not available

6:4

Toro 112-1265

DECAL-DANGER

$

$

Not available

7

Toro 112-0578

SCREW-HH

$6.99

$

In Stock, Qty 6

0

8

Toro 112-0492

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

9

Toro 112-0373

SCREW-HH

$6.99

$

In Stock, Qty 6

0

10

Toro 112-0524

SCREW-HWHTF

$6.99

$

In Stock, Qty 7

0

11

Toro 112-0499

SCREW-HH

$6.99

$

Usually ships in 3-6 days

0

12

Toro 112-0843

SCREW-HWH

$6.99

$

Usually ships in 3-6 days

0

13

Toro 112-0594

SCREW-HH

$5.49

$

In Stock, Qty 16

0

14

Toro 112-0395

SCREW-HWH

$10.99

$

In Stock, Qty 19

0

15

Toro 112-5828

SCREW-HH

$8.49

$

In Stock, Qty 6

0

16

Toro 112-5829

WASHER-FLAT

$15.99

$

Usually ships in 3-6 days

0

17

Toro 112-0429

PIN-GUARD, BELT

$6.99

$

In Stock, only 2 left!

0

18

Toro 112-0722

PIN

$14.99

$

Usually ships in 3-6 days

0

19

Toro 112-5830

BRACKET-BRAKE

$

$

Not available

20

Toro 112-0650

NUT-LOCK, FLANGE

$6.99

$

In Stock, Qty 5

0

21

Toro 112-0636

NUT-LOCK, FLANGE

$6.99

$

In Stock, only 2 left!

0

22

Toro 112-0668

NUT-LOCK, FLANGE

$6.49

$

In Stock, Qty 19

0

23

Toro 112-0330

NUT-LOCK, FLANGE

$9.99

$

In Stock, Qty 11

0

24

Toro 112-0385

NUT-LOCK, FLANGE

$6.99

$

In Stock, Qty 7

0

25

Toro 112-0351

NUT-HEX

$9.99

$

Usually ships in 3-6 days

0

26

Toro 112-0522

NUT-HEX

$6.99

$

Usually ships in 3-6 days

0

27

Toro 112-0328

BOLT-SHOULDER

$14.99

$

Usually ships in 3-6 days

0

28

Toro 112-5831

SPACER

$7.99

$

In Stock, Qty 6

0

29

Toro 112-0412

PIN-COTTER

$6.99

$

In Stock, only 3 left!

0

30

Toro 112-0327

GEAR-ADJUSTMENT, DECK

$23.99

$

In Stock, only 2 left!

0

31

Toro 112-0623

RETAINER-BOLT

$

$

Not available

32

Toro 112-0406

SPRING-COMPRESSION

$12.99

$

In Stock, Qty 5

0

33

Toro 112-0320

SPRING-EXTENSION

$15.99

$

In Stock, only 2 left!

0

34

Toro 112-0324

SPRING-EXTENSION

$30.99

$

In Stock, only 4 left!

0

35

Toro 112-0432

SPRING-EXTENSION

$16.99

$

In Stock, only 2 left!

0

36

Toro 112-0337

WHEEL-DECK, REAR

$14.99

$

In Stock, only 3 left!

0

37

Toro 112-0366

WASHER-LOCK

$

$

Not available

38

Toro 112-5832

WASHER-FLAT

$7.99

$

In Stock, only 4 left!

0

39

Toro 112-0485

WASHER-SPRING

$6.99

$

In Stock, only 1 left!

0

40

Toro 112-0560

WASHER-FLAT

$11.99

$

Usually ships in 3-6 days

0

41

Toro 112-0643

WASHER-LOCK

$5.49

$

Usually ships in 3-6 days

0

42

Toro 112-0353

DISCHARGE CHUTE ASM

$165.99

$

In Stock, only 3 left!

0

43

Toro 112-0508

SPACER-SHOULDER

$12.99

$

Usually ships in 3-6 days

0

44

Toro 112-0334

BOLT-SHOULDER

$12.99

$

In Stock, Qty 12

0

45

Toro 112-0577

PLUG

$13.99

$

Usually ships in 3-6 days

0

46

Toro 112-0304

BLADE-16.28 INCH

$39.99

$

In Stock, Qty 15

0

47

Toro 112-0302

BLADE-14.88 INCH

$29.99

$

In Stock, Qty 20+

0

48

Toro 112-5833

BOLT-SHOULDER

$13.99

$

In Stock, only 3 left!

0

49

Toro 112-0436

PIN-HANDLE, DECK RELEASE

$20.99

$

In Stock, Qty 7

0

50

Toro 112-0597

BOLT-SHOULDER
(Superseded to 112-6128)

$5.99

$

In Stock, Qty 6

0

51

Toro 112-0410

SPACER-SHOULDER

$5.49

$

In Stock, Qty 7

0

52

Toro 112-0644

SPACER

$

$

Not available

53

Toro 112-0633

SPACER

$5.49

$

Usually ships in 3-6 days

0

54

Toro 112-0317

BELT

$40.99

$

In Stock, Qty 20+

0

55

Toro 112-5834

BELT-V

$46.99

$

In Stock, Qty 16

0

56

Toro 112-0314

PULLEY-IDLER

$51.99

$

In Stock, only 4 left!

0

57

Toro 112-0431

COVER-BELT, LH

$

$

Not available

58

Toro 112-0464

SKIRT-CENTER, DECK

$97.99

$

Usually ships in 3-6 days

0

59

Toro 112-0400

SKIRT-RH, DECK

$85.99

$

Usually ships in 3-6 days

0

60

Toro 112-0666

BRACKET-IDLER

$28.99

$

Usually ships in 3-6 days

0

61

Toro 112-0495

LH IDLER BRACKET ASM
(Superseded to 112-6060)

$72.99

$

In Stock, only 1 left!

0

62

Toro 112-0494

RH IDLER BRACKET ASM
(Superseded to 112-6059)

$81.99

$

In Stock, only 3 left!

0
