13AX60RH544 (LX 460) - Toro Lawn Tractor (SN: 1A056B50000 & Above) (2006) DOUBLE PULLEY SPINDLE ASSEMBLY Parts Diagram
Lawn Tractor

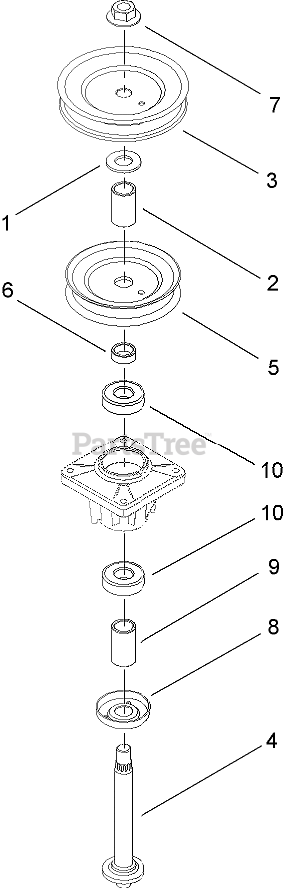

DOUBLE PULLEY SPINDLE ASSEMBLY Parts Diagram
Toro 112-0921
WASHER-FLAT
$5.49
$
Usually ships in 3-6 days
Toro 112-5927
SPACER
$6.99
$
Usually ships in 3-6 days
Toro 112-0382
PULLEY-DECK
$70.99
$
In Stock, only 2 left!
Toro 112-5928
SHAFT-SPINDLE
$75.99
$
In Stock, only 2 left!
Toro 112-0359
PULLEY-DECK
$53.99
$
Usually ships in 3-6 days
Toro 112-5929
SPACER
$6.99
$
In Stock, only 4 left!
Toro 112-0330
NUT-LOCK, FLANGE
$9.99
$
In Stock, Qty 11
Toro 112-5923
BEARING-SHOULDER
$
$
Not available
Toro 112-0654
SPACER
$11.99
$
Usually ships in 3-6 days
Toro 112-0377
BEARING-BALL
$26.99
$
In Stock, Qty 9
