13AX60RH544 (LX 460) - Toro Lawn Tractor (SN: 1A056B50000 & Above) (2006) HEAD, VALVE AND BREATHER ASSEMBLY Parts Diagram

Lawn Tractor

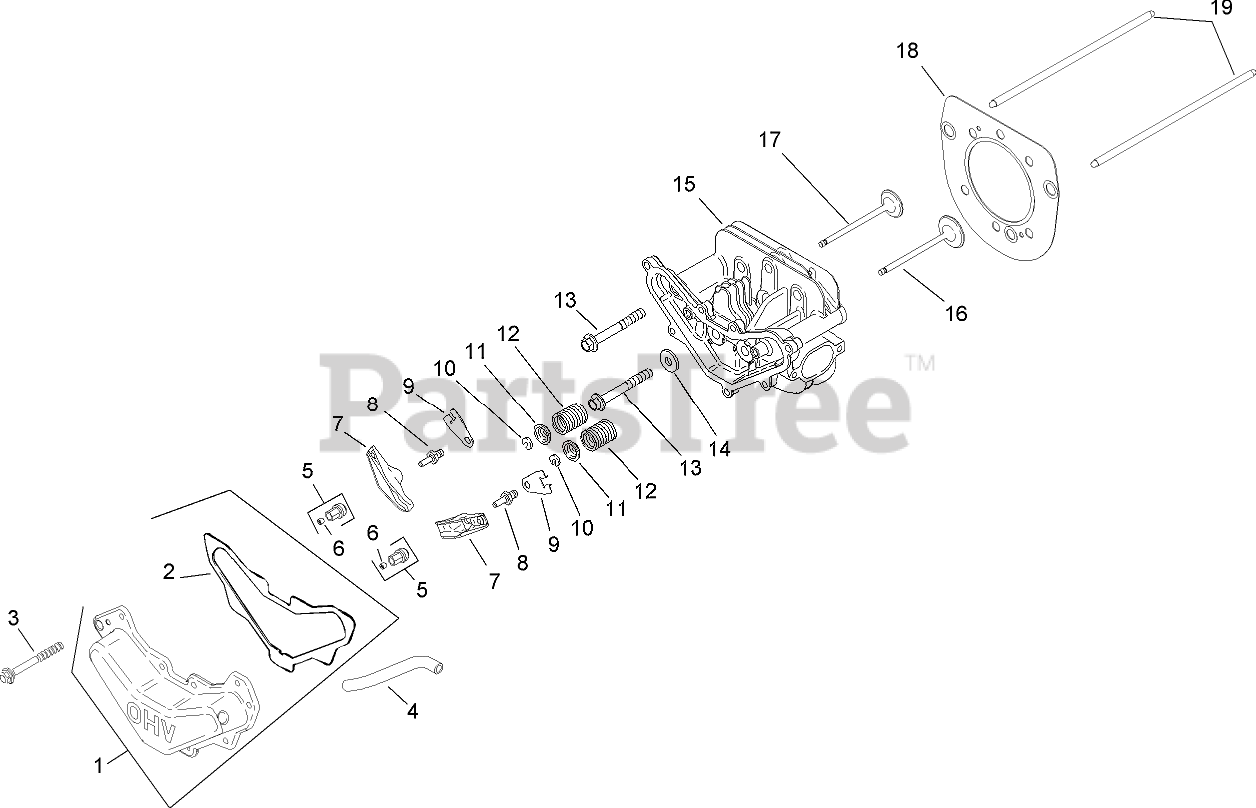

HEAD, VALVE AND BREATHER ASSEMBLY Parts Diagram

  • Title

1

Kohler 20 096 07-S

Valve Cover Kit (Includes 2)
(Superseded to 20 096 14-S)

Note: Obtain parts from www.kohlerplus.com

$60.99

$

In Stock, Qty 20+

0

2

Kohler 20 041 13-S

Gasket-cover, valve

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, Qty 20+

0

3

Kohler M-645020-S

SCREW-HHFTF (M6X1.0X20)
(Superseded to 25 086 396-S)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 20+

0

4

Kohler 20 326 01-S

Hose-Breather
(Superseded to 20 094 11-S)

Note: Obtain parts from www.kohlerplus.com

$14.99

$

In Stock, Qty 8

0

5

Kohler 20 599 02-S

Pivot-Arm, Rocker (Includes 6)
(Superseded to 20 599 04-S)

Note: Obtain parts from www.kohlerplus.com

$6.49

$

In Stock, Qty 13

0

6

Kohler 20 086 04-S

Screw-Set

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, Qty 20+

0

7

Kohler 20 186 01-S

Arm-Rocker

Note: Obtain parts from www.kohlerplus.com

$8.99

$

Usually ships in 2-5 days

0

8

Kohler 20 086 03-S

Stud-Rocker
(Superseded to 20 072 08-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 7

0

9

Kohler 20 146 03-S

Plate-Guide, Push Rod

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 12

0

10

Kohler 20 062 01-S

Lock-Retainer

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

11

Kohler 20 173 01-S

Cap-Spring, Valve

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

12

Kohler 20 089 03-S

Spring-Valve

Note: Obtain parts from www.kohlerplus.com

$6.99

$

Usually ships in 2-5 days

0

13

Kohler 20 086 02-S

Screw-Flange, Hex (M10x1.5x37)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 8

0

14

Kohler 12 468 05-S

Washer-Flat (1/2)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 3 left!

0

15

Kohler 20 318 01-S

Head-Cylinder
(Superseded to 20 318 14-S)

Note: Obtain parts from www.kohlerplus.com

$263.99

$

In Stock, only 2 left!

0

16

Kohler 20 016 01-S

Valve-Exhaust

Note: Obtain parts from www.kohlerplus.com

$44.99

$

In Stock, only 2 left!

0

17

Kohler 20 017 01-S

Valve-Intake

Note: Obtain parts from www.kohlerplus.com

$36.99

$

In Stock, only 2 left!

0

18

Kohler 20 841 01-S

Cylinder Head Gasket Kit (Includes 2, 13-14)

Note: Obtain parts from www.kohlerplus.com

$38.99

$

In Stock, Qty 14

0

19

Kohler 20 411 04-S

Rod-Push
(Superseded to 20 411 05-S)

Note: Obtain parts from www.kohlerplus.com

$10.99

$

In Stock, Qty 11

0
