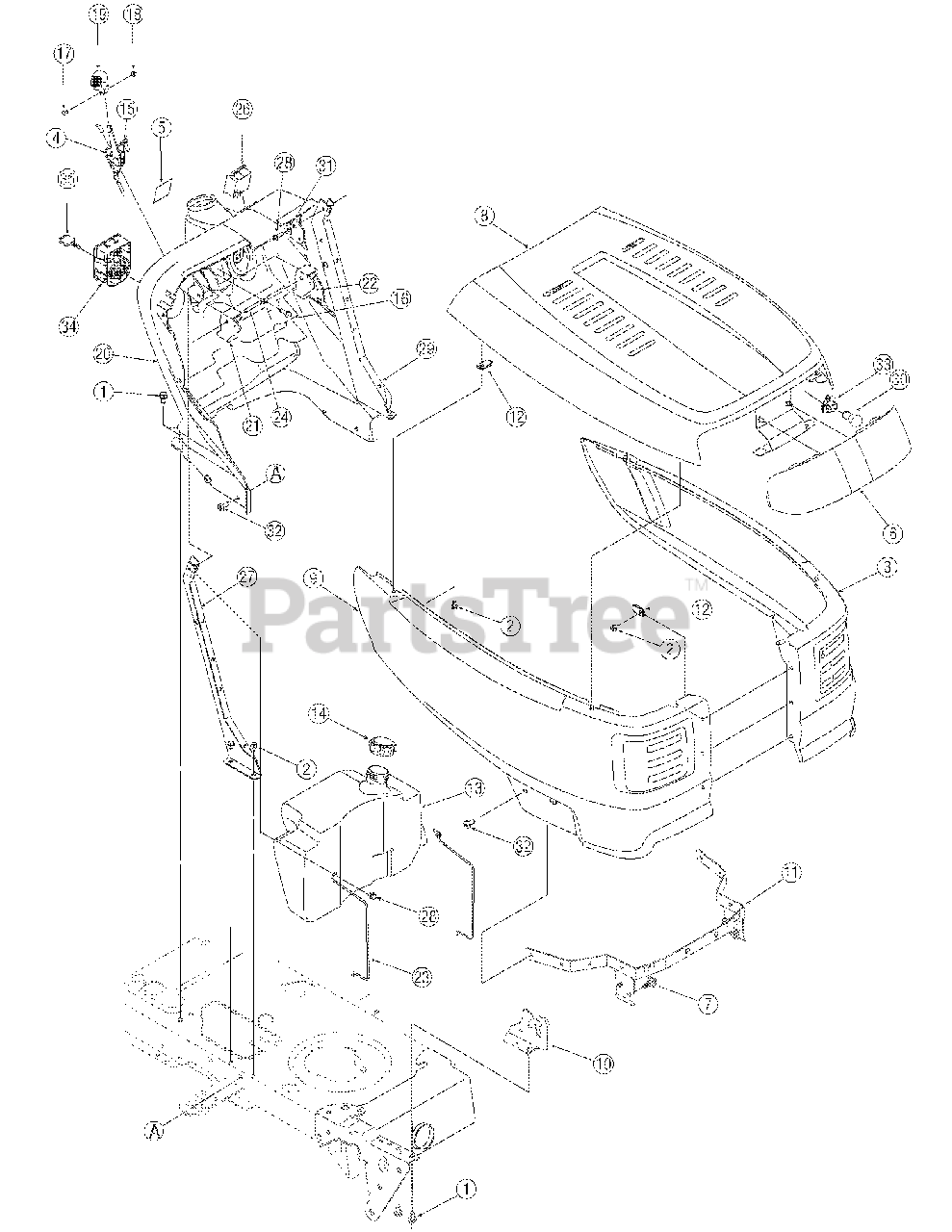

13AX60TG766 - Troy-Bilt Super Bronco Lawn Tractor (2006) Hood and Side Panel Parts Diagram

Super Bronco Lawn Tractor

Hood and Side Panel Parts Diagram

  • Title

1

Troy-Bilt 710-0726

Screw, 5/16-12 x.750

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0599

Self-tapping Screw, 1/4-20 x.5

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 783-04829

Side Panel - LH

Variations

783-04829-0638

Troy-Bilt 783-04829-0638

PANEL:SIDE:TROY BI - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

4

Troy-Bilt 746-1084

Throttle Control/Cable
(Superseded to 946-1084)

$33.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 731-1999

Choke Plug

$10.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 731-05357

Headlight Lens
(Superseded to 931-05357)

$

$

Not available

7

Troy-Bilt 738-04091

Shoulder Screw,.43 x.29
(Superseded to 738-04091A)

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 783-04827

Hood, T Style

Variations

783-04827-0662

Troy-Bilt 783-04827-0662

HOOD - OYSTER GRAY (0662)

$198.99

$

Usually ships in 3-6 days

0

783-04827-0638

Troy-Bilt 783-04827-0638

HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

$173.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 783-04828

Side Panel - RH

Variations

783-04828-0638

Troy-Bilt 783-04828-0638

PANEL:SIDE:TROY RH - MTD/TROY-BILT RED (0638)

$101.99

$

Usually ships in 3-6 days

0

783-04828-0662

Troy-Bilt 783-04828-0662

PANEL:SIDE:TROY RH - OYSTER GRAY (0662)

$101.99

$

Usually ships in 3-6 days

0

$88.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 783-04840

Pivot Bracket - RH

Variations

783-04840-0637

Troy-Bilt 783-04840-0637

Hood Pivot Bracket - POWDER BLACK (0637)

$21.99

$

In Stock, only 2 left!

0

783-04840-0716

Troy-Bilt 783-04840-0716

BRACKET:PIVOT:HOOD - CUB YELLOW-99 (0716)

$21.99

$

In Stock, only 2 left!

0

783-04840-4008

Troy-Bilt 783-04840-4008

BRACKET:PIVOT:HOOD - WINE RED (4008)

$21.99

$

In Stock, only 2 left!

0

$19.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 783-04841

Pivot Bracket - LH

Variations

783-04841-0716

Troy-Bilt 783-04841-0716

BRACKET:PIVOT:HOOD - CUB YELLOW-99 (0716)

$17.99

$

Usually ships in 3-6 days

0

783-04841-0637

Troy-Bilt 783-04841-0637

Hood Pivot Bracket - POWDER BLACK (0637)

$

$

Not available

783-04841-4008

Troy-Bilt 783-04841-4008

BRACKET:PIVOT:HOOD - WINE RED (4008)

$

$

Not available

$15.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 783-04606A

Grill Pivot Bracket
(Superseded to 783-04606C)

Variations

783-04606A-0637

Troy-Bilt 783-04606A-0637

Hood Pivot Bracket - POWDER BLACK (0637)

$51.99

$

Usually ships in 3-6 days

0

783-04606A-0638

Troy-Bilt 783-04606A-0638

BRACKET-PIVOT HOOD - MTD/TROY-BILT RED (0638)

$51.99

$

Usually ships in 3-6 days

0

783-04606A-0716

Troy-Bilt 783-04606A-0716

BRACKET-PIVOT HOOD - CUB YELLOW-99 (0716)

$51.99

$

Usually ships in 3-6 days

0

783-04606A-4008

Troy-Bilt 783-04606A-4008

BRACKET-PIVOT HOOD - WINE RED (4008)

$51.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 712-0185

Speed Nut

$

$

Not available

13

Troy-Bilt 751-10283

Fuel Tank, Three Gallon
(Superseded to 751-10283B)

$185.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 751-0603

Fuel Cap
(Superseded to 751-0603B)

$24.99

$

In Stock, Qty 5

0

15

Troy-Bilt 710-1017

Screw, 1/4-14 x.625

$8.99

$

In Stock, Qty 12

0

16

Troy-Bilt 710-0895

Self-tapping Screw, 1/4-15 x.75

$6.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 710-3217

Truss Phillips Screw, #8-32 x .375

$7.49

$

In Stock, only 3 left!

0

18

Troy-Bilt 712-0142

Hex Nut, #8-32

$4.99

$

In Stock, Qty 6

0

19

Troy-Bilt 731-1857

Throttle Control Knob

$15.99

$

In Stock, only 4 left!

0

20

Troy-Bilt 731-05001A

Dash Panel
(Superseded to 731-06167)

$109.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 731-04729

Cruise Control Button

$

$

Not available

22

Troy-Bilt 731-04728

Parking Brake Button

$

$

Not available

23

Troy-Bilt 747-04161

Tank Support Rod

$

$

Not available

24

Troy-Bilt 747-1196

Brake/Cruise Pivot Rod

$16.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 629-04083

Headlight Wire Harness
(Superseded to 929-04083B)

$41.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 725-04156

Systems Ind. Monitor w/Ammeter
(Superseded to 925-04156)

$31.99

$

In Stock, only 4 left!

0

27

Troy-Bilt 783-04908

RH Dash Support Plate
(Superseded to 783-04285F-0637)

Variations

783-04908-0637

Troy-Bilt 783-04908-0637

Dash Plate Support - POWDER BLACK (0637)

$

$

Not available

$

$

28

Troy-Bilt 710-0642

Self-tapping Screw, 1/4-20 x .75

$4.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 783-04909

LH Dash Support Plate
(Superseded to 783-04323F-0637)

Variations

783-04909-0637

Troy-Bilt 783-04909-0637

SUPPORT-DASH PLATE - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 725-0963

Lamp
(Superseded to 925-0963)

$7.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 736-0270

Bell Washer,.265 x.75 x.062

$4.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 710-1611B

Screw, 5/16-18 x.75

$7.49

$

Usually ships in 3-6 days

0

33

Troy-Bilt 725-1649

Headlight Socket
(Superseded to 925-1649A)

$12.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 725-04227A

Ignition Switch
(Superseded to 925-06119C)

$123.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 725-1745

Ignition Key w/ plastic cover
(Superseded to 925-1745A)

$18.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 725-1744

Ignition Key w/o plastic cover
(Superseded to 925-1745A)

$18.99

$

In Stock, Qty 20+

0

Troy-Bilt 725-04334

Wire Harness (not shown)

$239.99

$

Usually ships in 3-6 days

0
