13AX615G055 - Yard-Man Lawn Tractor (2008) (Walmart) Fender, Deck Lift & Seat Parts Diagram

Lawn Tractor

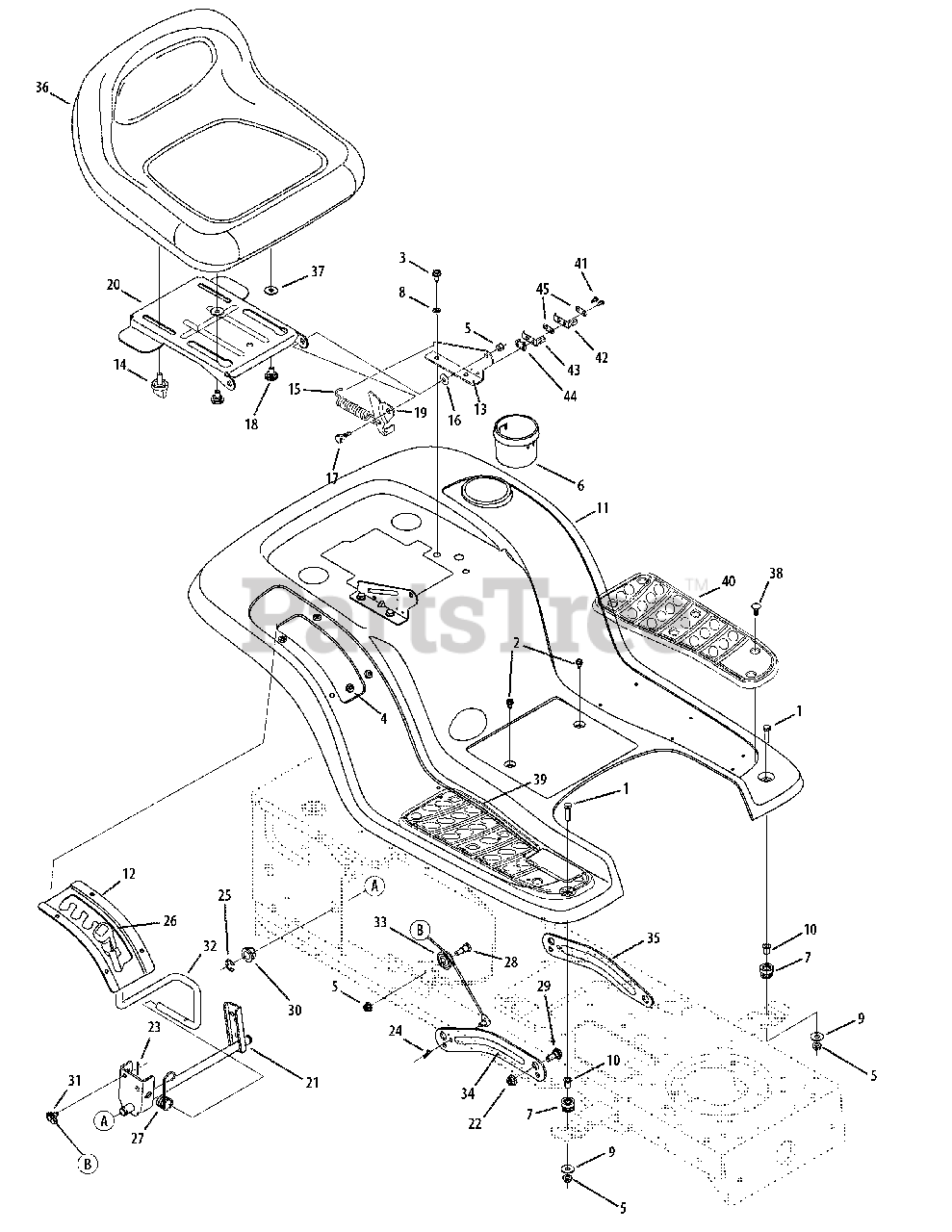

Fender, Deck Lift & Seat Parts Diagram

  • Title

1

MTD 710-0528

Hex Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0599

Screw, 1/4-20, 0.500

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-04484

Screw, 5/16-18, 0.750x

$3.49

$

In Stock, Qty 20+

0

4

MTD 710-0611B

Screw, 5/16-18, 0.750

$

$

Currently unavailable

5

MTD 712-04063

Nut, Flange Lock, 5/16-18, GrF

$3.99

$

In Stock, Qty 20+

0

6

MTD 731-04591A

Cup Holder

$14.99

$

Usually ships in 3-6 days

0

7

MTD 735-0690

Grommet, .4375 x .750

$11.99

$

In Stock, only 1 left!

0

8

MTD 736-0607

Lock Washer, 5/16

$3.99

$

In Stock, Qty 20+

0

9

MTD 736-3078

Washer, Flat,.344 x 1.0 x.063

$3.99

$

In Stock, Qty 15

0

10

MTD 750-3310

Flanged Spacer

$4.99

$

In Stock, only 1 left!

0

11

MTD 783-04437A

Hydro Fender, 7-style

Variations

MTD 783-04437A-0638

FENDER-HYDRO - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-04437A-0650

FENDER-HYDRO - RED METALLIC (0650)

$

$

Not available

MTD 783-04437A-0665

FENDER-HYDRO - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-04437A-0691

FENDER-HYDRO - BLACK JACK (0691)

$

$

Not available

MTD 783-04437A-0716

FENDER-HYDRO - CUB YELLOW-99 (0716)

$

$

Not available

$

$

12

MTD 783-1010A

Deck Lift Plate
(Superseded to 783-1010A-0637)

Variations

MTD 783-1010A-0637

PLATE-DECK LIFT - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

13

MTD 783-1489C

Mounting Bracket, Seat

Variations

MTD 783-1489C-0638

BRACKET-MOUNT SEAT - MTD/TROY-BILT RED (0638)

$21.99

$

Usually ships in 3-6 days

0

MTD 783-1489C-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$21.99

$

Usually ships in 3-6 days

0

MTD 783-1489C-0650

Seat Mounting Bracket - RED METALLIC (0650)

$21.99

$

Usually ships in 3-6 days

0

MTD 783-1489C-4008

Seat Mounting Bracket - WINE RED (4008)

$20.99

$

Usually ships in 3-6 days

0

MTD 783-1489C-0716

BRACKET-MOUNT SEAT - CUB YELLOW-99 (0716)

$21.99

$

Usually ships in 3-6 days

0

MTD 783-1489C-4015

BRACKET-MOUNT SEAT - FIRE RED (4015)

$20.99

$

Usually ships in 3-6 days

0

MTD 783-1489C-4021

BRACKET-MOUNT SEAT - CUB YELLOW 2 (4021)

$21.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0

14

MTD 720-04061

Knob, 3/8-16

$4.99

$

In Stock, Qty 20+

0

15

MTD 732-1184

Spring, Extension,.84 Dia. x 4.6

$10.99

$

In Stock, Qty 14

0

16

MTD 736-0242

Wash, Flat, .340 x .688 x .065

$3.99

$

In Stock, Qty 20+

0

17

MTD 738-0296

Screw, Shoulder,.437 x.268

$3.99

$

In Stock, Qty 13

0

18

MTD 738-04012A

Shoulder Screw
(Superseded to 738-04012C)

$5.49

$

In Stock, Qty 14

0

19

MTD 783-0209D

Seat Bracket, Lift

$15.99

$

Usually ships in 3-6 days

0

20

MTD 783-04081B

Seat Pivot Bracket, Manual Adj.

Variations

MTD 783-04081B-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$38.99

$

In Stock, Qty 8

0

MTD 783-04081B-4008

Seat Pivot Bracket - WINE RED (4008)

$38.99

$

In Stock, Qty 8

0

$30.99

$

Usually ships in 3-6 days

0

21

MTD 683-04223

Deck Lift Shaft Assembly
(Superseded to 683-04223-0637)

Variations

MTD 683-04223-0637

Lift Shaft Assembly - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

$47.99

$

Usually ships in 3-6 days

0

22

MTD 712-04065

Nut, Flange Lock, 3/8-16, GrF

$3.99

$

In Stock, Qty 20+

0

23

MTD 714-0104

Pin, Cotter,.072 Dia. x 1.13

$3.99

$

In Stock, Qty 20+

0

24

MTD 714-0111

Pin, Cotter, 3/32, 1.0

$4.49

$

In Stock, Qty 20+

0

25

MTD 716-0106A

Ring, E Type,.625 Dia.

$4.99

$

In Stock, Qty 15

0

26

MTD 720-0311

Grip, Handle, 1/2

$14.99

$

In Stock, Qty 7

0

27

MTD 732-0874

Spring, Torsion

$4.49

$

In Stock, Qty 10

0

28

MTD 738-0138A

Screw, 5/16-18 x.620 Gr2

$6.49

$

In Stock, Qty 20+

0

29

MTD 738-04130

Scr.,Shldr, .625 x.165,
(Superseded to 738-04130A)

$8.99

$

In Stock, Qty 16

0

30

MTD 741-0225

Bearing, Hex Flange
(Superseded to 941-0225)

$6.99

$

In Stock, Qty 20+

0

31

MTD 746-0968

Cable, Lift, 16.16

$18.99

$

In Stock, Qty 20+

0

32

MTD 747-04447

Handle, Lift

$41.99

$

In Stock, only 3 left!

0

33

MTD 756-1154

Pulley, Roller

$7.49

$

In Stock, Qty 18

0

34

MTD 783-04494B

Arm, Lift - RH
(Superseded to 783-04494C)

Variations

MTD 783-04494B-0637

Deck Lift Arm, RH - POWDER BLACK (0637)

$20.99

$

In Stock, Qty 5

0

MTD 783-04494B-4008

Deck Lift Arm, RH - WINE RED (4008)

$20.99

$

In Stock, Qty 5

0

$18.99

$

Usually ships in 3-6 days

0

35

MTD 783-04711B

Arm, Lift - LH
(Superseded to 783-04711C)

Variations

MTD 783-04711B-0637

Deck Lift Arm, LH - POWDER BLACK (0637)

$22.99

$

In Stock, only 2 left!

0

MTD 783-04711B-4008

Deck Lift Arm, LH - WINE RED (4008)

$22.99

$

In Stock, only 2 left!

0

$22.99

$

Usually ships in 3-6 days

0

36

MTD 757-04001A

Low Back Seat
(Superseded to 957-04037)

$223.99

$

In Stock, only 4 left!

0

37

MTD 736-0300

Flat Washer, .406 x .875 x .059

$3.99

$

In Stock, Qty 20+

0

38

MTD 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 20+

0

39

MTD 735-0672

RH Foot Pad,Rubber

$

$

Not available

40

MTD 735-0673

LH Foot Pad, Rubber

$

$

Not available

41

MTD 710-0227

Screw, #8-18 x.50

$3.99

$

In Stock, Qty 20+

0

42

MTD 725-1303

Spring Switch, Outer
(Superseded to 925-1303)

$5.99

$

In Stock, Qty 8

0

43

MTD 725-1439

Spring Switch, Inner

$7.99

$

In Stock, Qty 8

0

44

MTD 726-0278

Plate, Insulator Boss

$6.49

$

In Stock, Qty 10

0

45

MTD 726-0279

Plate, Insulator

$3.49

$

In Stock, Qty 8

0
