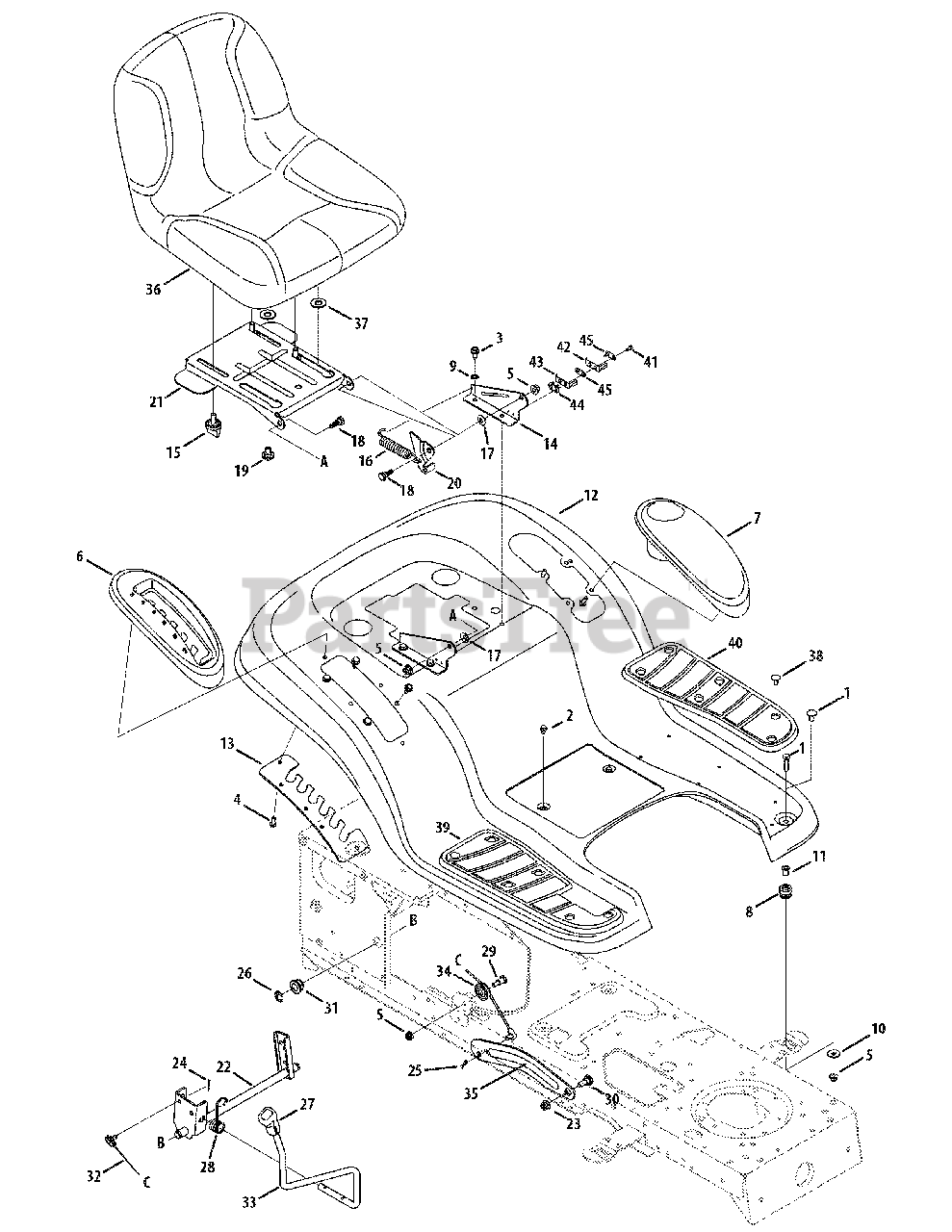

13AX61KG011 - Troy-Bilt Range Rider Lawn Tractor (2008) Fender, Deck Lift & Seat Parts Diagram

Range Rider Lawn Tractor

Fender, Deck Lift & Seat Parts Diagram

  • Title

1

Troy-Bilt 710-0528

Hex Screw, 5/16-18 x 1.25

Note: (Sngle. Cyl.)

$4.49

$

In Stock, Qty 20+

0

1

Troy-Bilt 710-0451

Carriage Bolt, 5/16-18

Note: (Twin Cyl. Models)

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0599

Screw, 1/4-20, 0.500

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-04484

Screw, 5/16-18, 0.750x

$3.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0895

Screw, 1/4-15, 0.750

$5.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 712-04063

Nut, Flange Lock, 5/16-18, GrF

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 731-1990

Deck Lift Lever Cover
(Superseded to 731-06795)

$22.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 731-1993A

Cover with Cup Holder

$25.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 735-0690

Grommet, .4375 x .750

Note: (Sngle. Cyl.)

$11.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 736-0607

Lock Washer, 5/16

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 736-3078

Washer, Flat,.344 x 1.0 x.063

$3.99

$

In Stock, Qty 15

0

11

Troy-Bilt 750-3310

Flanged Spacer

Note: (Sngle. Cyl. Models only)

$4.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 783-04333A

Hydro Fender, 4-style

Variations

Troy-Bilt 783-04333A-0606

FENDER - 4 STYLE - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 783-04333A-0638

FENDER - 4 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 783-04333A-0650

FENDER - 4 STYLE - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 783-04333A-0665

FENDER - 4 STYLE - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 783-04333A-0709

FENDER - 4 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

Troy-Bilt 783-04333A-0716

FENDER - 4 STYLE - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 783-04333A-4008

FENDER - 4 STYLE - WINE RED (4008)

$

$

Not available

$332.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 783-0677B

Deck Lift Plate

Variations

Troy-Bilt 783-0677B-0637

Lift Adjustment Bracket - POWDER BLACK (0637)

$20.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-0677B-4008

BRACKET:LIFT:ADJ - WINE RED (4008)

$

$

Not available

Troy-Bilt 783-0677B-4015

BRACKET:LIFT:ADJ - FIRE RED (4015)

$

$

Not available

$22.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 783-1489C

Mounting Bracket, Seat

Variations

Troy-Bilt 783-1489C-0638

BRACKET-MOUNT SEAT - MTD/TROY-BILT RED (0638)

$21.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-1489C-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$21.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-1489C-0650

Seat Mounting Bracket - RED METALLIC (0650)

$21.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-1489C-4008

Seat Mounting Bracket - WINE RED (4008)

$20.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-1489C-0716

BRACKET-MOUNT SEAT - CUB YELLOW-99 (0716)

$21.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-1489C-4015

BRACKET-MOUNT SEAT - FIRE RED (4015)

$20.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-1489C-4021

BRACKET-MOUNT SEAT - CUB YELLOW 2 (4021)

$21.99

$

In Stock, only 1 left!

0

$17.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 720-04061

Knob, 3/8-16

$4.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 732-1184

Spring, Extension,.84 Dia. x 4.6

$10.99

$

In Stock, Qty 12

0

17

Troy-Bilt 736-0242

Wash, Flat, .340 x .688 x .065

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 738-0296

Screw, Shoulder,.437 x.268

$3.99

$

In Stock, Qty 11

0

19

Troy-Bilt 738-04012A

Shoulder Screw
(Superseded to 738-04012C)

$5.49

$

In Stock, Qty 14

0

20

Troy-Bilt 783-0209D

Seat Bracket, Lift

$15.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 783-04081B

Seat Pivot Bracket, Manual Adj.

Variations

Troy-Bilt 783-04081B-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$38.99

$

In Stock, Qty 8

0

Troy-Bilt 783-04081B-4008

Seat Pivot Bracket - WINE RED (4008)

$38.99

$

In Stock, Qty 8

0

$30.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 683-04223

Deck Lift Shaft Assembly
(Superseded to 683-04223-0637)

Variations

Troy-Bilt 683-04223-0637

Lift Shaft Assembly - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

$47.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 712-04065

Nut, Flange Lock, 3/8-16, GrF

$3.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 714-0104

Pin, Cotter,.072 Dia. x 1.13

$3.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 714-0111

Pin, Cotter, 3/32, 1.0

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 716-0106A

Ring, E Type,.625 Dia.

$4.99

$

In Stock, Qty 15

0

27

Troy-Bilt 720-0311

Grip, Handle, 1/2

$14.99

$

In Stock, Qty 7

0

28

Troy-Bilt 732-0874

Spring, Torsion

$4.49

$

In Stock, Qty 10

0

29

Troy-Bilt 738-0138A

Screw, 5/16-18 x.620 Gr2

$6.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 738-04130

Scr.,Shldr, .625 x.165,
(Superseded to 738-04130A)

Note: (42" Deck)

$8.99

$

In Stock, Qty 16

0

30

Troy-Bilt 738-0380

Scr.,Shldr, .500 x.270,

Note: (50" Deck)

$7.49

$

In Stock, Qty 18

0

31

Troy-Bilt 741-0225

Bearing, Hex Flange
(Superseded to 941-0225)

$6.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 746-0968

Cable, Lift, 16.16

$18.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 747-04447

Handle, Lift

$41.99

$

In Stock, only 3 left!

0

34

Troy-Bilt 756-1154

Pulley, Roller

$7.49

$

In Stock, Qty 17

0

35

Troy-Bilt 783-04494B

Arm, Lift - RH
(Superseded to 783-04494C)

Note: (42" Deck)

Variations

Troy-Bilt 783-04494B-0637

Deck Lift Arm, RH - POWDER BLACK (0637)

$20.99

$

In Stock, Qty 5

0

Troy-Bilt 783-04494B-4008

Deck Lift Arm, RH - WINE RED (4008)

$20.99

$

In Stock, Qty 5

0

$18.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 783-04711B

Arm, Lift - LH
(Superseded to 783-04711C)

Note: (42" Deck)Not Shown

Variations

Troy-Bilt 783-04711B-0637

Deck Lift Arm, LH - POWDER BLACK (0637)

$22.99

$

In Stock, only 2 left!

0

Troy-Bilt 783-04711B-4008

Deck Lift Arm, LH - WINE RED (4008)

$22.99

$

In Stock, only 2 left!

0

$22.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 783-05546

Arm, Lift - Universal
(Superseded to 783-05546A-0637)

Note: (50" Deck)Not Shown

Variations

Troy-Bilt 783-05546-0637

Lift Link - POWDER BLACK (0637)

$19.99

$

In Stock, Qty 5

0

$19.99

$

In Stock, Qty 5

0

36

Troy-Bilt 757-04003A

High Back Seat

$

$

Not available

37

Troy-Bilt 736-0300

Flat Washer, .406 x .875 x .059

$3.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 735-0656

RH Foot Pad,Rubber

$25.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 735-0657

LH Foot Pad, Rubber

$26.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 710-0227

Screw, #8-18 x.50

$3.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 725-1303

Spring Switch, Outer
(Superseded to 925-1303)

$5.99

$

In Stock, Qty 8

0

43

Troy-Bilt 725-1439

Spring Switch, Inner

$7.99

$

In Stock, Qty 8

0

44

Troy-Bilt 726-0278

Plate, Insulator Boss

$6.49

$

In Stock, Qty 10

0

45

Troy-Bilt 726-0279

Plate, Insulator

$3.49

$

In Stock, Qty 8

0
