13AX61KG011 - Troy-Bilt Range Rider Lawn Tractor (2008) Steering & Front Axle Parts Diagram

Range Rider Lawn Tractor

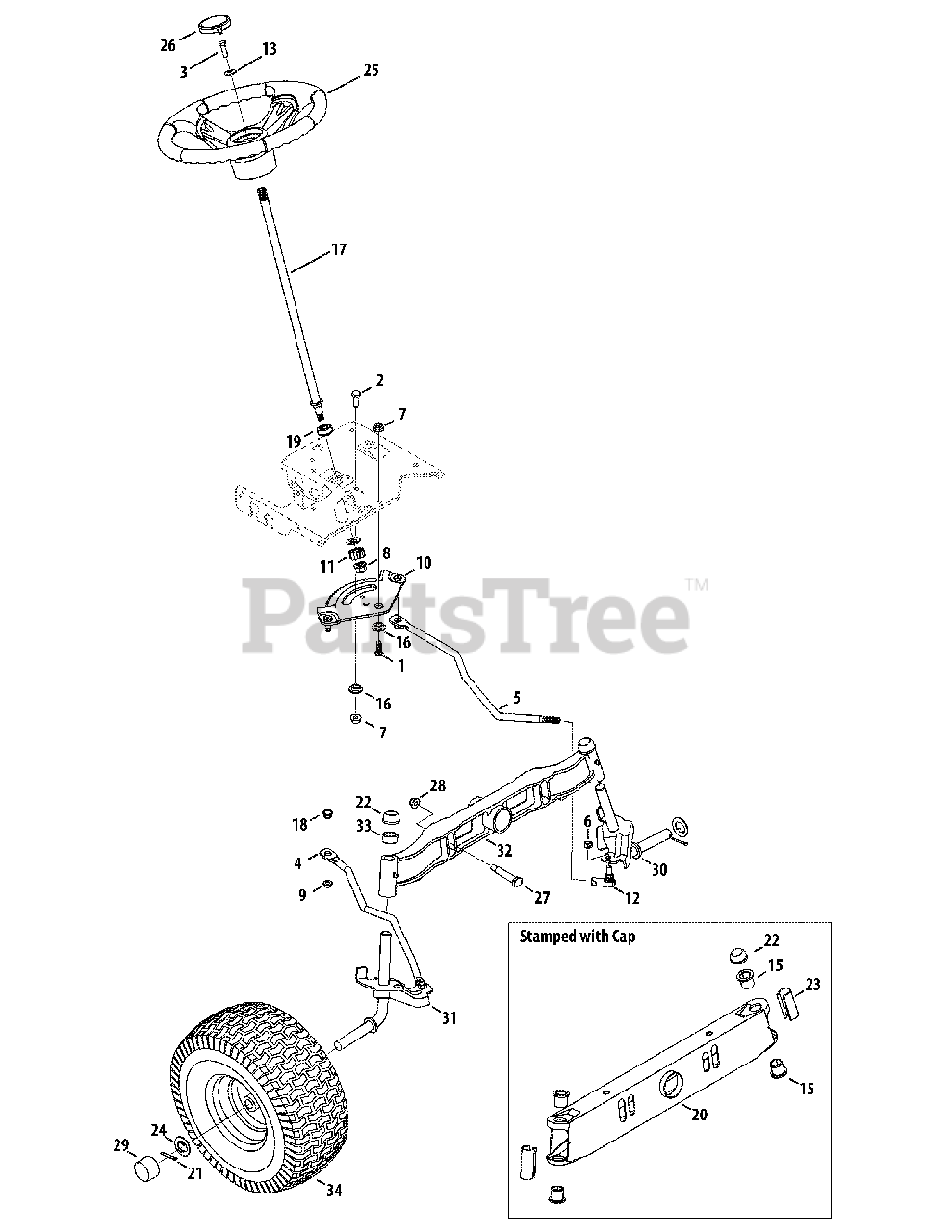

Steering & Front Axle Parts Diagram

  • Title

1

Troy-Bilt 710-04095

Hex Screw, 3/8-16, 1.00, Gr5

$5.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0514

Hex Screw, 3/8-16, 1.00, Gr5

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0643

Hex Screw, 5/16-18, 1.00, Gr5

$7.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 711-1408

Link, Drag, RH

$

$

Not available

5

Troy-Bilt 711-1409A

Link, Drag, LH

$

$

Not available

6

Troy-Bilt 712-0214

Nut, Hex Lock, 3/8-24

$6.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-04065

Nut, Flange Lock, 3/8-16, Grf

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-0459

Nut, Flange Lock, 7/16-20

$5.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-3004A

Nut, Flange Lock, 5/16-18, Gr5

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 717-1550E

Gear, Steering, 11/90 Ratio
(Superseded to 717-1550F)

$74.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 717-1554

Gear, Pinion, Steering

$11.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 723-0448A

Ball Joint, 7/16-20, Lock
(Superseded to 923-0448A)

$25.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 736-3004

Washer, Flat, .406 x .875 x .105

$4.99

$

In Stock, Qty 14

0

14

Troy-Bilt 736-3084

Washer, Flat, .51 x 1.12 x .06

$5.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 741-0660A

Flange Bearing

$3.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 738-04154

Spacer, Shoulder, .38 x 1.00 x .31

$5.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 738-04263

Shaft, Steering, .625 OD x 24.25

$72.99

$

In Stock, Qty 6

0

18

Troy-Bilt 741-0475

Plastic Bushing .380 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 741-04237

Hex Flange Bearing
(Superseded to 741-04237B)

$7.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 683-0128B

Pivot Bar Axle Assembly

Note: (stamped steel)

Variations

683-0128B-0498

Troy-Bilt 683-0128B-0498

Steel Axle Pivot Bar Assembly - OLD CUB YELLOW (0498)

$102.99

$

In Stock, Qty 20+

0

683-0128B-0606

Troy-Bilt 683-0128B-0606

Pivot Bar - MAJESTIC ORANGE (0606)

$102.99

$

In Stock, Qty 20+

0

683-0128B-0637

Troy-Bilt 683-0128B-0637

Steel Axle Pivot Bar Assembly - POWDER BLACK (0637)

$102.99

$

In Stock, Qty 20+

0

683-0128B-0638

Troy-Bilt 683-0128B-0638

Pivot Bar - MTD/TROY-BILT RED (0638)

$102.99

$

In Stock, Qty 20+

0

683-0128B-0650

Troy-Bilt 683-0128B-0650

Steel Axle Pivot Bar Assembly - RED METALLIC (0650)

$102.99

$

In Stock, Qty 20+

0

683-0128B-0665

Troy-Bilt 683-0128B-0665

Steel Axle Pivot Bar Assembly - YARDMAN GREEN (0665)

$102.99

$

In Stock, Qty 20+

0

683-0128B-0691

Troy-Bilt 683-0128B-0691

Steel Axle Pivot Bar Assembly - BLACK JACK (0691)

$102.99

$

In Stock, Qty 20+

0

683-0128B-0709

Troy-Bilt 683-0128B-0709

Steel Axle Pivot Bar Assembly - MASTERCRAFT GREEN (0709)

$102.99

$

In Stock, Qty 20+

0

683-0128B-4062

Troy-Bilt 683-0128B-4062

Steel Axle Pivot Bar Assembly - COOL GRAY (4062)

$102.99

$

In Stock, Qty 20+

0

$95.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 714-0162

Cotter Pin, 5/32 x 1.25 (Cast Axle)

$5.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 726-0341

Push Cap, 3/4

$4.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 731-1291A

Pivot Bar End Cap
(Superseded to 931-1291A)

$16.99

$

In Stock, Qty 17

0

24

Troy-Bilt 736-04228A

Flat Washer, .781 x 1.59
(Superseded to 736-04228B)

$5.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 631-04028

Steering Wheel

$73.99

$

In Stock, only 3 left!

0

25

Troy-Bilt 631-04008

Steering Wheel
(Superseded to 631-04008B)

$100.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 731-04040

Steering Wheel Cap, Sprig Logo

$10.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 731-04681

Steering Wheel Cap, TB Logo

$14.99

$

In Stock, only 2 left!

0

27

Troy-Bilt 738-04128

Shoulder Bolt, .5 x 2.38, 3/8-16

$8.49

$

Usually ships in 3-6 days

0

28

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 731-05674

Hub Cap, Standard

$5.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 638-04006

LH Axle Assembly, .750
(Superseded to 938-04006A-0637)

Note: (42" Deck)

$58.99

$

In Stock, only 2 left!

0

30

Troy-Bilt 638-04003A

LH Axle Assembly, .750
(Superseded to 638-04003AP)

Note: (50" Deck)

$

$

Not available

31

Troy-Bilt 638-04005

RH Axle Assembly, .750
(Superseded to 938-04005A-0637)

Note: (42" Deck)

$58.99

$

In Stock, only 1 left!

0

31

Troy-Bilt 638-04004A

RH Axle Assembly, .750
(Superseded to 938-04004A)

Note: (50" Deck)

$75.99

$

In Stock, Qty 15

0

32

Troy-Bilt 719-04177A

Pivot Bar, Cast Iron
(Superseded to 919-04177E)

$263.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 737-3000

Fitting, Lube 3/16 Drive Type
(Superseded to 937-3000)

Note: (Not Shown)

$4.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 737-0475

Fitting, Lube M6 Threaded Type

Note: (Not Shown)

$12.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 748-04068

Spacer, Shoulder, .71 x .125 x .56

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 634-05067-0911

Wheel Assembly Complete, 15x6

$196.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 734-1731-0901

Tire Only 15 x 6 x 6

Note: (Not Shown)

$52.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 934-04081-0662

Rim
(Superseded to 634-05066-0662)

Note: (Includes bearings & valve stem) (Not shown)

$111.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 741-0990B

Bearing, Flange, .76 ID w/ Lube Fitting

Note: (not shown)

$10.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 741-0516B

Bearing, Flange, .76 x 1.0 x 1.2

Note: (not shown)

$6.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 934-0255

Valve, tubeless Air

Note: (not shown)

$4.49

$

In Stock, Qty 20+

0
