13AX61RG848 (LX 427) - Toro Lawn Tractor (SN: 1A319H10001 - 1L319H19999) (2009 & After)

Lawn Tractor

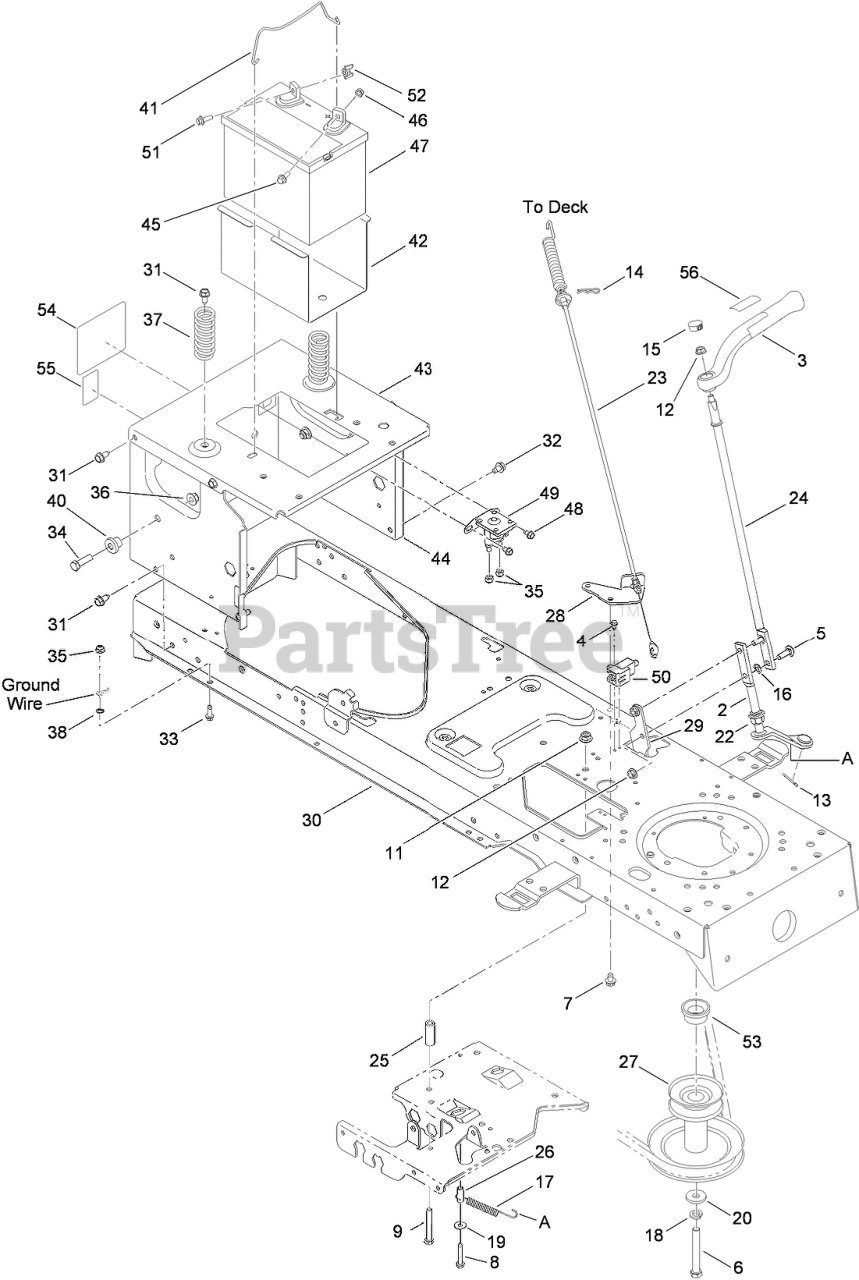

13AX61RG848 (LX 427) - Toro Lawn Tractor (SN: 1A319H10001 - 1L319H19999) (2009 & After) > Parts Diagrams (9) > FRAME, BATTERY AND MANUAL PTO ASSEMBLY

  • Title
112-6007

2

LEVER-ENGAGE, PTO

Part# 112-6007

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $37.08

112-6101

3

KNOB PTO ASM

Part# 112-6101

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $25.40

112-6206

4

BOLT-SHOULDER

Part# 112-6206

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.97

112-0598

5

BOLT-CARR

Part# 112-0598

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.53

112-6008

6

SCREW-HH

Part# 112-6008

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.23

112-0676

7

SCREW-TAP

Part# 112-0676

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.49

112-0843

8

SCREW-HWH

Part# 112-0843

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.53

112-6009

9

SCREW-HH

Part# 112-6009

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.03

112-0668

11

NUT-LOCK, FLANGE

Part# 112-0668

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.38

112-0511

12

NUT-LOCK, FLANGE

Part# 112-0511

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.38

112-6010

13

PIN-COTTER

Part# 112-6010

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.48

112-0398

14

PIN-CLICK

Part# 112-0398

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $14.63

112-6103

15

PLUG-KNOB, PTO LEVER

Part# 112-6103

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.10

112-0645

16

NUT-PUSH

Part# 112-0645

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.60

112-0567

17

SPRING-EXTENSION

Part# 112-0567

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.05

112-0428

18

WASHER-LOCK

Part# 112-0428

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.50

112-5989

19

WASHER-FLAT

Part# 112-5989

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.50

112-0380

20

WASHER-FLAT

Part# 112-0380

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.17

112-0384

22

BEARING-FLANGE, HEX (SPLIT)

Part# 112-0384

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.53

112-6137

23

CABLE-ENGAGE, DECK

Part# 112-6137

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $53.33

112-6104

24

ROD-ENGAGE, DECK

Part# 112-6104

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $40.65

112-0433

25

SPACER

Part# 112-0433

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.24

112-0644

26

SPACER

Part# 112-0644

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.35

112-6207

27

PULLEY-ENGINE

Part# 112-6207

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $124.53

112-6105

28

BRACKET-MOUNT, CABLE

Part# 112-6105

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $21.25

112-0516

29

BRACKET-STOP

Part# 112-0516

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $34.54

112-5974

30

LOWER FRAME ASM

Part# 112-5974

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $445.50

112-6070

31

SCREW-TAP

Part# 112-6070

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.62

112-0676

32

SCREW-TAP

Part# 112-0676

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.49

112-0587

33

SCREW-TAP

Part# 112-0587

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.53

112-0557

34

SCREW-HH

Part# 112-0557

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.53

112-0636

35

NUT-LOCK, FLANGE

Part# 112-0636

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.48

112-0668

36

NUT-LOCK, FLANGE

Part# 112-0668

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.38

112-6208

37

SPRING-COMPRESSION

Part# 112-6208

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $17.43

112-0703

38

WASHER-LOCK, EXTERNAL

Part# 112-0703

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.53

112-0661

40

SPACER-SHOULDER

Part# 112-0661

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.53

112-0581

41

ROD-HOLDDOWN, BATTERY

Part# 112-0581

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.82

112-0570

42

TRAY-BATTERY

Part# 112-0570

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $70.68

112-6209

43

BRACKET-FRAME, SEAT

Part# 112-6209

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $71.18

112-6254

44

FRAME-UPPER

Part# 112-6254

OEM Warranty Repair Part for Toro

Currently unavailable

112-1070

45

BOLT-CARRIAGE

Part# 112-1070

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.48

112-0546

46

NUT-SEMS

Part# 112-0546

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.53

112-0425

47

BATTERY-245, CCA (DRY FLAT TOP)

Part# 112-0425

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $83.18

112-6108

48

SCREW-TAP

Part# 112-6108

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.97

112-6073

49

SOLENOID-12V, 2 POST 2 Tab

Part# 112-6073

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $36.48

112-6210

50

SWITCH-INTERLOCK, NO/NC

Part# 112-6210

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $18.47

112-6182

51

BOLT-SHOULDER

Part# 112-6182

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.82

112-1121

52

NUT-WING

Part# 112-1121

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.72

112-6211

53

SPACER

Part# 112-6211

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $20.53

112-1284

54

DECAL-TORO

Part# 112-1284

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.67

112-6289

55

DECAL-HYDRO RELEASE

Part# 112-6289

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.82

112-6286

56

DECAL-PTO

Part# 112-6286

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.75
