13AX694G401 - Yard-Man Lawn Tractor (1998) Deck Lift & Hanger Assembly Parts Diagram

Lawn Tractor

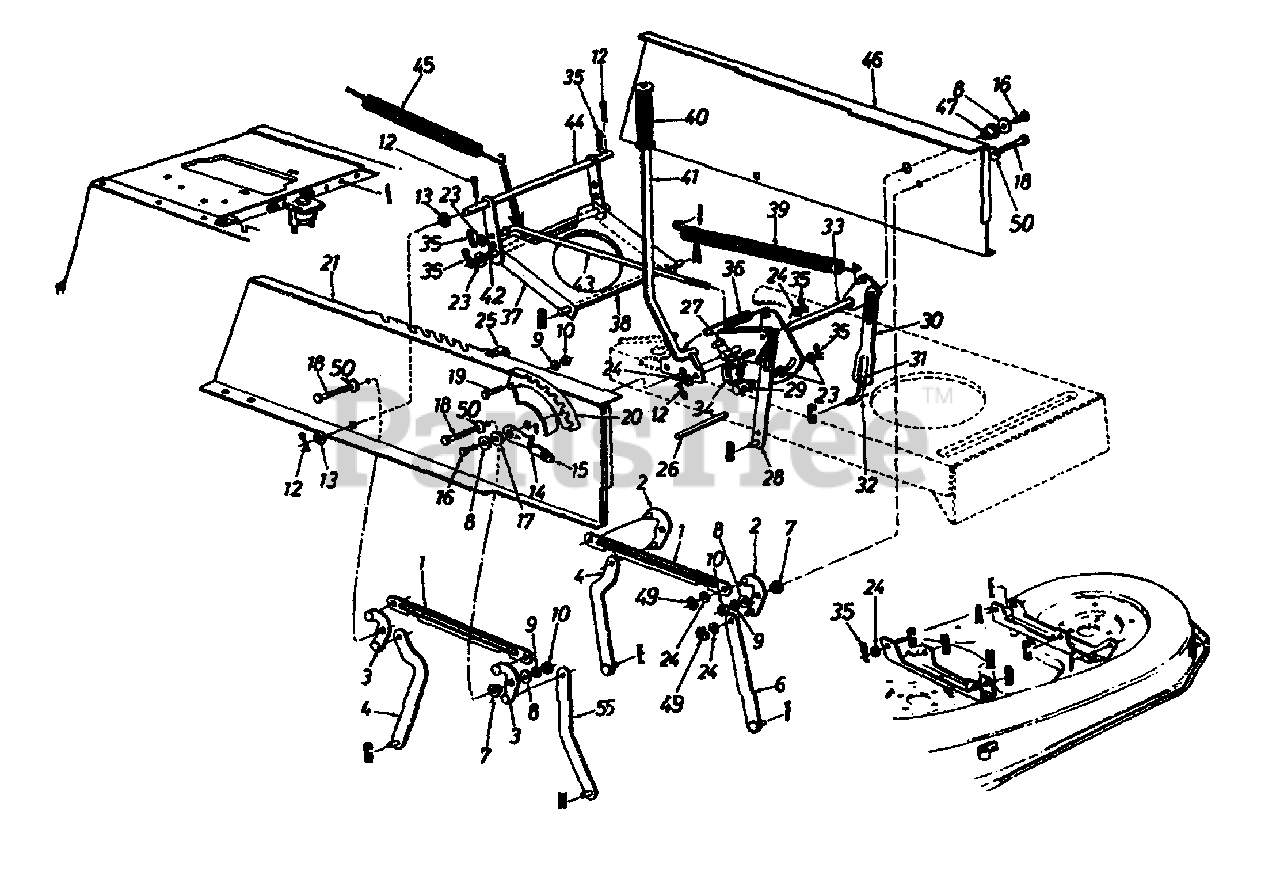

Deck Lift & Hanger Assembly Parts Diagram

  • Title

1

Cub Cadet 783-0103

Connecting Rod
(Superseded to 783-0103-0637)

Variations

Cub Cadet 783-0103-0637

ROD-CONNECTING - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 683-0029A

Pivot Link Ass'y.- L.H.
(Superseded to 983-0029A-0637)

$13.99

$

In Stock, only 3 left!

0

3

Cub Cadet 683-0028A

Pivot Link Ass'y.- R.H.

$

$

Not available

4

Cub Cadet 17710

Deck Hanger Link Ass'y.

Variations

Cub Cadet 17710-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

?5

Cub Cadet 14800A

Deck Hanger Link Ass'y.
(Superseded to 14800A-0637)

Variations

Cub Cadet 14800A-0637

HANGER-DECK LINK - POWDER BLACK (0637)

$

$

Not available

$

$

6

Cub Cadet 14804A

Deck Hanger Link Ass'y.

$

$

Not available

7

Cub Cadet 748-0331

Shld. Spacer.318" I.D.
(Superseded to 948-0331)

$

$

Not available

8

Cub Cadet 736-0264

Fl-Wash. .344" I.D. x.62" O.D.

$6.49

$

In Stock, only 2 left!

0

9

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3010

Hex Nut 5/16-18 Thd. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 714-0470

Cotter Pin 1/8" Dia.

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 736-0256

Fl-Wash. .635" I.D. x 1.0" O.D.
(Superseded to 936-0256)

$6.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 683-0003

Height Adj. Stop Lever Ass'y.
(Superseded to 983-0003)

Note: (Incl. Ref. 15)

$

$

Not available

15

Cub Cadet 08540

Knobs

$

$

Not available

16

Cub Cadet 710-0604

Hex Wash. TT-Tap Scr.5/16-18 x .75" Lg.
(Superseded to 710-0604A)

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 748-0176

Flange Brg. .63" I.D.

$9.49

$

In Stock, only 1 left!

0

18

Cub Cadet 710-1238

Hex Wash. Hd. Scr. 5/16-18 x .875"
(Superseded to 710-1238A)

$3.99

$

In Stock, Qty 10

0

19

Cub Cadet 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 17730

Index Brkt.
(Superseded to 783-04113P)

$23.99

$

In Stock, only 1 left!

0

21

Cub Cadet 783-0042A

Upper Frame - R.H.
(Superseded to 783-0042D)

Variations

Cub Cadet 783-0042A-0480

USE 783-0042D-0637 FRAME-UPPE - BRILLIANT GREEN (0480)

$

$

Not available

Cub Cadet 783-0042A-0483

USE 783-0042D-0637 FRAME-UPPE - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 783-0042A-0629

USE 783-0042D-0637 FRAME-UPPE - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 783-0042A-0637

USE 783-0042D-0637 FRAME-UPPE - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0042A-0638

USE 783-0042D-0637 FRAME-UPPE - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 783-0042A-0648

USE 783-0042D-0637 FRAME-UPPE - TECH GRAY (0648)

$

$

Not available

Cub Cadet 783-0042A-0650

USE 783-0042D-0637 FRAME-UPPE - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0042A-0663

USE 783-0042D-0637 FRAME-UPPE - CAYMEN GREEN (0663)

$

$

Not available

Cub Cadet 783-0042A-0665

USE 783-0042D-0637 FRAME-UPPE - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0042A-0667

USE 783-0042D-0637 FRAME-UPPE - MIDNIGHT BLUE (0667)

$

$

Not available

Cub Cadet 783-0042A-0686

USE 783-0042D-0637 FRAME-UPPE - SIMPLICITY ORANGE (0686)

$

$

Not available

Cub Cadet 783-0042A-0687

USE 783-0042D-0637 FRAME-UPPE - PINE GREEN (0687)

$

$

Not available

$

$

23

Cub Cadet 736-0267

Fl-Wash. .385" I.D. x.87" O.D.

$4.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 736-0160

Fl-Wash. .531 I.D. x .93" O.D.

$3.99

$

In Stock, only 2 left!

0

25

Cub Cadet 726-0272

Clamp

$6.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 738-0526

Running Board Rod

$

$

Not available

27

Cub Cadet 710-3007

Hex Wash. Hd. Tap Scr.

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 14802A

Link Deck Lift Ass'y.
(Superseded to 14802A-0637)

Variations

Cub Cadet 14802A-0637

Deck Lift Link, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

29

Cub Cadet 711-0723A

Adj. Ferrule 3/8-24 Thd.
(Superseded to 911-0723A)

$15.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 17712

Adj. Deck Lift Link
(Superseded to 17712-0637)

Variations

Cub Cadet 17712-0637

Deck Adjust Link - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 712-3066

Hex Nut 1/2-20 Thd. (Gr. 5)
(Superseded to 912-3066)

$6.49

$

In Stock, only 1 left!

0

32

Cub Cadet 711-0841

Lift Link Adjuster
(Superseded to 911-0841)

$

$

Not available

33

Cub Cadet 17637A

Lift Shaft Ass'y.

Variations

Cub Cadet 17637A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

34

Cub Cadet 725-1657A

Safety Switch (Deck)
(Superseded to 925-1657A)

$22.99

$

In Stock, Qty 14

0

35

Cub Cadet 714-0145

Inter. Cotter Pin 3/8" Dia.

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 732-0637

Extension Spring
(Superseded to 932-0637)

$

$

Not available

37

Cub Cadet 17636C

Stabilizer Bracket
(Superseded to 17636D-0637)

Note: (Code N)

Variations

Cub Cadet 17636C-0637

Stabilizer Bracket, Black - POWDER BLACK (0637)

$

$

Not available

$

$

38

Cub Cadet 738-0670

Shaft 1/2" Dia. x 10.28" Lg.
(Superseded to 738-0670A)

$

$

Not available

39

Cub Cadet 732-0638

Extension Spring

$

$

Not available

40

Cub Cadet 720-0233

Grip (Lift Handle)
(Superseded to 920-0233)

$

$

Not available

41

Cub Cadet 97675A

Deck Lift Handle Ass'y.

Variations

Cub Cadet 97675A-0637

HANDLE-ASSY LIFT (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 97675A-0483

DECK LIFT HANDLE ASS'Y. - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 97675A-0638

DECK LIFT HANDLE ASS'Y. - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 97675A-0648

DECK LIFT HANDLE ASS'Y. - TECH GRAY (0648)

$

$

Not available

Cub Cadet 97675A-0665

DECK LIFT HANDLE ASS'Y. - YARDMAN GREEN (0665)

$

$

Not available

$

$

42

Cub Cadet 738-0669

Shaft 3/8" Dia. x 9.34" Lg.

$18.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 747-0598

Disengagement Rod

$12.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 97624

Stabilizer Shaft Ass'y.
(Superseded to 97624-0637)

Variations

Cub Cadet 97624-0637

SHAFT ASSY-STAB - POWDER BLACK (0637)

$

$

Not available

$

$

45

Cub Cadet 732-0556

Extension Spring 7.58" Lg.
(Superseded to 932-0556)

$20.99

$

In Stock, Qty 7

0

46

Cub Cadet 783-0043

Upper Frame - L.H.
(Superseded to 783-0043B)

Variations

Cub Cadet 783-0043-0648

USE 783-0043B-0648 FRAME-UPPE - TECH GRAY (0648)

$

$

Not available

Cub Cadet 783-0043-0483

UPPER FRAME (LH) - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 783-0043-0499

USE 783-0043B-0499 FRAME-UPPE - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 783-0043-0606

UPPER FRAME (LH) - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 783-0043-0629

USE 783-0043B-0637 FRAME-UPPE - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 783-0043-0637

USE 783-0043B-0637 FRAME-UPPE - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0043-0638

USE 783-0043B-0637 FRAME-UPPE - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 783-0043-0650

USE 783-0043B-0637 FRAME-UPPE - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0043-0665

UPPER FRAME (LH) - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0043-0667

UPPER FRAME (LH) - MIDNIGHT BLUE (0667)

$

$

Not available

Cub Cadet 783-0043-0677

UPPER FRAME (LH) - GRASS GREEN (0677)

$

$

Not available

Cub Cadet 783-0043-0689

UPPER FRAME (LH) - POLO GREEN (0689)

$

$

Not available

$

$

47

Cub Cadet 741-0313

Flange Brg. .632" I.D.
(Superseded to 741-0487C)

$6.99

$

In Stock, Qty 20+

0

?48

Cub Cadet 17128A

Spring Retainer Brkt.
(Superseded to 17128A-0637)

Variations

Cub Cadet 17128A-0637

Retainer Spring Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 716-0104

"E"-Ring
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 18

0

50

Cub Cadet 736-0425

Bell-Wash. .325" I.D.

$4.49

$

In Stock, Qty 16

0

55

UNKNOWN

$

$

Not available
