13AX775H231 - Huskee Lawn Tractor (2008) (Tractor Supply) Kohler Courage Parts Diagram

Lawn Tractor

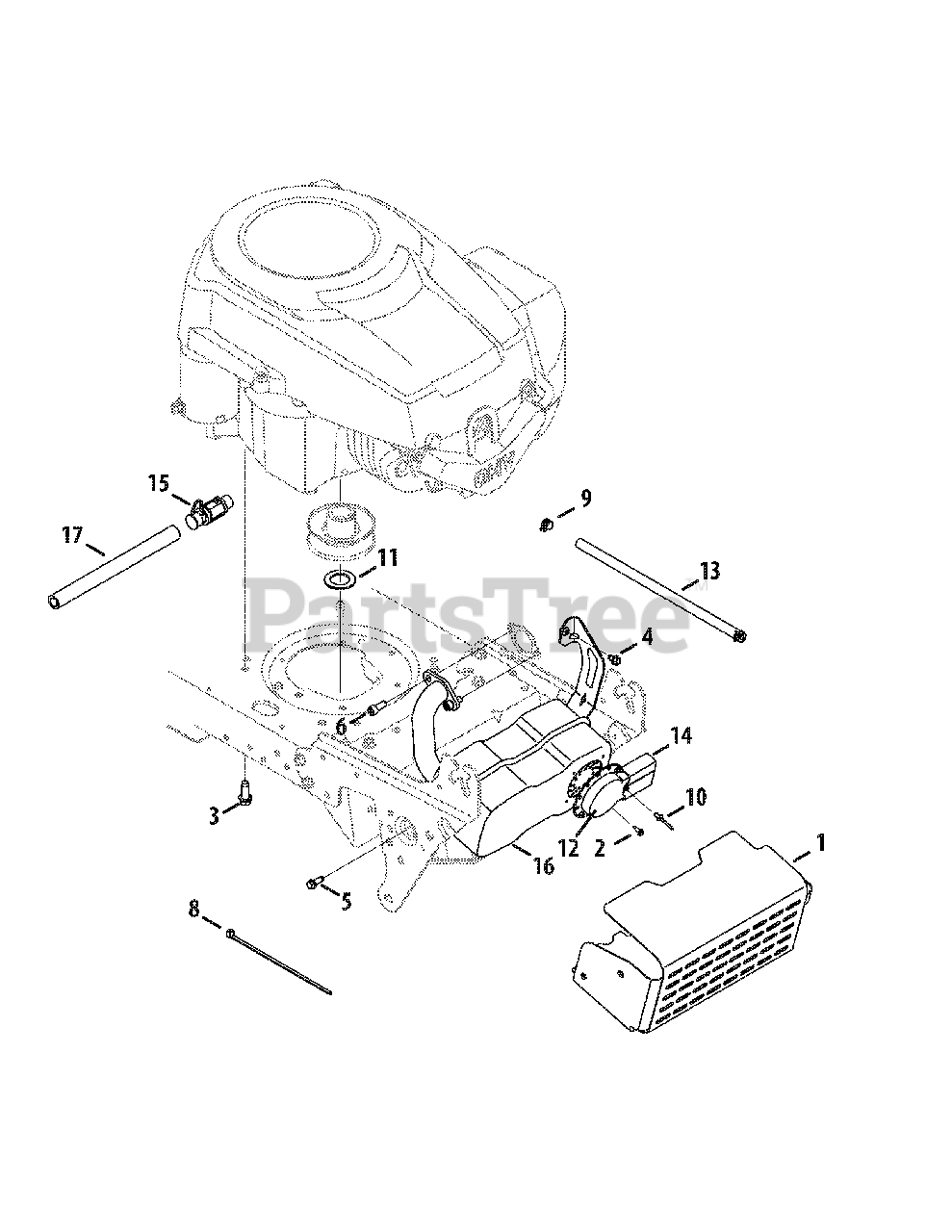

Kohler Courage Parts Diagram

  • Title

1

MTD 683-04549-0637

Muffler Shield Assembly
(Superseded to 683-05460A-0637)

$84.99

$

Usually ships in 3-6 days

0

2

MTD 710-0227

Screw, #8-18 x .50

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-04683

Self-tapping Screw, 3/8-16, 1.00
(Superseded to 710-04683C)

$6.99

$

In Stock, Qty 20+

0

4

MTD 710-0599

Screw, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0642

Self-tapping Screw, 1/4-20, .750

$4.99

$

In Stock, Qty 20+

0

6

MTD 710-1314A

Socket Cap Screw, 5/16-18, .625

$4.99

$

In Stock, Qty 20+

0

8

MTD 725-0157

Cable Tie, 7.4"

$3.99

$

In Stock, Qty 20+

0

9

MTD 726-0205

Hose Clamp, .490

$4.49

$

In Stock, Qty 20+

0

10

MTD 728-04000

Pop Rivet, .188 x .300

$7.49

$

In Stock, Qty 7

0

11

MTD 736-0277

Flat Washer, 1.031 x 1.620 x .095

$4.49

$

In Stock, Qty 20+

0

12

MTD 751-0564B

Muffler Deflector

$14.99

$

In Stock, Qty 13

0

13

MTD 751-10349

Fuel Line Hose

$9.99

$

Usually ships in 3-6 days

0

14

MTD 751-10353

Muffler Deflector, Long
(Superseded to 751-11053B)

$5.99

$

In Stock, Qty 17

0

15

MTD 751-10517

Oil Drain
(Superseded to 951-10517A)

$25.99

$

In Stock, Qty 20+

0

16

MTD 751-10529

Muffler
(Superseded to 951-10529A)

$137.99

$

Usually ships in 3-6 days

0

17

MTD 751-3141

Oil Drain Extension Hose
(Superseded to 751-3141-14)

$12.99

$

In Stock, Qty 18

0

MTD 721-0208

Exhaust Gasket
(Superseded to BS-692236)

Note: (not shown)

$5.49

$

In Stock, Qty 20+

0
