13AX79KT066 - Troy-Bilt Horse Lawn Tractor (2010) Hood & Grille Assembly Parts Diagram

Horse Lawn Tractor

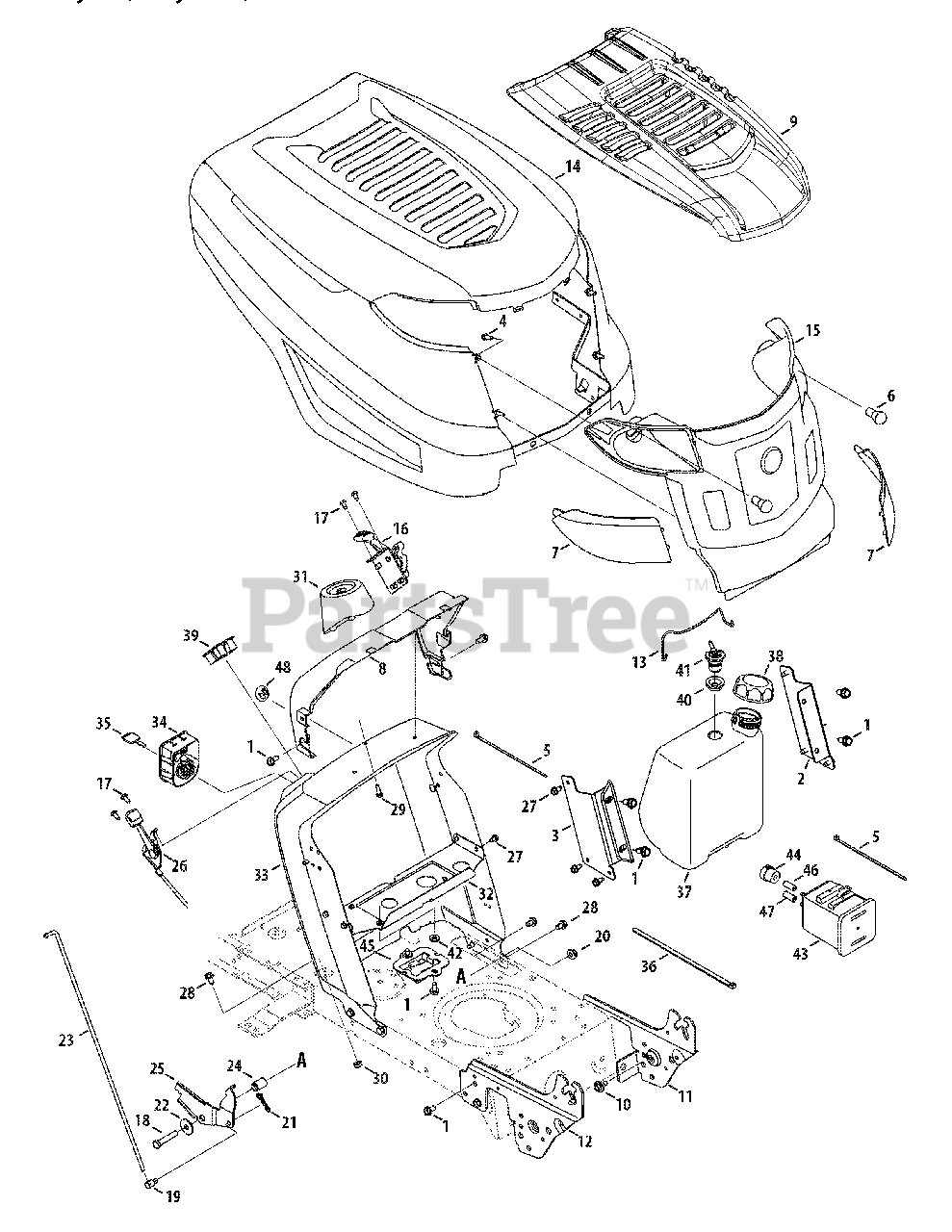

Hood & Grille Assembly Parts Diagram

  • Title

1

Troy-Bilt 710-04484

Screw 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 783-06605-0637

Fuel Tank Mnt. Bracket - LH

Note: If Equipped

$

$

Not available

3

Troy-Bilt 783-06603-0637

Fuel Tank Mnt. Bracket - RH

Note: If Equipped

$

$

Not available

4

Troy-Bilt 710-05108

Screw, 1/4 x .750

$3.99

$

In Stock, Qty 17

0

5

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 925-0963

Miniature lamp 12V socket

$7.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 731-06095

Grill Lens - LH

$13.99

$

In Stock, Qty 5

0

7

Troy-Bilt 731-06096

Grill Lens - RH

$12.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 731-05078C

Dash Collar Assembly

$19.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 731-06194A

Hood Scoop
(Superseded to 731-06194B)

$59.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 738-04091A

Shoulder Screw .43 x .29

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 783-05327B-0637

Suppport Bracket LH

$42.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 783-05328A-0637

Suppport Bracket RH
(Superseded to 783-05328B-0637)

$45.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 683-04448-0637

Battery Rod

$10.99

$

In Stock, Qty 5

0

14

Troy-Bilt 683-04441-0638

Hood
(Superseded to 683-04441A-0638)

$378.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 631-04272

Grill

$74.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 983-04226

Hydro Control Assembly

$23.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 710-04483

Screw 1/4-20 x .500

$7.49

$

Usually ships in 3-6 days

0

18

Troy-Bilt 710-3144

Hex Screw 3/8-16 x 2.00

$4.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 711-0736

Ferrule Adjust

$13.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 712-04065

Flange Lock Nut 3/8-16

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 714-04040

Cotter Pin, Bow Tie

$1.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 936-0133

Flat Washer .411 x 1.25 x .100
(Superseded to 736-0133)

$

$

Not available

23

Troy-Bilt 747-04430

Control Rod, Speed Selector

$23.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 747-05276

Control Rod, Speed

Note: California Models (211)

$

$

Not available

24

Troy-Bilt 750-04465

Flang Spacer .390 x .671 x 1.095
(Superseded to 750-04465B)

$4.49

$

In Stock, only 2 left!

0

25

MTD 783-04862

Transmission Speed Latch

$

$

Not available

26

Troy-Bilt 746-04364

Throttle/Choke Control Cable

$51.99

$

In Stock, only 1 left!

0

27

710-0599†

Hex Screw Washer 1/4-20 x .500

Note: If Equipped

$

$

Not available

28

Troy-Bilt 710-0604A

Screw 5/16-18 x .625

$4.99

$

In Stock, Qty 19

0

29

Troy-Bilt 710-0895

Hex Screw 1/4-15 x .750

$6.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 712-04063

Flange lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 731-04945

Support Shaft

$19.99

$

In Stock, only 3 left!

0

32

Troy-Bilt 783-04584A-0637

Gas Tank Support Bracket
(Superseded to 783-04584B-0637)

Note: If Equipped

$20.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 783-04889B-0637

Dash, RMC/Amp Meter/Choke
(Superseded to 983-04889C-0637)

$103.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 925-04227B

Key Switch Module
(Superseded to 925-06119C)

$123.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 925-1745A

Key

$18.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 726-0230

Cable Tie

$28.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 751-0659D

Fuel Tank, 2 Gallons

$90.99

$

In Stock, Qty 5

0

37

Troy-Bilt 751-10782

Fuel Tank, 1.36 Gallon, CARB
(Superseded to 951-04304B)

$

$

Not available

38

Troy-Bilt 751-0603A

Fuel Cap
(Superseded to 751-0603B)

$24.99

$

In Stock, Qty 7

0

38

Troy-Bilt 951-10947

Fuel Cap, CARB
(Superseded to 951-12426B)

$43.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 925-04156

Ammeter Monitor Indicator

$31.99

$

In Stock, Qty 5

0

40

Troy-Bilt 735-04081

Rubber Grommet

Note: California Models (211)

$4.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 751-10441

Rollover Valve
(Superseded to 751-12118)

Note: California Models (211)

$38.99

$

In Stock, Qty 7

0

42

Troy-Bilt 936-3008

Washer, Flat, .344 x .750 x .120

Note: California Models (211)

$7.49

$

Usually ships in 3-6 days

0

43

Troy-Bilt 951-10589

Canister, Carbon, 5 Gallon

Note: California Models (211)

$76.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 951-10590

Filter, Vent, Canister

Note: California Models (211)

$16.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 951-10610

Bracket., Adapter, Canister

Note: California Models (211)

$24.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 751-10749

Hose, Fuel, Low Perm., White

Note: California Models (211)

$1.49

$

Usually ships in 3-6 days

0

47

Troy-Bilt 751-10750

Hose, Fuel, Low Perm., Yellow

Note: California Models (211)

$1.49

$

Usually ships in 3-6 days

0

48

Troy-Bilt 731-05265

Choke Plug

$6.49

$

Usually ships in 3-6 days

0

Troy-Bilt 725-04479D

Harness, Mn Amtr., RMC, Kohler
(Superseded to 925-04432K)

Note: Not Shown

$152.99

$

In Stock, only 2 left!

0

Troy-Bilt 725-04469

Harness, Jmpr., Amtr.

Note: Not Shown

$19.99

$

Usually ships in 3-6 days

0

Troy-Bilt 725-04718

Harness, Jmpr., Headlight

Note: Not Shown

$

$

Not available
