13AX90RS848 (LX 423) - Toro Lawn Tractor (2010) STEERING AND FRONT AXLE ASSEMBLY Parts Diagram

Lawn Tractor

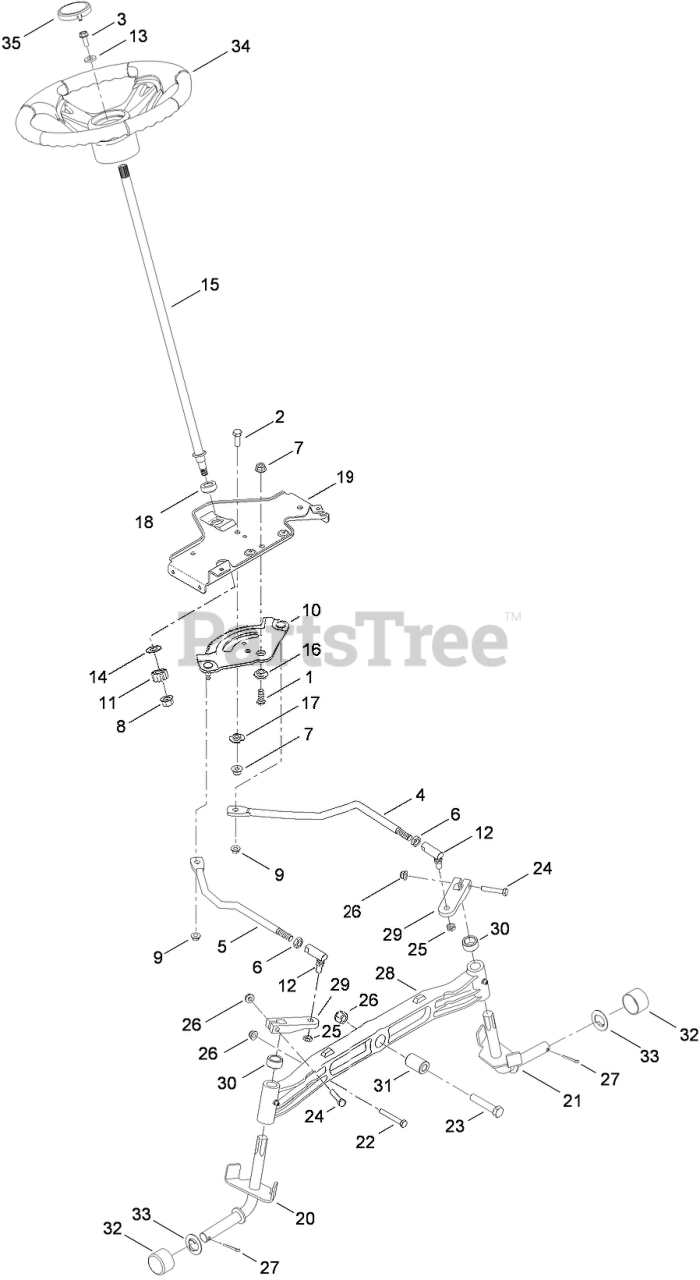

STEERING AND FRONT AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 112-0631

SCREW-HH

$7.99

$

In Stock, Qty 7

0

2

Toro 112-0492

SCREW-HH

$7.49

$

In Stock, only 2 left!

0

3

Toro 112-0473

SCREW-HH

$

$

Not available

4

Toro 119-3974

LINK-DRAG, LH

$58.99

$

Usually ships in 3-6 days

0

5

Toro 119-3975

LINK-DRAG, RH

$

$

Not available

6

Toro 112-0493

NUT-JAM

$7.99

$

In Stock, only 4 left!

0

7

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

In Stock, Qty 9

0

8

Toro 112-0859

NUT-LOCK, FLANGE

$7.99

$

In Stock, Qty 14

0

9

Toro 112-0511

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

10

Toro 119-3976

GEAR-STEERING

$157.99

$

In Stock, Qty 6

0

11

Toro 112-0863

GEAR-PINION, STEERING

$21.99

$

In Stock, Qty 20+

0

12

Toro 112-0917

BALL JOINT ASM

$42.99

$

In Stock, Qty 14

0

13

Toro 112-0924

WASHER-FLAT

$7.99

$

In Stock, only 2 left!

0

14

Toro 112-0925

WASHER-FLAT

$7.99

$

In Stock, Qty 13

0

15

Toro 112-6097

SHAFT-STEERING

$133.99

$

In Stock, only 2 left!

0

16

Toro 119-3977

SPACER-SHOULDER

$9.99

$

In Stock, only 2 left!

0

17

Toro 119-3978

SPACER

$14.99

$

Usually ships in 3-6 days

0

18

Toro 112-6257

BEARING-FLANGE, HEX

$14.99

$

In Stock, Qty 5

0

19

Toro 119-3979

BRACKET-SUPPORT, STEERING

$

$

Not available

20

Toro 119-3980

RH AXLE ASM

$

$

Not available

21

Toro 119-3981

LH AXLE ASM

$65.99

$

Usually ships in 3-6 days

0

22

Toro 112-5843

SCREW-HH

$

$

Not available

23

Toro 112-0611

SCREW-HH

$

$

Not available

24

Toro 112-1095

BOLT-HH

$

$

Not available

25

Toro 112-0483

NUT-HEX, LOCK

$

$

Not available

26

Toro 112-0650

NUT-LOCK, FLANGE

$7.99

$

In Stock, only 3 left!

0

27

Toro 112-0860

PIN-COTTER

$6.99

$

In Stock, Qty 7

0

28

Toro 119-3982

AXLE-CAST

$

$

Not available

29

Toro 119-3983

BLOCK-STEERING

$

$

Not available

30

Toro 112-6136

SPACER

$6.49

$

Usually ships in 3-6 days

0

31

Toro 119-3984

SPACER

$

$

Not available

32

Toro 112-5968

CAP-HUB

$10.99

$

Usually ships in 3-6 days

0

33

Toro 112-6258

WASHER-FLAT

$

$

Not available

34

Toro 119-3985

STEERING WHEEL ASM
(Superseded to 112-6100)

$111.99

$

In Stock, only 2 left!

0

35

Toro 112-3734

CAP-WHEEL, STEERING

$6.99

$

Usually ships in 3-6 days

0
