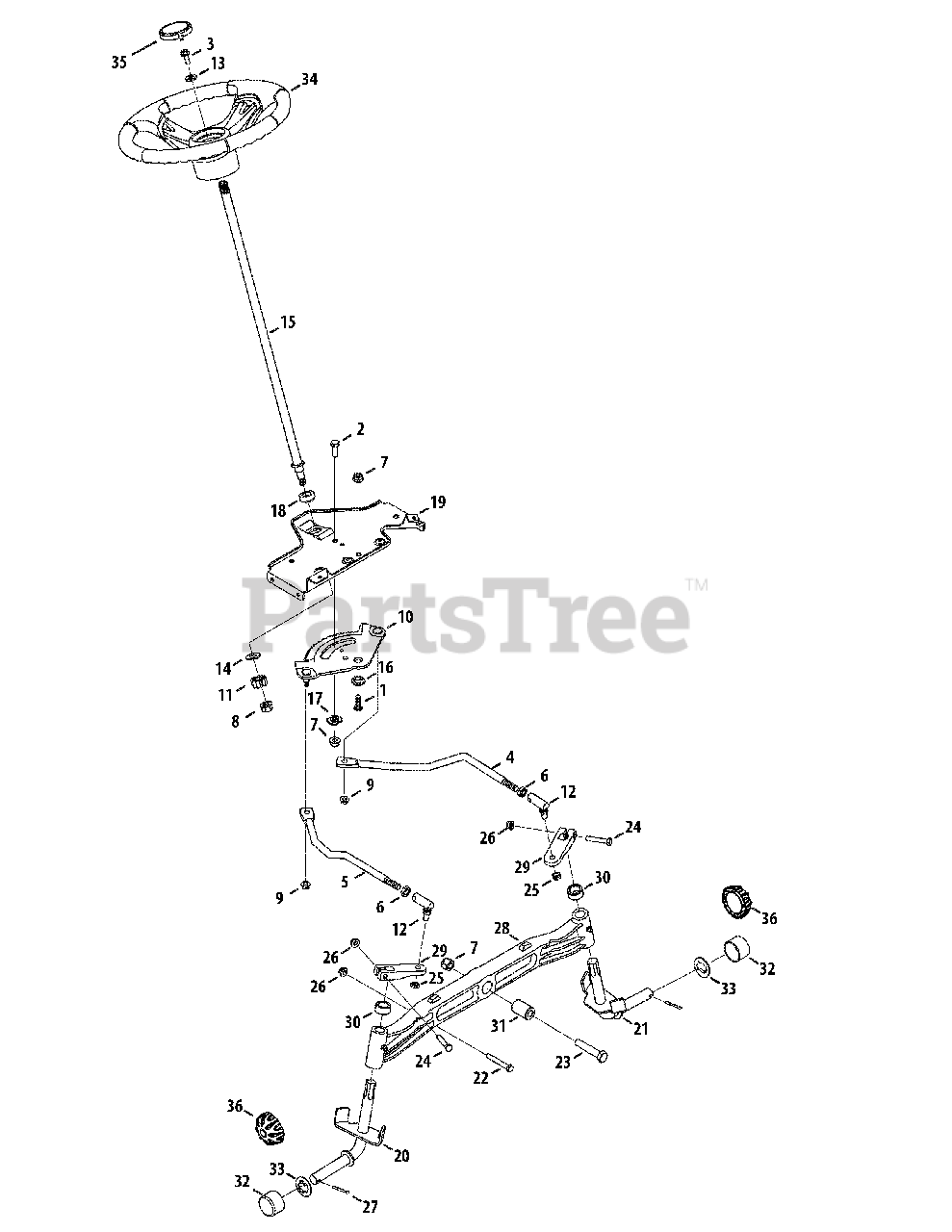

13AX90YT001 - Yard-Man Lawn Tractor (2010) Steering Assembly Parts Diagram

Lawn Tractor

Steering Assembly Parts Diagram

  • Title

1

MTD 710-04095

Hex Screw, 3/8-16, 1.00, Gr5, Spec

$4.99

$

In Stock, Qty 20+

0

2

MTD 710-0514

Hex Screw, 3/8-16, 1.00, Gr5, Std

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0643

Hex Screw, 5/16-18, 1.00, Gr5, Lock

$6.49

$

In Stock, Qty 20+

0

4

MTD 711-04998

Link, Drag LH

$25.99

$

In Stock, Qty 15

0

5

MTD 711-04999

Link, Drag RH

$25.99

$

In Stock, Qty 14

0

6

MTD 912-0240

Nut, Jam, 7/16-20, Gr2

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-04065

Nut, Flange Lock, 3/8-16, Grf,

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-0459

Nut, Flange Lock, 7/16-20, Grb, Lock

$4.49

$

In Stock, Qty 20+

0

9

MTD 712-3004A

Nut, Flange Lock, 5/16-18, Gr5, Sd Lk

$3.49

$

In Stock, Qty 20+

0

10

MTD 717-1550F

Gear, Steering, 11/90 Ratio

$65.99

$

In Stock, Qty 20+

0

11

MTD 717-1554

Gear, Pinion, Steering

$10.99

$

In Stock, Qty 20+

0

12

MTD 923-0448A

Ball Joint, 7/16-20, Lock

$22.99

$

In Stock, Qty 20+

0

13

MTD 936-3004

Washer, Flat, .406 x .875 x .105
(Superseded to 736-3004)

$

$

Not available

14

MTD 736-3084

Washer, Flat, .51 x 1.12 x .06

$4.49

$

In Stock, Qty 20+

0

15

MTD 738-04263

Shaft, Steering, .625 OD x 24.25

$63.99

$

In Stock, Qty 8

0

16

MTD 738-04363

Spacer, Shoulder, .385x 1.25 x .3025

$5.49

$

In Stock, Qty 20+

0

17

MTD 738-04364B

Spacer, .38 x 1.375, Special

$5.99

$

In Stock, only 3 left!

0

18

MTD 741-04237B

Bearing, Flange, Hex 5/8 Pm

$6.49

$

In Stock, Qty 20+

0

19

MTD 783-06043

Bracket, Support, Steering

Variations

MTD 783-06043-0637

Steering Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

19

MTD 710-04484

Screw, .750 5/16-18

$3.49

$

In Stock, Qty 20+

0

20

MTD 938-04034

Axle Ass’y, RH .750 Dia (46" Deck)

$49.99

$

In Stock, only 2 left!

0

21

MTD 638-04035P

Axle Ass’y, LH .750 Dia (46" Deck)

$

$

Not available

22

MTD 710-0395

Hex Screw, 5/16-18, 2.25, Gr5, Std

$4.49

$

In Stock, Qty 8

0

23

MTD 710-0859

Hex Screw, 3/8-16, 2.50, Gr5, Std

$6.49

$

In Stock, Qty 20+

0

24

MTD 710-3180

Hex Screw, 5/16-18, 1.75, Gr5, Std

$4.99

$

In Stock, Qty 20+

0

25

MTD 912-0214

Nut, Hex Lock, 3/8-24, Grb
(Superseded to 712-0214)

$5.99

$

In Stock, Qty 20+

0

26

MTD 712-04063

Nut, Flange Lock, 5/16-18, Grf

$3.99

$

In Stock, Qty 20+

0

27

MTD 714-0162

Pin, Cotter, 5/32, 1.25

$4.99

$

In Stock, Qty 20+

0

28

MTD 719-04413A

Axle, Pivot Bar, Cast

$224.99

$

Usually ships in 3-6 days

0

29

MTD 748-04065

Steering, Block
(Superseded to 748-04278-0637)

Variations

MTD 748-04065-0637

Steering Block - POWDER BLACK (0637)

$19.99

$

In Stock, Qty 8

0

$19.99

$

In Stock, Qty 8

0

30

MTD 748-04068

Spacer, .71 ID x .125 OD x .56

$3.99

$

In Stock, Qty 20+

0

31

MTD 750-05280

Spacer, .385 x 1.00 x 1.5075

$10.99

$

In Stock, Qty 10

0

32

MTD 731-05674

Cap, Bumper

$4.99

$

In Stock, Qty 20+

0

33

MTD 736-04228A

Washer, Flat, .350 x 1.559 x .062
(Superseded to 736-04228B)

$4.99

$

In Stock, Qty 20+

0

34

MTD 631-04008A

Wheel, Steering, 3 Spoke, Softgrip
(Superseded to 631-04008B)

$88.99

$

In Stock, Qty 12

0

35

MTD 731-04040

Cap, Sprig, Small

$9.49

$

In Stock, only 1 left!

0

36

MTD 731-2290A

Cap, Hub
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0
