13AX915T004 - MTD Gold Lawn Tractor (2010) Drive & Rear Wheels Parts Diagram

Gold Lawn Tractor

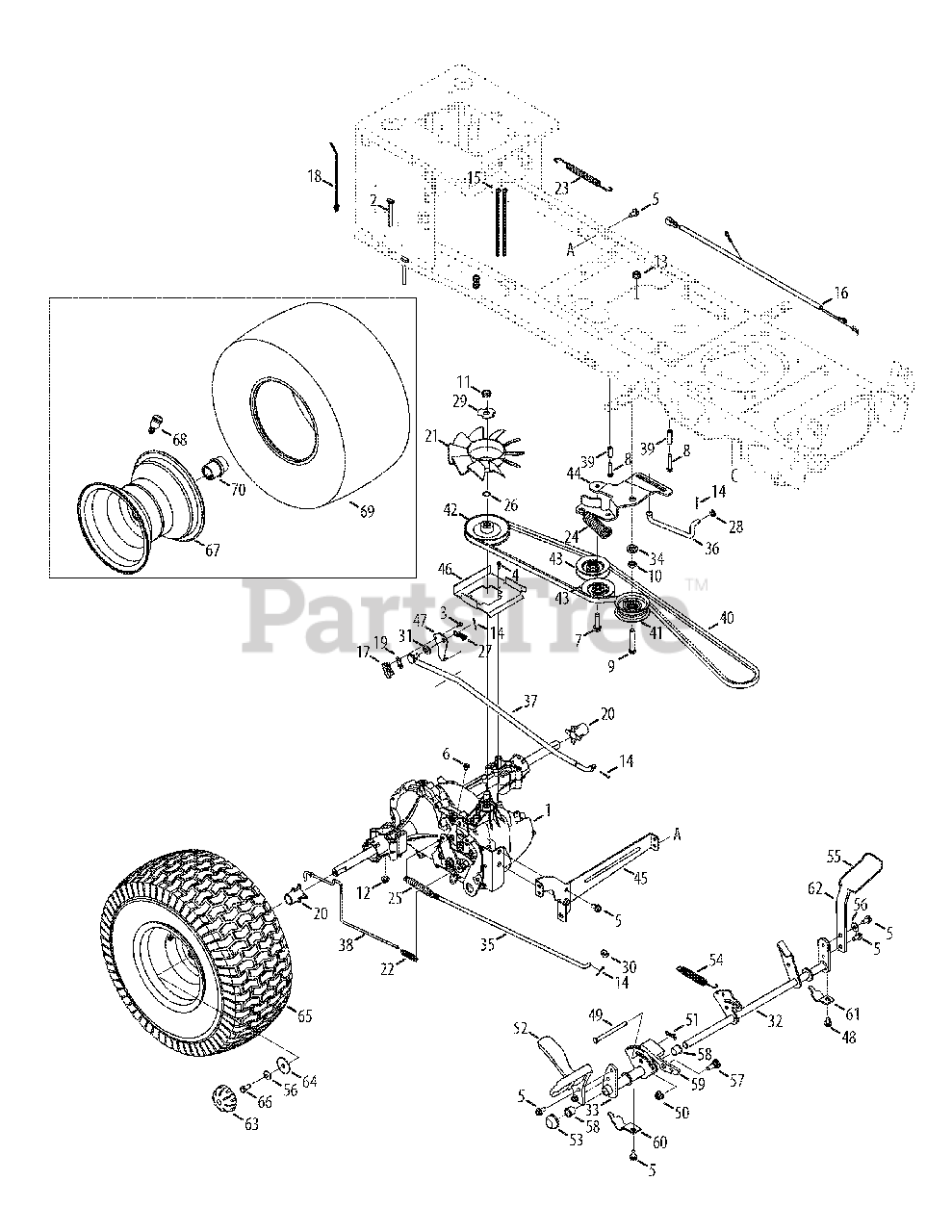

Drive & Rear Wheels Parts Diagram

  • Title

1

MTD 918-0319

Hydro Transmission

$

$

Not available

2

MTD 710-0176

Hex Screw, 5/16-18:2.75

$4.49

$

In Stock, only 2 left!

0

3

MTD 710-0227

Screw, #8-18:0.500

$3.99

$

In Stock, Qty 20+

0

4

MTD 710-0351

Screw, #10-16:0.500

$4.49

$

In Stock, only 4 left!

0

5

MTD 710-04484

Taptite Screw, 5/16-18:.750

$3.49

$

In Stock, Qty 20+

0

6

MTD 710-0653

Taptite Screw, 1/4-20:0.375

$4.49

$

In Stock, Qty 16

0

7

MTD 710-1007

Screw, Sems, 3/8-16, 1.500

$5.99

$

In Stock, Qty 7

0

8

MTD 710-1325

Taptite Screw, 1/4-20:1.625

$4.49

$

In Stock, Qty 5

0

9

MTD 710-3011

Hex Screw, 3/8-16:2.25

$6.49

$

In Stock, Qty 20+

0

10

MTD 712-0240

Jam Nut, 7/16-20
(Superseded to 912-0240)

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-0346

Nut, Jamlock, 1/2-20

$4.49

$

In Stock, Qty 19

0

12

MTD 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-0431

Flangelock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

14

MTD 914-0111

Cotter Pin, 3/32:1.0
(Superseded to 714-0111)

$4.49

$

In Stock, Qty 20+

0

15

MTD 725-0157

Cable Tie, 3/16 X .05 X 7.4

$3.49

$

In Stock, only 4 left!

0

16

MTD 725-04791A

Jumper Harness

$14.99

$

Usually ships in 3-6 days

0

17

MTD 725-1644

Short Spring Switch

$8.99

$

In Stock, only 2 left!

0

18

MTD 926-0154

Push Mount Cable Tie 7.5 LG

$5.99

$

Usually ships in 3-6 days

0

19

MTD 926-0320

Insulator Nut Plate

$6.49

$

In Stock, Qty 10

0

20

MTD 731-05299A

Sleeve, .765 ID x 1.500 LG

$3.99

$

In Stock, only 4 left!

0

21

MTD 731-06098

Hydro Fan

$18.99

$

In Stock, Qty 20+

0

22

MTD 932-0209

Extension Spring, .48 OD X 2.03

$7.49

$

In Stock, Qty 12

0

23

MTD 732-04606

Extension Spring, .500 DIA X 12.6 LG

$11.99

$

Usually ships in 3-6 days

0

24

MTD 732-04624

Extension Spring, 1.00 DIA X 4.75

$9.49

$

Usually ships in 3-6 days

0

25

MTD 732-0716D

Extension Spring, .59 OD X 4.00 LG

$12.99

$

In Stock, Qty 20+

0

26

MTD 732-0729

Wire Ring

$4.49

$

In Stock, Qty 6

0

27

MTD 732-3118

Extension Spring, .375 OD X 1.44 LG

$9.49

$

In Stock, Qty 10

0

28

MTD 936-0264

Washer, Flat, .330 X .630 X .0635

$6.49

$

In Stock, Qty 11

0

29

MTD 736-04263

Washer, Lock, TRANS HYDRO

$6.49

$

In Stock, Qty 20+

0

30

MTD 936-3008

Washer, Flat, .344 X .750 X .120

$6.49

$

In Stock, only 1 left!

0

31

MTD 736-3010

Washer, Flat, .407X.812X.135:HT

$4.49

$

In Stock, Qty 20+

0

32

MTD 647-04152A

Brake Control Assembly
(Superseded to 647-04152D)

$

$

Not available

33

MTD 683-04537

Hydro Pedal Bracket Assembly
(Superseded to 683-04537A)

$

$

Not available

34

MTD 738-04420

Spacer, Shoulder, 1.375 X .380 X .183

$6.49

$

In Stock, Qty 11

0

35

MTD 747-04139

Rod, Brake, Hydro

$22.99

$

In Stock, only 1 left!

0

36

MTD 747-04957A

Rod, Transmission, Footpedal Bypass

$13.99

$

Usually ships in 3-6 days

0

37

MTD 747-04979

Rod, Control, Hydro

$108.99

$

In Stock, only 1 left!

0

38

MTD 747-04991

Rod, Hydro Bypass

$9.49

$

Usually ships in 3-6 days

0

39

MTD 750-04456

Spacer, .260 X .372 X 1.420 LG

$6.99

$

In Stock, Qty 20+

0

40

MTD 954-04207

Belt, V Type, Poly

$38.99

$

In Stock, Qty 20+

0

41

MTD 756-04224

Pulley, Idler, Flat 2.75 OD

$24.99

$

In Stock, Qty 20+

0

42

MTD 756-04308

Pulley, Input, 4.13 DIA

$29.99

$

In Stock, only 4 left!

0

43

MTD 756-04325

Pulley, Idler, V-Type x 3.06

$22.99

$

In Stock, Qty 20+

0

44

MTD 783-06027A

Bracket, Idler, Center Double
(Superseded to 783-06027B)

$

$

Not available

45

MTD 783-06133-0637

Bracket, Mount, Hydro

$31.99

$

Usually ships in 3-6 days

0

46

MTD 783-06260-0637

Bracket, Support, Belt Disengage

$26.99

$

Usually ships in 3-6 days

0

47

MTD 783-1019B

Switch Actuator Bracket

$10.99

$

In Stock, only 1 left!

0

48

MTD 710-0604A

Taptite Screw, 5/16-18:0.625

$3.99

$

In Stock, Qty 20+

0

49

MTD 711-05068

Clevis Pin, 5/16 x 3.985
(Superseded to 711-05068A)

$7.49

$

In Stock, only 1 left!

0

50

MTD 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

51

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

52

MTD 719-0584B-0637

Control Pedal

$55.99

$

In Stock, only 2 left!

0

53

MTD 726-0214

Push Cap

$9.99

$

In Stock, Qty 20+

0

54

MTD 732-04587

Extension Spring, .63 DIA x 4.95 LG

$6.99

$

In Stock, Qty 20+

0

55

MTD 735-04136

Brake Pedal Pad

$14.99

$

Usually ships in 3-6 days

0

56

MTD 736-0242

Washer, Bell, .340 x .872 x .060

$3.99

$

In Stock, Qty 20+

0

57

MTD 938-0380

Shoulder Bolt, .500 x .270:3/8-16
(Superseded to 738-0380)

$7.49

$

In Stock, Qty 18

0

58

MTD 741-0495

Flange Bearing, .630 ID x .695 OD x .60

$4.49

$

In Stock, Qty 12

0

59

MTD 748-04203

Cruise Latch

$13.99

$

Usually ships in 3-6 days

0

60

MTD 783-05914

Pedal Support Bracket

$6.99

$

Usually ships in 3-6 days

0

61

MTD 783-05940

Pedal Support Bracket, 5/8

$6.99

$

Usually ships in 3-6 days

0

62

MTD 783-06103A-0637

Brake Pedal Bracket

$16.99

$

Usually ships in 3-6 days

0

63

MTD 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

64

MTD 736-0430

Washer, Flat, .350 x 1.59 x .062

$3.99

$

In Stock, Qty 20+

0

65

MTD 634-0104-0911

Wheel Assembly

$509.99

$

Usually ships in 3-6 days

0

66

MTD 710-0627

Hex Screw, 5/16-24 x .750

$3.99

$

In Stock, Qty 20+

0

67

MTD 634-04369-0662

Rim Assembly

$153.99

$

Usually ships in 3-6 days

0

68

MTD 934-0255

Tubeless Air Valve

$3.99

$

In Stock, Qty 20+

0

69

MTD 734-1730-0901

Tire

$92.99

$

In Stock, Qty 8

0

70

MTD 941-0490

Axle Hub

$12.99

$

Usually ships in 3-6 days

0
