13AX915T004 - MTD Gold Lawn Tractor (2010) Mower Deck Parts Diagram

Gold Lawn Tractor

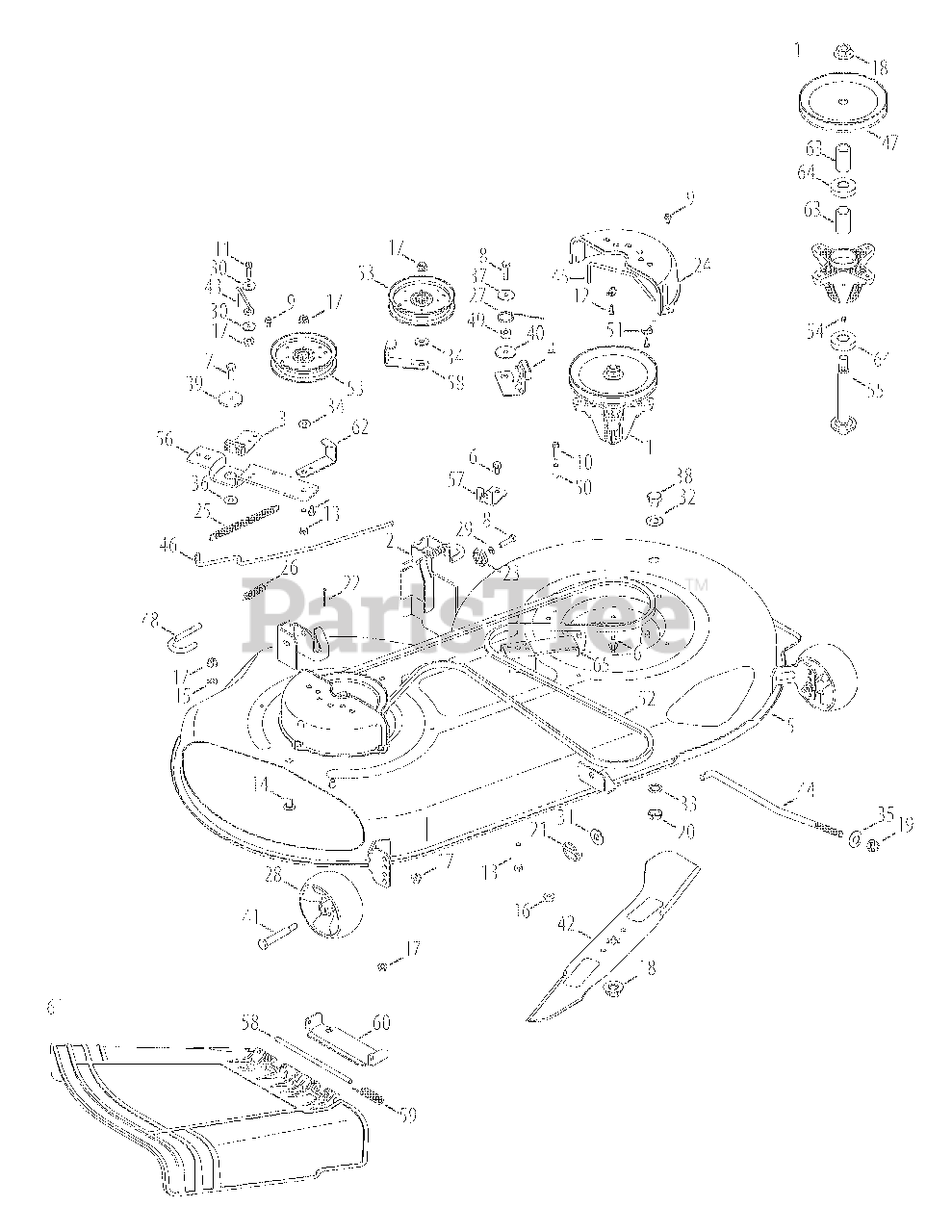

Mower Deck Parts Diagram

  • Title
1

MTD Part# 918-04636A

Spindle Ass’y, Pulley, 6.93 Dia
(Superseded to 918-04865A)
Usually ships in 1 day

$

$117.08

0

2

MTD Part# 683-0254B-0637

Bracket Ass’y, Deck, Hanger LH
Usually ships in 5 to 10 days

$

$35.13

0

3

MTD Part# 983-04511

Brake Ass’y, Deck
Usually ships in 1 day

$

$21.44

0

4

MTD Part# 983-04525

Brake Ass’y, Deck
Usually ships in 1 day

$

$32.05

0

5

MTD Part# 983-04578-0637

Deck Ass’y, Offset
(Superseded to 983-04578B-0637)
Usually ships in 1 day

$

$383.60

0

6

MTD Part# 710-04484

Screw, Self-tapping, 5/16-18, .750,
Usually ships in 1 day

$

$2.55

0

7

MTD Part# 710-0514

Hex Screw, 3/8-16, 1.00, Gr5, Std
Usually ships in 1 day

$

$3.01

0

8

MTD Part# 710-0528

Hex Screw, 5/16-18, 1.25, Gr5, Std
Usually ships in 1 day

$

$3.11

0

9

MTD Part# 710-0599

Screw, Self-tapping, 1/4-20, 0.500,
Usually ships in 1 day

$

$3.06

0

10

MTD Part# 710-0778

Screw, Self-tapping, 1/4-20, 1.500,
Usually ships in 1 day

$

$3.09

0

11

MTD Part# 710-0809

Screw, Self-tapping, 1/4-20, 1.250,
Usually ships in 1 day

$

$5.07

0

12

MTD Part# 710-1003

Screw, #10-16:.625
(Superseded to 710-04669)
Usually ships in 1 day

$

$2.39

0

13

MTD Part# 710-3144

Hex Screw, 3/8-16, 2.00, Gr5, Std
Usually ships in 1 day

$

$3.19

0

14

MTD Part# 710-3178

Bolt, Carriage, 3/8-16, 0.75, Gr1
Usually ships in 1 day

$

$3.12

0

15

MTD Part# 712-0229

Nut, Push, 3/8
Usually ships in 1 day

$

$2.52

0

16

MTD Part# 712-04063

Nut, Flange Lock, 5/16-18, Grf,
Usually ships in 1 day

$

$2.83

0

17

MTD Part# 712-04065

Nut, Flange Lock, 3/8-16, Grf,
Usually ships in 1 day

$

$2.92

0

18

MTD Part# 712-0417A

Nut, Flange, 5/8-18
Usually ships in 1 day

$

$5.15

0

19

MTD Part# 712-04243

Nut, Lock, 1/2-13
Usually ships in 1 day

$

$2.82

0

20

MTD Part# 912-0641

Nut, Hex, M16-1.5
Usually ships same day

Not available

$

$

21

MTD Part# 753-04070

Pin, Lynch, .1875
Usually ships in 1 day

$

$6.94

0

22

MTD Part# 914-0470

Pin, Cotter, 1/8 x 1.25
Usually ships in 1 day

$

$3.09

0

23

MTD Part# 917-04074

Gear, Deck, Adjustment
Usually ships in 1 day

$

$9.19

0

24

MTD Part# 731-06496

Belt Cover
Usually ships in 1 day

$

$16.69

0

25

MTD Part# 932-0384

Spring, Extension, .62 Dia x 6.12
Usually ships in 1 day

$

$10.52

0

26

MTD Part# 732-04652

Spring, Comp, .535 OD x 1.751
Usually ships in 1 day

$

$4.71

0

27

MTD Part# 732-04727

Spring, Torsion, .992 I.D x 1.17 O.D
Usually ships in 1 day

$

$3.00

0

28

MTD Part# 734-04155

Wheel, Deck, 5.0 Dia Ball
Usually ships in 1 day

$

$15.17

0

29

MTD Part# 936-0119

Washer, Lock, 5/16, Regular Duty
Usually ships in 1 day

$

$3.41

0

30

MTD Part# 936-0176

Washer, Flat, .265 x .938 x .120
Usually ships in 1 day

$

$3.18

0

31

MTD Part# 936-0179

Washer, Flat, .531 x 1.25 x .100
Usually ships in 5 to 10 days

$

$3.23

0

32

MTD Part# 736-0187

Washer, Flat, .64 x 1.24 x .06,
Usually ships in 1 day

$

$3.19

0

33

MTD Part# 736-0225

Washer, Lock, 5/8, Int Tooth
Usually ships in 1 day

$

$3.09

0

34

MTD Part# 736-0262

Washer, Flat, .385 x .870 x .092
Usually ships in 1 day

$

$2.91

0

35

MTD Part# 736-0317

Washer, Bell, .63 x 1.25 x .18
Usually ships in 1 day

$

$5.60

0

36

MTD Part# 736-0344

Washer, Flat, .385 x 1.0 x .030
Usually ships in 1 day

$

$3.32

0

37

MTD Part# 736-0362

Washer, Flat, .330 x 1.25 x .06,
Usually ships in 1 day

$

$3.15

0

38

MTD Part# 738-04146

Plug, Bolt, M16 x 1.5
Usually ships in 1 day

$

$6.44

0

39

MTD Part# 738-04162A

Spacer, Shoulder, .8840 x .190
(Superseded to 738-04162C)
Usually ships in 1 day

$

$10.13

0

40

MTD Part# 738-04166

Spacer, Shoulder, .5000 x .1475
Usually ships in 1 day

$

$4.39

0

41

MTD Part# 938-3056

Bolt, Shoulder, .496 x 2.50, 3/8-16
Usually ships in 1 day

$

$6.78

0

Usually ships same day

Not available

$

$

43

MTD Part# 747-04530

Rod, Keeper, Belt
Usually ships in 1 day

$

$5.07

0

44

MTD Part# 747-04944A

Rod, Lift, Deck, Frt, 13.7
(Superseded to 747-04944B)
Usually ships in 1 day

$

$17.60

0

45

MTD Part# 747-05011

Rod, Keeper, Belt
Usually ships in 1 day

$

$7.16

0

46

MTD Part# 747-05052

Rod, Control, Brake
(Superseded to 747-05052A)
Usually ships in 1 day

$

$11.34

0

47

MTD Part# 756-04356

Pulley, Deck, 6.93 Dia
Usually ships in 1 day

$

$27.75

0

48

MTD Part# 747-1116

Rod, Handle, Deck Release
Usually ships in 1 day

$

$8.88

0

49

MTD Part# 750-0258

Spacer, .315 x .750 x .375
Usually ships in 1 day

$

$8.02

0

50

MTD Part# 750-0566A

Spacer, .260 x .375 x 1.030
Usually ships in 1 day

$

$7.29

0

51

MTD Part# 751B221535

Clamp, Casing
Usually ships in 1 day

$

$7.16

0

52

MTD Part# 954-04219

Belt, V-Type
Usually ships in 1 day

$

$46.95

0

53

MTD Part# 756-04129B

Pulley, Idler, 4.25"Dia
(Superseded to 753-08171)
Usually ships in 1 day

$

$30.50

0

54

MTD Part# 937-3000

Fitting, 3/16, Lnc#70, Drive Lube
Usually ships in 1 day

$

$3.23

0

55

MTD Part# 738-1186A

Shift, Spindle, 6.11.
Usually ships in 1 day

$

$39.12

0

56

MTD Part# 783-05946

Bracket, Idler, Pivot
Usually ships in 1 day

$

$27.02

0

57

MTD Part# 783-06243-0637

Bracket, Cable, Deck Engage
Usually ships in 1 day

$

$7.29

0

58

MTD Part# 711-04847A

Pin, Hinge, Dia .3125 x 7.96
(Superseded to 711-04847B)
Usually ships in 5 to 10 days

$

$6.11

0

59

MTD Part# 732-04372

Spring, Torsion, .44 I.D. x 2.0
Usually ships in 1 day

$

$7.16

0

60

MTD Part# 783-06074A

Bracket, Chute
Usually ships in 1 day

$

$22.82

0

61

MTD Part# 631-04461

Chute Ass’y, Deflector
(Superseded to 631-05191A)
Usually ships in 1 day

$

$39.92

0

62

MTD Part# 783-06368-0637

Guard, Belt
(Superseded to 783-06368A-0637)
Usually ships in 1 day

$

$14.97

0

63

MTD Part# 750-04936

Spacer, .792 x 1.060 x 1.86
Usually ships in 1 day

$

$4.76

0

64

MTD Part# 941-0919

Bearing, Ball
(Superseded to 941-0919B)
Usually ships in 1 day

$

$18.12

0

65

MTD Part# 783-06643-0637

Bracket, Idler Support
Usually ships in 1 day

$

$6.68

0
