13AX915T004 - MTD Gold Lawn Tractor (2010) Steering & Axle Parts Diagram

Gold Lawn Tractor

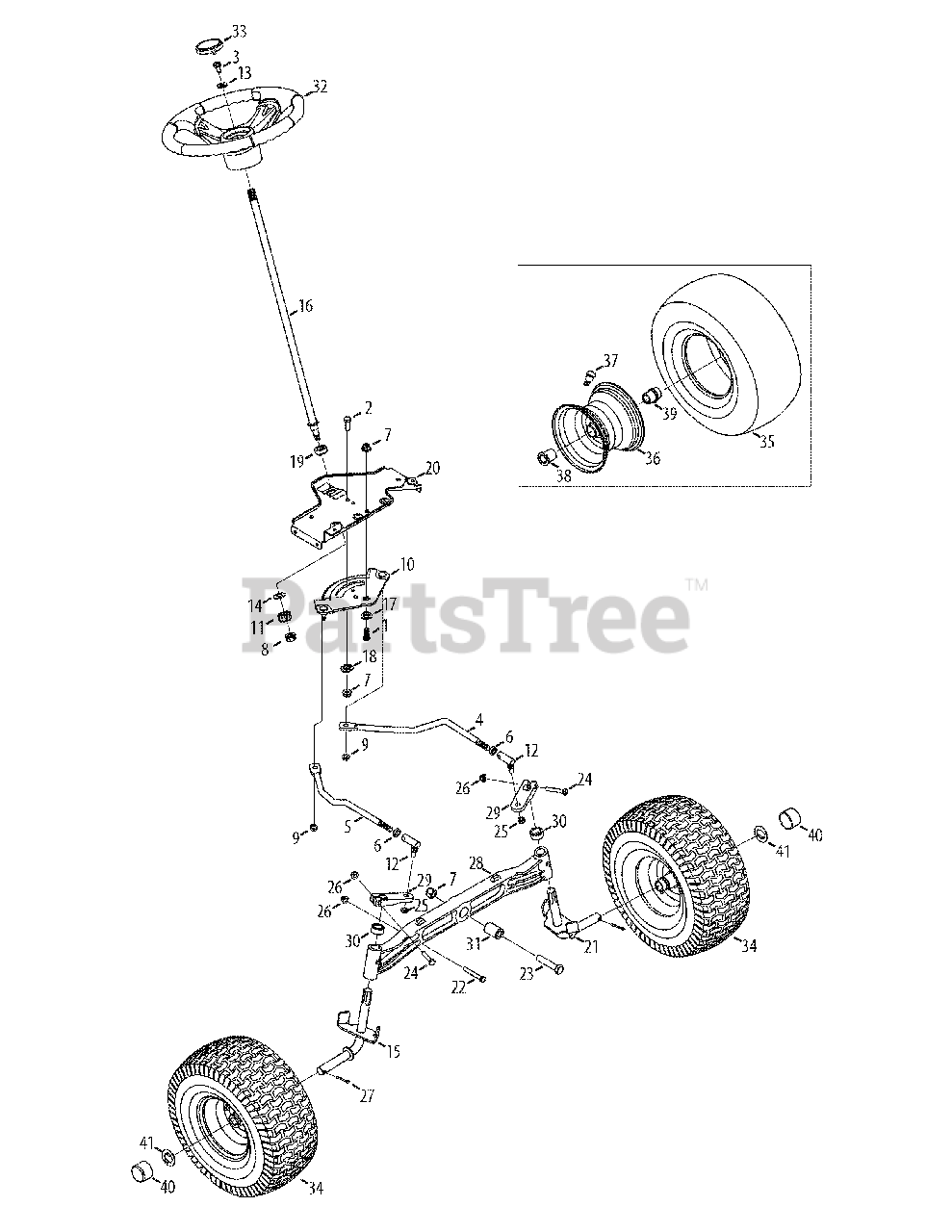

Steering & Axle Parts Diagram

  • Title
1

MTD Part# 710-04095

Hex Screw, 3/8-16, 1.00, Gr5, Spec
Usually ships in 1 day

$

$3.52

0

2

MTD Part# 710-0514

Hex Screw, 3/8-16, 1.00, Gr5, Std
Usually ships in 1 day

$

$3.01

0

3

MTD Part# 710-0643

Hex Screw, 5/16-18, 1.00, Gr5, Lock
Usually ships in 1 day

$

$4.81

0

4

MTD Part# 711-04998

Link, Drag LH
Usually ships in 1 day

$

$19.37

0

5

MTD Part# 711-04999

Link, Drag RH
Usually ships in 1 day

$

$19.37

0

6

MTD Part# 912-0240

Nut, Jam, 7/16-20, Gr2
Usually ships in 1 day

$

$3.09

0

7

MTD Part# 712-04065

Nut, Flange Lock, 3/8-16, Grf,
Usually ships in 1 day

$

$2.92

0

8

MTD Part# 712-0459

Nut, Flange Lock, 7/16-20, Grb, Lock
Usually ships in 1 day

$

$3.49

0

9

MTD Part# 712-3004A

Nut, Flange Lock, 5/16-18, Gr5, Sd Lk
Usually ships in 1 day

$

$2.77

0

10

MTD Part# 717-1550F

Gear, Steering, 11/90 Ratio
Usually ships in 1 day

$

$49.57

0

11

MTD Part# 717-1554

Gear, Pinion, Steering
Usually ships in 1 day

$

$7.58

0

12

MTD Part# 923-0448A

Ball Joint, 7/16-20, Lock
Usually ships in 1 day

$

$17.91

0

13

MTD Part# 936-3004

Washer, Flat, .406 x .875 x .105
Usually ships in 5 to 10 days

$

$3.27

0

14

MTD Part# 736-3084

Washer, Flat, .51 x 1.12 x .06
Usually ships in 1 day

$

$3.49

0

15

MTD Part# 938-04034

Axle Ass’y, RH .750 Dia (46" Deck)
Usually ships in 1 day

$

$37.73

0

16

MTD Part# 738-04263

Shaft, Steering, .625 OD x 24.25
Usually ships in 1 day

$

$48.26

0

17

MTD Part# 738-04363

Spacer, Shoulder, .385x 1.25 x .3025
Usually ships in 1 day

$

$4.07

0

18

MTD Part# 738-04364B

Spacer, .38 x 1.375, Special
Usually ships in 1 day

$

$4.26

0

19

MTD Part# 741-04237B

Bearing, Flange, Hex 5/8 Pm
Usually ships in 1 day

$

$4.69

0

20

MTD Part# 783-06043-0637

Bracket, Support, Steering
Usually ships same day

Not available

$

$

20

MTD Part# 710-04484

Screw, .750 5/16-18
Usually ships in 1 day

$

$2.55

0

21

MTD Part# 638-04035P

Axle Ass’y, LH .750 Dia (46" Deck)
Usually ships in 1 day

$

$37.73

0

22

MTD Part# 710-0395

Hex Screw, 5/16-18, 2.25, Gr5, Std
Usually ships in 1 day

$

$3.27

0

23

MTD Part# 710-0859

Hex Screw, 3/8-16, 2.50, Gr5, Std
Usually ships in 1 day

$

$4.81

0

24

MTD Part# 710-3180

Hex Screw, 5/16-18, 1.75, Gr5, Std
Usually ships in 1 day

$

$3.92

0

25

MTD Part# 912-0214

Nut, Hex Lock, 3/8-24, Grb
Usually ships same day

Not available

$

$

26

MTD Part# 712-04063

Nut, Flange Lock, 5/16-18, Grf
Usually ships in 1 day

$

$2.83

0

27

MTD Part# 714-0162

Pin, Cotter, 5/32, 1.25
Usually ships in 1 day

$

$3.45

0

28

MTD Part# 719-04413A

Axle, Pivot Bar, Cast
Usually ships in 5 to 10 days

$

$169.98

0

29

MTD Part# 748-04065-0637

Steering, Block
(Superseded to 748-04278-0637)
Usually ships in 1 day

$

$17.03

0

30

MTD Part# 748-04068

Spacer, .71 ID x .125 OD x .56
Usually ships in 1 day

$

$2.86

0

31

MTD Part# 750-05280

Spacer, .385 x 1.00 x 1.5075
Usually ships in 1 day

$

$7.74

0

32

MTD Part# 631-04028

Steering Wheel
Usually ships in 5 to 10 days

$

$51.42

0

33

MTD Part# 731-04040

Cap, Sprig, Small
Usually ships in 1 day

$

$6.97

0

34

MTD Part# 634-04406-0911

Wheel Assembly
Usually ships same day

Not available

$

$

35

MTD Part# 734-1731-0901

Tire, 15 x 6 x 6
Usually ships in 5 to 10 days

$

$42.31

0

36
Usually ships in 1 day

$

$49.47

0

37

MTD Part# 934-0255

Tubeless Air Valve
Usually ships in 1 day

$

$3.10

0

38

MTD Part# 741-0516B

Flange Bearing, .760 x 1.00 x 1.20
Usually ships in 1 day

$

$4.47

0

39

MTD Part# 741-0990B

Flange Bearing, .760 ID
Usually ships in 1 day

$

$7.57

0

40

MTD Part# 731-05674

Cap, Bumper
Usually ships in 1 day

$

$3.53

0

41

MTD Part# 736-04228A

Washer, Flat, .350 x 1.559 x .062
(Superseded to 736-04228B)
Usually ships in 1 day

$

$3.68

0
