13AX91RS848 (LX 427) - Toro Lawn Tractor (2012) FRAME, BATTERY AND PTO ASSEMBLY Parts Diagram
Lawn Tractor

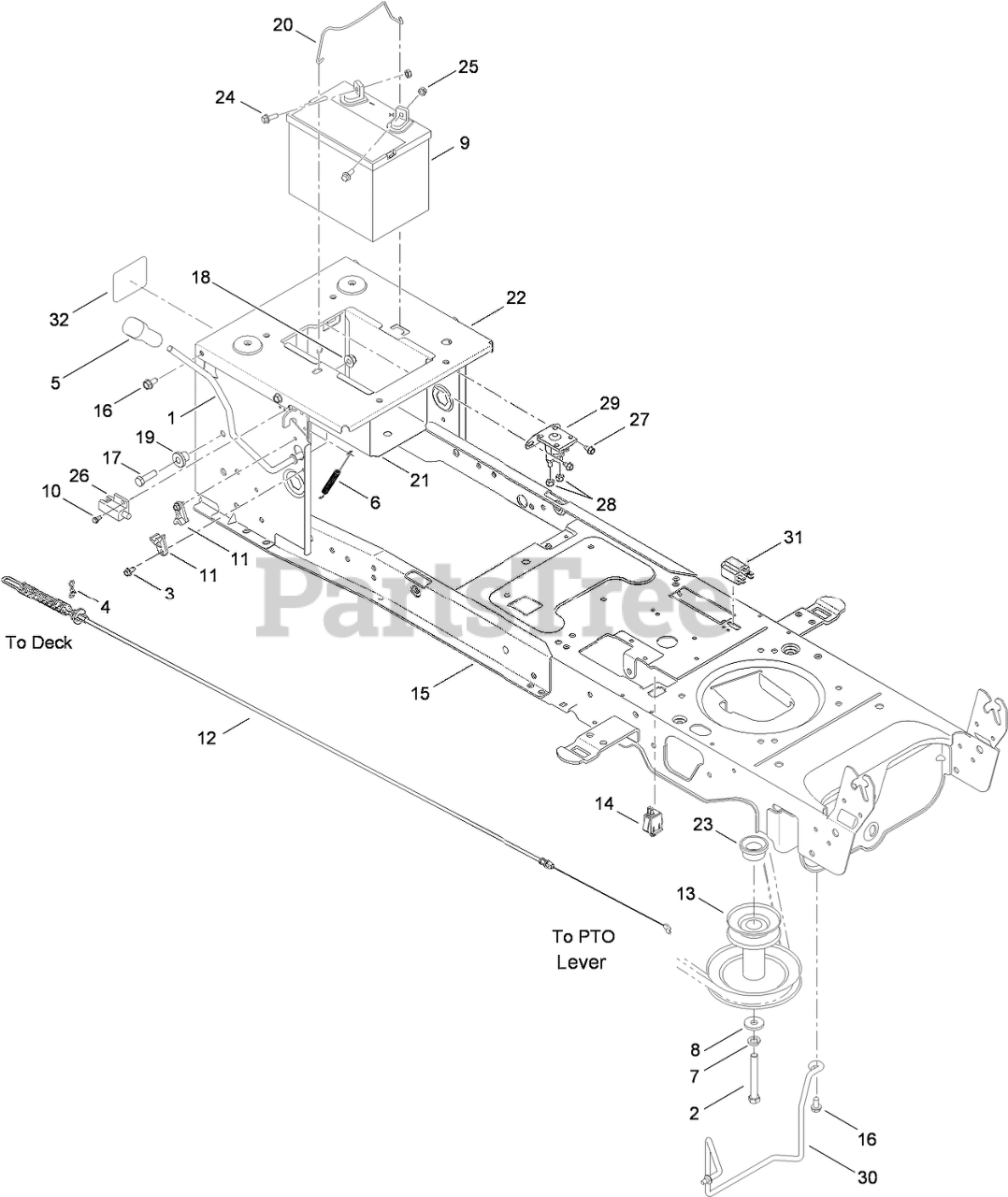

FRAME, BATTERY AND PTO ASSEMBLY Parts Diagram
Toro 119-3986
$45.99
$
Toro 119-3987
$
$
Not available
Toro 112-0524
$7.99
$
Toro 112-0990
$7.49
$
Toro 119-3988
$
$
Not available
Toro 119-3989
$20.99
$
Toro 112-0428
$
$
Not available
Toro 112-0380
$18.99
$
Toro 112-0425
$
$
Not available
Toro 112-6206
$
$
Not available
Toro 119-3990
$10.99
$
Toro 119-3991
$115.99
$
Toro 112-6207
$
$
Not available
Toro 119-3992
$
$
Not available
Toro 119-3993
$
$
Currently unavailable
Toro 112-6070
$7.49
$
Toro 112-0557
$7.99
$
Toro 112-0668
$7.49
$
Toro 112-0661
$
$
Not available
Toro 112-0581
$10.99
$
Toro 112-0570
$
$
Not available
Toro 112-6209
$
$
Not available
Toro 112-6211
$
$
Not available
Toro 119-3994
$
$
Not available
Toro 112-0546
$
$
Not available
Toro 112-6210
$37.99
$
Toro 112-6022
$
$
Not available
Toro 112-0636
$7.99
$
Toro 112-6073
$73.99
$
Toro 119-3995
$71.99
$
Toro 119-3996
$
$
Not available
Toro 119-8483
$
$
Not available
$
$
Not available
