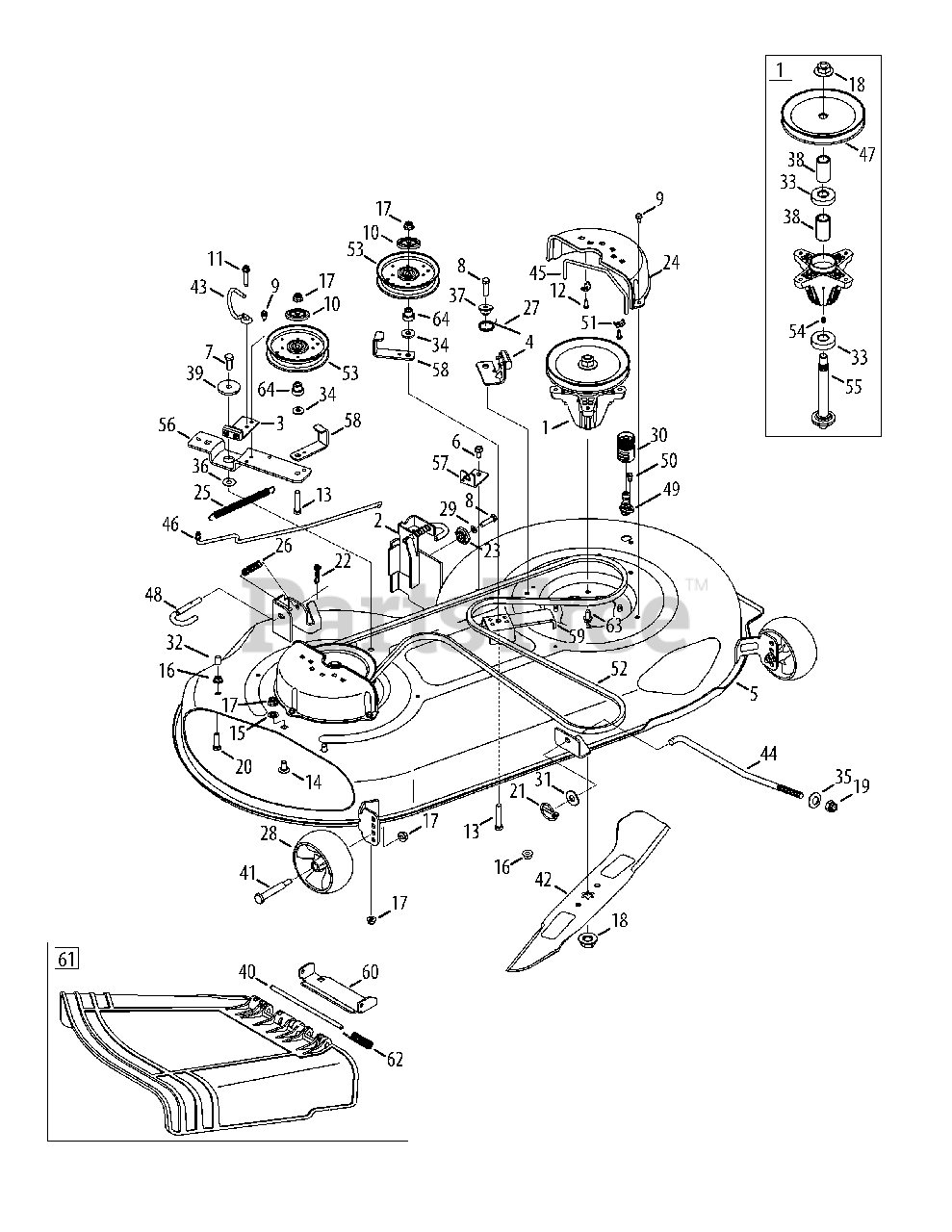

13AX935T001 - Yard-Man Lawn Tractor (2014) Mower Deck Parts Diagram

Lawn Tractor

Mower Deck Parts Diagram

  • Title

1

MTD 918-04865A

Spindle Ass’y, Pulley, 6.93 Dia

$147.99

$

In Stock, Qty 20+

0

2

MTD 683-0254B-0709

Bracket Ass’y, Deck, Hanger LH

$46.99

$

Usually ships in 3-6 days

0

3

MTD 983-04511

Brake Ass’y, Deck

$58.99

$

In Stock, Qty 20+

0

4

MTD 983-04525

Brake Ass’y, Deck

$42.99

$

In Stock, Qty 20+

0

5

MTD 983-04578B-0709

Deck, Offset, 46" 2W
(Superseded to 983-04578B-0637)

$506.99

$

Usually ships in 3-6 days

0

6

MTD 710-04484

Screw, Self-tapping, 5/16-18, .750,

$3.49

$

In Stock, Qty 20+

0

7

MTD 710-0514

Hex Screw, 3/8-16, 1.00

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-0528

Hex Screw, 5/16-18, 1.25

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0599

Screw, Self-tapping, 1/4-20, 0.500,

$3.99

$

In Stock, Qty 20+

0

10

MTD 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

11

MTD 710-0642

Screw, Self-tapping, 1/4-20, .75,

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-04669

Screw, #10-16:.625

$3.49

$

In Stock, Qty 20+

0

13

MTD 710-3144

Hex Screw, 3/8-16, 2.00

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-3178

Bolt, Carriage, 3/8-16, 0.75

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-0229

Nut, Push, 3/8

$3.49

$

In Stock, Qty 20+

0

16

MTD 712-04063

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-04065

Nut, Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

19

MTD 712-04243

Nut, Lock, 1/2-13

$3.99

$

In Stock, Qty 20+

0

20

MTD 710-0376

Hex Cap Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 17

0

21

MTD 753-04070

Pin, Lynch, .1875

$9.49

$

In Stock, Qty 20+

0

22

MTD 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

23

MTD 917-04074

Gear, Deck, Adjustment

$12.99

$

In Stock, Qty 20+

0

24

MTD 731-06496

Belt Cover

$22.99

$

In Stock, Qty 20+

0

25

MTD 932-0384

Spring, Extension, .62 Dia x 6.12

$13.99

$

In Stock, Qty 20+

0

26

MTD 732-04652

Spring, Comp, .535 OD x 1.751

$6.49

$

In Stock, Qty 20+

0

27

MTD 732-04840

Spring, Torsion, .992 I.D x 1.17 O.D

$3.99

$

In Stock, Qty 20+

0

28

MTD 734-04155

Wheel, Deck, 5.0 Dia Ball

$19.99

$

In Stock, Qty 20+

0

29

MTD 936-0119

Washer, Lock, 5/16, Regular Duty

$4.49

$

In Stock, Qty 20+

0

30

MTD 921-04041

Water Nozzle Adaptor

$21.99

$

In Stock, Qty 20+

0

31

MTD 936-0179

Washer, Flat, .531 x 1.25 x .100
(Superseded to 736-0179)

$4.49

$

In Stock, Qty 20+

0

32

MTD 720-05010

Cap, .290 x .500

$3.99

$

In Stock, Qty 13

0

33

MTD 941-0919A

Ball Bearing, .787 ID x 1.85 OD x .551
(Superseded to 941-0919B)

$20.99

$

In Stock, Qty 20+

0

34

MTD 736-0262

Washer, Flat, .385 x .870 x .092

$3.99

$

In Stock, Qty 20+

0

35

MTD 736-0317

Washer, Bell, .63 x 1.25 x .18

$7.49

$

In Stock, Qty 20+

0

36

MTD 936-0344

Washer, Flat, .385 x 1.0 x .030
(Superseded to 736-0344)

$4.49

$

In Stock, Qty 20+

0

37

MTD 748-04272

Spacer, Shoulder, .50 x .145

$6.99

$

In Stock, Qty 13

0

38

MTD 750-04936

Spacer, .792 x 1.060 x 1.860

$6.49

$

In Stock, Qty 20+

0

39

MTD 738-04162C

Spacer, Shoulder, .8840 x .190

$12.99

$

In Stock, Qty 20+

0

40

MTD 711-04847B

Hinge Pin

$8.49

$

In Stock, Qty 20+

0

41

MTD 938-3056

Bolt, Shoulder, .496 x 2.50, 3/8-16

$8.99

$

In Stock, Qty 20+

0

42

MTD 942-04290

Blade
(Superseded to 942-04290A)

$34.99

$

In Stock, Qty 20+

0

43

MTD 747-05323

Rod, Keeper, Belt

$13.99

$

In Stock, Qty 6

0

44

MTD 747-04944B

Rod, Lift, Deck, Frt, 13.7

$23.99

$

In Stock, Qty 20+

0

45

MTD 747-05011

Rod, Keeper, Belt

$9.49

$

In Stock, Qty 20+

0

46

MTD 747-05052A

Rod, Control, Brake

$14.99

$

In Stock, Qty 20+

0

47

MTD 756-04356

Pulley, Deck, 6.93 Dia

$34.99

$

In Stock, Qty 10

0

48

MTD 747-1116

Rod, Handle, Deck Release

$11.99

$

In Stock, Qty 20+

0

49

MTD 731-07487

Deck Wash Nozzle

$4.49

$

In Stock, Qty 20+

0

50

MTD 738-04278

Shoulder Screw, 1/4-20 x 0.50

$6.49

$

In Stock, Qty 20+

0

51

MTD 751B221535

Clamp, Casing

$9.49

$

In Stock, Qty 20+

0

52

MTD 954-04219

Belt, V-Type

$50.99

$

In Stock, Qty 20+

0

53

MTD 756-05042

Pulley, Idler, 4.25"Dia

$28.99

$

In Stock, Qty 20+

0

54

MTD 937-3000

Fitting, 3/16, Lnc#70, Drive Lube

$4.49

$

In Stock, Qty 20+

0

55

MTD 738-1186A

Shift, Spindle, 6.11.

$49.99

$

In Stock, Qty 20+

0

56

MTD 783-05946

Bracket, Idler, Pivot

$35.99

$

In Stock, Qty 20+

0

57

MTD 783-06243-0709

Bracket, Cable, Deck Engage
(Superseded to 783-06243-0637)

$9.99

$

In Stock, Qty 8

0

58

MTD 783-06368A-0709

Bracket, Guard, Belt, 4.25 Pulley
(Superseded to 783-06368A-0637)

$19.99

$

In Stock, Qty 20+

0

59

MTD 783-06643-0709

Bracket, Support, Deck Stationary Idler

$

$

Not available

60

MTD 783-06074A

Bracket, Chute

$30.99

$

In Stock, Qty 5

0

61

MTD 631-04288

Chute Ass’y, Deflector
(Superseded to 631-05191A)

$52.99

$

In Stock, Qty 20+

0

62

MTD 732-04372

Torsion Spring, .44 ID x 2.0

$9.49

$

In Stock, Qty 20+

0

63

MTD 710-1260A

Self Tapping Screw, 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

64

MTD 748-05029

Shoulder Spacer
(Superseded to 748-05029A)

$4.49

$

In Stock, Qty 20+

0
