13AY609G766 - Troy-Bilt Bronco Lawn Tractor (2004) Engine Accessories Parts Diagram

Bronco Lawn Tractor

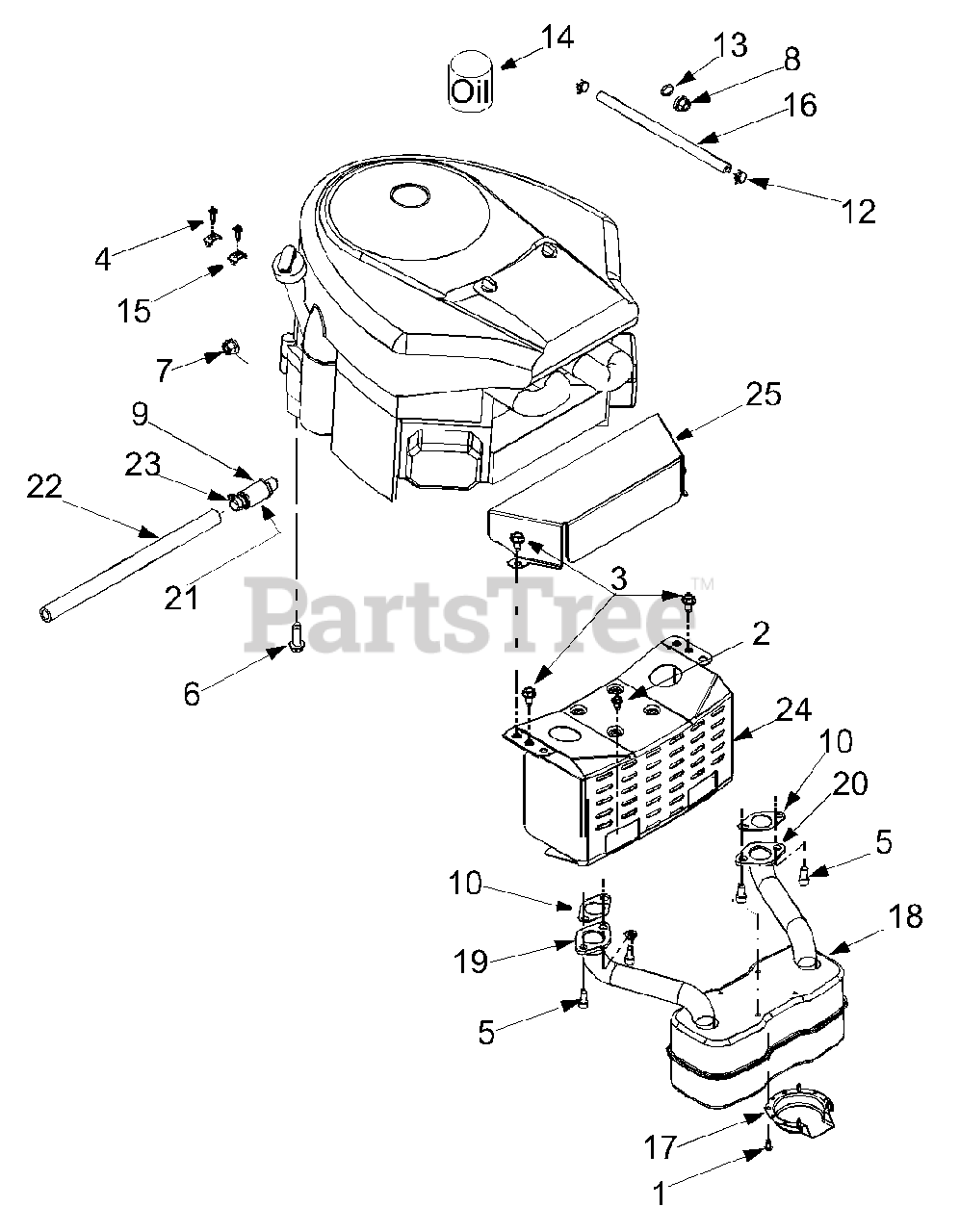

Engine Accessories Parts Diagram

  • Title

1

Troy-Bilt 710-0227

AB Screw 38-18 x 0.5

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0599

TT Screw 1/4-20 x 0.5

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0726

AB Screw 5/16-20 x 0.75

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-1237

T Screw #10-32 x 0.625

$4.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-1314A

Socket Hd. Scr. 5/16-18 x 0.75

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-1315

TT Screw 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-0271

Sems Nut

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 712-3017

Hex Nut

$3.99

$

In Stock, Qty 20+

0

9

Pipe Sealant

$

$

Not available

10

Troy-Bilt 721-0460

Exhaust Gasket
(Superseded to 721P0460)

$6.49

$

In Stock, only 1 left!

0

11

Troy-Bilt 725-0157

Cable Tie

Note: (not shown)

$3.49

$

In Stock, only 4 left!

0

12

Troy-Bilt 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 736-0300

Flat Washer

$3.99

$

In Stock, Qty 20+

0

14

Oil: SAE 30W

$

$

Not available

15

Troy-Bilt 751B221535

Clamp: Casing

$9.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 751-0535

Fuel Line Hose

$

$

Currently unavailable

17

Troy-Bilt 751-0564A

Deflector: Muffler
(Superseded to 751-0564B)

$12.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 751-0616A

Dual Inlet Muffler
(Superseded to 951-0616B)

$152.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 751-0650A

Exhaust Pipe RH
(Superseded to 751-0650B)

$58.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 751-0651A

Exhaust Pipe LH
(Superseded to 751-0651B)

$56.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 751-3140

Oil Drain
(Superseded to 951-10517A)

$22.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 751-3141

Extension Hose: Oil Drain
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 8

0

24

Troy-Bilt 783-0615B

Heat Shield: Muffler
(Superseded to 783-0615E-0637)

Variations

Troy-Bilt 783-0615B-0637

Muffler Bracket - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

25

Troy-Bilt 783-0625C

Heat Shield: Single

$111.99

$

Usually ships in 3-6 days

0
