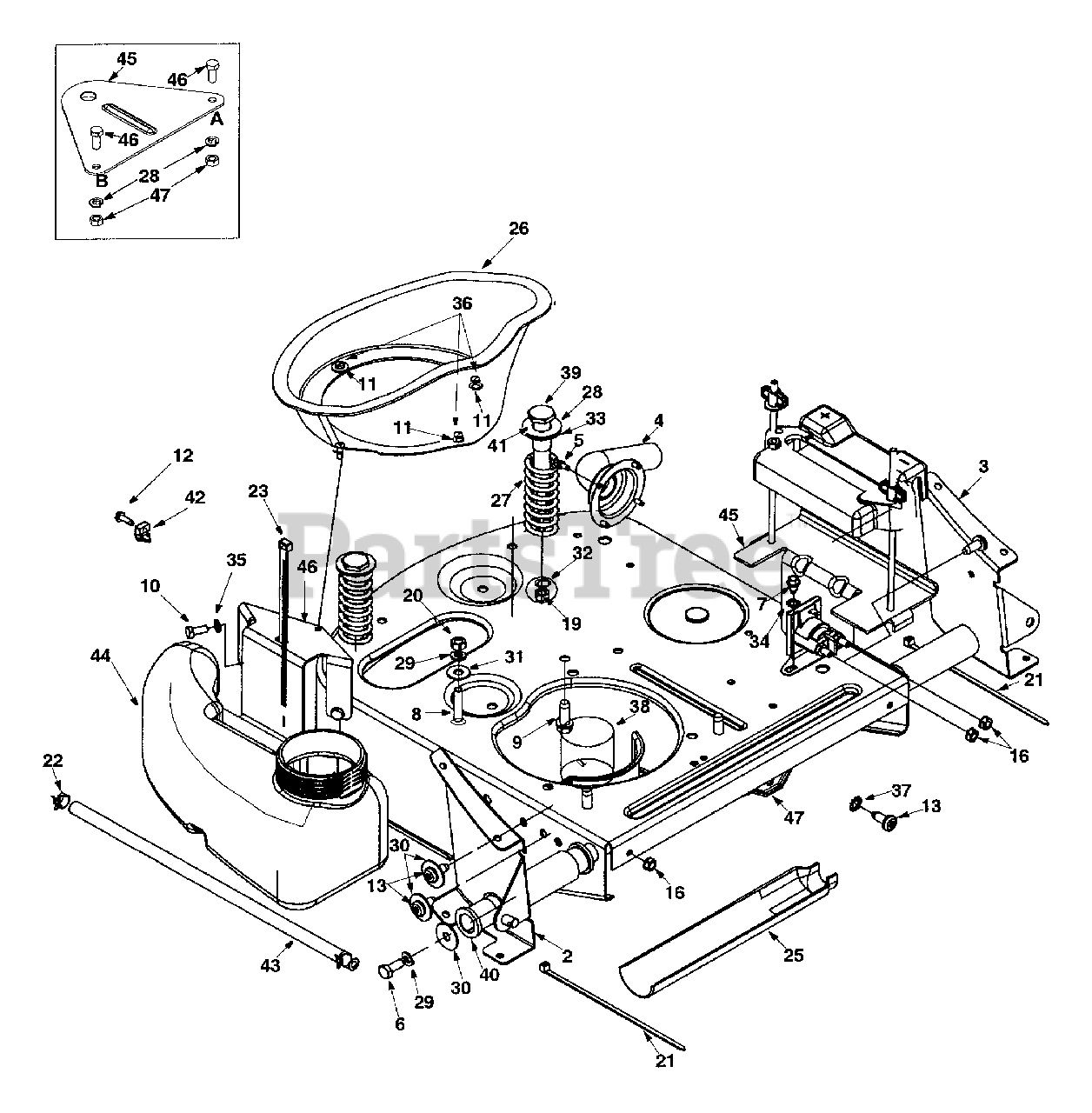

13B-325-401 - Yard-Man Lawn Tractor (2001) Engine Accessories & Frame Parts Diagram

Lawn Tractor

Engine Accessories & Frame Parts Diagram

  • Title

?1

MTD 683-01498

Frame Assembly

$

$

Currently unavailable

2

MTD 683-0190A

Frame Rail Support: RH

Variations

MTD 683-0190A-0637

Frame Rail Support: RH - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 683-0191A

Frame Rail Support: LH

Variations

MTD 683-0191A-0637

Frame Rail Support: LH - POWDER BLACK (0637)

$

$

Not available

$

$

4

MTD 683-0192

Muffler Pipe Extension

$

$

Not available

5

MTD 710-0148

Hex Fl. Screw #8-32 x 0.375

$3.99

$

In Stock, Qty 16

0

6

MTD 710-0157

Hex Screw 5/16-24 x .75" Gr.5

$3.99

$

In Stock, Qty 16

0

7

MTD 710-0599

Self-Tapping Screw

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-0624

Hex Screw 5/16-24 x 1.5" Gr.5

$5.49

$

Usually ships in 3-6 days

0

9

MTD 710-0654A

TT Screw 3/8-16 x 1.0"

$3.99

$

Usually ships in 3-6 days

0

10

MTD 710-0751

Hex Screw 1/4-20 x 0.5"

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-0871

Hex Slot Sems Screw #10-32 x 0.38

$

$

Not available

12

MTD 710-1237

TT Screw #10-32 x 0.625"

$4.49

$

Usually ships in 3-6 days

0

13

MTD 710-1611B

TT Screw 5/16-18 x 0.75"

$6.49

$

In Stock, only 2 left!

0

?14

MTD 710-1653

Machine Screw #10-32 x 0.5"
(Superseded to 710-0899A)

$6.49

$

Usually ships in 3-6 days

0

?15

MTD 711-0222A

Battery Hold-Down Rod
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

16

MTD 712-0271

Hex Sems Nut 1/4-20

$4.49

$

In Stock, Qty 19

0

?17

MTD 712-0291

Lock Nut 1/4-20

$4.49

$

In Stock, Qty 9

0

?18

MTD 712-0397

Wing Nut with Bell Washer
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

19

MTD 712-3017

Hex Nut

$3.99

$

In Stock, Qty 20+

0

20

MTD 712-3057

Hex Nut 5/16-24 Gr.5
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

21

MTD 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

22

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

23

MTD 726-0209

Cable Tie
(Superseded to 726-0230)

$25.99

$

In Stock, only 2 left!

0

?24

MTD 731-0708

Battery Cover

$

$

Not available

25

MTD 731-1682A

Oil Drain Sleeve

$7.49

$

In Stock, Qty 10

0

26

MTD 731-1945A

Engine Duct

$

$

Not available

27

MTD 732-3080

Compression Spring
(Superseded to 732-3080A)

$12.99

$

In Stock, Qty 20+

0

28

MTD 735-0273

Rubber Washer

$8.49

$

Usually ships in 3-6 days

0

29

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

30

MTD 736-0123

Flat Washer
(Superseded to 936-0123)

$5.99

$

Usually ships in 3-6 days

0

31

MTD 736-0159

5/16 Washer

$3.99

$

In Stock, Qty 20+

0

32

MTD 736-0169

Lock Washer

$3.49

$

In Stock, Qty 20+

0

33

MTD 736-0188

Flat Washer

$3.99

$

In Stock, Qty 20+

0

34

MTD 736-0222

Lock Washer

$5.49

$

In Stock, only 3 left!

0

35

MTD 736-0329

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 12

0

36

MTD 736-0400

Flat Washer

$4.99

$

In Stock, Qty 16

0

37

MTD 736-0607

Lock Washer

$3.99

$

In Stock, Qty 20+

0

38

MTD 737-0169

Motor Oil

$

$

Currently unavailable

39

MTD 738-0960

Shoulder Screw

$16.99

$

Usually ships in 3-6 days

0

40

MTD 741-0516

Flange Bearing
(Superseded to 741-0516B)

$5.99

$

In Stock, Qty 20+

0

41

MTD 741-0591

Flange Bearing

$4.49

$

In Stock, Qty 20+

0

42

MTD 751B213146

Throttle Casing Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

43

MTD 751-0535

Fuel Line Hose

$

$

Currently unavailable

44

MTD 751-0656

Fuel Tank

$

$

Not available

45

MTD 783-0624

Battery Bracket

Variations

MTD 783-0624-0637

Battery Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

46

MTD 783-0630

Fuel Tank Bracket

Variations

MTD 783-0630-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

47

MTD 783-0809B

Transaxle Support Bracket

Variations

MTD 783-0809B-0637

Transaxle Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

?48

MTD 783-0561

Hitch Plate
(Superseded to 783-0561A-0637)

Note: (Optional)

Variations

MTD 783-0561-0637

Hitch Plate - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

?49

MTD 710-3008

Hex Bolt

$3.99

$

In Stock, Qty 20+

0

?50

MTD 712-0267

Hex Nut
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

MTD 725-1698

Battery
(Superseded to 753-0607)

Note: (Not Shown)

$170.99

$

Usually ships in 3-6 days

0
