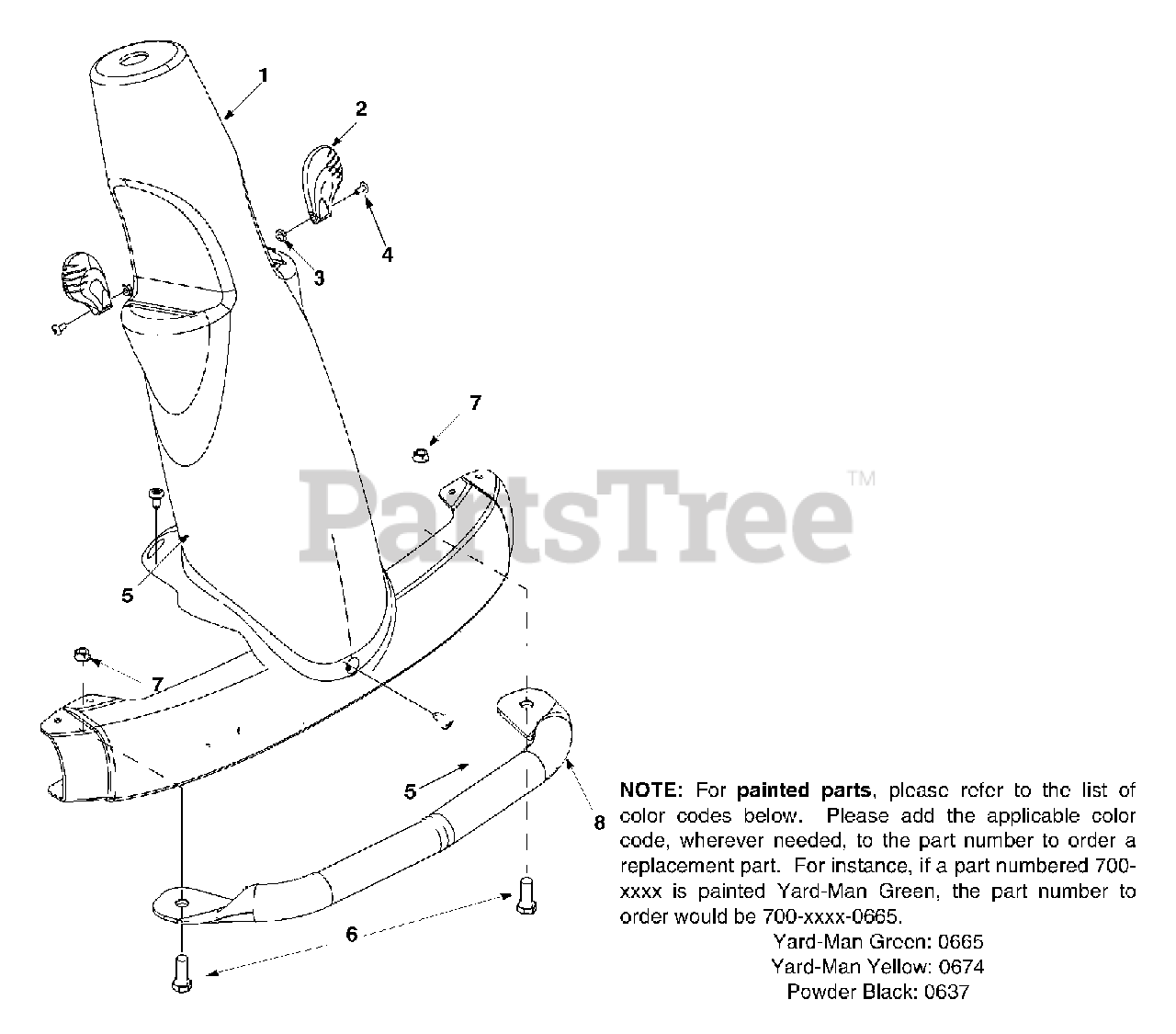

13B-325-401 - Yard-Man Lawn Tractor (2002) Steering Column & Bumper Parts Diagram

Lawn Tractor

Steering Column & Bumper Parts Diagram

  • Title

1

MTD 731-1877

Steering Column: Green

$

$

Not available

2

MTD 731-1918

Control Knob

$24.99

$

Usually ships in 3-6 days

0

3

MTD 712-0142

Hex Nut 8-32

$4.99

$

In Stock, Qty 8

0

4

MTD 710-3217

Pan Head Machine Screw #8-32

$7.49

$

In Stock, Qty 5

0

5

MTD 710-0599

Hex Screw TT 1/4-20 x .50"

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0514

Hex Screw 3/8-16 x 1.0"

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-0431

Lock Nut
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

8

MTD 749-1099

Bumper Tube: Front

Note: If equipped

Variations

MTD 749-1099-0716

BUMPER-FRONT - CUB YELLOW-99 (0716)

$

$

Not available

MTD 749-1099-0498

No Longer Available BUMPER-FRO - OLD CUB YELLOW (0498)

$

$

Not available

MTD 749-1099-0637

BUMPER-FRONT - POWDER BLACK (0637)

$

$

Not available

MTD 749-1099-0648

No Longer Available BUMPER-FRO - TECH GRAY (0648)

$

$

Not available

MTD 749-1099-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 749-1099-0665

BUMPER-FRONT - YARDMAN GREEN (0665)

$

$

Not available

$47.99

$

Usually ships in 3-6 days

0
