13B326JC758 - Murray Lawn Tractor (2016) Pedals Parts Diagram

Lawn Tractor

Pedals Parts Diagram

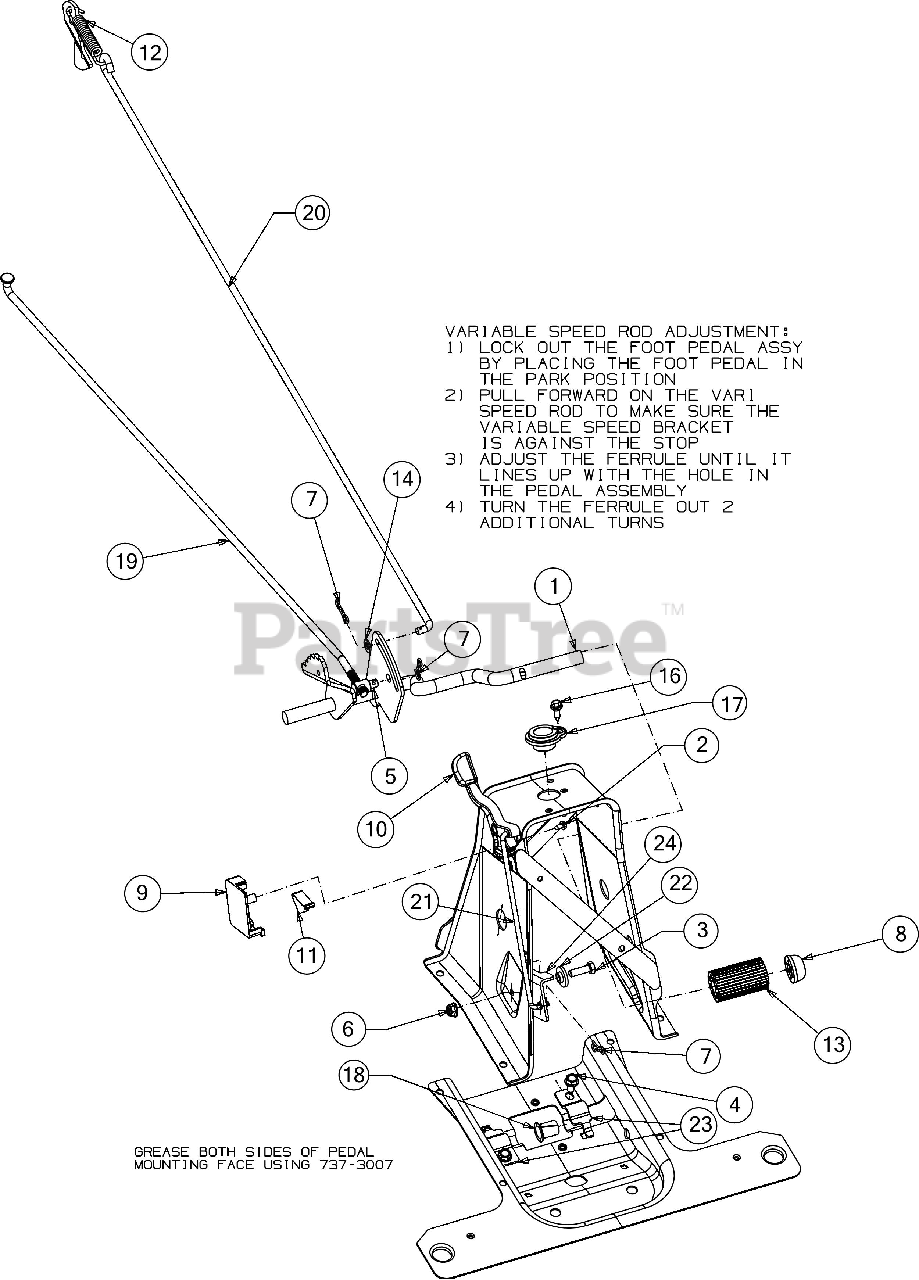

  • Title

1

MTD 683-05017A-0637

BRAKE PEDAL ASSEMBLY
(Superseded to 683-05017B-0637)

$44.99

$

Usually ships in 3-6 days

0

2

MTD 910-0224

HEX SCREW AB-TAP #10-16 x 0.500

$3.99

$

In Stock, Qty 14

0

3

MTD 710-0376

SCREW 5/16-18 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

5

MTD 711-06103

FERRULE 3/8-24 x .375

$4.49

$

In Stock, Qty 9

0

6

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

7

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

8

MTD 726-0214

PUSH CAP

$11.99

$

In Stock, Qty 20+

0

9

MTD 731-08656B

6 SPEED CONTROL COVER

$4.49

$

In Stock, Qty 10

0

10

MTD 731-08743B

6 SPEED LEVER

$7.99

$

In Stock, Qty 14

0

11

MTD 732-04937

SHIFT SPRING

$4.49

$

In Stock, only 1 left!

0

12

MTD 732-05464

EXTENSION SPRING .59 X 4.0
(Superseded to 732-05464A)

$13.99

$

Usually ships in 3-6 days

0

13

MTD 735-04279

FOOT PAD 2.5 LG"

$9.49

$

Usually ships in 3-6 days

0

14

MTD 936-0264

FLAT WASHER

$7.49

$

In Stock, Qty 11

0

16

MTD 738-04184A

SHOULDER SCREW

$7.49

$

In Stock, Qty 20+

0

17

MTD 741-0356A

FLANGE BEARING

$7.49

$

In Stock, only 1 left!

0

18

MTD 741-05135

FLANGE BEARING .626 x .938 x .875

$6.99

$

Usually ships in 3-6 days

0

19

MTD 747-05506

VARIABLE SPEED ROD

$23.99

$

Usually ships in 3-6 days

0

20

MTD 747-06033A

BRAKE ROD

$20.99

$

In Stock, only 2 left!

0

21

MTD 747-06449

SPEED SELECT ROD

$15.99

$

Usually ships in 3-6 days

0

22

MTD 748-0234

SHOULDER SPACER

$4.99

$

In Stock, Qty 11

0

23

MTD 783-05940

BRAKE SHAFT STRAP

$7.49

$

Usually ships in 3-6 days

0

24

MTD 783-08116C

SPEED LATCH BRACKET

Variations

MTD 783-08116C-0637

Speed Latch Bracket - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0
