13BC762F000 - Yard Machines Lawn Tractor (2016) Axle Pivot Parts Diagram

Lawn Tractor

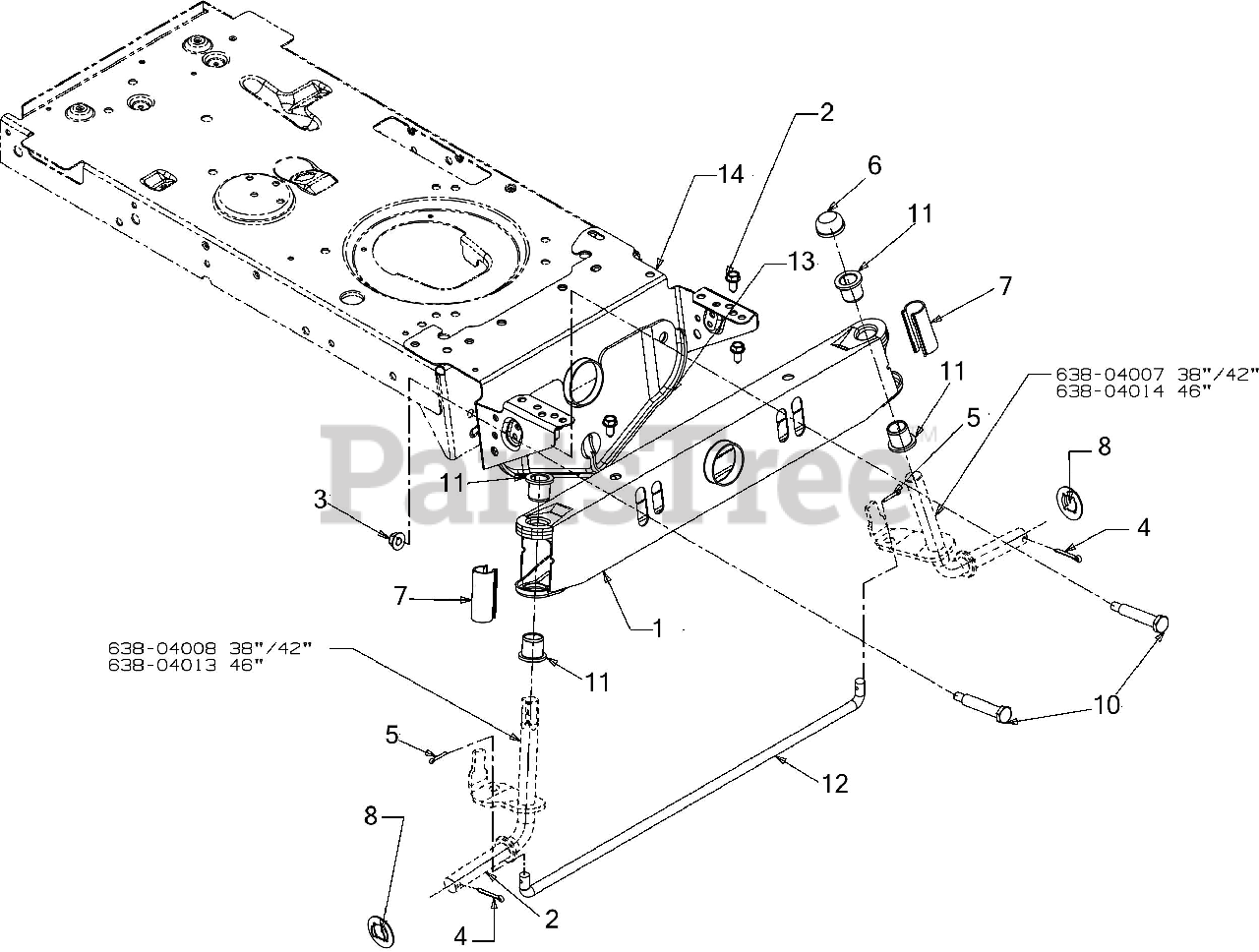

Axle Pivot Parts Diagram

  • Title

1

MTD 683-0128B-0637

PIVOT BAR

$97.99

$

In Stock, Qty 19

0

2

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

3

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

4

MTD 714-0162

COTTER PIN-5/32 DIA

$4.99

$

In Stock, Qty 20+

0

5

MTD 914-0474

COTTER PIN
(Superseded to 714-0474)

$

$

Not available

6

MTD 726-0341

CAP

$4.99

$

In Stock, Qty 20+

0

7

MTD 731-04057A

AXLE CAP

$5.49

$

In Stock, Qty 20+

0

8

MTD 736-04228A

FLAT WASHER .781 ID x1.590 OD
(Superseded to 736-04228B)

$5.49

$

In Stock, Qty 20+

0

9

N/A

GREASE-#251 EP (NOT SERVICEABLE)

$

$

Not available

10

MTD 738-04128

SHOULDER SCREW .500X2.38X3/8-16

$7.99

$

In Stock, only 2 left!

0

11

MTD 741-0660A

FLANGE BEARING .760 ID

$3.49

$

In Stock, Qty 20+

0

12

MTD 747-04299A

FIXED TIE ROD

$30.99

$

In Stock, Qty 5

0

13

MTD 783-04568-0637

DECK HANGER BRACKET

$51.99

$

Usually ships in 3-6 days

0

14

MTD 783-04601C-0637

PIVOT BRACKET

$56.99

$

Usually ships in 3-6 days

0
