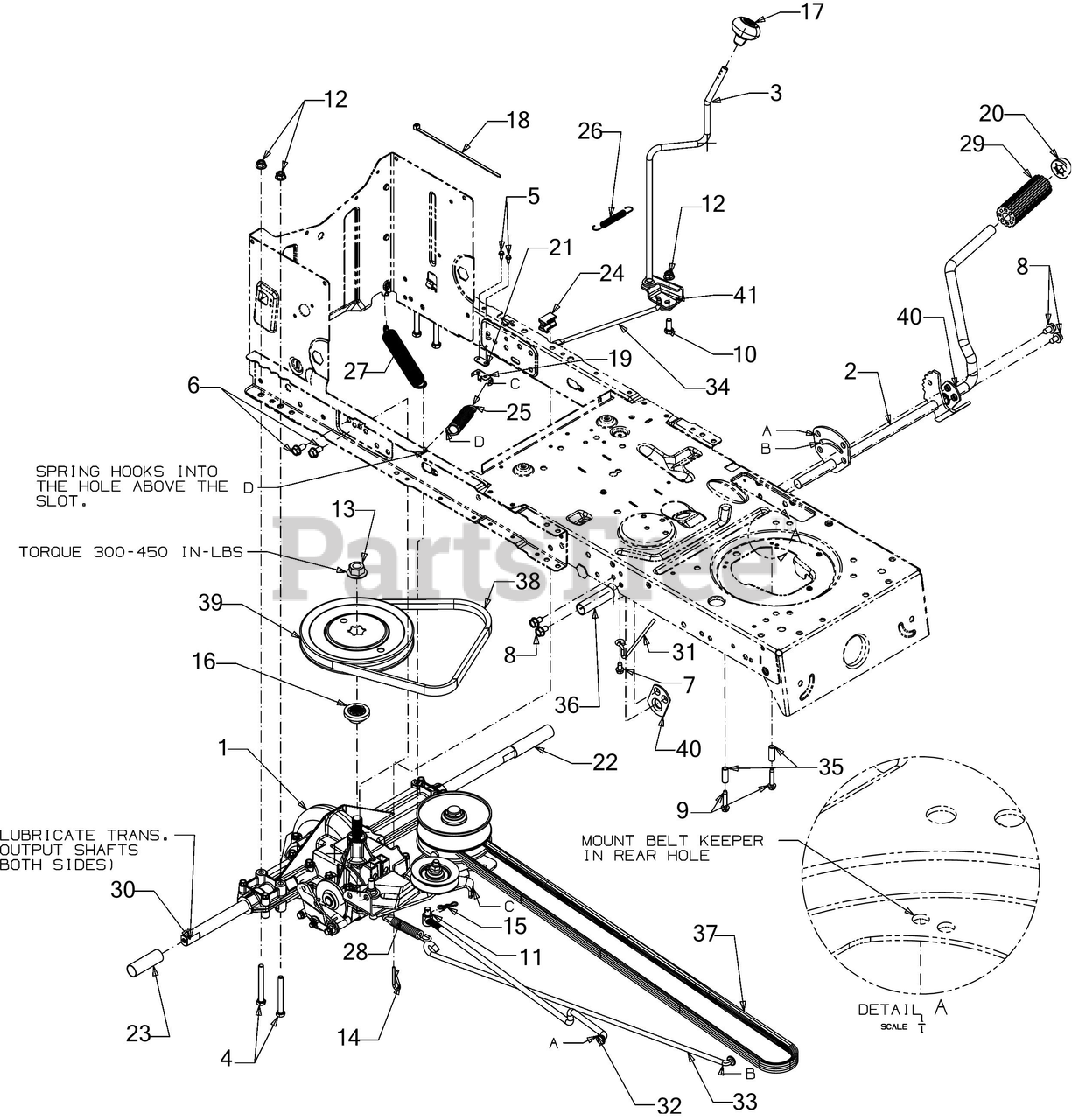

13BC762F000 - Yard Machines Lawn Tractor (2016) Drive Parts Diagram

Lawn Tractor

Drive Parts Diagram

  • Title

1

N/A

GREASE(NOT SERVICEABLE)

Note: Not Shown

$

$

Not available

30

N/A

GREASE(NOT SERVICEABLE)

$

$

Not available

1

MTD 618-04914

TRANSMISSION DRIVE-SINGLE SPEED

Note: (NOT SERVICEABLE)

$

$

Currently unavailable

1

MTD 656-04015B

VARIABLE SPEED PULLEY ASSEMBLY 4.75 OD
(Superseded to 956-04015B)

Note: Not Shown

$96.99

$

In Stock, Qty 20+

0

1

MTD 683-04176A

TRANSMISSION TORQUE BRACKET
(Superseded to 783-04567B)

Note: Not Shown

$8.49

$

Usually ships in 3-6 days

0

1

MTD 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

Note: Not Shown

$4.99

$

In Stock, Qty 20+

0

1

MTD 710-04731

SCREW 5/16-18 x .375

Note: Not Shown

$7.49

$

In Stock, only 1 left!

0

1

MTD 710-0627

SCREW 5/16-24 x .750 GR5

Note: Not Shown

$3.99

$

In Stock, Qty 20+

0

1

MTD 710-0778

SCREW 1/4-20 x 1.50"

Note: Not Shown

$3.99

$

In Stock, Qty 16

0

1

MTD 710-1206

SCREW 1/4-20 x 2.375

Note: Not Shown

$6.99

$

In Stock, Qty 11

0

1

MTD 710-1260A

SCREW 5/16-18 x .750

Note: Not Shown

$3.49

$

In Stock, Qty 20+

0

1

MTD 710-1325

SCREW 1/4-20 X1.625

Note: Not Shown

$4.49

$

In Stock, Qty 5

0

1

MTD 711-04769

CROSS PIN .500 x 2.75

Note: Not Shown

$7.49

$

Usually ships in 3-6 days

0

1

MTD 711-1109

INPUT SHAFT

Note: Not Shown

$34.99

$

In Stock, only 1 left!

0

1

MTD 712-04065

NUT

Note: Not Shown

$3.99

$

In Stock, Qty 20+

0

1

MTD 717-0700

ACTUATING ARM (RH)

Note: Not Shown

$13.99

$

In Stock, only 1 left!

0

1

MTD 717-1464

PINION INPUT 14T

Note: Not Shown

$20.99

$

In Stock, only 3 left!

0

1

MTD 718-0150

ANTI ROTATION BRACKET

Note: Not Shown

$4.49

$

Usually ships in 3-6 days

0

1

MTD 718-04261

BEARING CUP

Note: Not Shown

$18.99

$

In Stock, Qty 17

0

1

MTD 718-04381P

CLUTCH COLLAR

Note: Not Shown

$16.99

$

In Stock, Qty 7

0

1

MTD 721-0213

OIL SEAL

Note: Not Shown

$9.99

$

In Stock, Qty 9

0

1

MTD 732-0614

WIRE RING

Note: Not Shown

$5.99

$

Usually ships in 3-6 days

0

1

MTD 736-0343

WASHER-5/16 x 1.25X 1.27

Note: Not Shown

$4.49

$

In Stock, Qty 19

0

1

MTD 736-0371

FLAT WASHER

Note: Not Shown

$4.49

$

In Stock, Qty 7

0

1

MTD 736-04296

FLAT WASHER .632X1.00X.16

Note: Not Shown

$3.49

$

In Stock, only 3 left!

0

1

MTD 736-0494

THRUST WASHER

Note: Not Shown

$4.49

$

In Stock, Qty 8

0

1

MTD 741-04442

FLANGE BEARING 5/8 x 3/4 x 15/16

Note: Not Shown

$3.99

$

In Stock, only 1 left!

0

1

MTD 741-05060

SLEEVE BEARING .75X1.00X1.00

Note: Not Shown

$8.49

$

In Stock, Qty 20+

0

1

MTD 741-05096

FLANGE BEARING .625X.75X.75

Note: Not Shown

$3.99

$

Usually ships in 3-6 days

0

1

MTD 741-0862

DETENT BALL

Note: Not Shown

$4.49

$

In Stock, Qty 20+

0

1

MTD 753-05147

BRACKET ASSEMBLY

Note: Not Shown

$30.99

$

In Stock, only 4 left!

0

1

MTD 753-05147

IDLER BRACKET ASSEMBLY

Note: Not Shown

$30.99

$

In Stock, only 4 left!

0

1

MTD 756-04325

V-IDLER PULLEY A x 3.06 OD

Note: Not Shown

$22.99

$

In Stock, Qty 20+

0

1

MTD 761-0202

BRAKE DISC

Note: Not Shown

$14.99

$

In Stock, Qty 5

0

1

MTD 911-05050

SHAFT ASSEMBLY-DETNET
(Superseded to 911-05050A)

Note: Not Shown

$38.99

$

In Stock, only 1 left!

0

1

MTD 911-05051

FWD/REV SHAFT ASSEMBLY

Note: Not Shown

$144.99

$

In Stock, only 1 left!

0

1

MTD 912-0273

NUT

Note: Not Shown

$4.49

$

Usually ships in 3-6 days

0

1

MTD 916-0108

SNAP RING
(Superseded to 716-0108)

Note: Not Shown

$4.99

$

Usually ships in 3-6 days

0

1

MTD 916-0231

E-RING
(Superseded to 716-0231)

Note: Not Shown

$

$

Not available

1

MTD 917-04479B

BEVEL GEAR 42T

Note: Not Shown

$27.99

$

In Stock, only 4 left!

0

1

MTD 917-0678

BRAKE PUCK

Note: Not Shown

$6.99

$

In Stock, Qty 20+

0

1

MTD 917-0678

BRAKE PUCK

Note: Not Shown

$6.99

$

In Stock, Qty 20+

0

1

MTD 917-0682

PUCK PLATE

Note: Not Shown

$9.49

$

In Stock, Qty 7

0

1

MTD 917-1446B

MITER GEAR 10T

Note: Not Shown

$15.99

$

In Stock, Qty 7

0

1

MTD 918-04566A

TRANSMISSION ASSEMBLY
(Superseded to 918-04566B)

Note: Not Shown

$668.99

$

In Stock, Qty 5

0

1

MTD 919-04187A

UPPER HOUSING ASSEMBLY

Note: Not Shown

$152.99

$

In Stock, only 2 left!

0

1

MTD 919-04329B

LOWER HOUSING

Note: Not Shown

$79.99

$

In Stock, only 1 left!

0

1

MTD 921-0338

SEAL .750 x 1.00 x .125

Note: Not Shown

$6.99

$

In Stock, Qty 20+

0

1

MTD 932-05125

DETENT SHAFT SPRING

Note: Not Shown

$3.99

$

In Stock, Qty 10

0

1

MTD 932-0742

TORSION SPRING

Note: Not Shown

$4.49

$

Usually ships in 3-6 days

0

1

MTD 936-0335

THRUST WASHER

Note: Not Shown

$6.49

$

In Stock, Qty 8

0

1

MTD 936-0336

FLAT WASHER

Note: Not Shown

$4.49

$

In Stock, Qty 20+

0

1

MTD 936-0337

FLAT WASHER

Note: Not Shown

$4.49

$

In Stock, Qty 15

0

1

MTD 936-0349

FLAT WASHER

Note: Not Shown

$3.99

$

In Stock, Qty 20+

0

1

MTD 936-0351

THRUST WASHER
(Superseded to 736-0351)

Note: Not Shown

$3.99

$

In Stock, Qty 20+

0

1

MTD 936-0445

FLAT WASHER
(Superseded to 736-0445)

Note: Not Shown

$

$

Not available

1

MTD 936-0492

THRUST WASHER

Note: Not Shown

$6.49

$

Usually ships in 3-6 days

0

1

MTD 936-0493

THRUST WASHER

Note: Not Shown

$4.49

$

Usually ships in 3-6 days

0

1

MTD 936-0495

THRUST WASHER
(Superseded to 736-0495)

Note: Not Shown

$3.99

$

In Stock, Qty 16

0

1

MTD 938-0347

SHOULDER SPACER

Note: Not Shown

$9.49

$

In Stock, Qty 14

0

1

MTD 941-0335

NEEDLE BEARING

Note: Not Shown

$16.99

$

In Stock, Qty 7

0

1

MTD 941-0343

ACTUATING PIN
(Superseded to 741-0343)

Note: Not Shown

$

$

Not available

1

MTD 941-0600

BALL BEARING

Note: Not Shown

$23.99

$

In Stock, Qty 20+

0

1

MTD 961-0001

RIGHT HAND BRAKE

Note: Not Shown

$53.99

$

In Stock, only 1 left!

0

1

MTD 961-0198A

BRAKE YOKE
(Superseded to 961-0198B)

Note: Not Shown

$23.99

$

In Stock, only 1 left!

0

2

MTD 647-04034C-0637

PEDAL ASSEMBLY
(Superseded to 647-04034E-0637)

$80.99

$

Usually ships in 3-6 days

0

3

MTD 647-04266A

SHIFT LEVER ASSEMBLY

$24.99

$

In Stock, only 1 left!

0

4

MTD 710-0176

HEX SCREW 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

5

MTD 710-0227

HEX SCREW WASHER HD #8-18 x 0.500

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-04484

SCREW 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

7

MTD 710-0599

SCREW 1/4-20 X.500

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-0604A

SCREW 5/16-18 x .625

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0809

SCREW 1/4-20 x 1.25

$6.49

$

In Stock, Qty 20+

0

10

MTD 710-3008

SCREW 5/16-18 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

11

MTD 711-06103

FERRULE 3/8-24 x .375

$3.99

$

In Stock, only 1 left!

0

12

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-0700

FLANGE NUT W/HUB

$10.99

$

In Stock, Qty 18

0

14

MTD 914-0209

COTTER PIN

$3.49

$

In Stock, only 1 left!

0

15

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

16

MTD 718-04407

PULLEY HUB

$11.99

$

In Stock, Qty 13

0

17

MTD 720-04028

SHIFT KNOB

$10.99

$

In Stock, Qty 10

0

18

MTD 725-0157

7" CABLE TIE

$3.49

$

In Stock, only 4 left!

0

19

MTD 725-1644

SAFTEY SPRING SWITCH

$8.99

$

In Stock, only 2 left!

0

20

MTD 726-0214

PUSH CAP

$9.99

$

In Stock, Qty 20+

0

21

MTD 926-0320

INSULATOR PLATE

$6.49

$

In Stock, Qty 10

0

22

MTD 731-04602

SLEEVE

$5.99

$

In Stock, only 1 left!

0

23

MTD 731-04604

SLEEVE

$6.49

$

Usually ships in 3-6 days

0

24

MTD 731-06894

SHIFT ROD BEARING

$5.99

$

In Stock, Qty 9

0

25

MTD 732-04306

EXTENSION SPRING

$9.49

$

In Stock, Qty 16

0

26

MTD 732-04488

EXTENSION SPRING .38 OD x 3.25 LG

$5.99

$

In Stock, Qty 20+

0

27

MTD 732-04746

EXTENSION SPRING .94 x 6.75

$10.99

$

In Stock, Qty 17

0

28

MTD 732-0716D

EXTENSION SPRING

$12.99

$

In Stock, Qty 20+

0

29

MTD 735-0239

FOOT PAD
(Superseded to 735-0239A)

$11.99

$

In Stock, Qty 8

0

1

N/A

GREASE-#251 EP (NOT SERVICEABLE)

Note: Not Shown

$

$

Not available

1

N/A

GREASE(NOT SERVICEABLE)

Note: Not Shown

$

$

Not available

31

MTD 747-04969

BELT KEEPER ROD

$6.49

$

In Stock, only 4 left!

0

32

MTD 747-05186

VARIABLE SPEED ROD

$14.99

$

In Stock, only 1 left!

0

33

MTD 747-05188

BRAKE ROD

$11.99

$

In Stock, only 1 left!

0

34

MTD 747-05244

SHIFT ROD

$3.99

$

Usually ships in 3-6 days

0

35

MTD 750-0566A

SPACER

$9.49

$

In Stock, Qty 7

0

36

MTD 750-0802

SPACER-5/8 ID x 2.

$6.49

$

Usually ships in 3-6 days

0

37

MTD 954-04249A

V-BELT 70.90

$45.99

$

In Stock, Qty 20+

0

38

MTD 954-05040

V-BELT 5L x 35.25

$45.99

$

In Stock, Qty 20+

0

39

MTD 956-04002

V- PULLEY W/HUB

$25.99

$

In Stock, Qty 20+

0

40

MTD 783-04536B-0637

PEDAL SUPPORT BRACKET

$6.49

$

Usually ships in 3-6 days

0

41

MTD 783-04595A

SHIFT ADJUSTMENT BRACKET

$9.99

$

In Stock, only 4 left!

0
