13BC762F000 - Yard Machines Lawn Tractor (2017) Front Axle, Switch & Chute Parts Diagram

Lawn Tractor

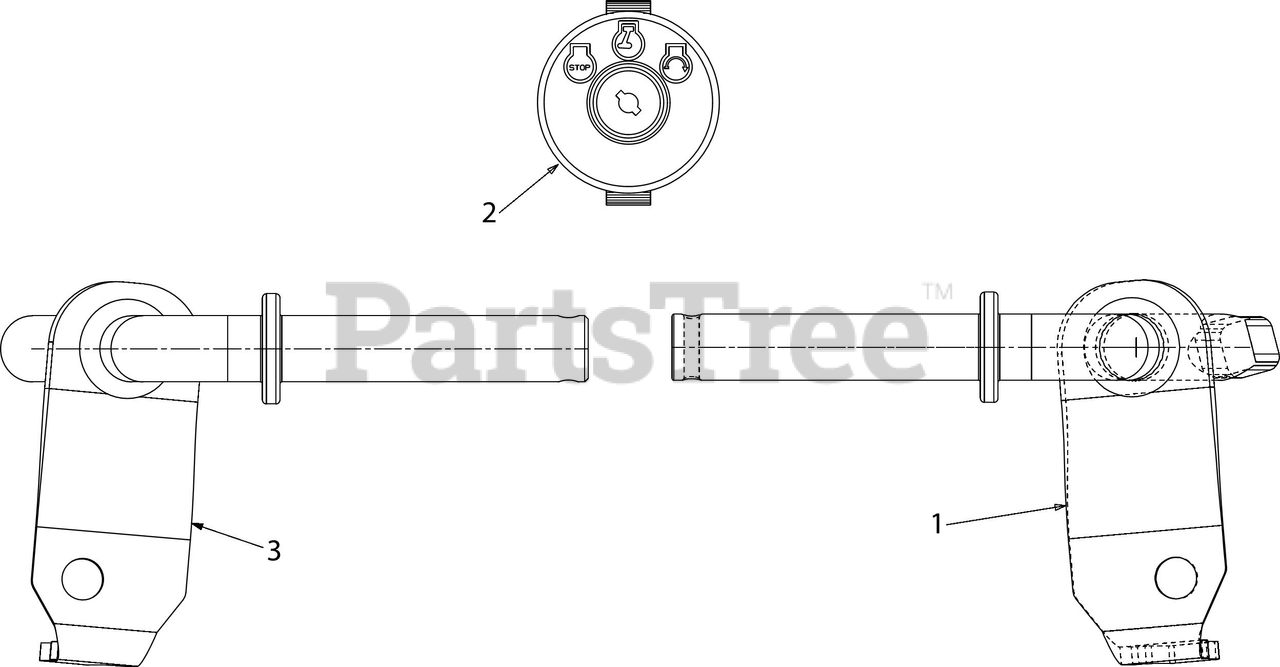

Front Axle, Switch & Chute Parts Diagram

  • Title

1

MTD 638-04008P

FRONT AXLE ASSEMBLY (RH)

$48.99

$

In Stock, Qty 8

0

2

MTD 925-04659

3 POSITION KEY SWITCH

$41.99

$

In Stock, Qty 20+

0

3

MTD 938-04007A-0637

FRONT AXLE ASSEMBLY (LH)

$42.99

$

In Stock, only 2 left!

0

MTD 631-05229

CHUTE ASSEMBLY

Note: (Not Shown)

$77.99

$

In Stock, Qty 18

0

MTD 703-1693A

HINGE MOUNTING BRACKET

Note: (Not Shown)

$21.99

$

In Stock, only 4 left!

0

MTD 911-0792

HINGE PIN

Note: (Not Shown)

$4.49

$

In Stock, only 2 left!

0

MTD 926-0106

PUSH NUT
(Superseded to 726-0106)

Note: (Not Shown)

$

$

Not available

MTD 732-04537

TORSION SPRING

Note: (Not Shown)

$3.99

$

In Stock, only 1 left!

0
