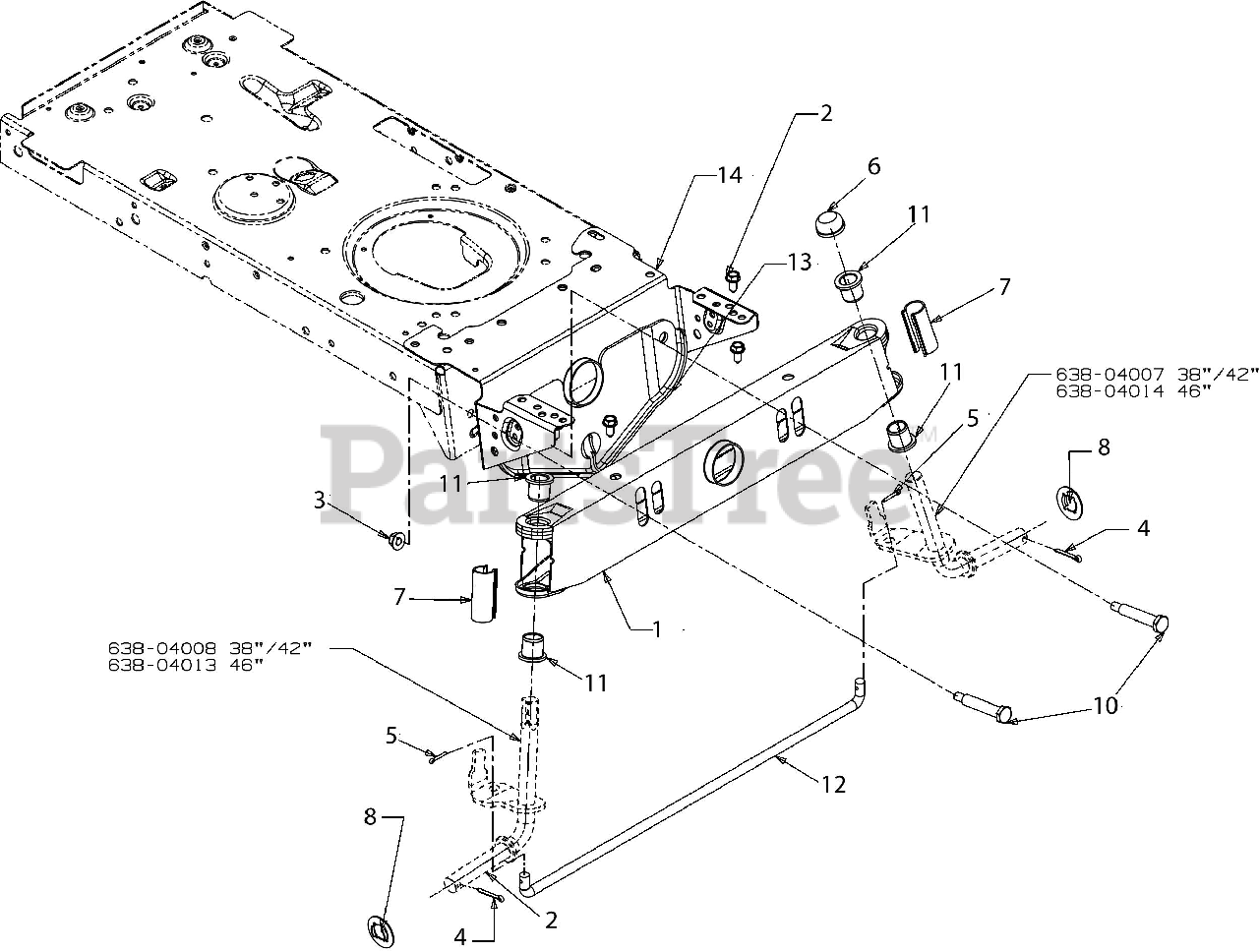

13BC762F000 - Yard Machines Lawn Tractor (2017) Pivot Bar Parts Diagram

Lawn Tractor

Pivot Bar Parts Diagram

  • Title

1

MTD 683-0128B

PIVOT BAR

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

683-0128B-0498

MTD 683-0128B-0498

Steel Axle Pivot Bar Assembly - OLD CUB YELLOW (0498)

$102.99

$

In Stock, Qty 20+

0

683-0128B-0606

MTD 683-0128B-0606

Pivot Bar - MAJESTIC ORANGE (0606)

$102.99

$

In Stock, Qty 20+

0

683-0128B-0637

MTD 683-0128B-0637

Steel Axle Pivot Bar Assembly - POWDER BLACK (0637)

$102.99

$

In Stock, Qty 20+

0

683-0128B-0638

MTD 683-0128B-0638

Pivot Bar - MTD/TROY-BILT RED (0638)

$102.99

$

In Stock, Qty 20+

0

683-0128B-0650

MTD 683-0128B-0650

Steel Axle Pivot Bar Assembly - RED METALLIC (0650)

$102.99

$

In Stock, Qty 20+

0

683-0128B-0665

MTD 683-0128B-0665

Steel Axle Pivot Bar Assembly - YARDMAN GREEN (0665)

$102.99

$

In Stock, Qty 20+

0

683-0128B-0691

MTD 683-0128B-0691

Steel Axle Pivot Bar Assembly - BLACK JACK (0691)

$102.99

$

In Stock, Qty 20+

0

683-0128B-0709

MTD 683-0128B-0709

Steel Axle Pivot Bar Assembly - MASTERCRAFT GREEN (0709)

$102.99

$

In Stock, Qty 20+

0

683-0128B-4062

MTD 683-0128B-4062

Steel Axle Pivot Bar Assembly - COOL GRAY (4062)

$102.99

$

In Stock, Qty 20+

0

$95.99

$

Usually ships in 3-6 days

0

2

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

3

MTD 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0

4

MTD 714-0162

COTTER PIN-5/32 DIA

$5.49

$

In Stock, Qty 20+

0

5

MTD 914-0474

COTTER PIN
(Superseded to 714-0474)

$

$

Not available

6

MTD 726-0341

CAP

$4.99

$

In Stock, Qty 20+

0

7

MTD 731-04057A

AXLE CAP

$5.99

$

In Stock, Qty 20+

0

8

MTD 736-04228A

FLAT WASHER .781 ID x1.590 OD
(Superseded to 736-04228B)

$5.99

$

In Stock, Qty 20+

0

10

MTD 738-04128

SHOULDER SCREW .500X2.38X3/8-16

$8.49

$

Usually ships in 3-6 days

0

11

MTD 741-0660A

FLANGE BEARING .760 ID

$3.49

$

In Stock, Qty 20+

0

12

MTD 747-04299A

FIXED TIE ROD

$32.99

$

In Stock, Qty 9

0

13

MTD 783-04568

DECK HANGER BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

783-04568-0637

MTD 783-04568-0637

Deck Hanger Bracket - POWDER BLACK (0637)

$54.99

$

In Stock, only 1 left!

0

783-04568-0691

MTD 783-04568-0691

BRACKET:DECK HANGE - BLACK JACK (0691)

$54.99

$

Usually ships in 3-6 days

0

783-04568-4008

MTD 783-04568-4008

Deck Hanger Bracket - WINE RED (4008)

$54.99

$

In Stock, only 1 left!

0

$44.99

$

Usually ships in 3-6 days

0

14

MTD 783-04601C

PIVOT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

783-04601C-0637

MTD 783-04601C-0637

BRACKET-PIVOT BAR - POWDER BLACK (0637)

$60.99

$

Usually ships in 3-6 days

0

783-04601C-0638

MTD 783-04601C-0638

BRACKET-PIVOT BAR - MTD/TROY-BILT RED (0638)

$56.99

$

Usually ships in 3-6 days

0

783-04601C-0650

MTD 783-04601C-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$56.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0
