13BD609G063 - Troy-Bilt Lawn Tractor (2000) Muffler & Engine Accessories B&S OHV V-Single Parts Diagram

Lawn Tractor

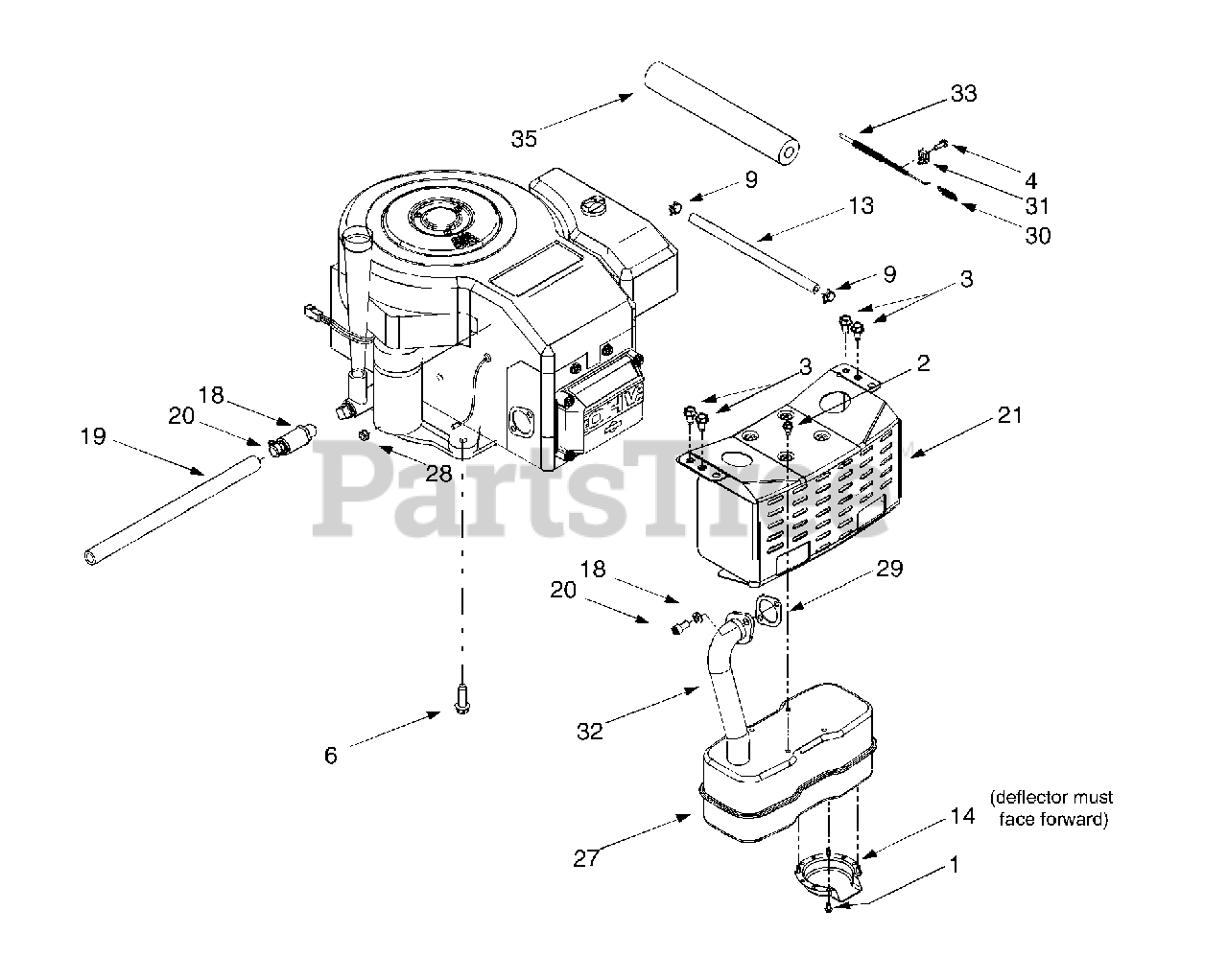

Muffler & Engine Accessories B&S OHV V-Single Parts Diagram

  • Title

1

Troy-Bilt 710-0148

Self-tapping Screw, #8-32 x .375

$4.49

$

In Stock, Qty 10

0

2

Troy-Bilt 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.99

$

In Stock, Qty 8

0

4

Troy-Bilt 710-1237

Screw, #10-32 x .625

$4.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-1315

Self-tapping Screw, 3/8-16 x 1.25

$4.49

$

In Stock, Qty 13

0

9

Troy-Bilt 726-0205

Hose Clamp

$4.49

$

In Stock, Qty 15

0

13

Troy-Bilt 751-0535

Fuel Line Hose

$

$

Currently unavailable

14

Troy-Bilt 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$14.99

$

In Stock, only 4 left!

0

18

Troy-Bilt 751-3140

Oil Drain Valve
(Superseded to 951-10517A)

$25.99

$

In Stock, Qty 19

0

19

Troy-Bilt 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$12.99

$

In Stock, only 4 left!

0

20

Troy-Bilt 751-3142

Oil Drain Cap

$4.99

$

In Stock, Qty 8

0

21

Troy-Bilt 783-0615

Muffler Heat Shield
(Superseded to 783-0615E-0637)

Variations

783-0615-0637

Troy-Bilt 783-0615-0637

Muffler Bracket - POWDER BLACK (0637)

$67.99

$

In Stock, only 2 left!

0

$67.99

$

In Stock, only 2 left!

0

27

Troy-Bilt 751-0617

Muffler, Single Inlet
(Superseded to 951-0617C)

$158.99

$

In Stock, Qty 9

0

28

Troy-Bilt 712-0271

Hex Sems Nut, 1/4-20

Note: (For starter cable)

$4.99

$

In Stock, Qty 13

0

29

Troy-Bilt 721-0208

Exhaust Gasket
(Superseded to BS-692236)

Note: (OHV Single)

$5.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 732-0966

Extension Spring, .275 x 1.25

$

$

Not available

31

Troy-Bilt 751B213146

Casing Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 3 left!

0

32

Troy-Bilt 751-0619

Exhaust Pipe
(Superseded to 751-0619B)

Note: (OHV Single)

$80.99

$

In Stock, only 1 left!

0

33

Troy-Bilt 746-1084

Throttle/Choke Cable
(Superseded to 946-1084)

Note: (OHV Single)

$33.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 722-0263

Foam, .625 x 1.5 x 10
(Superseded to 723-3066-24)

Note: (Fits over fuel line)

$17.99

$

In Stock, only 2 left!

0
