13BD609G063 - Troy-Bilt Lawn Tractor (2000) PTO Drive, Battery, Frame Components Parts Diagram

Lawn Tractor

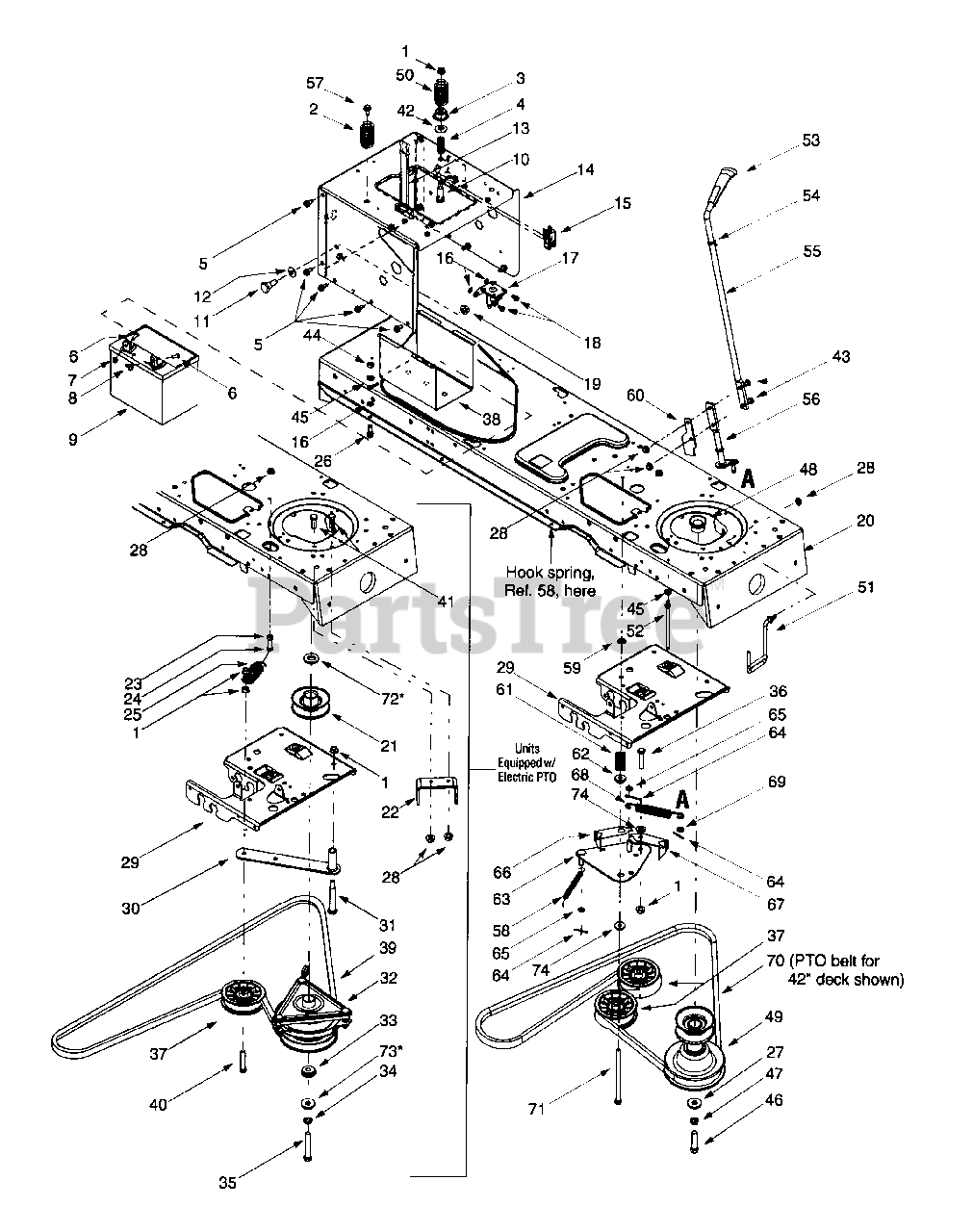

PTO Drive, Battery, Frame Components Parts Diagram

  • Title

1

Troy-Bilt 712-0431

Flange Lock Nut,3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

2

MTD 732-0996

Compression Spring, 1.31 x 3.0

$

$

Not available

3

Troy-Bilt 783-0733

Spacer Cup, 1.5 OD

$

$

Not available

4

Troy-Bilt 732-0997

Compression Spring, .66 OD x 1.5

$

$

Not available

5

Troy-Bilt 710-0604A

Self-tapping Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-3044

Wing Nut, 1/4-20

$

$

Not available

9

Troy-Bilt 725-1706

12-volt Battery, 270 CCA
(Superseded to 925-1707D)

$

$

Not available

10

Troy-Bilt 738-1014

Shoulder Screw, .5 x 1.25, 3/8-16

$3.99

$

In Stock, only 2 left!

0

11

Troy-Bilt 738-1020

Shoulder Screw, .625 x .5, 7/16-20

$6.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 736-0407

Bell Washer, .45 x 1.0 x .062

$3.99

$

In Stock, Qty 7

0

13

Troy-Bilt 723-0444

Battery Strap

$22.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 783-1031

Hitch Plate

Variations

Troy-Bilt 783-1031-0637

UPPER HITCH PLATE - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 783-1031-0650

UPPER HITCH PLATE - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 783-1031-0665

UPPER HITCH PLATE - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 783-1031-0691

HITCH PLATE-UPPER - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-1031-0716

UPPER HITCH PLATE - CUB YELLOW-99 (0716)

$

$

Not available

$

$

15

Troy-Bilt 725-1747

Safety Interlock Plunger Switch
(Superseded to 925-1747)

$37.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 736-0222

Lock Washer, 1/4

$5.49

$

In Stock, only 3 left!

0

17

Troy-Bilt 725-1426

Solenoid, 12-Volt, 100 Amp
(Superseded to 925-1426A)

$24.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 710-0599

Self-tapping Screw, 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 712-0459

Flange Lock Nut, 7/16-20

$4.49

$

In Stock, Qty 20+

0

20

MTD 683-0304

Lower Frame Assembly

Variations

Troy-Bilt 683-0304-0637

LOWER FRAME - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 683-0304-0650

LOWER FRAME - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 683-0304-0665

LOWER FRAME - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 683-0304-0691

LOWER FRAME - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 683-0304-0716

LOWER FRAME - CUB YELLOW-99 (0716)

$

$

Not available

$

$

21

Troy-Bilt 756-0639A

Engine Pulley, 3.56 OD

$71.99

$

In Stock, Qty 7

0

22

Troy-Bilt 783-1003

Electric Clutch Anti-rotation bracket
(Superseded to 783-1003-0637)

Variations

Troy-Bilt 783-1003-0637

Clutch Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

23

Troy-Bilt 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 710-3180

Hex Cap Screw, 5/16-18 x 1.75 (Grade 5)

$4.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 732-0978

Extension Spring, 1.2 OD x 3.638

$9.99

$

In Stock, Qty 6

0

26

Troy-Bilt 710-0642

Self-tapping Screw, 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 736-0322

Flat Washer,.45 x 1.25x.164

$8.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 712-3004A

Flange Lock Nut, 5/16-18

$3.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 783-0653C

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

Troy-Bilt 783-0653C-0637

Steering Support Bracket - POWDER BLACK (0637)

$83.99

$

In Stock, only 3 left!

0

$83.99

$

In Stock, only 3 left!

0

30

MTD 683-0301

Idler Bracket Assembly (42-inch decks)

Variations

Troy-Bilt 683-0301-0637

IDLER BRACKET ASSEMBLY (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

30

MTD 683-0297

Idler Bracket Assembly (46-inch decks)

Variations

MTD 683-0297-0637

Idler Bracket Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

31

Troy-Bilt 738-0982

Shoulder Screw, .498 x 3.245, 3/8-16

$13.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 717-1708

Electric PTO Clutch
(Superseded to 917-1708)

$577.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 738-0785

Shoulder Spacer, 1.38 x .445 x .36
(Superseded to 938-0785)

$24.99

$

In Stock, Qty 5

0

34

Troy-Bilt 736-0171

Lock Washer, 7/16

$4.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 710-3157

Hex Cap Screw, 7/16-20 x 3.25 (Grade 5)
(Superseded to 710-3157A)

$9.99

$

In Stock, Qty 15

0

36

Troy-Bilt 710-3011

Hex Cap Screw, 3/8-16 x 2.25 (Grade 5)

$6.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 756-0627

Flat Idler Pulley, 3.5 OD
(Superseded to 756-0627D)

$28.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 783-0349

Battery Tray

Variations

Troy-Bilt 783-0349-4008

TRAY-BATTERY 400 - WINE RED (4008)

$

$

Not available

Troy-Bilt 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

39

Troy-Bilt 754-0472

PTO Belt (42-inch Decks w/ Electric PTO)
(Superseded to 954-0472)

$47.99

$

In Stock, Qty 5

0

39

Troy-Bilt 754-0474

PTO Belt (46-inch Decks w/ Electric PTO)
(Superseded to 954-0474)

$80.99

$

In Stock, Qty 9

0

40

Troy-Bilt 710-3144

Hex Cap Screw, 3/8-16 x 2.0

$4.49

$

In Stock, Qty 20+

0

41

Troy-Bilt 710-3025

Hex Cap Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 9

0

42

Troy-Bilt 736-0105

Bell Washer, .401 x .870 x .063

$3.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 710-0376

Hex Cap Screw, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 17

0

44

Troy-Bilt 712-3006

Hex Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

45

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

46

Troy-Bilt 710-3029

Hex Cap Screw, 7/16-20 x 1.25

$4.49

$

In Stock, Qty 15

0

47

Troy-Bilt 736-0171

Lock Washer, 7/16

$4.49

$

In Stock, Qty 20+

0

48

Troy-Bilt 750-0956

Spacer

$17.99

$

In Stock, Qty 6

0

49

Troy-Bilt 756-0982A

Engine Pulley
(Superseded to 756-0982B)

$67.99

$

In Stock, Qty 5

0

50

Troy-Bilt 732-0735

Extension Spring, 1.318 x 2.37
(Superseded to 732-0735A)

$27.99

$

In Stock, Qty 8

0

51

Troy-Bilt 647-0053

Belt Guard
(Superseded to 747-1243)

$

$

Not available

52

Troy-Bilt 711-1044

Keeper Pin
(Superseded to 711-1044A)

$8.49

$

In Stock, Qty 14

0

53

Troy-Bilt 731-2111A

PTO Knob
(Superseded to 731-2111B)

$

$

Not available

54

Troy-Bilt 736-0108

Flat Washer, .510 x .750 x .033

$6.49

$

Usually ships in 3-6 days

0

55

Troy-Bilt 747-1112A

PTO Handle
(Superseded to 747-1112D-0637)

$40.99

$

Usually ships in 3-6 days

0

56

Troy-Bilt 647-0046

PTO Lever
(Superseded to 647-0064)

$

$

Not available

57

Troy-Bilt 710-0650

Self-tapping Screw,15/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

58

Troy-Bilt 732-0995

Extension Spring, .5 x 6.0

$7.99

$

In Stock, only 1 left!

0

59

Troy-Bilt 712-0229

Push Nut, 3/8

$3.49

$

In Stock, Qty 20+

0

60

Troy-Bilt 783-0744A

Engagement Stop Bracket

Variations

Troy-Bilt 783-0744A-0637

Stop Bracket - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0744A-4008

BRACKET-STOP - WINE RED (4008)

$41.99

$

Usually ships in 3-6 days

0

$38.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 748-0415A

Spacer, 3/8 x 1.54
(Superseded to 748-0415B)

$6.99

$

In Stock, Qty 14

0

62

Troy-Bilt 738-0372

Shoulder Spacer
(Superseded to 738-0372B)

$8.99

$

In Stock, Qty 20+

0

63

Troy-Bilt 683-0302

PTO Engagement Plate

Variations

Troy-Bilt 683-0302-0637

Engagement Plate Assembly - POWDER BLACK (0637)

$35.99

$

In Stock, only 1 left!

0

$35.99

$

In Stock, only 1 left!

0

64

Troy-Bilt 714-0470

Cotter Pin, 1/8 x 1.25

$3.99

$

In Stock, Qty 20+

0

65

Troy-Bilt 736-0140

Flat Washer, .385 x .62 x .063

$6.99

$

In Stock, Qty 9

0

66

Troy-Bilt 732-0991

Belt Guard
(Superseded to 732-0991A)

$14.99

$

In Stock, only 1 left!

0

67

Troy-Bilt 732-0990

Belt Guard

$7.99

$

In Stock, only 1 left!

0

68

Troy-Bilt 732-0944

Extension Spring, .75 x 6.75 LG

$9.99

$

In Stock, Qty 11

0

69

Troy-Bilt 736-0275

Flat Washer, .344 x .688 x .065 Manual PTO

$6.49

$

Usually ships in 3-6 days

0

70

Troy-Bilt 754-0485

PTO Belt (42-inch Decks w/ Manual PTO)Single Belt, Design
(Superseded to 954-0485)

$84.99

$

In Stock, Qty 8

0

70

Troy-Bilt 754-0497

PTO Belt (42-inch Decks w/Manual PTO) 2 Belt Design
(Superseded to 954-0497)

$45.99

$

In Stock, Qty 20+

0

70

Troy-Bilt 754-0486

PTO Belt (46-inch Decks w/ Manual PTO)
(Superseded to 954-0486A)

$58.99

$

In Stock, Qty 12

0

71

Troy-Bilt 710-0831

Hex Cap Screw, 3/8-16 x 5.5

$

$

Not available

72

Troy-Bilt 736-0277

Flat Washer, 1.031 x 1.62 x .095

$3.99

$

In Stock, Qty 20+

0

73

Troy-Bilt 736-0322

Flat Washer, .45 x 1.25 x .17

$8.49

$

In Stock, Qty 20+

0

74

Troy-Bilt 736-3010

Flat Washer, .407 x .812 x .135

$4.49

$

In Stock, Qty 20+

0

75

Troy-Bilt 736-0280

Flat Washer, .395 x 1.12 x .10
(Superseded to 736-04005)

$7.99

$

Usually ships in 3-6 days

0
