13BT604H755 - Yard-Man Lawn Tractor (2005) (Walmart) Engine Accessories Parts Diagram

Lawn Tractor

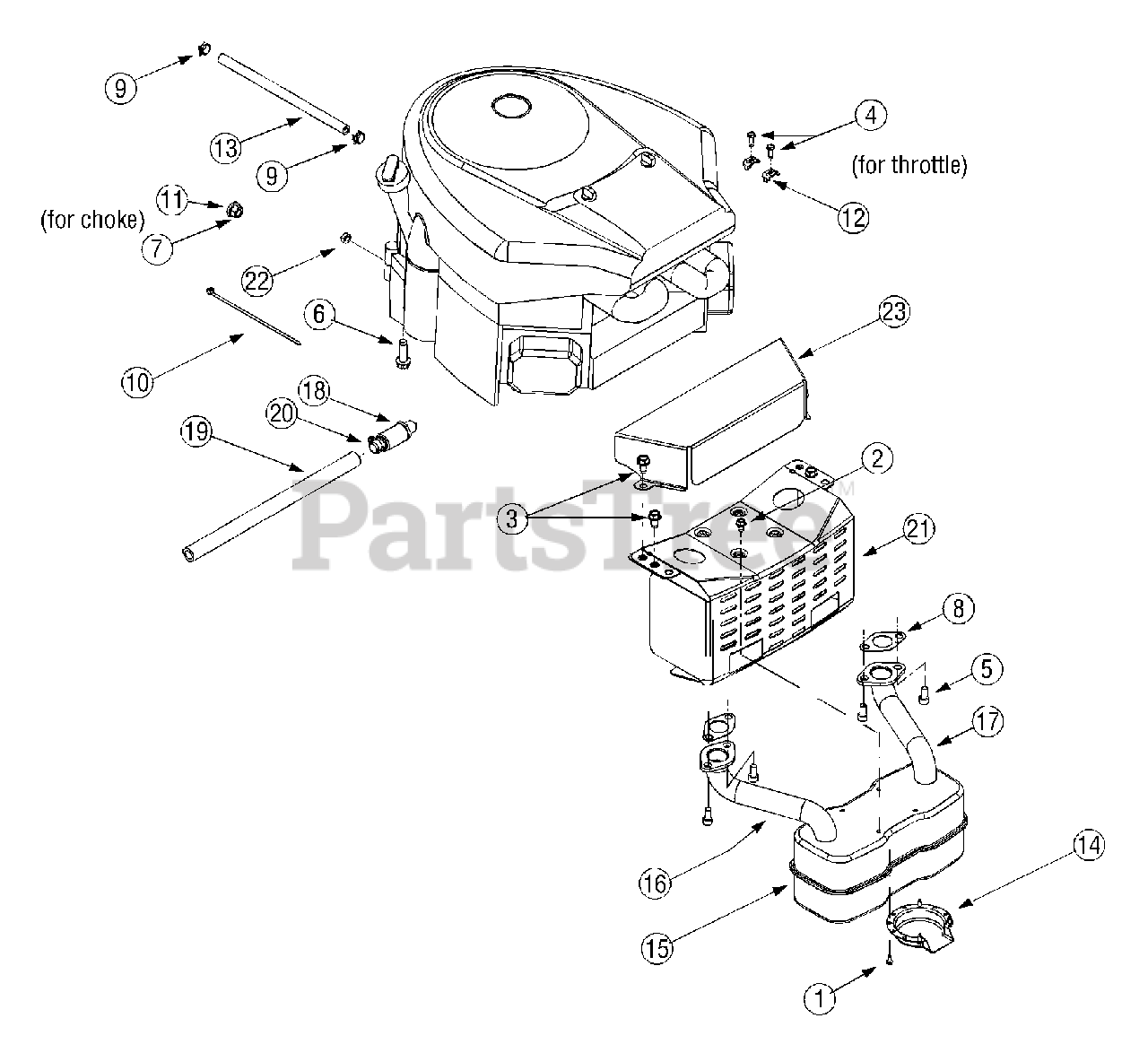

Engine Accessories Parts Diagram

  • Title

1

MTD 710-0227

Screw, #8-18 x.50

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0599

Screw, 1/4-20 x.50

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0726

Screw, 5/16-18 x.750

$4.49

$

In Stock, Qty 11

0

4

MTD 710-1237

Screw, #10-32 x.625

$4.99

$

Usually ships in 3-6 days

0

5

MTD 710-1314A

Socket Cap Screw, 5/16-18 x.625

$4.99

$

In Stock, Qty 20+

0

6

MTD 710-1315

Self-tapping Screw, 3/8-16 x 1.25

$4.49

$

In Stock, Qty 13

0

7

MTD 712-3005

Flange Lock Nut, 3/8-16

$7.49

$

In Stock, only 4 left!

0

8

MTD 721-0460

Exhaust Gasket
(Superseded to 721P0460)

$7.49

$

In Stock, only 2 left!

0

9

MTD 726-0205

Hose Clamp

$4.49

$

In Stock, Qty 15

0

10

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

11

MTD 736-0300

Lock Washer,.406 x.875 x.059

$4.99

$

In Stock, Qty 20+

0

12

MTD 751B221535

Casing Clamp

$10.99

$

In Stock, Qty 20+

0

13

MTD 751-0535

Fuel Line Hose

$

$

Currently unavailable

14

MTD 751-0564A

Muffler Deflector
(Superseded to 751-0564B)

$14.99

$

In Stock, only 4 left!

0

15

MTD 751-0616A

Muffler, Twin Inlet
(Superseded to 951-0616B)

$173.99

$

In Stock, only 3 left!

0

16

MTD 751-0650B

RH Exhaust Pipe

$67.99

$

Usually ships in 3-6 days

0

17

MTD 751-0651B

LH Exhaust Pipe

$64.99

$

Usually ships in 3-6 days

0

18

MTD 751-3140

Oil Drain Valve
(Superseded to 951-10517A)

$25.99

$

In Stock, Qty 19

0

19

MTD 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$12.99

$

In Stock, only 4 left!

0

20

MTD 751-3142

Oil Drain Cap

$4.99

$

In Stock, Qty 8

0

21

MTD 783-0615D

Muffler Bracket
(Superseded to 783-0615E-0637)

Variations

783-0615D-0637

MTD 783-0615D-0637

Muffler Bracket - POWDER BLACK (0637)

$67.99

$

In Stock, only 2 left!

0

$67.99

$

In Stock, only 2 left!

0

22

MTD 712-0271

Sems Nut, 1/4-20

$4.99

$

In Stock, Qty 13

0

23

MTD 783-0625C

Heat Shield

$111.99

$

Usually ships in 3-6 days

0
