13BT604H755 - Yard-Man Lawn Tractor (2005) (Walmart) Hood Style 4 Parts Diagram

Lawn Tractor

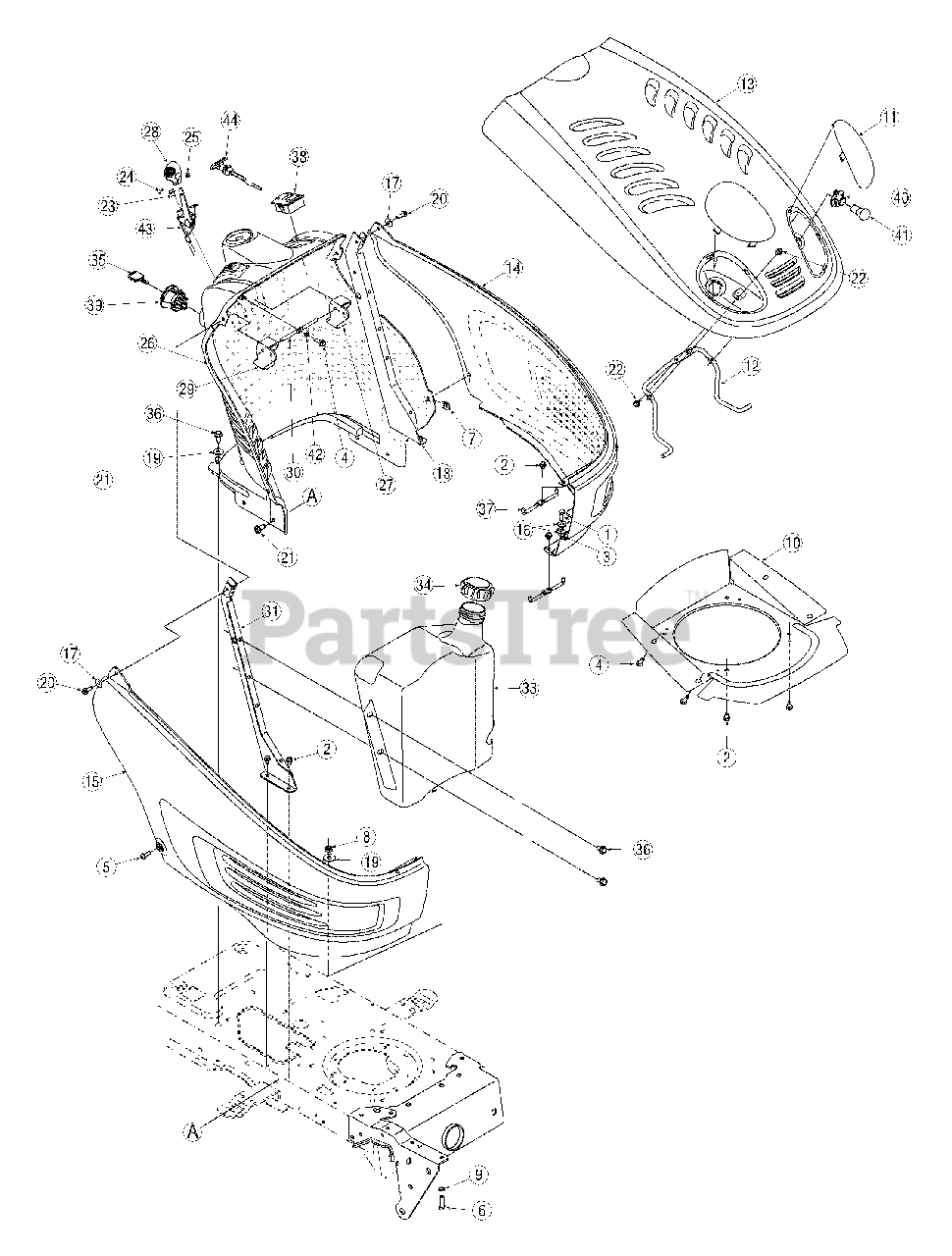

Hood Style 4 Parts Diagram

  • Title

1

MTD 710-3015

Hex Cap Screw, 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0599

Self-tapping Screw, 1/4-20 x.5

$4.49

$

In Stock, Qty 20+

0

3

MTD 712-04064

Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0895

Self-tapping Screw, 1/4-15 x.75

$6.99

$

In Stock, Qty 20+

0

5

MTD 710-0924

Pan Phillips Screw, 1/4-20 x.75

$4.99

$

In Stock, Qty 20+

0

6

MTD 710-0376

Hex Cap Screw, 5/16-18 x 1.0

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-0292

U-type Speed Nut, 1/4-20

$10.99

$

In Stock, only 3 left!

0

8

MTD 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

9

MTD 726-0201

Speed Nut

$7.49

$

In Stock, Qty 20+

0

10

MTD 783-0808A

Hood Heat Shield
(Superseded to 783-0808A-0637)

Variations

783-0808A-0637

MTD 783-0808A-0637

SHIELD-HEAT STYLE - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

11

MTD 731-1978

RH Headlight Lens
(Superseded to 931-1978)

$18.99

$

Usually ships in 3-6 days

0

MTD 731-1979

LH Headlight Lens
(Superseded to 931-1979)

$17.99

$

Usually ships in 3-6 days

0

12

MTD 747-1132A

Hood Support Rod

$

$

Not available

13

MTD 731-1980B

Hood
(Superseded to 931-1980B)

$

$

Not available

14

MTD 731-1981C

LH Side Panel
(Superseded to 931-04958)

$

$

Not available

15

MTD 731-1982C

RH Side Panel
(Superseded to 931-1982C)

$

$

Not available

16

MTD 736-0173

Flat Washer,.28 x.74 x.063

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0342

Flat Washer,.283 x.75 x.030

$7.99

$

Usually ships in 3-6 days

0

18

MTD 783-04323B

Dash Support Plate LH
(Superseded to 783-04323F-0637)

Variations

783-04323B-0637

MTD 783-04323B-0637

SUPPORT-DASH PLATE - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

19

MTD 736-3078

Flat Washer,.349 x 1.0 x.063

$4.99

$

In Stock, only 4 left!

0

20

MTD 710-0642

Self-tapping Screw, 1/4-20 x.75

$4.99

$

In Stock, Qty 20+

0

21

MTD 710-1611B

Self-tapping Screw, 5/16-18 x.75

$7.49

$

Usually ships in 3-6 days

0

22

MTD 710-1652

Self-tapping Screw, 1/4-20 x.625

$4.49

$

In Stock, Qty 20+

0

23

MTD 710-1017

Self-tapping Screw, 1/4-14 x.625

$8.99

$

In Stock, Qty 10

0

24

MTD 710-3217

Screw, #8-32 x.375

$7.49

$

In Stock, only 2 left!

0

25

MTD 712-0142

Hex Nut, 8-32

$4.99

$

In Stock, Qty 5

0

26

MTD 731-05002

Dash Panel

$

$

Not available

27

MTD 731-04213

Parking Brake Lever

$13.99

$

Usually ships in 3-6 days

0

28

MTD 731-1857

Throttle Control Knob

$15.99

$

In Stock, only 4 left!

0

29

MTD 731-04214

Cruise Control Lever

$

$

Not available

30

MTD 747-1155

Brake/Cruise Pivot Rod

$13.99

$

Usually ships in 3-6 days

0

31

MTD 783-04285B

Dash Support Plate RH
(Superseded to 783-04285F-0637)

Variations

783-04285B-0637

MTD 783-04285B-0637

Dash Plate Support - POWDER BLACK (0637)

$

$

Not available

$

$

32

MTD 731-2234A

Intake Bellow

Note: (Not Shown)

$29.99

$

Usually ships in 3-6 days

0

33

MTD 751-0658E

Fuel Tank, 3-gallon

$122.99

$

In Stock, only 2 left!

0

34

MTD 751-0603

Fuel Cap
(Superseded to 751-0603B)

$24.99

$

In Stock, Qty 5

0

35

MTD 725-1745

Ignition Key w/ plastic cover
(Superseded to 925-1745A)

$18.99

$

In Stock, Qty 20+

0

MTD 725-1744

Ignition Key w/o plastic cover
(Superseded to 925-1745A)

$18.99

$

In Stock, Qty 20+

0

36

MTD 710-0726

Self-tapping Screw, 5/16-18 x.75

$4.49

$

In Stock, Qty 20+

0

37

MTD 747-04301

Side Panel Support

$

$

Not available

38

MTD 725-04156

Systems Indicator Monitor, Ammeter
(Superseded to 925-04156)

$31.99

$

In Stock, only 4 left!

0

39

MTD 725-04227

Ignition Switch
(Superseded to 925-06119C)

$123.99

$

In Stock, Qty 20+

0

40

MTD 725-1649

Lamp Socket
(Superseded to 925-1649A)

$12.99

$

In Stock, Qty 20+

0

41

MTD 725-0963

Lamp, 12V
(Superseded to 925-0963)

$7.99

$

In Stock, Qty 20+

0

42

MTD 736-0142

Flat Washer,.281 x.50 x.063

$4.99

$

In Stock, Qty 20+

0

43

MTD 746-1086

Throttle Control/Cable
(Superseded to 946-1086)

$35.99

$

In Stock, Qty 5

0

44

MTD 746-1085A

Choke Knob/Cable
(Superseded to 946-1085A)

$32.99

$

In Stock, Qty 15

0

MTD 629-04083

Headlight Wire Harness
(Superseded to 929-04083B)

Note: Not Shown

$41.99

$

Usually ships in 3-6 days

0

MTD 629-04103

Tractor Wire Harness

Note: Not Shown

$

$

Not available

MTD 629-04144

Jumper Harness Assembly

Note: Not Shown

$

$

Not available
