13H337-0201-H7 - Briggs & Stratton Horizontal Engine Carburetor Group Parts Diagram

Horizontal Engine

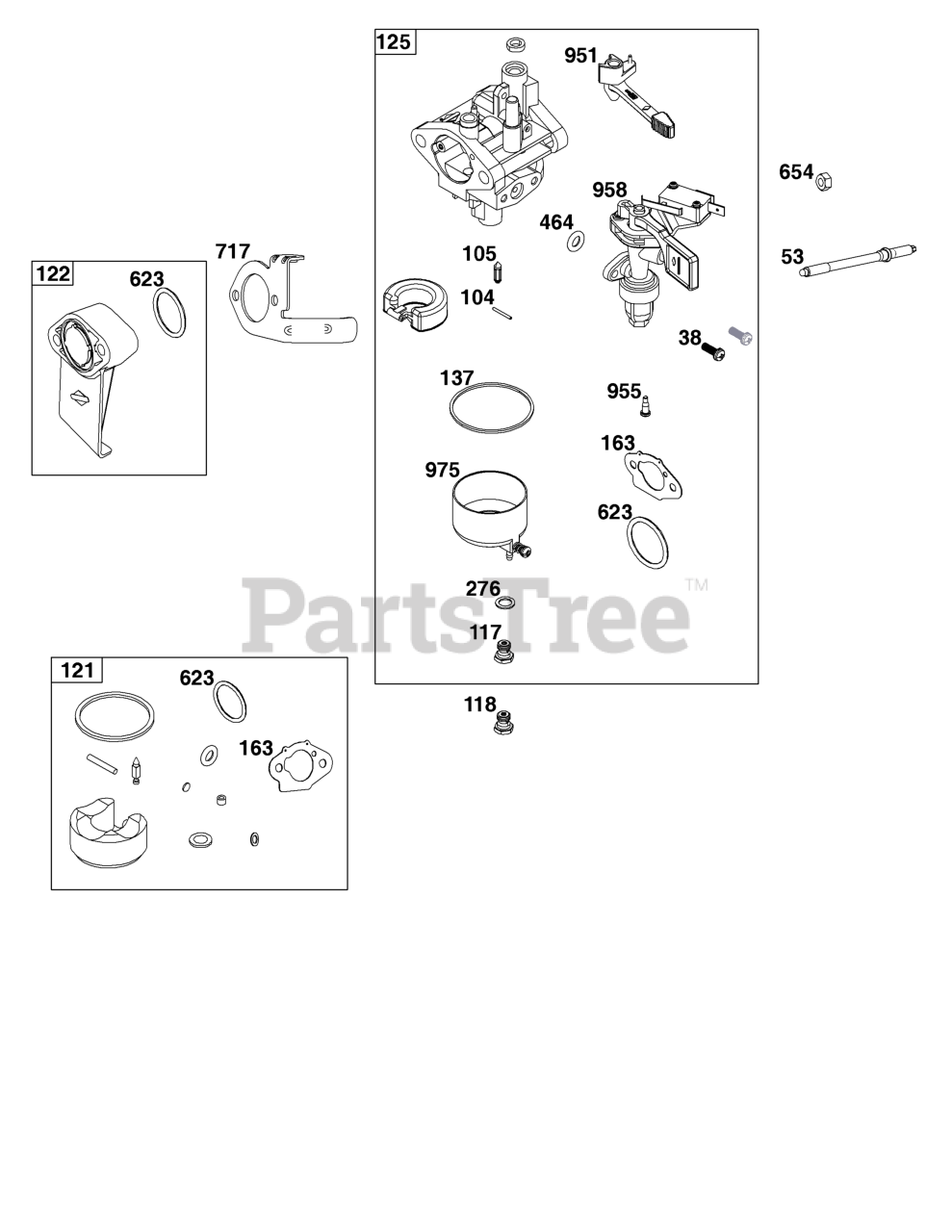

Carburetor Group Parts Diagram

  • Title

38

Briggs & Stratton JUMPTO38

SCREW

Note: (Part information located in Fuel Supply Group.)

$

$

Currently unavailable

53

Briggs & Stratton 798524

STUD

Note: (Carburetor)

$7.99

$

In Stock, only 2 left!

0

104

Briggs & Stratton 597533

PIN, Float Hinge

$3.49

$

In Stock, only 1 left!

0

105

Briggs & Stratton 595324

VALVE, Float Needle

$18.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 595325

JET, Main

Note: (Standard)

$17.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 595326

JET, Main

Note: (High Altitude) (.020 Oversize)

$17.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 798521

KIT, Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$78.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 798510

SPACER, Carburetor

$13.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 595318

CARBURETOR

$83.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 798932

GASKET, Float Bowl

$7.99

$

In Stock, only 2 left!

0

163

Briggs & Stratton 798508

GASKET, Air Cleaner

Note: (Air Cleaner)

$5.99

$

In Stock, only 2 left!

0

276

Briggs & Stratton 797632

WASHER, Sealing

$7.99

$

In Stock, Qty 20+

0

464

Briggs & Stratton 595320

SEAL, O-Ring

Note: (Fuel Shut-off Valve)

$5.99

$

Usually ships in 2-12 days

0

623

Briggs & Stratton 798511

SEAL, O-Ring

Note: (Carburetor Spacer)

$5.49

$

Usually ships in 2-12 days

0

654

Briggs & Stratton 794838

NUT

Note: (Carburetor)

$3.99

$

In Stock, only 2 left!

0

717

BRACKET, Air Cleaner

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

951

Briggs & Stratton 798528

LEVER, Choke

$26.99

$

Usually ships in 2-12 days

0

955

Briggs & Stratton 595329

PLUG, Carburetor

$3.99

$

Usually ships in 2-12 days

0

958

Briggs & Stratton 595319

VALVE, Fuel Shut Off

$43.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 597739

BOWL, Float

$10.99

$

Usually ships in 2-12 days

0
