13H337-0201-H7 - Briggs & Stratton Horizontal Engine Cylinder Head Group Parts Diagram

Horizontal Engine

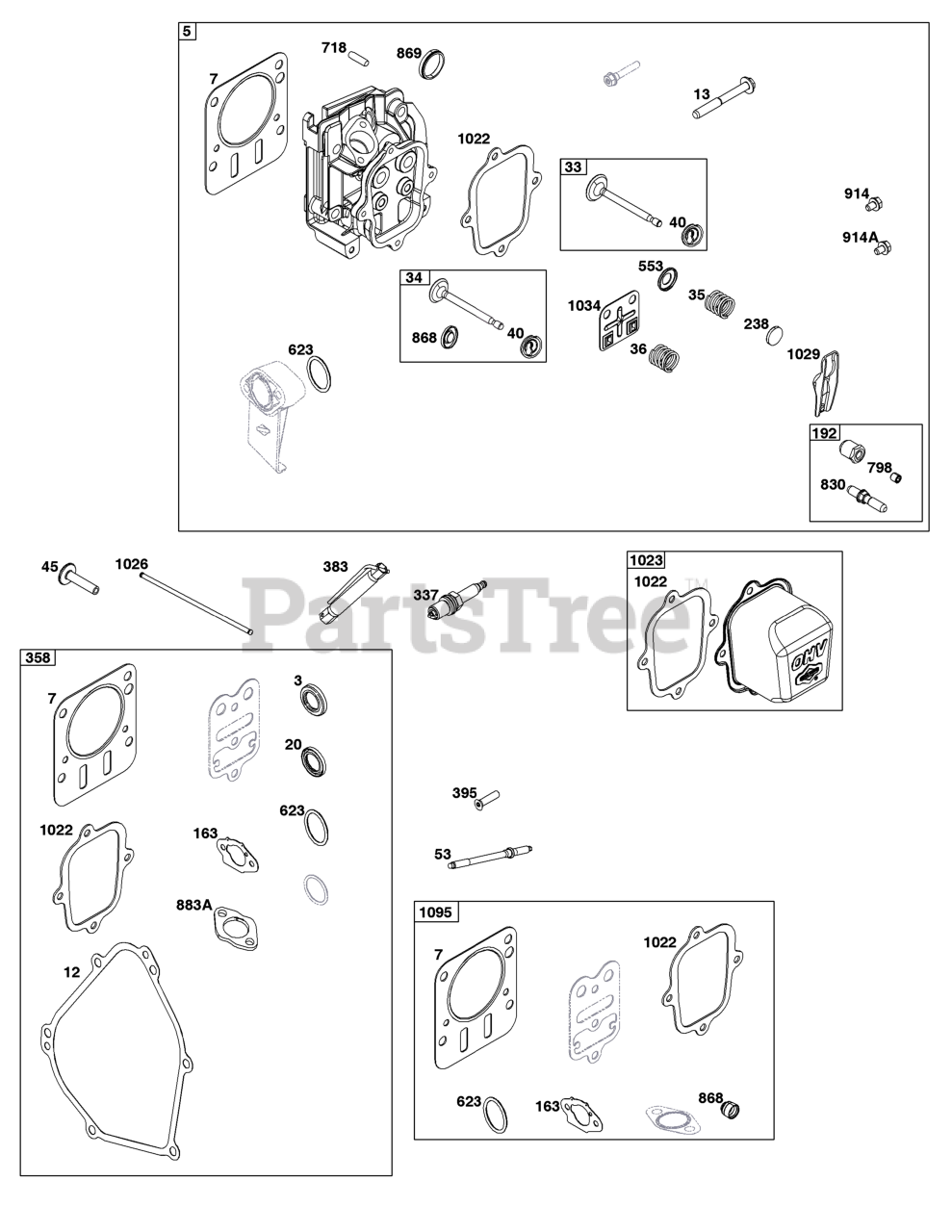

Cylinder Head Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

5

Briggs & Stratton 594514

HEAD, Cylinder

$179.99

$

In Stock, only 1 left!

0

7

Briggs & Stratton 798461

GASKET, Cylinder Head

$16.99

$

Usually ships in 2-12 days

0

12

GASKET, Crankcase

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

13

Briggs & Stratton 594518

SCREW

Note: (Cylinder Head)

$5.99

$

In Stock, only 2 left!

0

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

33

Briggs & Stratton 499642

VALVE, Exhaust

$35.99

$

In Stock, Qty 6

0

34

Briggs & Stratton 795443

VALVE, Intake

$27.99

$

In Stock, Qty 5

0

35

Briggs & Stratton 691304

SPRING, Valve

Note: (Intake)

$5.99

$

In Stock, Qty 8

0

36

Briggs & Stratton 691304

SPRING, Valve

Note: (Exhaust)

$5.99

$

In Stock, Qty 8

0

40

Briggs & Stratton 692194

RETAINER, Valve

$5.99

$

In Stock, Qty 18

0

45

Briggs & Stratton 690977

TAPPET, Valve

$7.99

$

In Stock, only 3 left!

0

53

STUD

Note: (Part information located in Carburetor Group.)

$

$

Not available

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

192

Briggs & Stratton 594382

ADJUSTER. Rocker Arm

$12.99

$

Usually ships in 2-12 days

0

238

Briggs & Stratton 691300

CAP, Valve

$9.49

$

In Stock, Qty 11

0

337

Briggs & Stratton 491055S

PLUG, Spark

$4.99

$

In Stock, Qty 20+

0

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$5.99

$

In Stock, only 4 left!

0

395

Briggs & Stratton 698807

SCREW

$3.99

$

In Stock, only 4 left!

0

553

Briggs & Stratton 594515

RETAINER, Valve

$4.99

$

Usually ships in 2-12 days

0

623

SEAL, O-Ring

Note: (Part information located in Carburetor Group.)

$

$

Not available

718

PIN, Locating

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

798

Briggs & Stratton 597000

SCREW

Note: (Rocker Arm)

$3.49

$

Usually ships in 2-12 days

0

830

Briggs & Stratton 594230

STUD, Rocker Arm

Note: (Rocker Arm)

$4.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 795440

SEAL, Valve

$13.99

$

In Stock, only 1 left!

0

869

Briggs & Stratton 691155

SEAT, Valve

Note: (Intake)

$8.99

$

Usually ships in 2-12 days

0

883A

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

914

Briggs & Stratton 699481

SCREW

Note: (Rocker Cover)

$3.99

$

In Stock, only 4 left!

0

914A

Briggs & Stratton 594517

SCREW

Note: (Rocker Cover)

$3.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 691890

GASKET, Rocker Cover

$7.99

$

In Stock, Qty 7

0

1023

Briggs & Stratton 791585

COVER, Rocker

$24.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 790287

ROD, Push

$11.99

$

In Stock, only 2 left!

0

1029

Briggs & Stratton 797443

ARM, Rocker

$10.99

$

In Stock, only 1 left!

0

1034

Briggs & Stratton 594229

GUIDE, Push Rod

$5.99

$

Usually ships in 2-12 days

0

1095

Briggs & Stratton 798539

GASKET SET, Valve

Note: (Service Kits may include extra parts not specific to this engine.)

$37.99

$

Usually ships in 2-12 days

0
