13U232-0025-01 - Briggs & Stratton Horizontal Engine Cylinder Head Group Parts Diagram

Horizontal Engine

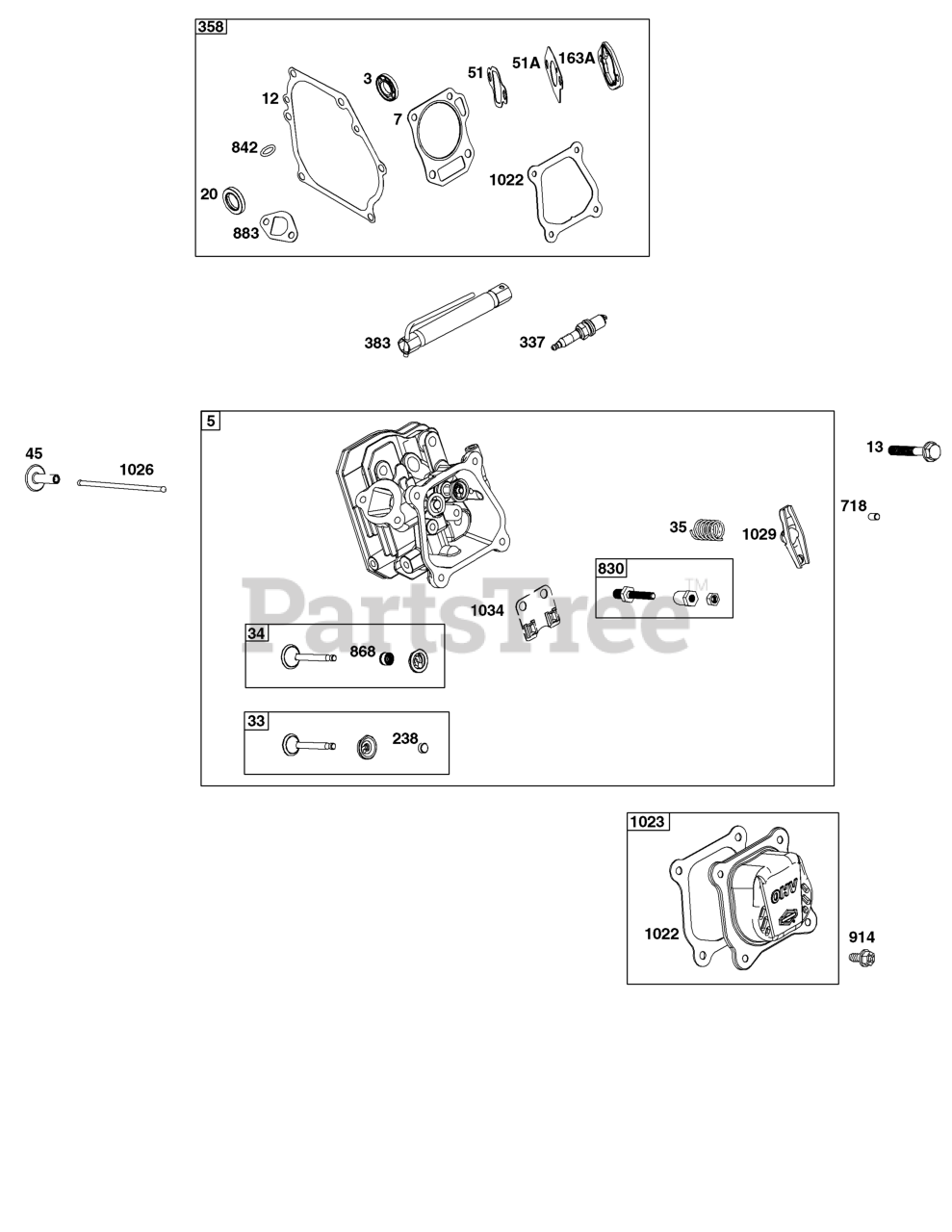

Cylinder Head Group Parts Diagram

  • Title

3

Briggs & Stratton 596284

BEARING, Ball

$11.99

$

Usually ships in 2-12 days

0

5

HEAD, Cylinder

Note: (Not Available)

$

$

Not available

7

Briggs & Stratton 595710

GASKET, Cylinder Head

$5.99

$

In Stock, only 1 left!

0

12

GASKET, Crankcase

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

13

Briggs & Stratton 84004646

SCREW

Note: (Cylinder Head)

$

$

Currently unavailable

20

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

33

Briggs & Stratton 594237

VALVE, Exhaust

$20.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 594236

VALVE, Intake

$16.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 797203

SPRING, Valve

$4.99

$

Usually ships in 2-12 days

0

45

TAPPET, Valve

Note: (Not Available)

$

$

Not available

51

Briggs & Stratton 595682

GASKET, Intake

$5.99

$

Usually ships in 2-12 days

0

51A

Briggs & Stratton 797280

GASKET, Intake

$4.49

$

Usually ships in 2-12 days

0

163A

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

238

Briggs & Stratton 797206

CAP, Valve

$6.99

$

In Stock, only 1 left!

0

337

Briggs & Stratton 798615

PLUG, Spark

$7.49

$

In Stock, Qty 8

0

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$5.99

$

In Stock, only 4 left!

0

718

PIN, Locating

Note: (Part information located in Cylinder Group.)

$

$

Not available

830

Briggs & Stratton 595686

STUD, Rocker Arm

$4.49

$

Usually ships in 2-12 days

0

842

SEAL, O-Ring

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

868

Briggs & Stratton 595679

SEAL, Valve

$4.99

$

Usually ships in 2-12 days

0

883

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

914

Briggs & Stratton 798618

SCREW

Note: (Rocker Cover)

$3.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 84004342

GASKET, Rocker Cover

$7.99

$

Usually ships in 2-12 days

0

1023

Briggs & Stratton 797196

COVER, Rocker

$26.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 595677

ROD, Push

$8.49

$

Usually ships in 2-12 days

0

1029

Briggs & Stratton 595685

ARM, Rocker

$4.99

$

Usually ships in 2-12 days

0

1034

Briggs & Stratton 595684

PLATE, Cylinder Head

$4.49

$

In Stock, only 1 left!

0
