13WX79KT011 - Troy-Bilt Horse XP Lawn Tractor (2011) Seat & Fender Parts Diagram

Horse XP Lawn Tractor

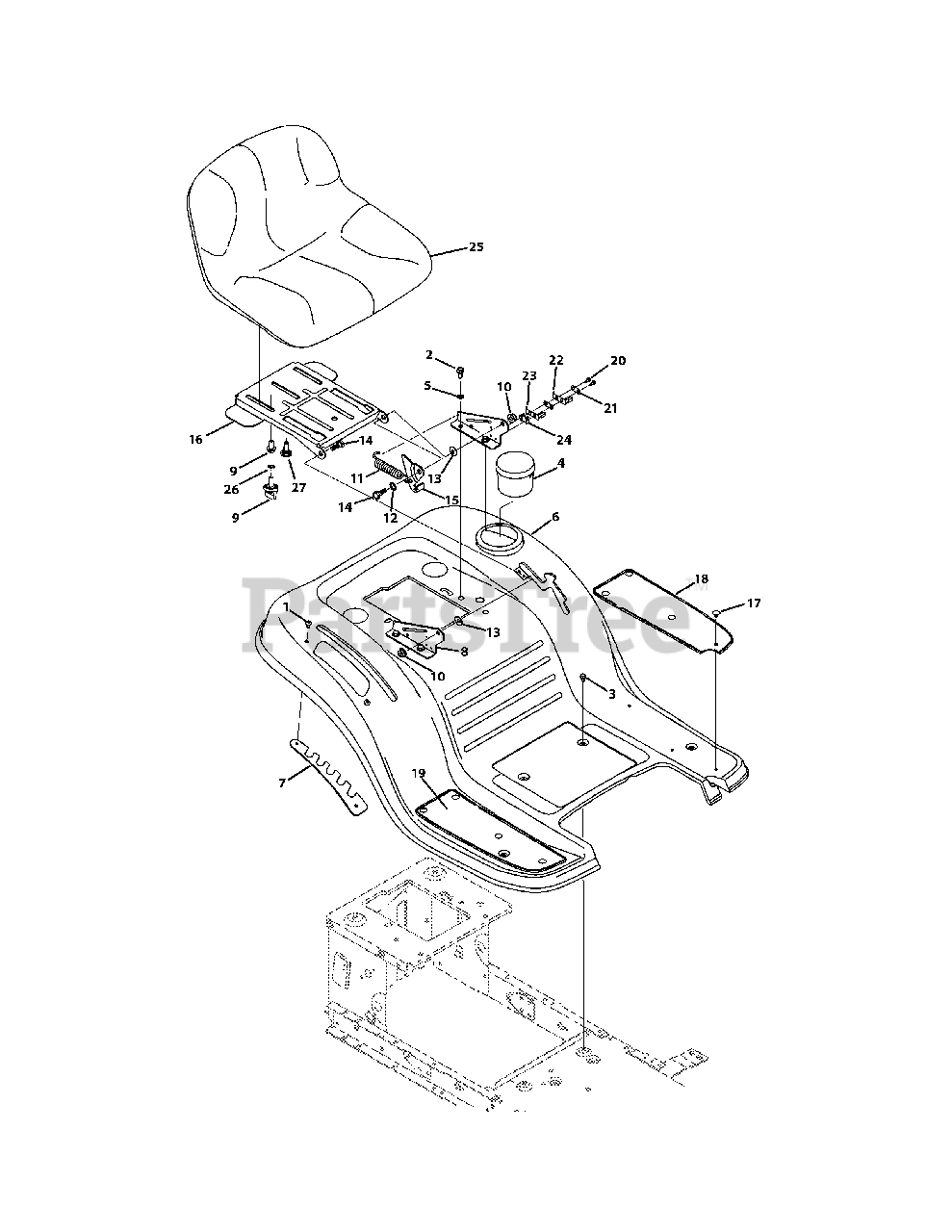

Seat & Fender Parts Diagram

  • Title

1

Troy-Bilt 710-05070

Screw, 1/4-20 x .500
(Superseded to 710-05070A)

$6.49

$

In Stock, Qty 12

0

2

Troy-Bilt 710-04484

Screw, 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0599

Screw Pan Torx Head, 1/4-20 x .500

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 731-04591A

Cup Holder

$14.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 736-0607

Loack Washer, 5/16

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 783-04593E-4033

Fender
(Superseded to 783-04593F-4033)

$374.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 783-04843-0637

Lift Adjuster Bracket

$34.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 783-1489D-0637

Seat Mount Bracket

$21.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 710-04482

Hex Flange, 3/8-16 x .875

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 720-04061

Knob

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 732-1184

Extension Spring

$10.99

$

In Stock, Qty 14

0

12

Troy-Bilt 936-0108

Flat Washer, .510x .750 x .033

$6.49

$

In Stock, Qty 7

0

13

Troy-Bilt 736-0242

Bell Washer, .340 x .872 x .060

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 938-0296

Shoulder Screw, 5/16-18 x .437 x .268
(Superseded to 738-0296)

$3.99

$

In Stock, Qty 13

0

15

Troy-Bilt 783-0209D

Lift Seat Bracket

$15.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 783-04081D-0637

Pivot Seat Manual Adjust Bracket

$38.99

$

In Stock, Qty 8

0

17

Troy-Bilt 726-3046

Ratchet Clip, .250 x .500

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 735-04047

Foot Pad, LH

$17.99

$

In Stock, only 2 left!

0

18

Troy-Bilt 723-04026

Foot Pad, Abrasive, LH

$30.99

$

In Stock, only 2 left!

0

19

Troy-Bilt 735-04048

Foot Pad, RH

$17.99

$

In Stock, Qty 5

0

19

Troy-Bilt 723-04025

Foot Pad, Abrasive, RH

$30.99

$

In Stock, only 2 left!

0

20

Troy-Bilt 710-0227

Screw, 8-18 x .500

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 726-0279

Insulator Plate

$3.49

$

In Stock, Qty 8

0

22

Troy-Bilt 925-1303

Outer Seat Spring

$5.99

$

In Stock, Qty 8

0

23

Troy-Bilt 725-1439

Inner Seat Spring

$7.99

$

In Stock, Qty 8

0

24

Troy-Bilt 726-0278

Insulator Boss Plate

$6.49

$

In Stock, Qty 10

0

25

Troy-Bilt 757-04088

High Back Seat
(Superseded to 757-04088A)

$244.99

$

In Stock, only 3 left!

0

26

Troy-Bilt 736-0148

Lock Washer

$3.49

$

In Stock, Qty 12

0

27

Troy-Bilt 738-04012A

Scr., Shldr., .625 x .145 x 3/8-16
(Superseded to 738-04012C)

$5.49

$

In Stock, Qty 14

0
