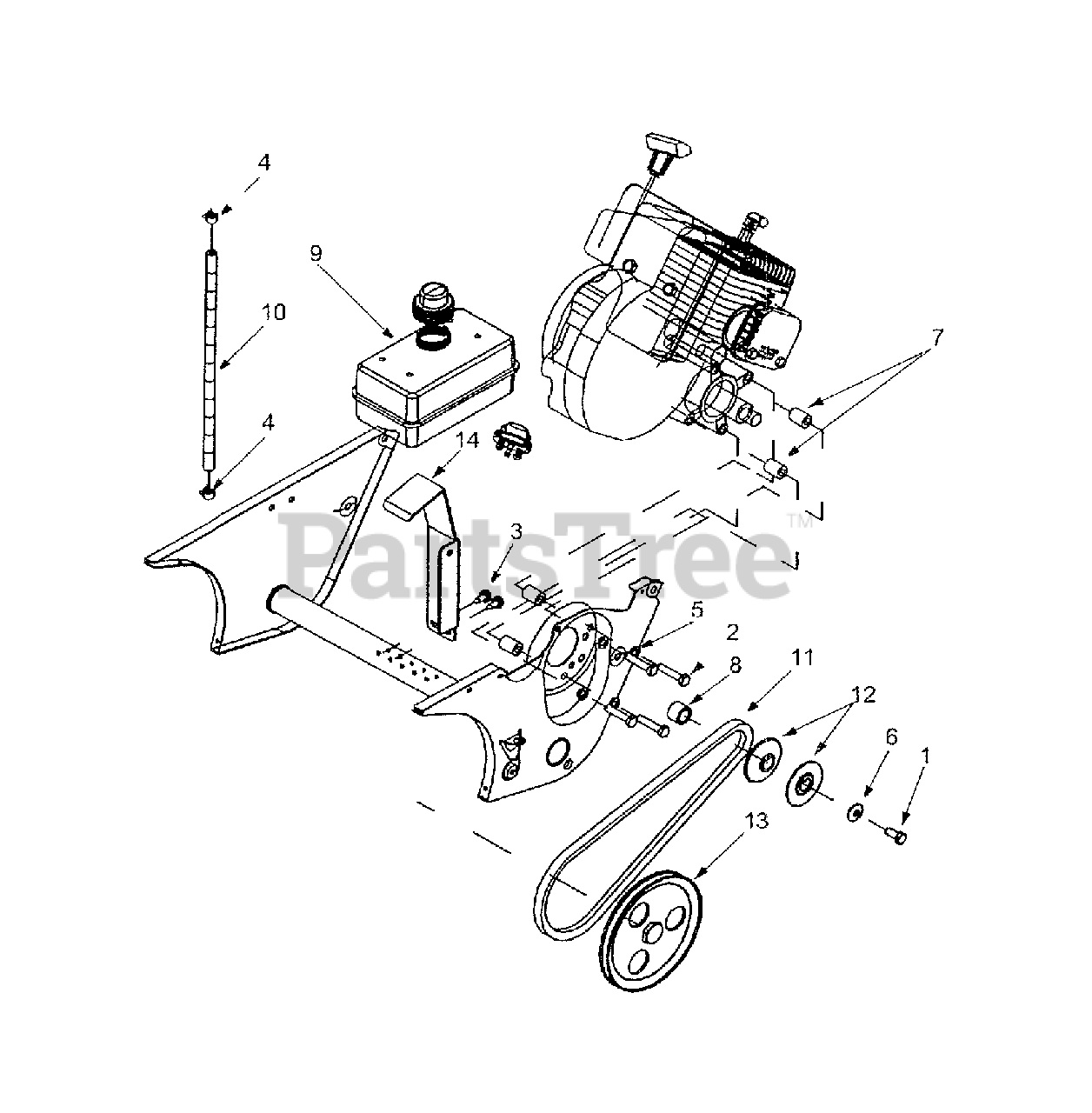

140 (31A-140-000) - Yard Machines Snow Thrower (2001) Fuel Tank & Drive Parts Diagram

Snow Thrower

Fuel Tank & Drive Parts Diagram

  • Title

1

Cub Cadet 710-0157

Hex Screw 5/16-24 x 0.75"

$3.99

$

In Stock, Qty 16

0

2

Cub Cadet 710-0805

Hex Screw 5/16-18 x 1.5"
(Superseded to 710-0805A)

$3.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-1652

Self-Tapping Screw 1/4-20 x .625"

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 736-0119

Lock Washer
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 736-0242

Beleville Washer

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 750-0589

Spacer
(Superseded to 950-0589)

$5.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 750-0716

Spacer
(Superseded to 750-0716A)

$

$

Not available

9

Cub Cadet 751-0352

Gas Tank: 1 quart
(Superseded to TC-32660A)

$

$

Not available

10

Cub Cadet 751-0535

Fuel Line Hose

$

$

Currently unavailable

11

Cub Cadet 754-0367

V-Belt
(Superseded to 954-0367)

$29.99

$

In Stock, Qty 20+

0

12

Cub Cadet 756-0416B

V-Pulley Half
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

13

Cub Cadet 756-0550

V-Pulley

$

$

Not available

14

Cub Cadet 784-5177

Engine Support Bracket

Variations

Cub Cadet 784-5177-0637

BRACKET-EN - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet OEM-390-996

Electric Start Kit

Note: (Optional)

$

$

Not available
