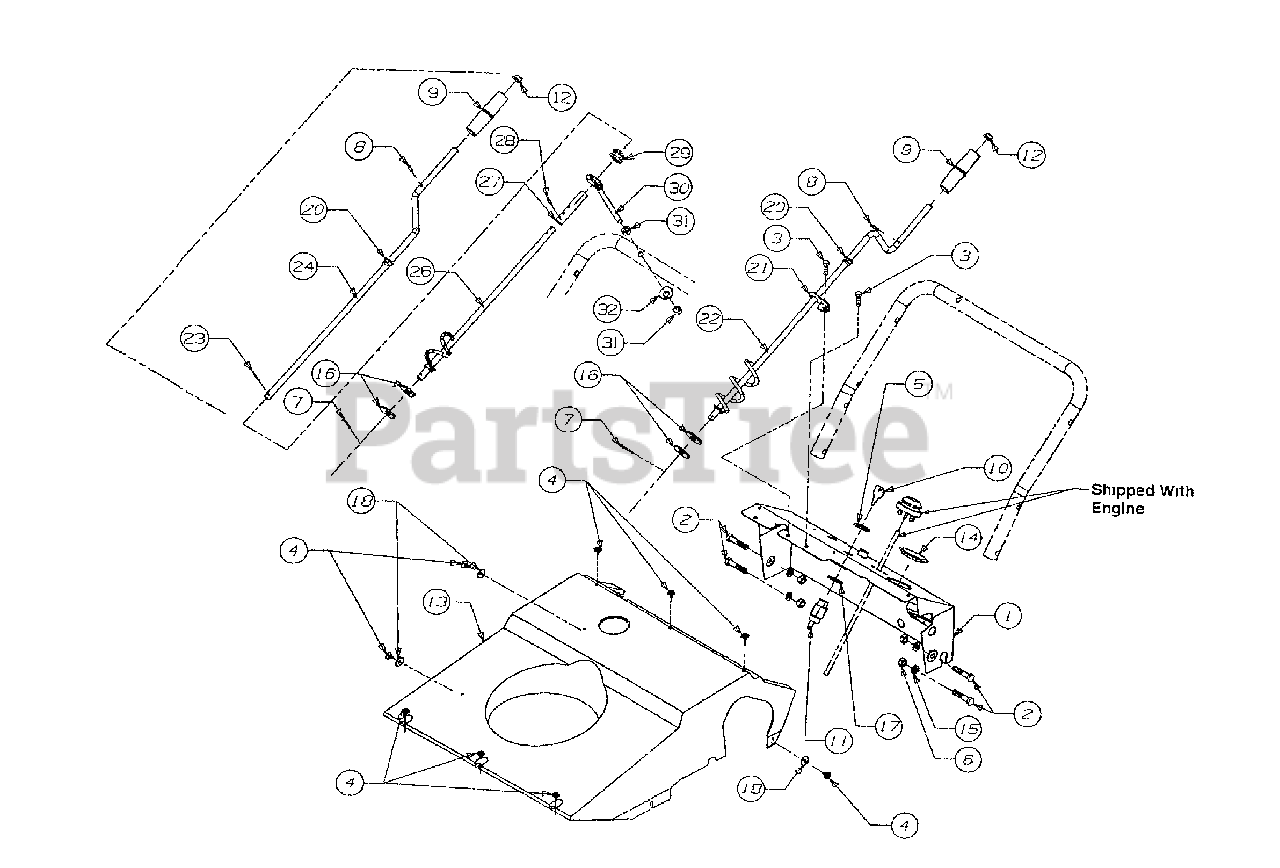

140 (31A-140-000) - Yard Machines Snow Thrower (2001) Shroud & Chute Crank Parts Diagram

Snow Thrower

Shroud & Chute Crank Parts Diagram

  • Title

1

Cub Cadet 684-0056

Dash-21"

Variations

Cub Cadet 684-0056-0498

DASH PANEL(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 684-0056-0629

PANEL-DASH - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 684-0056-0637

PANEL-DASH - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 684-0056-0638

DASH PANEL (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

2

Cub Cadet 710-1090

Hex Flange Screw

$3.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0895

Hex Tap Screw

$5.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1268

Hex Tap Screw

$3.99

$

In Stock, Qty 8

0

5

Cub Cadet 712-0252

Hex Nut

$5.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 712-3010

Hex Nut

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 714-0104

Cotter Pin

$3.99

$

In Stock, Qty 20+

0

8

UNKNOWN

$

$

Not available

9

Cub Cadet 720-0201A

Chute Crank Knob

$10.99

$

In Stock, Qty 6

0

10

Cub Cadet 725-0201

Key-Ignition
(Superseded to 925-0201)

$8.99

$

In Stock, Qty 14

0

11

Cub Cadet 725-1425

Switch-Key
(Superseded to 925-1425)

$33.99

$

In Stock, only 1 left!

0

12

Cub Cadet 726-0100

Nut Push

$3.99

$

In Stock, Qty 8

0

13

Cub Cadet 731-0702

Shroud

$

$

Not available

14

Cub Cadet 731-1133B

Plug
(Superseded to 731-1133C)

$

$

Not available

15

Cub Cadet 736-0119

Lock Washer
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0185

Flat Washer

$3.49

$

In Stock, Qty 17

0

17

Cub Cadet 736-0225

Internal Lock Washer

$3.99

$

In Stock, Qty 12

0

18

Cub Cadet 736-0400

Flat Washer

$4.99

$

In Stock, Qty 16

0

20

Cub Cadet 741-0475

Bushing
(Superseded to 941-0475)

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 784-5178A

Bracket, Chute Crank

$

$

Not available

22

Cub Cadet 784-5344

Crank Assembly, Chute

$

$

Not available

23

Cub Cadet 714-0111

Cotter Pin

Note: Optional chute crank assembly on Model 140 only

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 747-0737

Chute Crank-Upper
(Superseded to 747-0737-0637)

Note: Optional chute crank assembly on Model 140 only

Variations

Cub Cadet 747-0737-0637

Upper Chute Crank Black - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 684-0126

Chute Crank-Lower
(Superseded to 684-0126-0637)

Note: Optional chute crank assembly on Model 140 only

Variations

Cub Cadet 684-0126-0637

CRANK-CHUTE LOWER - POWDER BLACK (0637)

$

$

Not available

$

$

27

Cub Cadet 750-0785

Spacer
(Superseded to 950-0785)

Note: Optional chute crank assembly on Model 140 only

$32.99

$

Usually ships in 3-6 days

0

28

UNKNOWN

$

$

Not available

29

Cub Cadet 735-0234

Grommet - Rubber

Note: Optional chute crank assembly on Model 140 only

$4.99

$

In Stock, only 3 left!

0

30

Cub Cadet 747-0697

Eyebolt - Chute Crank

Note: Optional chute crank assembly on Model 140 only

$7.99

$

In Stock, only 1 left!

0

31

Cub Cadet 712-3010

Nut - Hex

Note: Optional chute crank assembly on Model 140 only

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0451

Washer - Saddle

Note: Optional chute crank assembly on Model 140 only

$3.99

$

In Stock, only 2 left!

0
