140-3463 - Toro Foot Assist Deck Lift Kit for Mower (2011 & After) Foot Assist Deck Lift Assembly No. 140-3463 Parts Diagram

Foot Assist Deck Lift Kit for Mower

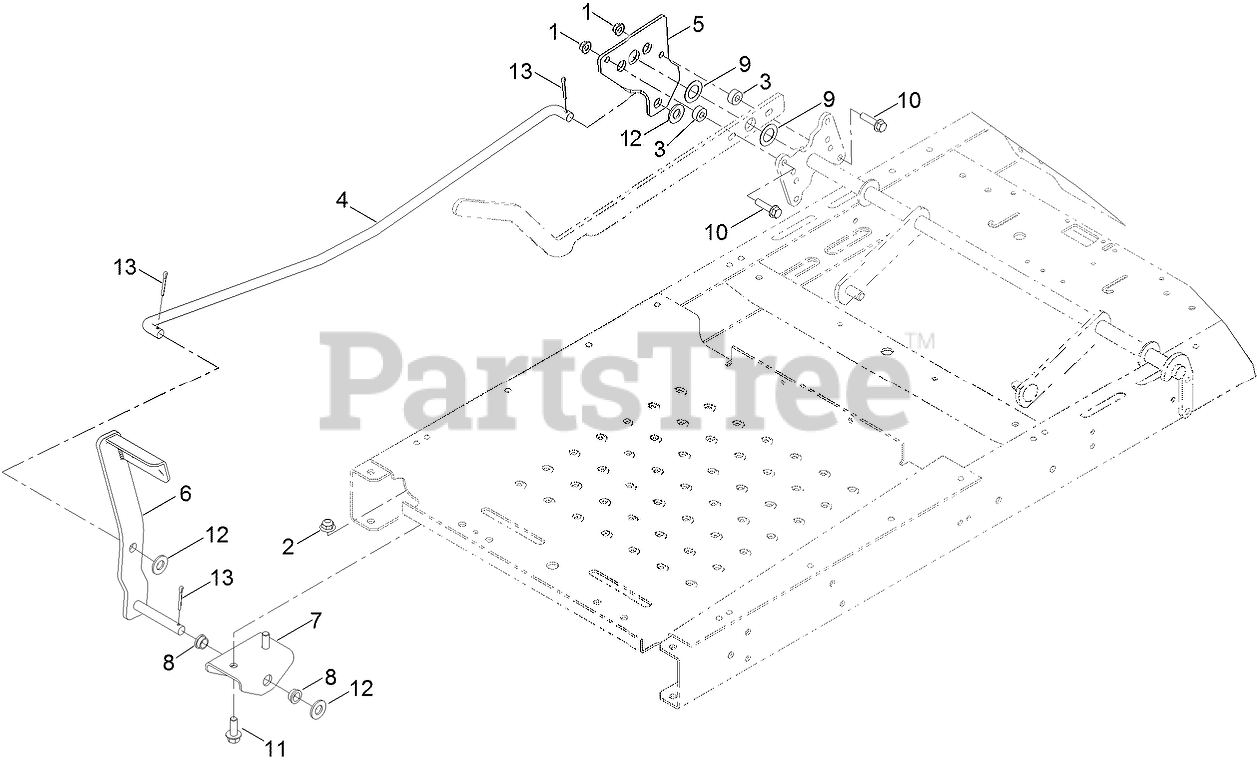

Foot Assist Deck Lift Assembly No. 140-3463 Parts Diagram

  • Title

1

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 5

0

2

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 12

0

3

Toro 140-3461

SPACER

$1.99

$

In Stock, only 2 left!

0

4

Toro 138-7238

ROD-FOOTLIFT

$

$

Currently unavailable

5

Toro 140-3462

PLATE - FOOTLIFT

$

$

Currently unavailable

6

Toro 132-6939-03

PEDAL ASM

$31.99

$

Usually ships in 3-6 days

0

7

Toro 120-2294-03

BRACKET-FOOTLIFT

$14.99

$

Usually ships in 3-6 days

0

8

Toro 256-156

BUSHING-FLANGE

$14.99

$

In Stock, only 2 left!

0

9

Toro 3-6498

WASHER-THRUST

$7.49

$

In Stock, Qty 20+

0

10

Toro 119-4036

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

11

Toro 139-2597

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

12

Toro 139-2611

WASHER-FLAT

$1.49

$

In Stock, only 1 left!

0

13

Toro 139-2614

PIN-COTTER

$1.49

$

Usually ships in 3-6 days

0
