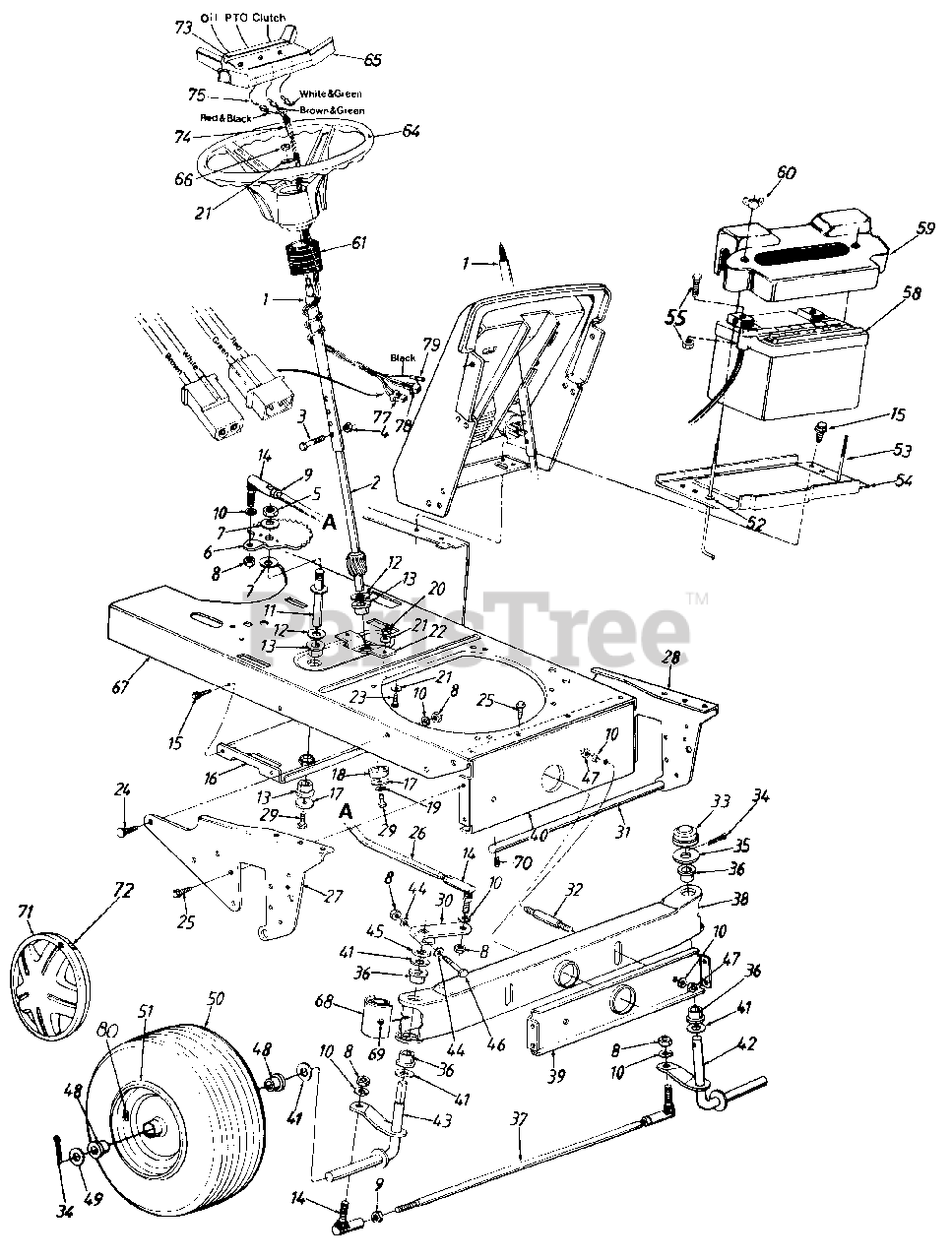

140-844H000 - MTD Garden Tractor (1990) Garden Parts Diagram

Garden Tractor

Garden Parts Diagram

  • Title

1

MTD 16512

Steering Column Ass'y.

$

$

Not available

2

MTD 738-0763

Lower Steering Shaft
(Superseded to 938-0763)

$88.99

$

In Stock, Qty 7

0

3

MTD 710-0958

Hex Bolt 1/4-20 x 1.31" Lg.
(Superseded to 710-0106)

$4.49

$

In Stock, Qty 12

0

4

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, only 4 left!

0

5

MTD 712-0337

Hex Nut 5/8-18 Thd.

$4.49

$

In Stock, only 1 left!

0

6

MTD 717-0943A

Steering Gear Segment
(Superseded to 717-0943C)

$95.99

$

In Stock, only 3 left!

0

7

MTD 736-0317

Bell-Wash. 5/8" I.D. x 1.25" O.D.

$8.49

$

In Stock, Qty 20+

0

8

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 16

0

9

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

10

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

11

MTD 738-0768

Steering Gear Segment Shaft

$

$

Not available

12

MTD 736-0187

Fl-Wash. .64" I.D. x 1.24" O.D.

$4.99

$

In Stock, Qty 20+

0

13

MTD 748-0227

Hex Flange Brg. .63" I.D.
(Superseded to 948-0227A)

$8.99

$

In Stock, Qty 16

0

14

MTD 723-3018

Ball Joint Ass'y.
(Superseded to 923-3018)

$17.99

$

In Stock, Qty 20+

0

15

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

16

MTD 16888

Deck Idler Support Brkt.
(Superseded to 16888A-0637)

$56.99

$

Usually ships in 3-6 days

0

17

MTD 736-0343

Fl-Wash. .33" I.D. x 1.25" O.D.

$4.99

$

In Stock, Qty 14

0

18

MTD 750-0532

Spacer .985" I.D. x 1.25" O.D.
(Superseded to 950-0532)

$

$

Not available

19

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$7.49

$

In Stock, Qty 8

0

21

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D

$4.99

$

In Stock, Qty 20+

0

22

MTD 16894

Bearing Retainer Brkt.

Variations

MTD 16894-0637

No Longer Available BRACKET-BE - POWDER BLACK (0637)

$

$

Not available

$

$

23

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 7

0

24

MTD 710-0793

Ribbed Neck Bolt 3/8-24 x .8" Lg.

$

$

Not available

25

MTD 710-0604

Hex Wash. TT-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.99

$

In Stock, Qty 19

0

26

MTD 747-0579

Steering Drag Link
(Superseded to 753-0674)

$

$

Not available

27

MTD 16896

Pivot Bar Side Plate R.H.

$

$

Not available

28

MTD 16897

Pivot Bar Side Plate L.H.

$

$

Not available

29

MTD 710-0538

Hex Bolt 5/16-18 x .62" Lg.

$4.99

$

In Stock, only 2 left!

0

30

MTD 16918

Steering Arm
(Superseded to 983-0061A-0637)

$40.99

$

In Stock, only 1 left!

0

31

MTD 738-0777

Deck Connecting Rod
(Superseded to 738-0777A)

$37.99

$

Usually ships in 3-6 days

0

32

MTD 738-0775

Pivot Bar Shld. Bolt 3/8-16 x 518" Lg.

$26.99

$

Usually ships in 3-6 days

0

33

MTD 731-0484A

Cap
(Superseded to 931-0484A)

$6.99

$

In Stock, Qty 20+

0

34

MTD 714-0121

Cotter Pin 5/32" Dia.
(Superseded to 914-0121)

$

$

Not available

35

MTD 736-0316

Flat Washer

$4.99

$

In Stock, Qty 15

0

36

MTD 741-0523

Flange Brg. .757" I.D.

$10.99

$

Usually ships in 3-6 days

0

37

MTD 747-0721

Tie Rod 20.25" Lg.

$

$

Not available

38

MTD 16843

Pivot Bar Assy.
(Superseded to 96843-0637)

$

$

Not available

39

MTD 16889

Pivot Bar Support Brkt. Front
(Superseded to 16889A-0637)

Variations

MTD 16889-0637

Pivot Support Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 16890

Pivot Bar Support Brkt. Rear
(Superseded to 16890A-0637)

Variations

MTD 16890-0637

Pivot Support Bracket - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

41

MTD 736-0188

Fl-Wash. .76" I.D. x 1.49" O.D.

$4.99

$

In Stock, Qty 20+

0

42

MTD 738-0783

Front Axle Ass'y. L.H.

$

$

Not available

43

MTD 738-0784

Front Axle Ass'y. R.H.

$

$

Currently unavailable

44

MTD 736-0286

Bowed Washer
(Superseded to 936-0286)

$7.49

$

In Stock, only 2 left!

0

45

MTD 748-0160

Spacer .755" I.D. x 1.25" O.D.
(Superseded to 948-0160)

$7.49

$

In Stock, Qty 9

0

46

MTD 710-0331

Hex Bolt 3/8-24 x 2.25" Lg.

$7.49

$

In Stock, Qty 5

0

47

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

48

MTD 741-3007A

Needle Brg. .75" I.D.

$

$

Not available

49

MTD 736-0316

Fl-Wash. .71" I.D. x 1.5" O.D.

$4.99

$

In Stock, Qty 15

0

50

MTD 734-1677

Wheel Ass'y. Comp.

$

$

Not available

MTD 734-0275

Tire Only

Variations

MTD 734-0275-0901

TIRE-16X6.5 - Carlisle (0901)

$

$

Not available

MTD 734-0275-0905

TIRE-16X6.5 - Duro (0905)

$

$

Not available

MTD 734-0275-0902

TIRE-16X6.5 - Dico (0902)

$

$

Not available

$114.99

$

Usually ships in 3-6 days

0

51

MTD 734-1501A

Rim Only
(Superseded to 934-0067-0662)

$

$

Not available

52

MTD 726-0271

Push Nut
(Superseded to 926-0271)

$6.49

$

In Stock, only 2 left!

0

53

MTD 711-0222

Battery Hold Down Rod
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

54

MTD 17635

Battery Support Brkt.

$

$

Not available

55

Comes w/Battery

Note: (Replace w/Bolt 1/4-20 x 1/2" Lg. and Nut)

$

$

Not available

58

MTD 725-1430

Battery (275 Cold Crank Amps)
(Superseded to 753-0608)

$

$

Not available

59

MTD 731-1132

Battery Cover

$16.99

$

In Stock, only 3 left!

0

60

MTD 712-0113

Wing Nut Plastic 1/4-20 Thd.
(Superseded to 912-0113)

$7.49

$

In Stock, only 2 left!

0

61

MTD 731-0954

Steering Bellow
(Superseded to 931-0954)

$21.99

$

Usually ships in 3-6 days

0

64

MTD 731-0806A

Steering Wheel
(Superseded to 931-0806A)

$

$

Not available

65

MTD 731-0955

Steering Wheel Insert
(Superseded to 931-0955)

$

$

Not available

66

MTD 712-0237

Hex L-Nut 5/16-24 Thd.

$5.49

$

Usually ships in 3-6 days

0

67

MTD 17359A

Lower Frame

$

$

Not available

68

MTD 731-1049

Pivot Bar End Cap

$

$

Not available

69

MTD 737-0146

Grease Fitting

$5.49

$

Usually ships in 3-6 days

0

70

MTD 714-0149B

Internal Cotter Pin

$4.99

$

In Stock, Qty 5

0

71

MTD 734-1614

Hub Cap

$

$

Not available

72

MTD 727-0425

Spring Clip
(Superseded to 927-0425A)

$

$

Not available

73

MTD 777-8122

Steering Wheel Insert Label

$

$

Currently unavailable

74

MTD 725-1364

Wire Harness

Note: (Incl. Ref. 75)

$

$

Not available

75

MTD 725-1365

Bulb
(Superseded to 925-1365)

$10.99

$

In Stock, only 2 left!

0

77

MTD 729-0139

Connector

$

$

Not available

78

MTD 729-0166

Connector

$

$

Not available

79

MTD 729-0132

Connector

$

$

Not available

80

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0
